Individual hose record
KRV19720 Hose Repair Specifications
Excavator · Case · CX145D SR W/B · Boom Assembly
Finished length850 mm
Locate this hose

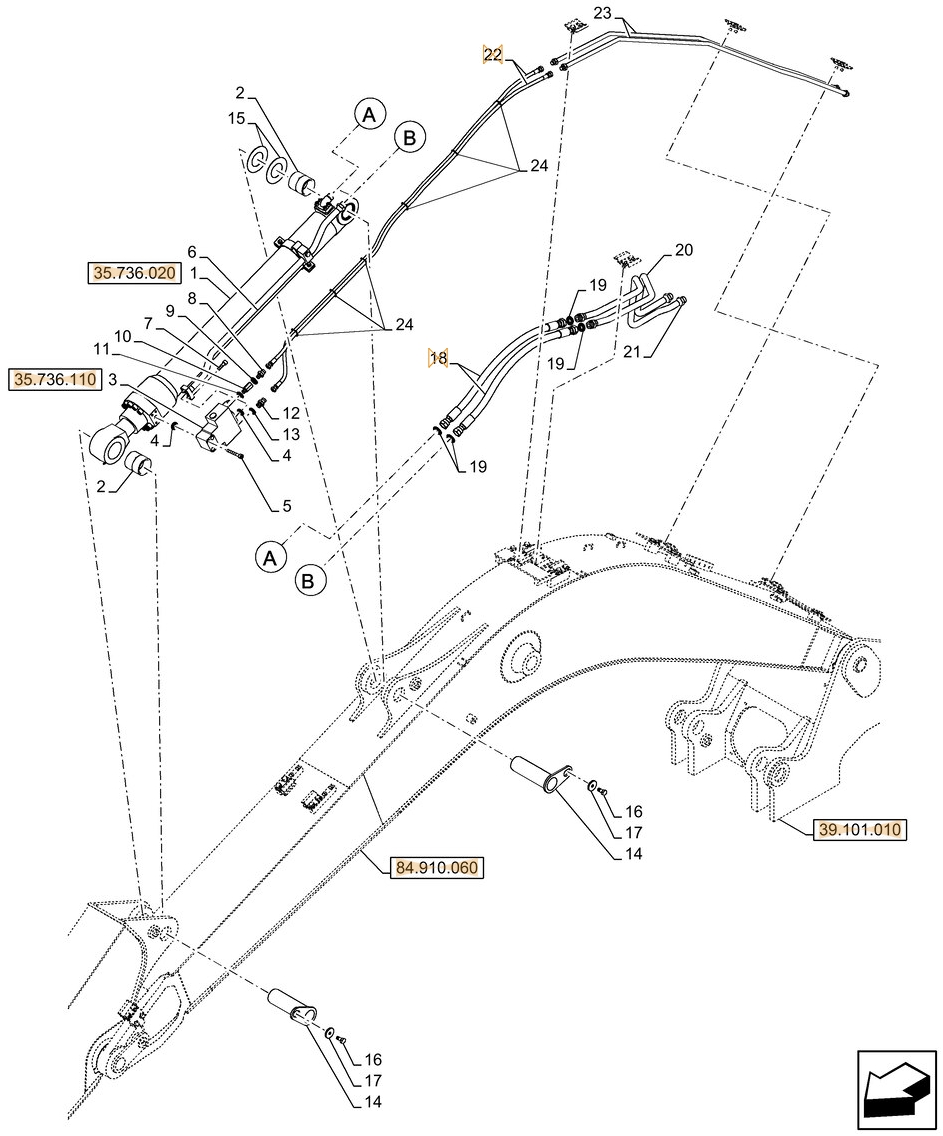

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number KRV19720 before removing the hose.
Repair specifications
- Part number
- KRV19720
- Diagram pipe number
- 18
- Installation route
- 小臂油缸
- Hose specification
- DN19;4SP-12;35MPa
- Finished length
- 850 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 英制外螺纹(美制内螺纹)平面密封
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
