Individual hose record
FF518390 Hose Repair Specifications
Excavator · Hitachi · ZX75US-5N · Attachments – Breaker
Finished length860 mm
Locate this hose

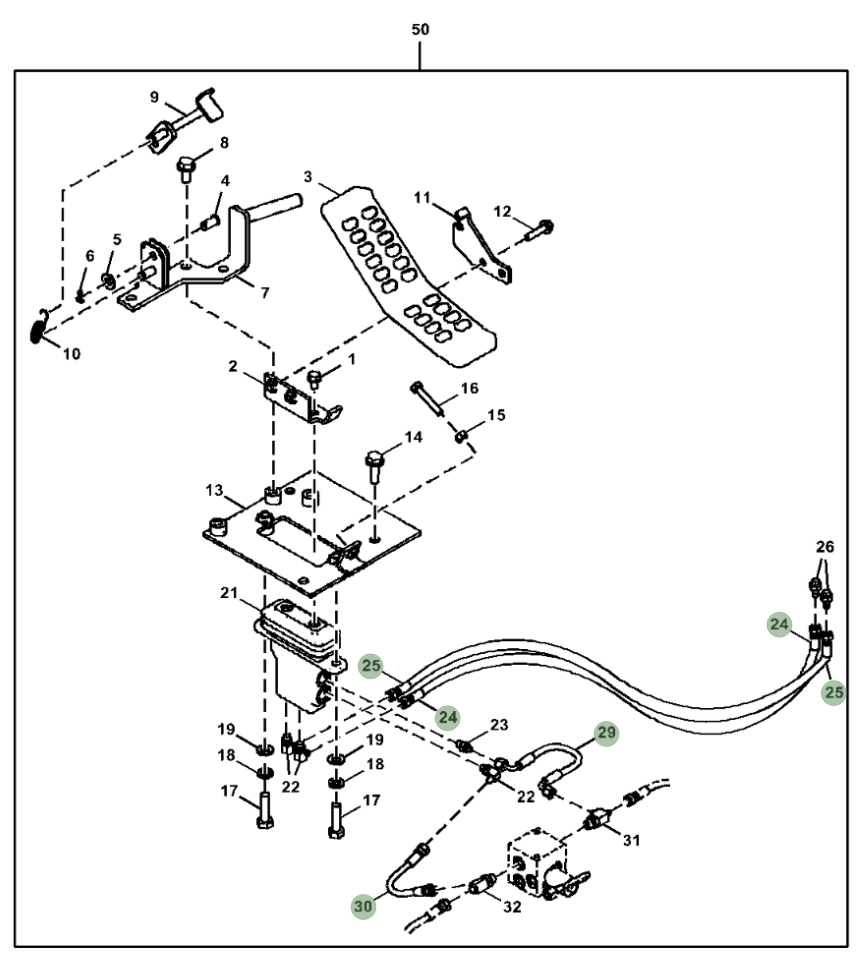

Installation diagram — Pipe No. 29
Locate Pipe No. 29 in the diagram, then confirm part number FF518390 before removing the hose.
Repair specifications
- Part number
- FF518390
- Diagram pipe number
- 29
- Installation route
- 破碎器踏板~进回油阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 860 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,350 mm
- Specification
- DN19;4SP-12;35Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
