Individual hose record

4661784 Hose Repair Specifications

Excavator · Hitachi · ZX85USB-3 · Attachments – Lock Valve

Finished length2,700 mm

Locate this hose

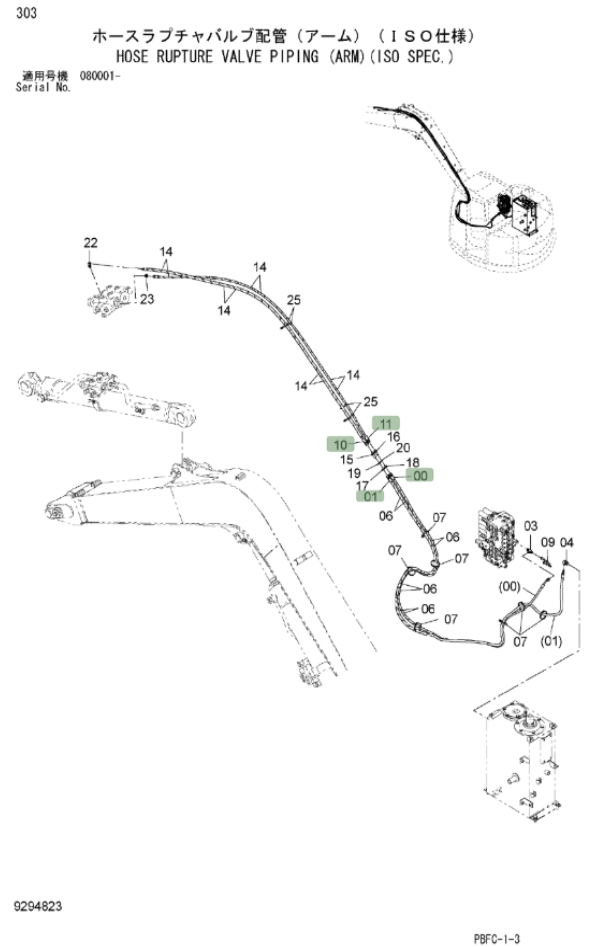

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 4661784 before removing the hose.

Hitachi ZX85USB-3 installation diagram showing hydraulic hose 4661784 at Pipe No. 11 — Hitachi ZX85USB-3Part 4661784 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 4661784
Diagram pipe number: 11
Installation route: 小臂油缸锁止阀~接头(大臂)
Hose specification: DN6;1SN-4;7Mpa
Finished length: 2,700 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 42

4705861

Installation route: 分节大臂油缸锁止阀

Length: 1,100 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4705860

Installation route: 大臂(锁止阀)~接线板(大臂)

Length: 1,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
