Individual hose record

4656047 Hose Repair Specifications

Excavator · Hitachi · ZX190W-3 · Swing Motor

Finished length2,400 mm

Locate this hose

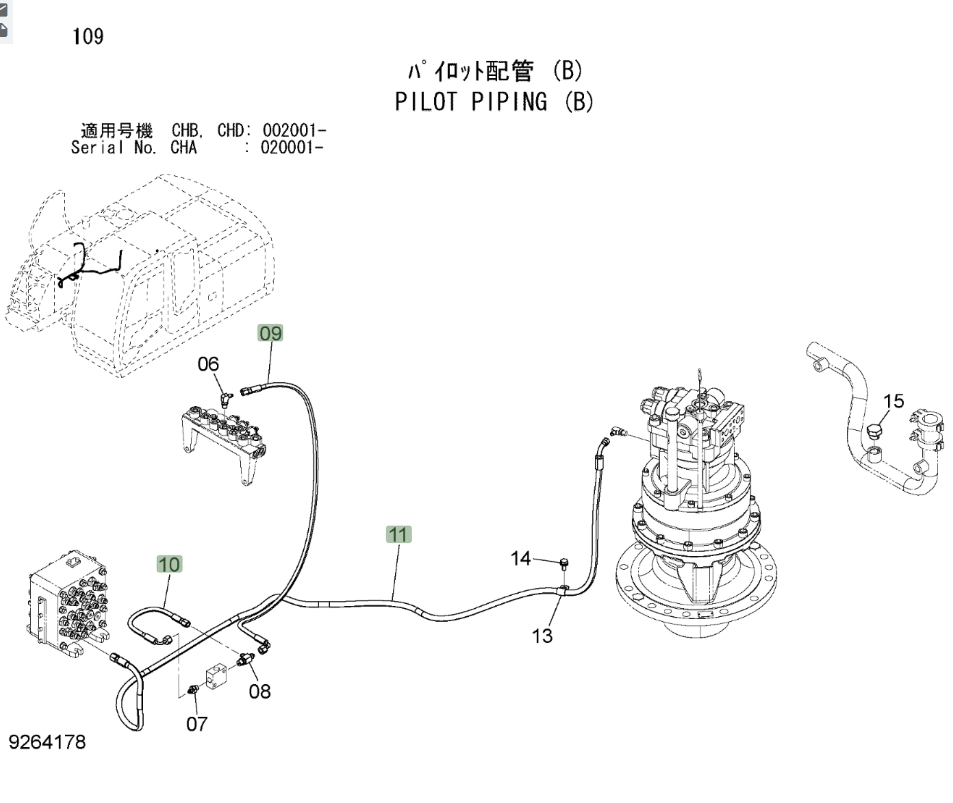

Installation diagram — Pipe No. 11A

Locate Pipe No. 11A in the diagram, then confirm part number 4656047 before removing the hose.

Hitachi ZX190W-3 installation diagram showing hydraulic hose 4656047 at Pipe No. 11A — Hitachi ZX190W-3Part 4656047 · Pipe No. 11AOpen full-size diagram

Repair specifications

Part number: 4656047
Diagram pipe number: 11A
Installation route: 回转马达~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 2,400 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 22

4474678

Installation route: 回转马达~回油铁管(分配阀)

Length: 550 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
