Individual hose record

8R-0944 Hose Repair Specifications

Excavator · Caterpillar · CAT®215D · Control Lever

Finished length687 mm

Locate this hose

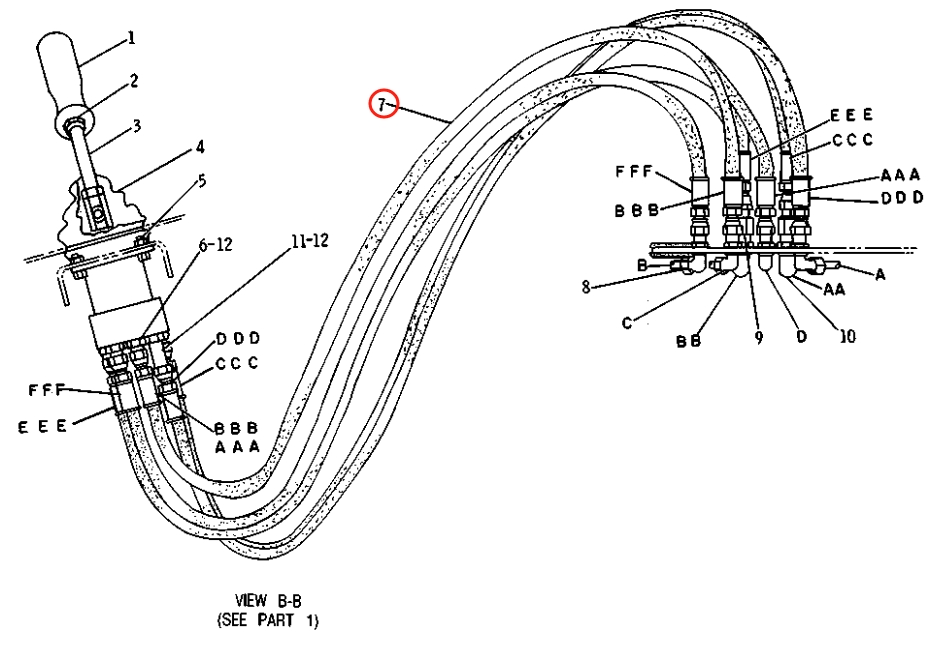

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 8R-0944 before removing the hose.

Caterpillar CAT®215D installation diagram showing hydraulic hose 8R-0944 at Pipe No. 7 — Caterpillar CAT®215DPart 8R-0944 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 8R-0944
Diagram pipe number: 7
Installation route: 左手柄~中转接头
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 687 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 6

Same system

Related Hoses

Diagram Pipe No. 16

5C-3426

Installation route: 中转接头~回油铁管

Length: 520 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 12

8R-0944

Installation route: 右手柄~中转接头

Length: 687 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
