Individual hose record

288-7723 Hose Repair Specifications

Excavator · Caterpillar · CAT®312D · Attachments – Breaker

Finished length1,450 mm

Locate this hose

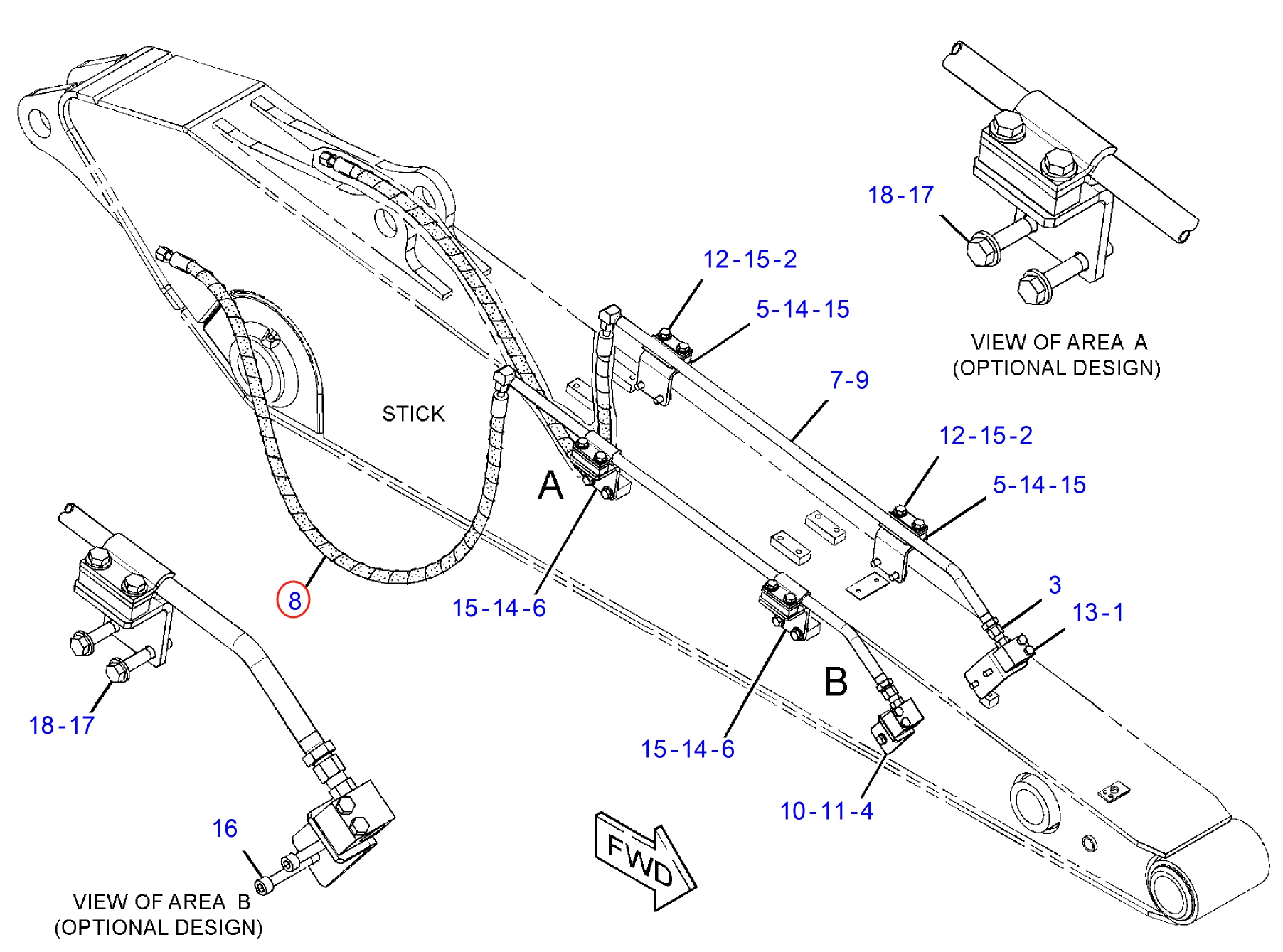

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 288-7723 before removing the hose.

Part number: 288-7723
Diagram pipe number: 8
Installation route: 小臂破碎器截止阀
Hose specification: DN13;4SP-8;28Mpa
Finished length: 1,450 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 12

Installation route: 分配阀后左~右过渡阀块(破碎器)

Length: 1,900 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)

Length: 520 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 小臂破碎器截止阀左

Length: 1,500 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
