Individual hose record
KAV0390 Hose Repair Specifications
Excavator · Case · CX145D SR W/B · Swivel Joint
Finished length750 mm
Locate this hose

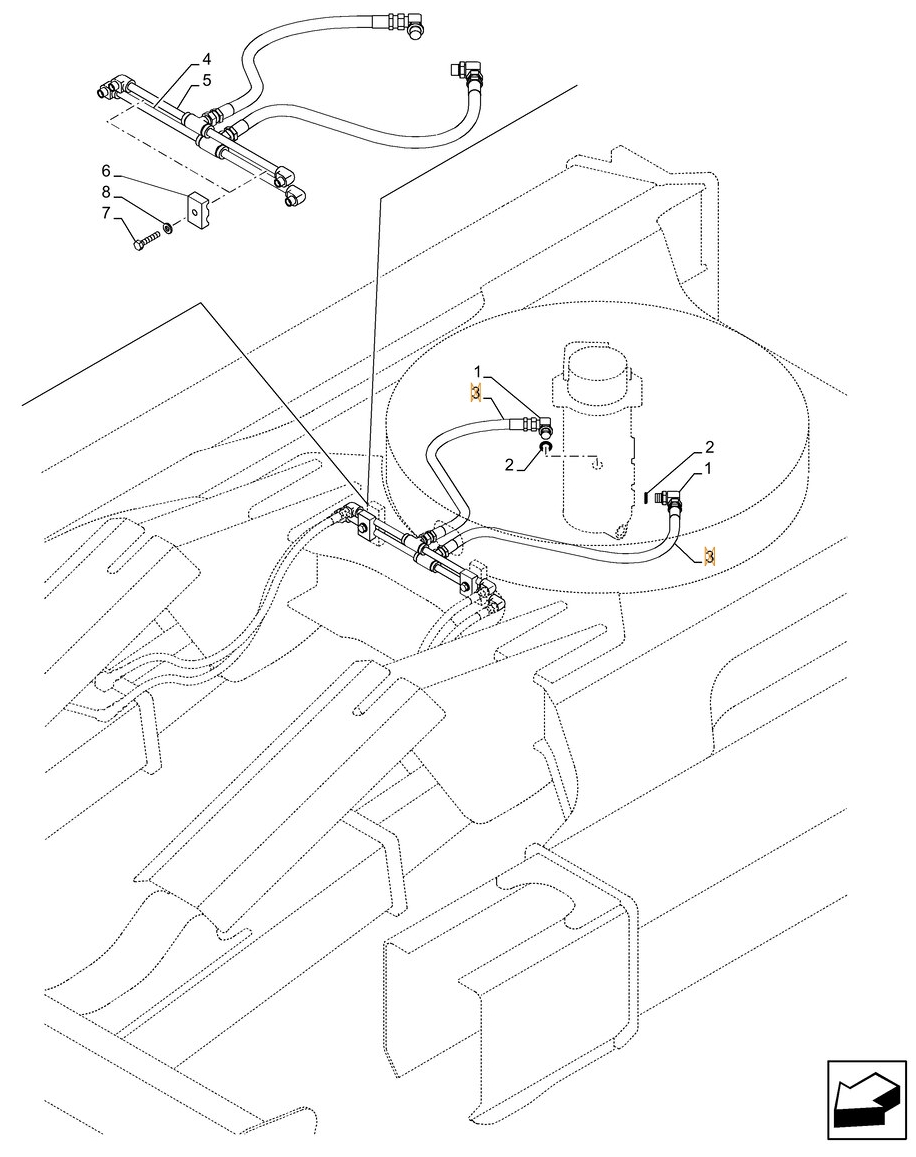

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number KAV0390 before removing the hose.
Repair specifications
- Part number
- KAV0390
- Diagram pipe number
- 3
- Installation route
- 回转接头~推土铲铁管
- Hose specification
- DN13;4SH-08;41.5MPa
- Finished length
- 750 mm
- Working pressure
- 41.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 2
For reference only. Confirm the actual hose before fabrication.
