Individual hose record
4474673 Hose Repair Specifications
Excavator · Hitachi · ZX180W · Attachments – Breaker
Finished length600 mm
Locate this hose

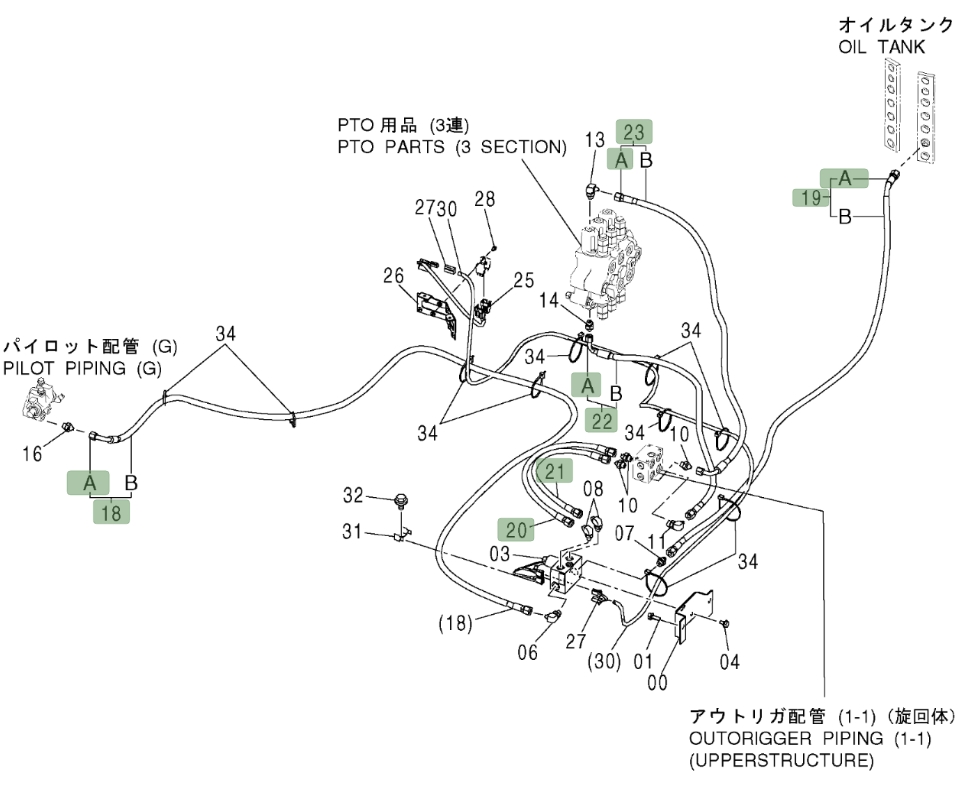

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4474673 before removing the hose.
Repair specifications
- Part number
- 4474673
- Diagram pipe number
- 21
- Installation route
- 电磁阀(破碎器)~过渡阀块(支腿架)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 600 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
