Individual hose record

DS2094353 Hose Repair Specifications

Excavator · Doosan · DX80R · Attachments

Finished length3,330 mm

Locate this hose

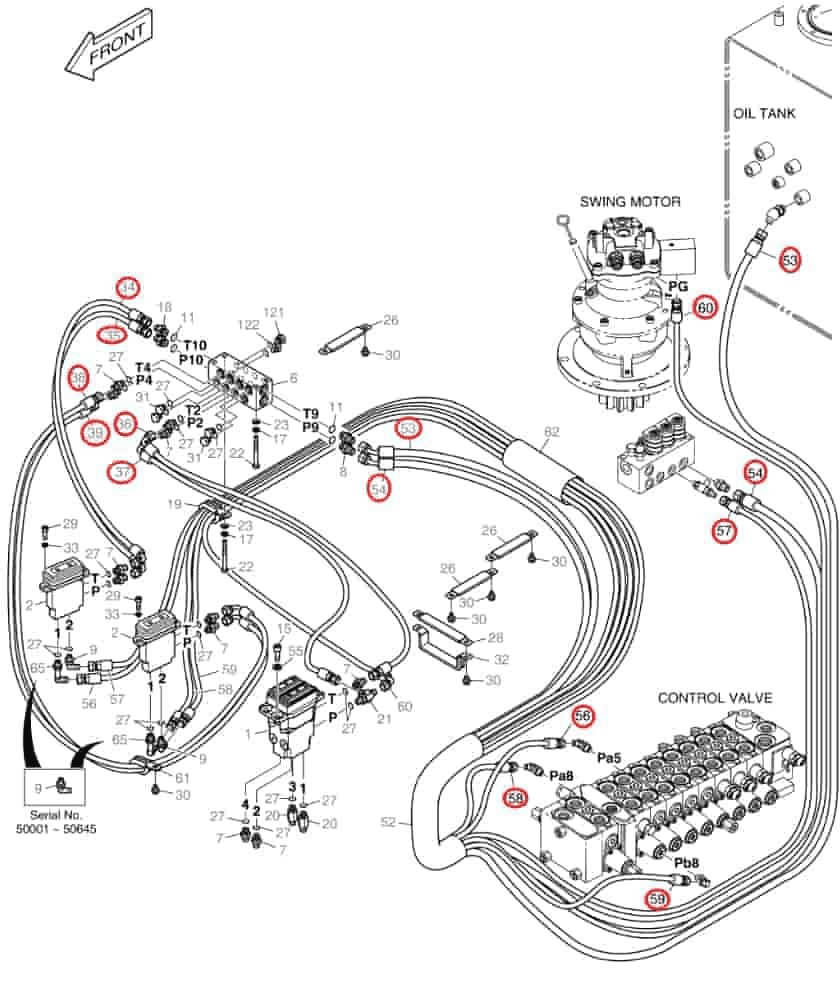

Installation diagram — Pipe No. 57

Locate Pipe No. 57 in the diagram, then confirm part number DS2094353 before removing the hose.

Doosan DX80R installation diagram showing hydraulic hose DS2094353 at Pipe No. 57 — **Doosan DX80R**Part DS2094353 · Pipe No. 57Open full-size diagram

Repair specifications

Part number: DS2094353
Diagram pipe number: 57
Installation route: 大臂摆动踏板2口~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,330 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 50

DS20531211

Installation route: 散热器上~铁管(散热器)

Length: 920 mm
Specification: DN25;1SN-16;8.8MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 5

DS2055830

Installation route: 回转接头~推土铲油缸

Length: 1,260 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 90

DS2094363

Installation route: 减压阀~铁管(液压泵旁)

Length: 440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 5

DS2093651

Installation route: 大臂(附加装置)~分配阀B10口

Length: 2,930 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 46

DS2094189

Installation route: 推土铲手柄2口~分配阀PA4口

Length: 2,575 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 47

DS2092030

Installation route: 推土铲手柄1口~分配阀PB4口

Length: 2,350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 90

DS2094377

Installation route: 减压阀~铁管(液压泵旁)

Length: 410 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 33

DS2093249

Installation route: 分节油缸踏板1口~分配阀PA10口

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
