Individual hose record
KLJ10660 Hose Repair Specifications
Excavator · Case · CX180B · Boom Assembly
Finished length750 mm
Locate this hose

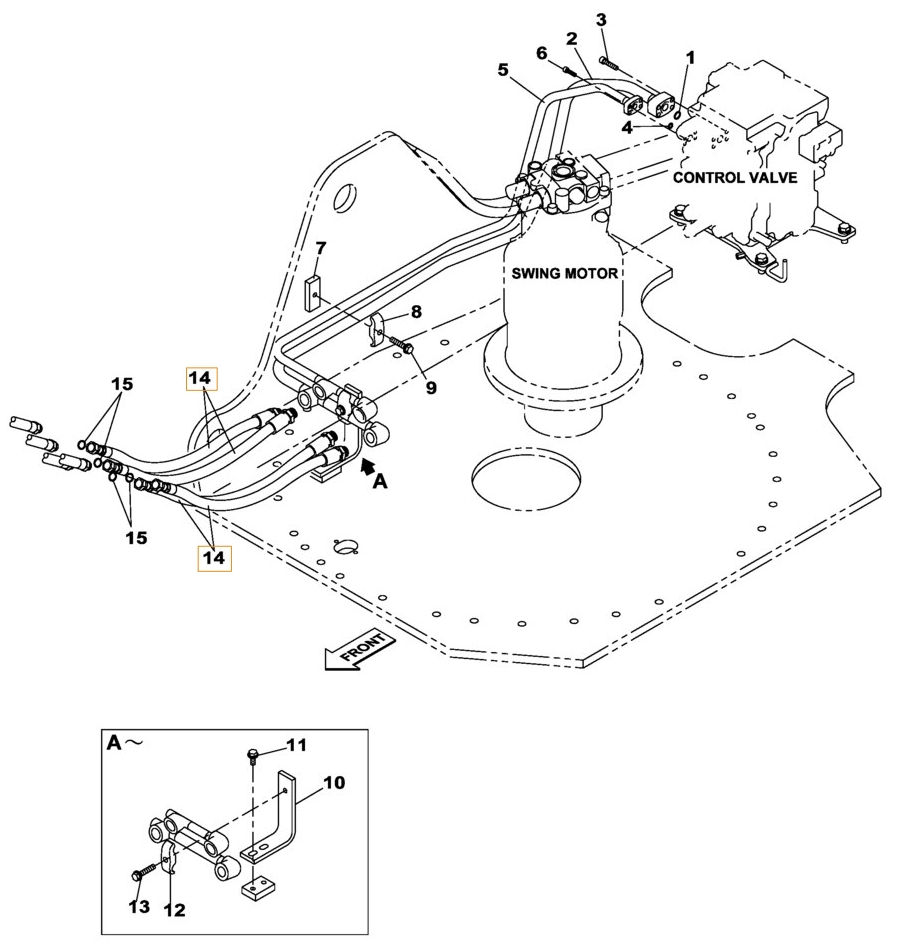

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number KLJ10660 before removing the hose.
Repair specifications
- Part number
- KLJ10660
- Diagram pipe number
- 14
- Installation route
- 大臂油缸
- Hose specification
- DN16;4SP-10;38MPa
- Finished length
- 750 mm
- Working pressure
- 38 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 英制外螺纹平面密封
- Quantity
- 4
For reference only. Confirm the actual hose before fabrication.
