Individual hose record
8U-6184 Hose Repair Specifications
Excavator · Caterpillar · CAT®206B · Boom Assembly
Finished length960 mm
Locate this hose

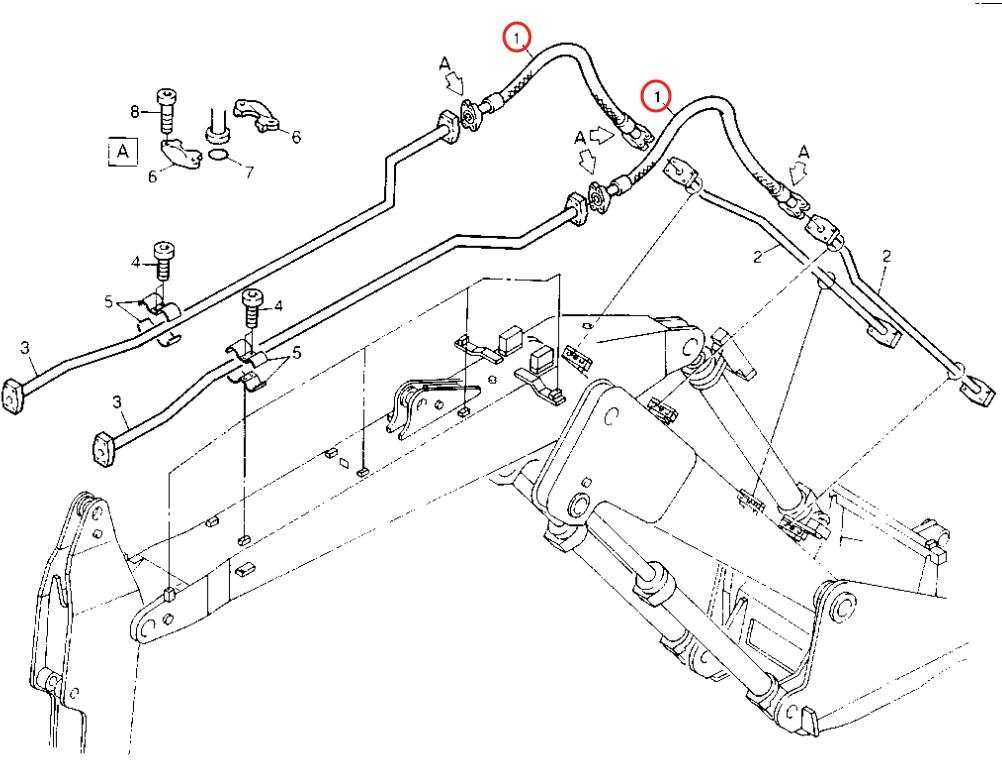

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 8U-6184 before removing the hose.
Repair specifications
- Part number
- 8U-6184
- Diagram pipe number
- 1
- Installation route
- 大臂(前段)~大臂(后段)
- Hose specification
- DN16;6SH-10;42Mpa
- Finished length
- 960 mm
- Working pressure
- 42 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 2
