Individual hose record
168025A1 Hose Repair Specifications
Excavator · Case · CX350 · Attachments – Lock Valve
Finished length2,150 mm
Locate this hose

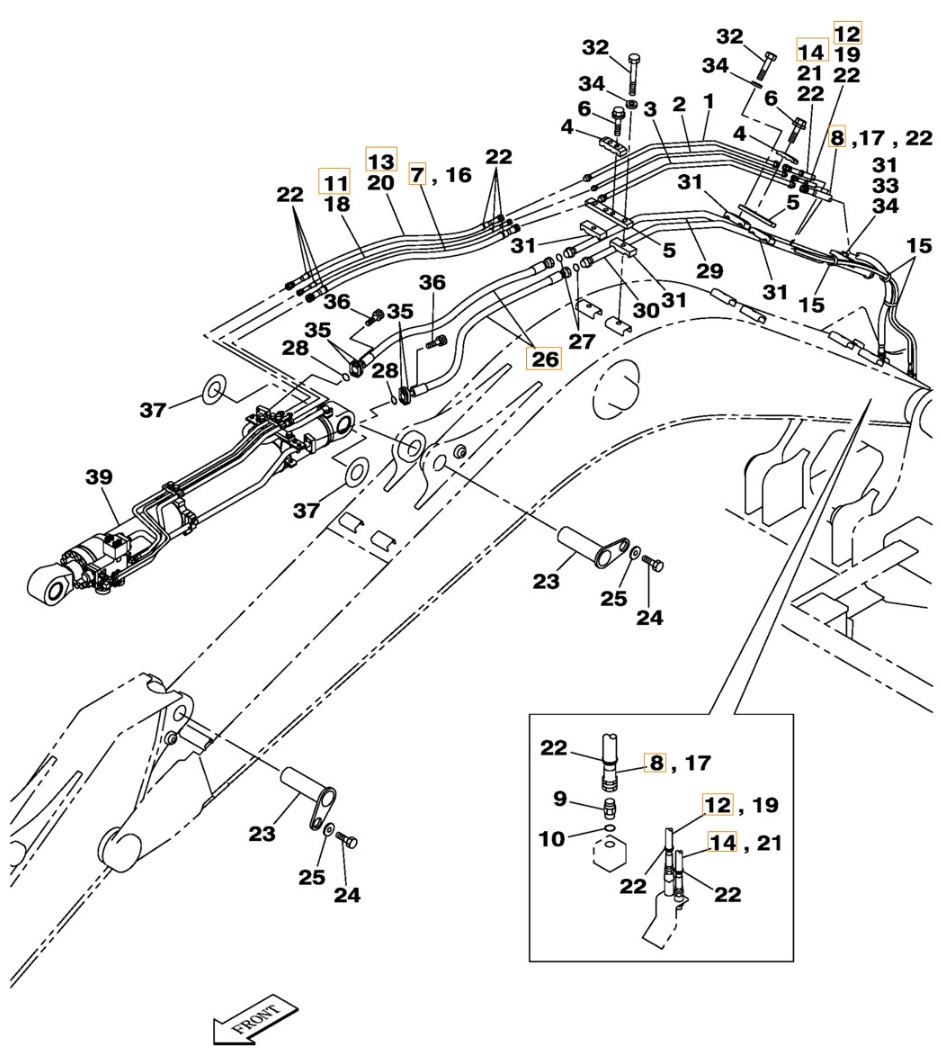

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 168025A1 before removing the hose.
Repair specifications
- Part number
- 168025A1
- Diagram pipe number
- 12
- Installation route
- 大臂(小臂油缸锁止阀)~接头(大臂底部)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 2,150 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
