Individual hose record

DS2093658 Hose Repair Specifications

Excavator · Doosan · DX60R · Swivel Joint

Finished length1,380 mm

Locate this hose

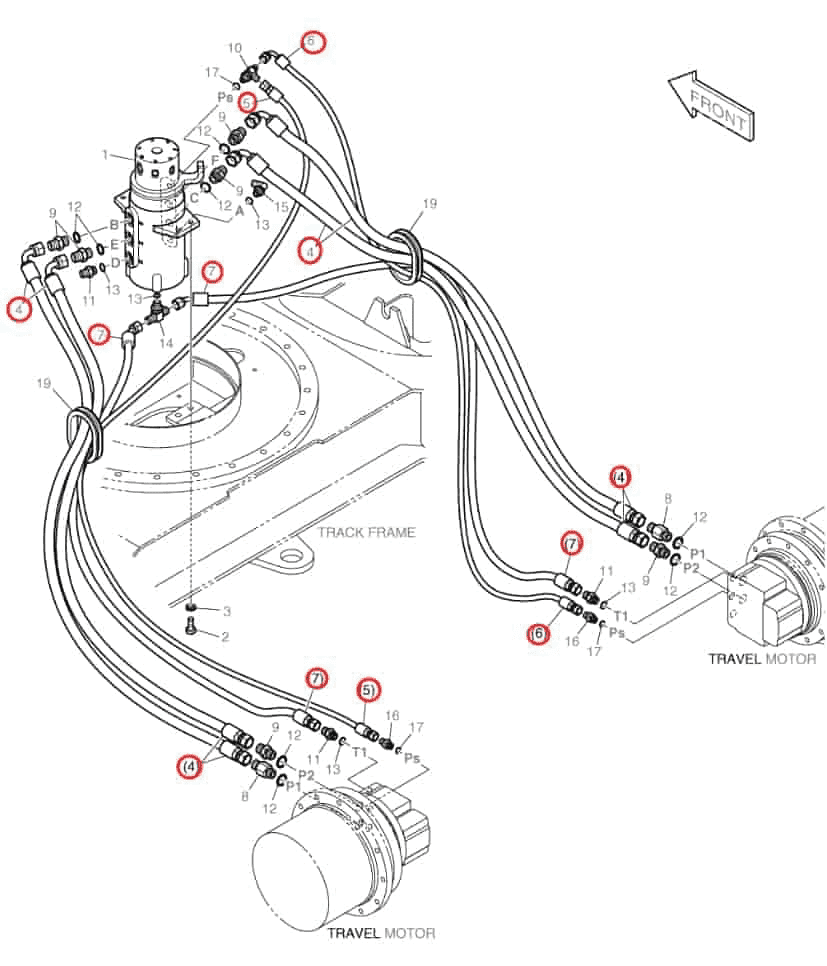

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number DS2093658 before removing the hose.

Part number: DS2093658
Diagram pipe number: 6
Installation route: 回转接头PS口~行走马达PS口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,380 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 7

Installation route: 回转接头下~行走马达T2口

Length: 1,360 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 21

Installation route: 回转接头T口~进回油阀T9口

Length: 745 mm
Specification: DN10;2SN-06;33MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 7

Installation route: 回转接头下~行走马达T1口

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
