Individual hose record

7N-3761 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Fuel Lines

Finished length298 mm

Locate this hose

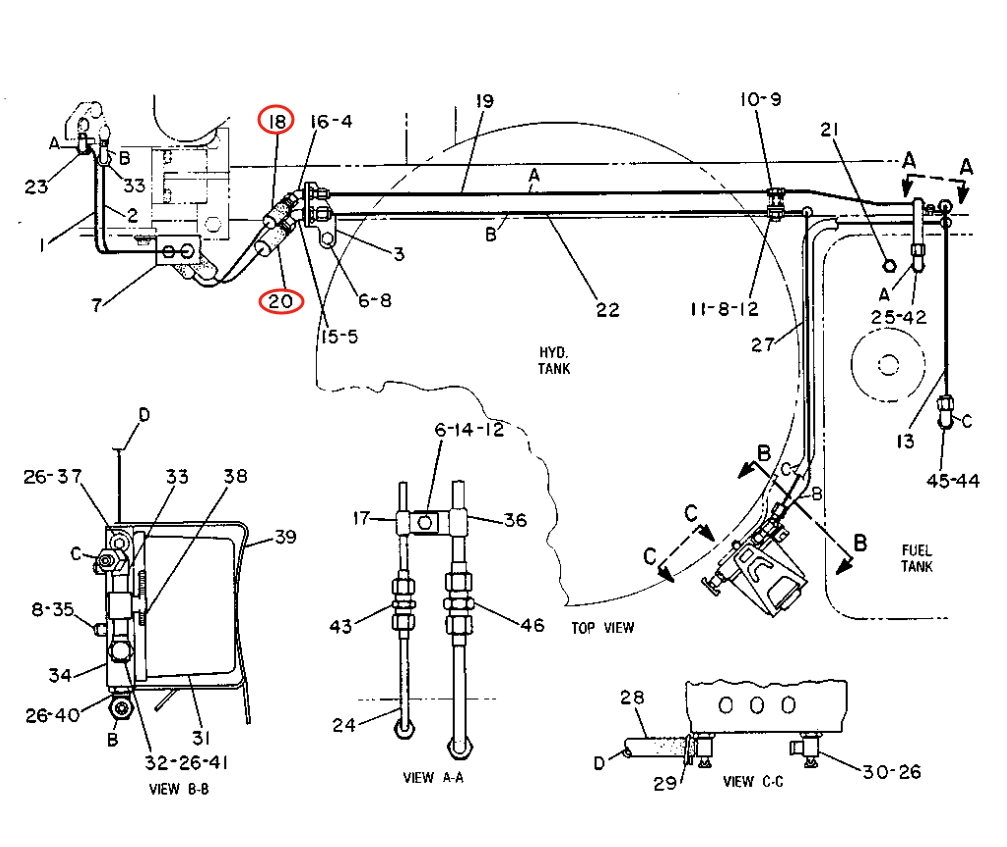

Installation diagram — Pipe No. 20

Locate Pipe No. 20 in the diagram, then confirm part number 7N-3761 before removing the hose.

Caterpillar CAT®225B installation diagram showing hydraulic hose 7N-3761 at Pipe No. 20 — Caterpillar CAT®225BPart 7N-3761 · Pipe No. 20Open full-size diagram

Repair specifications

Part number: 7N-3761
Diagram pipe number: 20
Installation route: 燃油泵~燃油箱
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 298 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

3T-3848

Installation route: 燃油泵~燃油箱

Length: 330 mm
Specification: DN6;1SN-4;19.2Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
