Individual hose record

730502009176 Hose Repair Specifications

Excavator · Sunward · SWE750F · Solenoid Valve

Finished length1,400 mm

Locate this hose

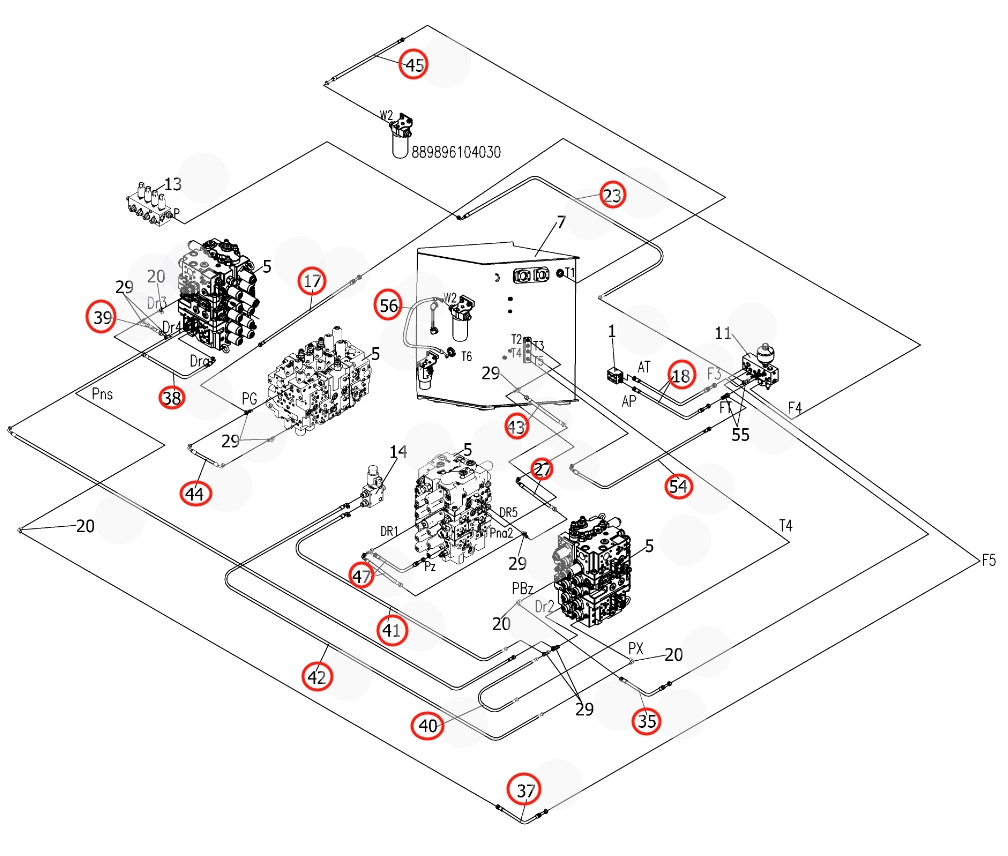

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number 730502009176 before removing the hose.

Sunward SWE750F installation diagram showing hydraulic hose 730502009176 at Pipe No. 23 — Sunward SWE750FPart 730502009176 · Pipe No. 23Open full-size diagram

Repair specifications

Part number: 730502009176
Diagram pipe number: 23
Installation route: 电磁阀(蓄能器)FT~四联比例阀P
Hose specification: DN10;1SN-06;20.7MPa
Finished length: 1,400 mm
Working pressure: 20.7 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

730502007490

Installation route: 电磁阀(蓄能器)FT~进回油阀AT

Length: 2,300 mm
Specification: DN10;1SN-06;20.7MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 18

730502007490

Installation route: 电磁阀(蓄能器)F3~进回油阀AP

Length: 2,300 mm
Specification: DN10;1SN-06;20.7MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
