Case CX130-3 Hose Length & Fitting Data

Coverage details
Hoses
1 records
Full specifications
1 records
Systems
1 systems
Length range
520–520 mm

Current machine

Find a hose on this machine

Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.

Search another machine

Hose repair details

Hose Length and Fitting List

Hose record

KNJ2767

Installation route: 回转马达—回油铁管

Length
520 mm
Specification
13I
Left fitting
1/2″ D型 0°（手写接头规格）
Right fitting
1/2″ D型 45°（手写接头规格）
View full repair specifications

Digitized data and source sheets

Case CX130-3 Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Case CX130-3 workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
10KNJ2513650 mm
1522T0A2,600 mm
15275A1,000 mm
16159A1430 mm
16271A11,650 mm
16841AL650 mm
150963HL1,650 mm
152604A11,600 mm
152704A11,800 mm
153484A11,700 mm
159213A1,150 mm
159213A11,150 mm
159214A11,200 mm
164233A11,450 mm
168025A2,150 mm
KAJ31842,200 mm
KAJ324112,150 mm
KAJ3524950 mm
KAV0390750 mm
KHJ1168350 mm
KHJ16081,450 mm
KLJ0257400 mm
KMJ18392,700 mm
KNJ2507780 mm
KNJ25231,060 mm
KNJ2533950 mm
KNJ2634650 mm
KNJ2750800 mm
KNJ2767520 mm
KNJ2839850 mm
KNJ3006550 mm
KNT25181,030 mm
KRJ43362,200 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

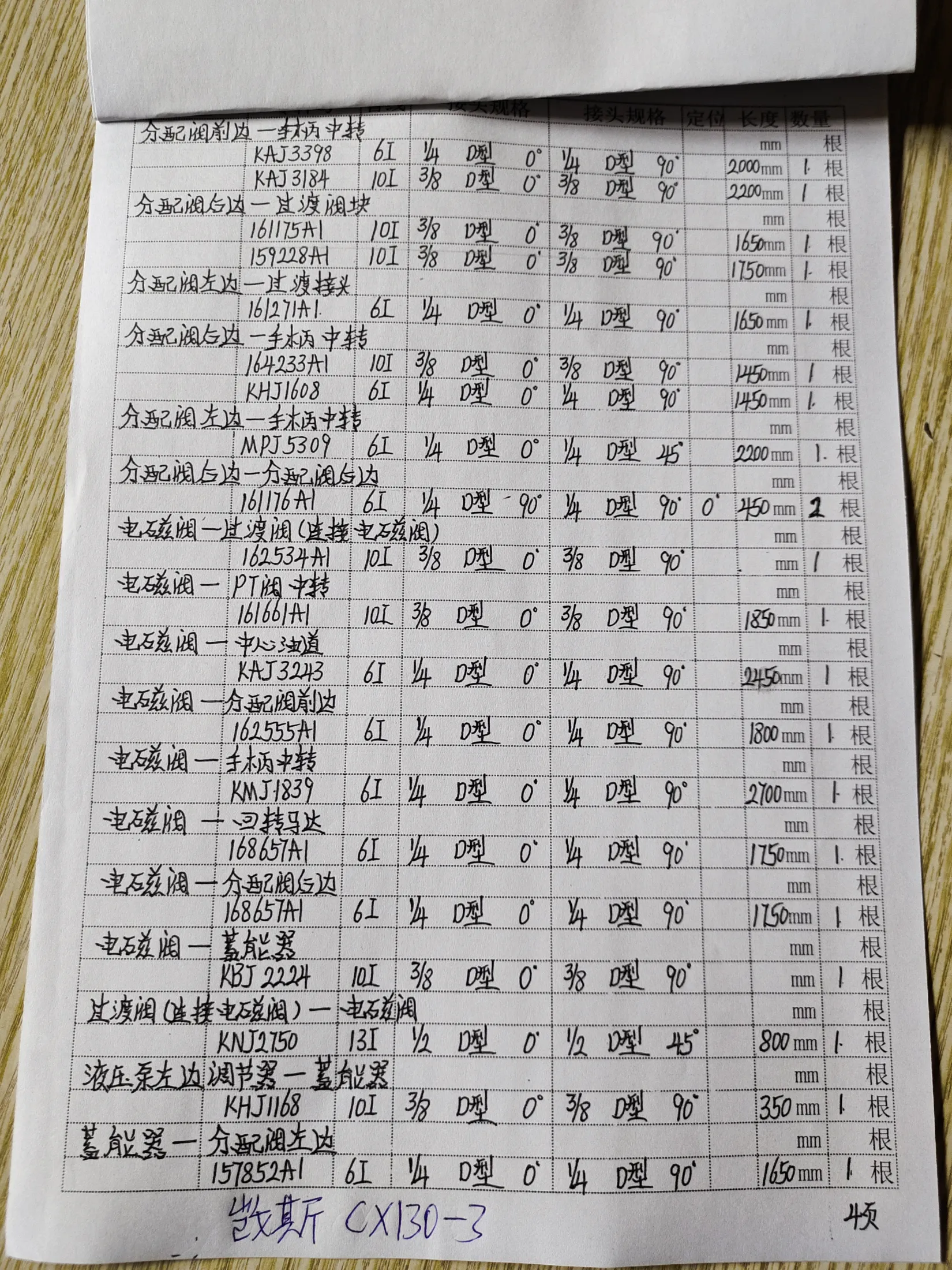

Case CX130-3 hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5 — recorded hose parts 16271A1, 164233A1, KAJ3184
Notebook page 4 of 5Recorded on this sheet: 16271A1 — 1,650 mm; 164233A1 — 1,450 mm; KAJ3184 — 2,200 mm; KHJ1168 — 350 mm; and 2 more recorded hoses.

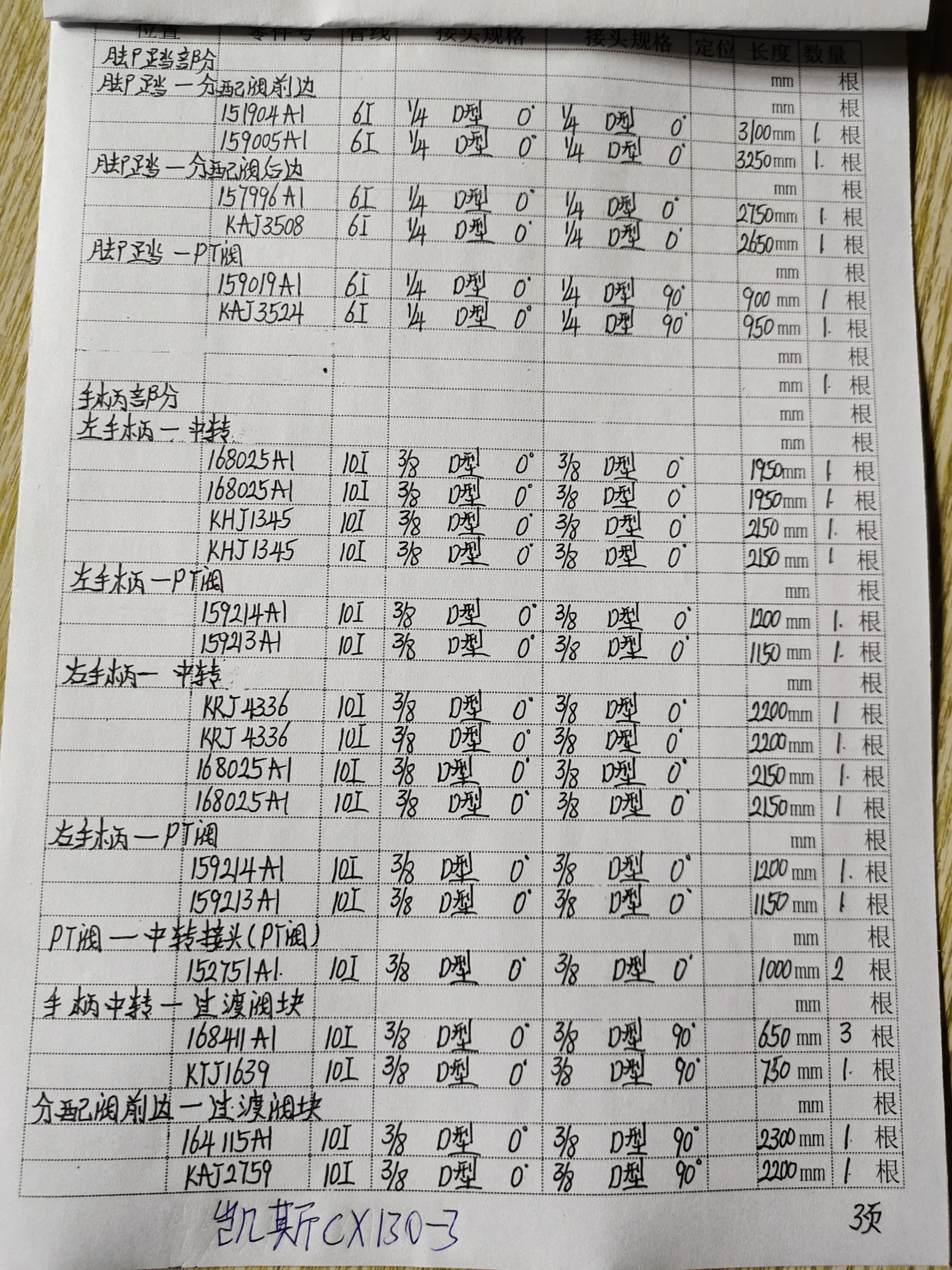

Case CX130-3 hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5 — recorded hose parts 15275A, 159213A, 159213A1
Notebook page 3 of 5Recorded on this sheet: 15275A — 1,000 mm; 159213A — 1,150 mm; 159213A1 — 1,150 mm; 159214A1 — 1,200 mm; and 4 more recorded hoses.

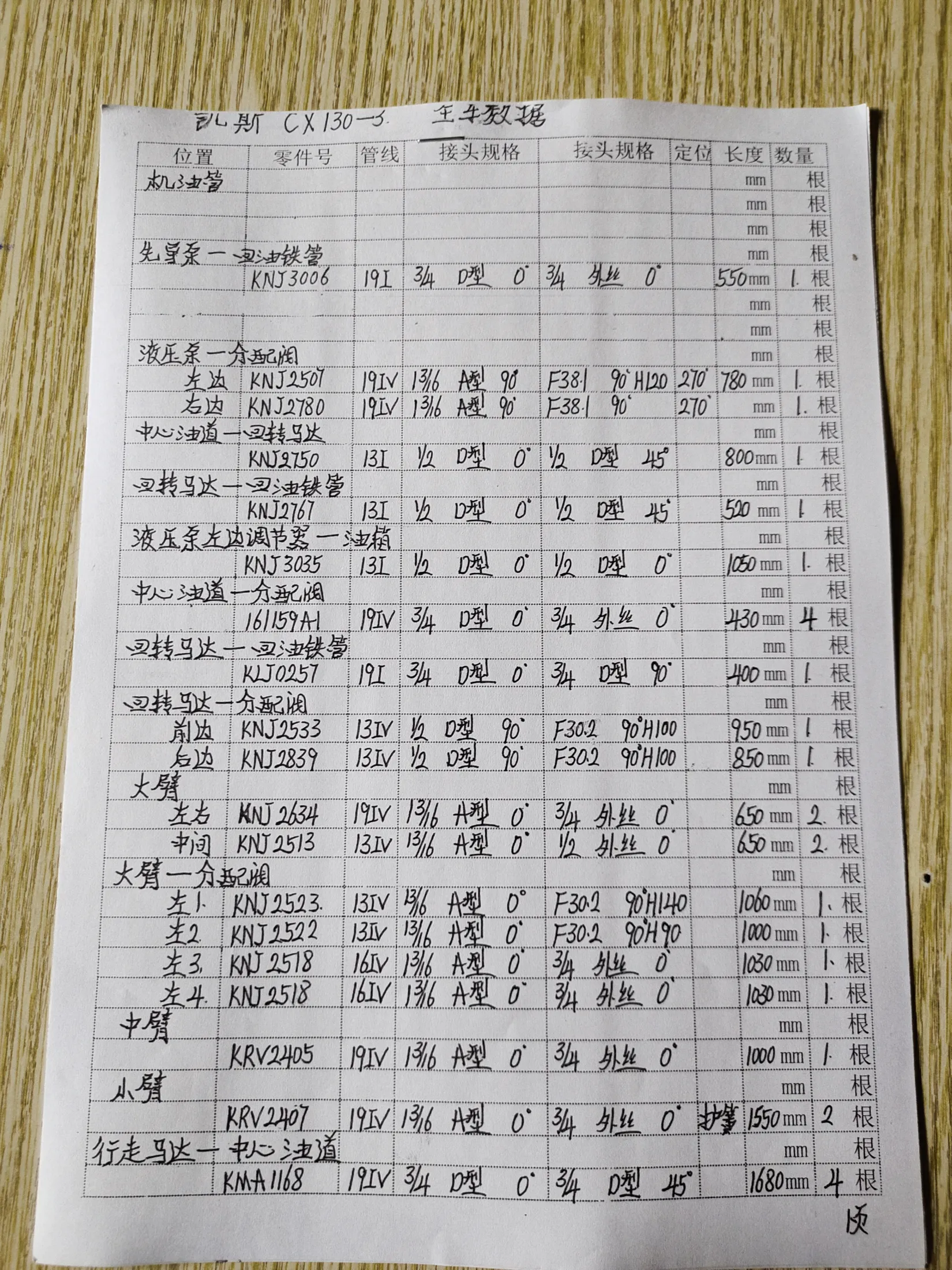

Case CX130-3 hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5 — recorded hose parts 10KNJ2513, 16159A1, KLJ0257
Notebook page 1 of 5Recorded on this sheet: 10KNJ2513 — 650 mm; 16159A1 — 430 mm; KLJ0257 — 400 mm; KNJ2507 — 780 mm; and 7 more recorded hoses.

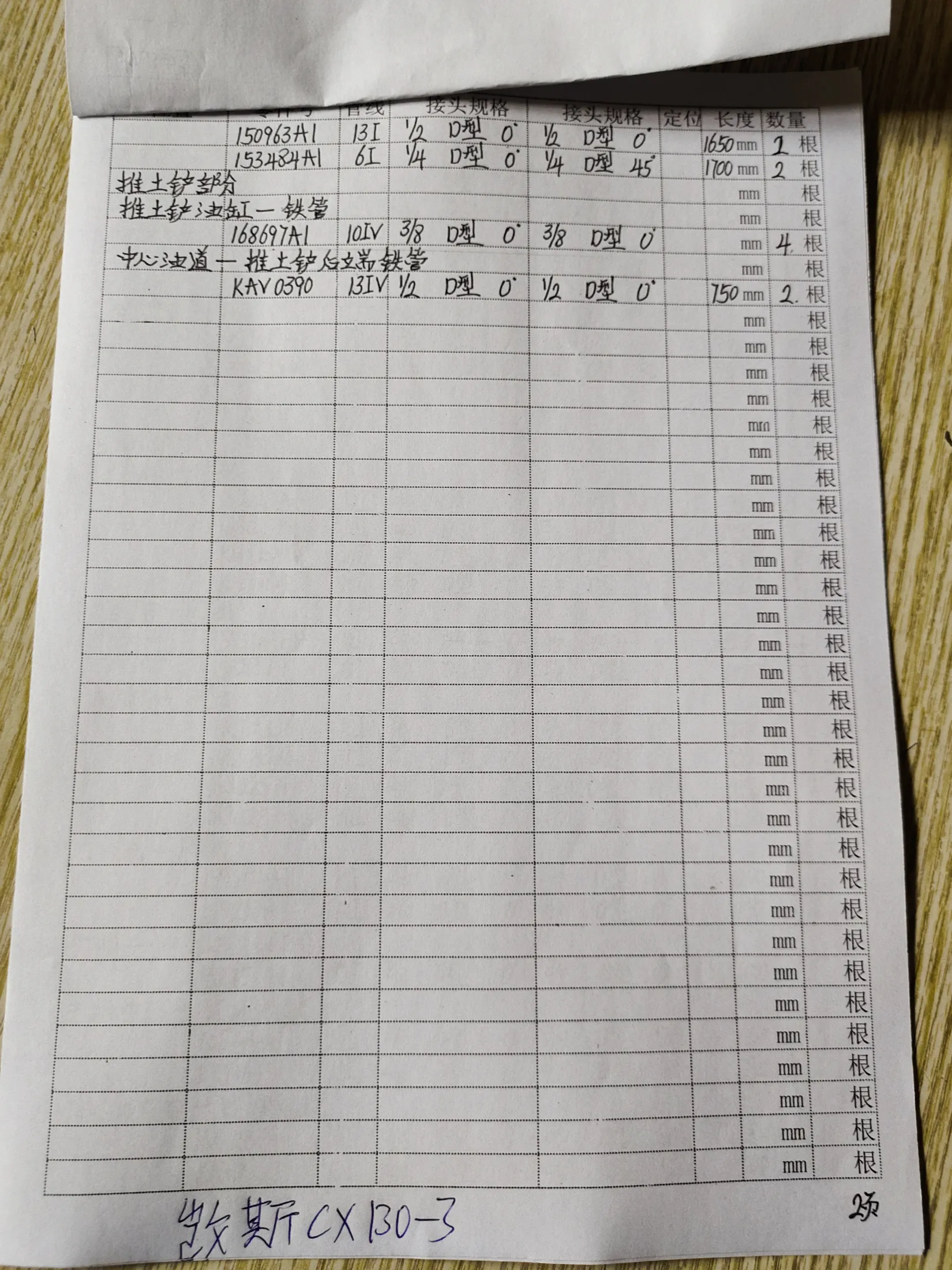

Case CX130-3 hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5 — recorded hose parts 150963HL, 153484A1, KAV0390
Notebook page 2 of 5Recorded on this sheet: 150963HL — 1,650 mm; 153484A1 — 1,700 mm; KAV0390 — 750 mm.

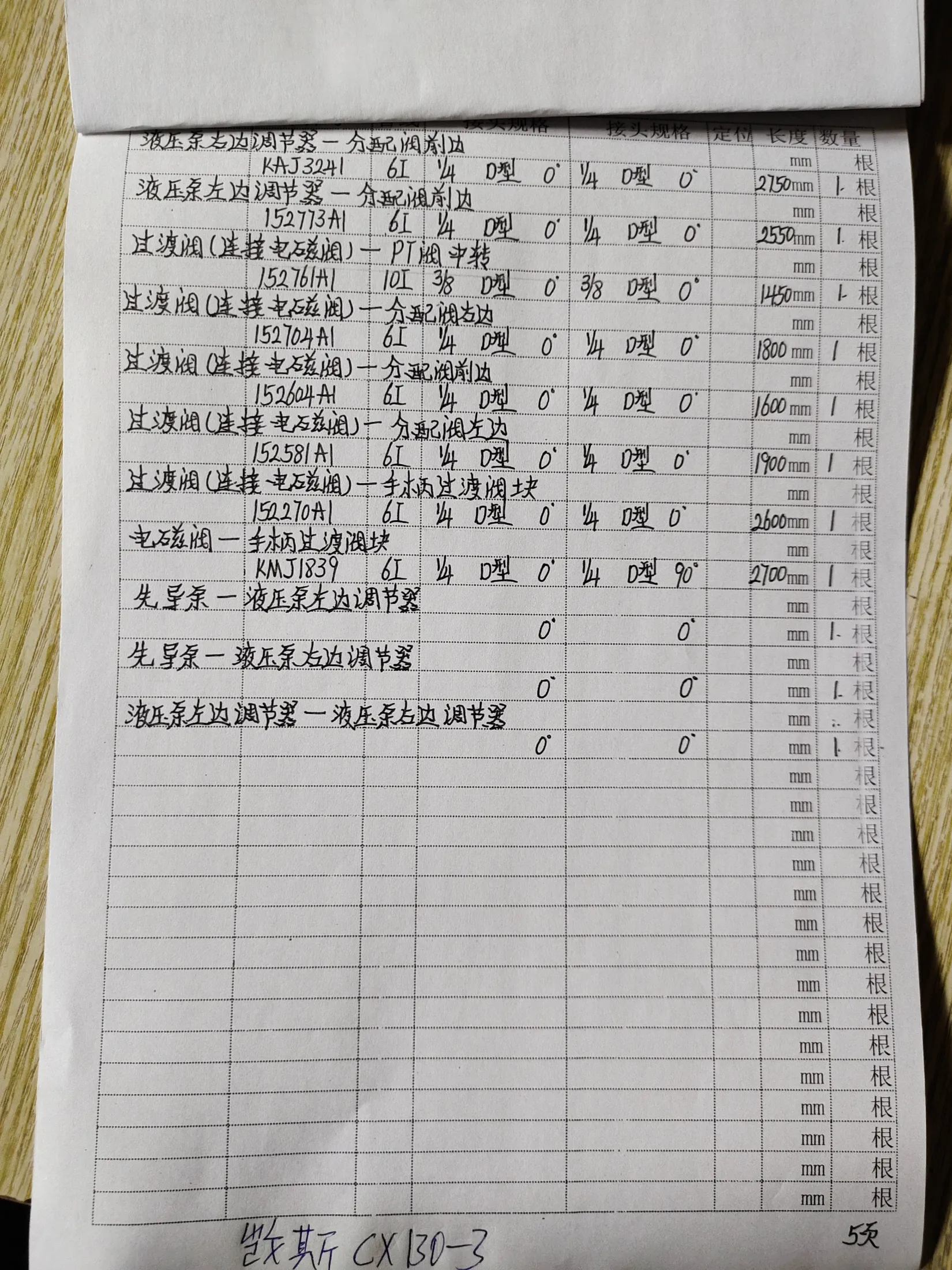

Case CX130-3 hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5 — recorded hose parts 1522T0A, 152604A1, 152704A1
Notebook page 5 of 5Recorded on this sheet: 1522T0A — 2,600 mm; 152604A1 — 1,600 mm; 152704A1 — 1,800 mm; KAJ3241 — 12,150 mm; and 1 more recorded hose.

Workshop guide

Finding the correct hydraulic hose for Case CX130-3

Start with the machine and route

For Case CX130-3, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.

Read the dimensions before cutting

Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.

Records to compare

  • KNJ2767520 mm · 13I · 回转马达—回油铁管

Use the drawing as a location check

Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.

Based on current published data

Common Repair Questions

Questions appear only when a published record or linked PDF page provides the answer.

What is the hose length range for Case CX130-3?

Based on published records with valid lengths, the range is 520 mm. Open the individual record to verify its installation position and both end fittings before fabrication.

Which hose specifications are common for Case CX130-3?

The most frequent raw specifications in the current published records are: 13I (1 records). Verify the specification together with length, pressure, and fitting details.

How can I identify the left and right hose fittings for Case CX130-3?

Each record keeps the left and right fitting descriptions separate. Current examples: KNJ2767: left 1/2″ D型 0°（手写接头规格）; right 1/2″ D型 45°（手写接头规格）. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
