Hydraulic line repair data

Case CX360B Hose Length & Fitting Data

Coverage details

Hoses: 47 records
Full specifications: 47 records
Systems: 10 systems
Length range: 320–4,100 mm

Narrow the selection

Control LeverAttachments – BreakerSwivel JointBoom AssemblyControl ValvePedalEngine Oil LinesHydraulic TankHydraulic Pump

Current machine

Find a hose on this machine

Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.

Pipe number, part number, route, length, or fittingSearch another machine

Technician notes

Workshop measurements

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.

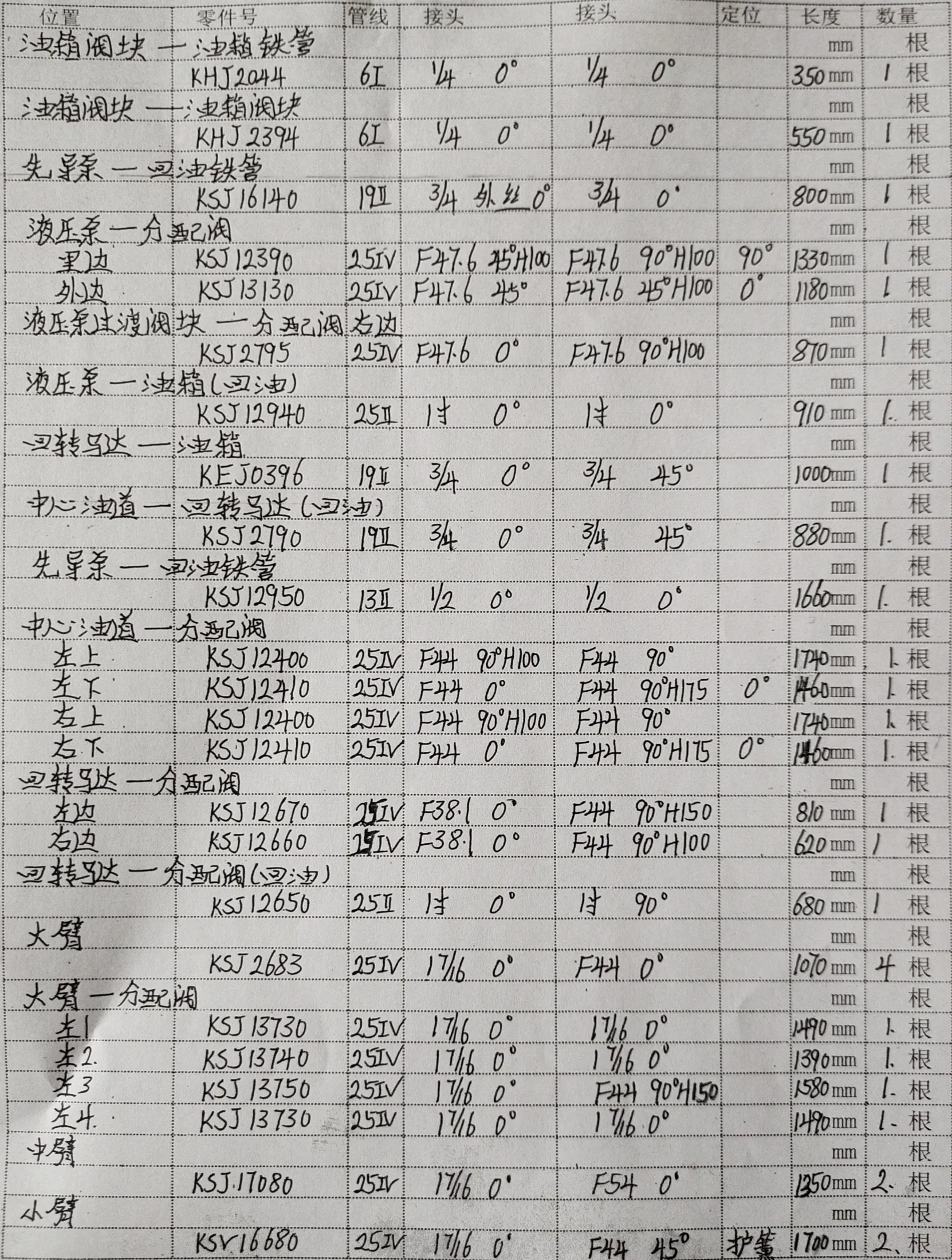

凯斯 CX360B hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 4 — Notebook page 1 of 4View full-size

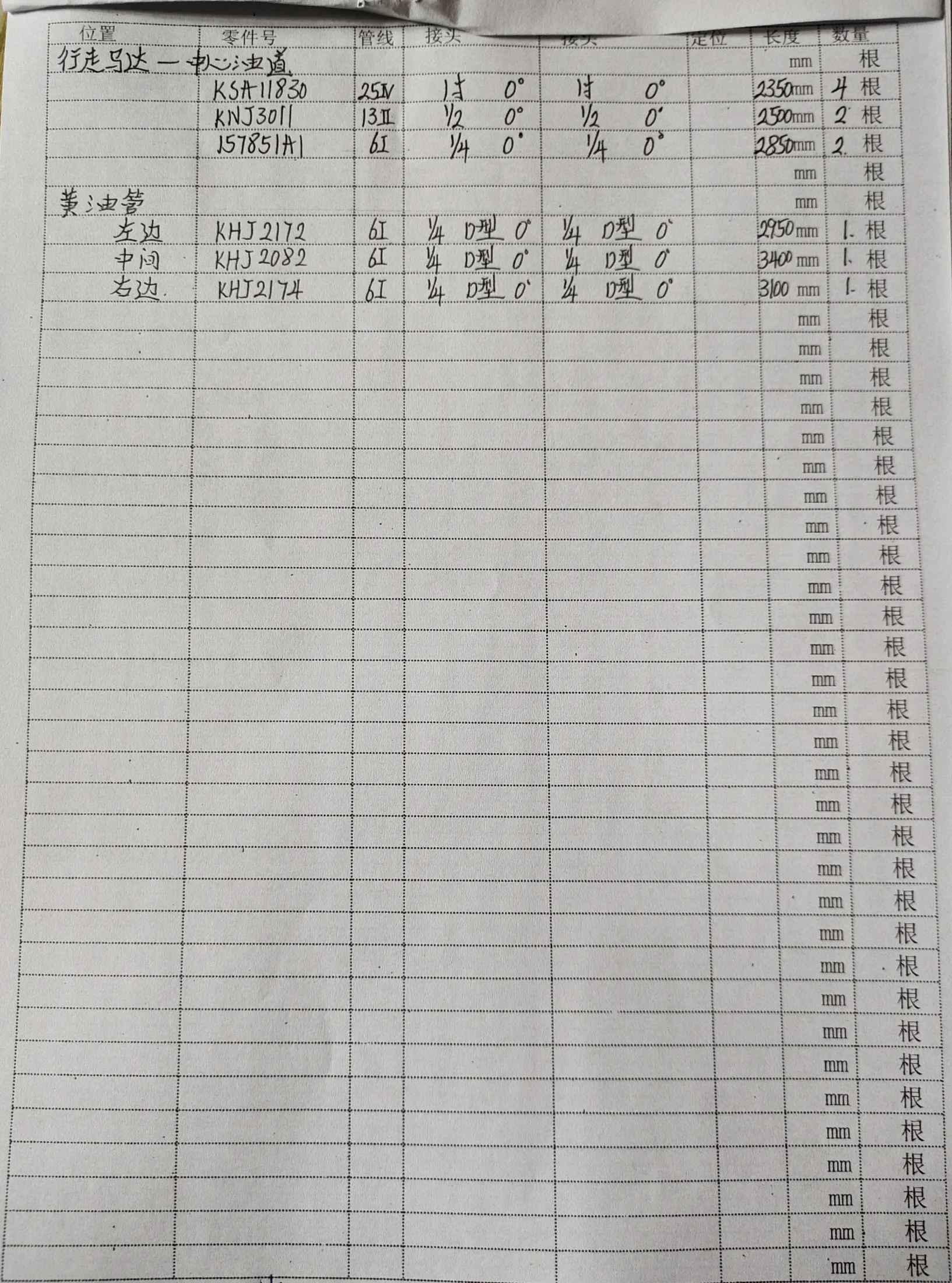

凯斯 CX360B hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 4 — Notebook page 4 of 4View full-size

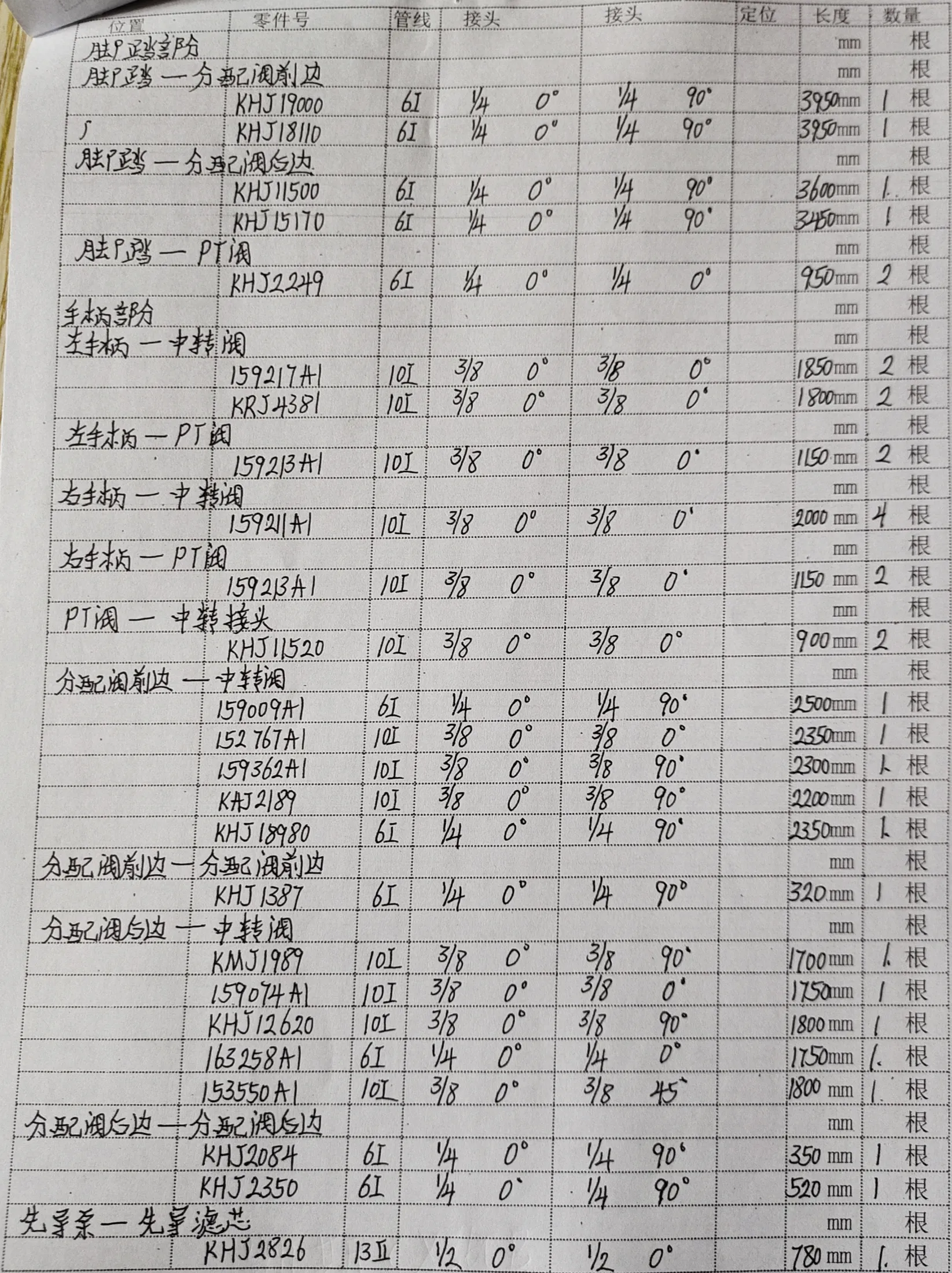

凯斯 CX360B hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 4 — Notebook page 3 of 4View full-size

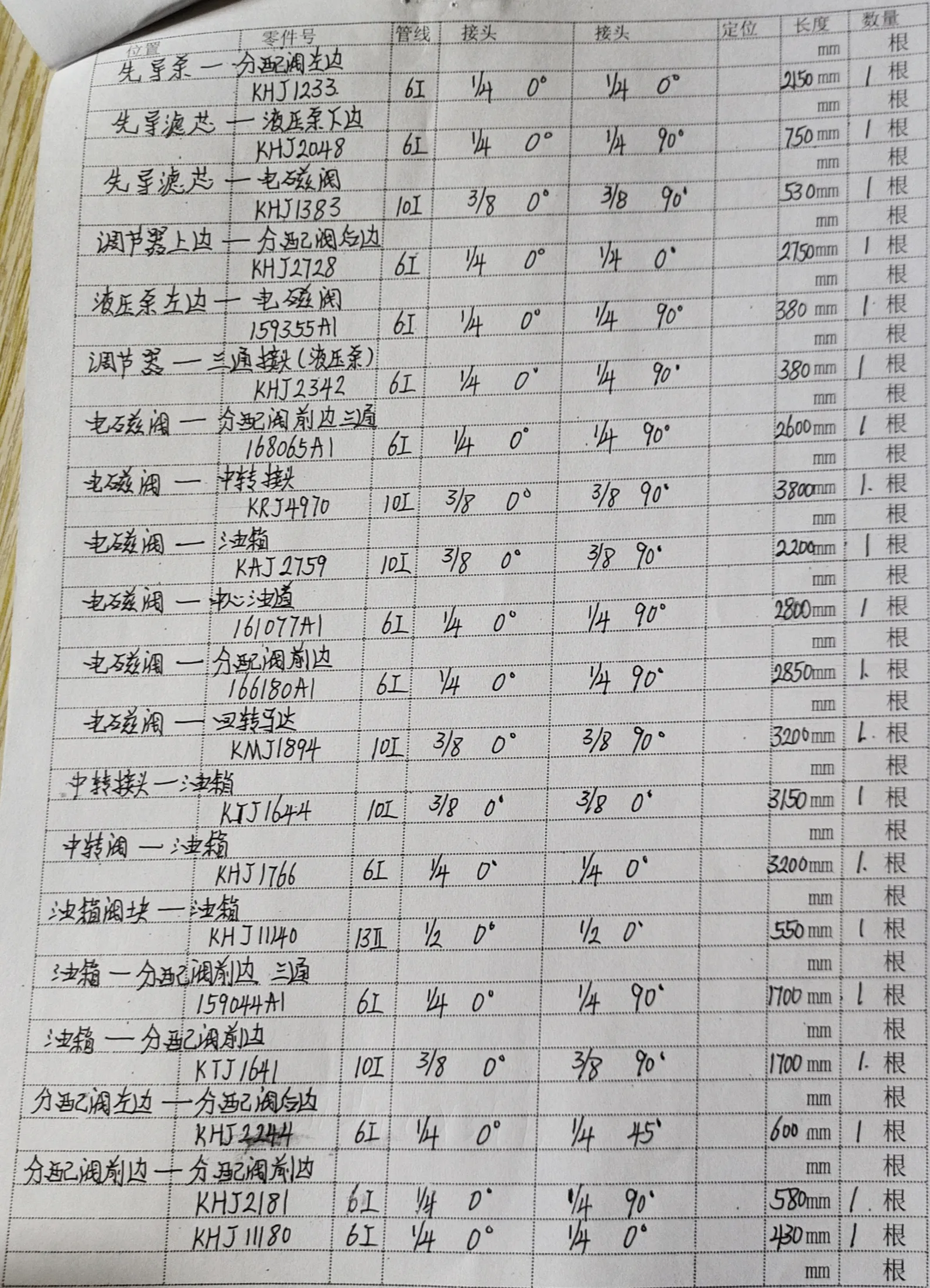

凯斯 CX360B hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 4 — Notebook page 2 of 4View full-size

Workshop measurements
Part number	Recorded length
KSJ12650	680 mm
KTJ1641	1,700 mm
159044A1	1,700 mm
159355A1	380 mm
KHJ2044	350 mm
KHJ18980	2,350 mm
KMJ1894	3,200 mm
KHJ2394	550 mm
KHJ2342	380 mm
KHJ2826	780 mm
KRJ4970	3,800 mm
KSJ12660	620 mm
KHJ2084	350 mm
KAJ2189	2,200 mm
KHJ19000	3,950 mm
KHJ1766	3,200 mm
KHJ2350	520 mm
KSJ12390	1,330 mm
KHJ11500	3,600 mm
KSJ16140	800 mm
152767A1	2,350 mm
KAJ2759	2,200 mm
KEJ0396	1,000 mm
KSJ13130	1,180 mm
KSJ13750	1,580 mm
KHJ11520	900 mm
KSJ12400	1,740 mm
KHJ1233	2,150 mm
KSJ12950	1,660 mm
KSJ12400	1,740 mm
KHJ2048	750 mm
166180A1	2,850 mm
KHJ2249	950 mm

Hose repair details

Hose Length and Fitting List

Showing 36 representative records. Return to the finder for a more specific search.

Diagram Pipe No. 1

KSJ12940

Installation route: 液压泵~液压油箱

Length: 910 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 86

KHJ2086

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 118

KHJ12620

Installation route: 中转接头~分配阀后左

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 122

153550A1

Installation route: 中转接头~分配阀后右

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 46

KHJ1383

Installation route: 电磁阀~先导滤芯

Length: 530 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 119

159074A1

Installation route: 中转接头~分配阀后左

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 30

KHJ15170

Installation route: 行走踏板~分配阀后左

Length: 3,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 54

KHJ2309

Installation route: 分配阀前左~分配阀前右

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 38

KSH1054

Installation route: 机油管

Length: 1,550 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

159213A1

Installation route: 右手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

KSJ13730

Installation route: 大臂左2

Length: 1,490 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 14

KSJ2790

Installation route: 回转接头~回转马达(回油)

Length: 880 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 31

KHJ18110

Installation route: 行走踏板~分配阀前左

Length: 4,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

KSA11830

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 120

KHJ12620

Installation route: 中转接头~分配阀后右

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 105

KHJ2244

Installation route: 分配阀右~分配阀后右

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 19

159217A1

Installation route: 左手柄~中转接头

Length: 1,850 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 20

KRJ4381

Installation route: 左手柄~中转接头

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 21

159213A1

Installation route: 左手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 48

KHJ2050

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

KSV17080

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 1,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 72

KHJ2085

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 70

KHJ2244

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

159211A1

Installation route: 右手柄~中转接头

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 32

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 15

KSJ2683

Installation route: 大臂油缸

Length: 1,070 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

Diagram Pipe No. 39

KSH1056

Installation route: 机油管

Length: 1,670 mm
Specification: DN19;1SN-12;10.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 6

157203A1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 34

KHJ18110

Installation route: 破碎器踏板~分配阀后

Length: 4,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 80

KTJ1644

Installation route: 液压油箱过渡阀块~接头(进回油阀)

Length: 3,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 7

KSJ13740

Installation route: 大臂左1

Length: 1,390 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 104

KHJ2181

Installation route: 分配阀前左~分配阀前右

Length: 580 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 14

KSV17080

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 1,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 9

151919A1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,360 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 49

161077A1

Installation route: 回转接头~电磁阀

Length: 3,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 107

KHJ2728

Installation route: 液压泵左~分配阀左

Length: 2,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Based on current published data

Common Repair Questions

Questions appear only when a published record or linked PDF page provides the answer.

Which systems and hoses are currently listed for Case CX360B?

The current published data covers 10 systems and 47 hose records. Systems with more listed records include: Control Lever (10 hoses), Attachments – Breaker (9 hoses), Swivel Joint (7 hoses), Boom Assembly (6 hoses), Control Valve (4 hoses), Pedal (4 hoses).

What is the hose length range for Case CX360B?

Based on published records with valid lengths, the range is 320–4,100 mm. Open the individual record to verify its installation position and both end fittings before fabrication.

Which hose specifications are common for Case CX360B?

The most frequent raw specifications in the current published records are: DN6;1SN-04;22.5MPa (21 records), DN10;1SN-06;18MPa (12 records), DN25;4SP-16;32.5MPa (7 records), DN13;2SN-08;27.5MPa (3 records), DN19;1SN-12;10.5MPa (2 records). Verify the specification together with length, pressure, and fitting details.

How can I identify the left and right hose fittings for Case CX360B?

Each record keeps the left and right fitting descriptions separate. Current examples: KSJ12940: left British female thread, 60° external cone seat; right British female thread, 60° external cone seat; KHJ2086: left British female thread, 60° external cone seat; right 90° elbow, British female thread, 60° external cone seat; KHJ12620: left British female thread, 60° external cone seat; right 90° elbow, British female thread, 60° external cone seat. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.

Can I locate a Case CX360B hose by diagram pipe number?

Yes. Current examples with a diagram pipe number are: Pipe No. 1 (KSJ12940), Pipe No. 86 (KHJ2086), Pipe No. 118 (KHJ12620), Pipe No. 122 (153550A1). Open a record to compare its installation position with the linked manual page.

Optional cross-check

Ask an AI search tool to check this repair data

The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.

ChatGPT Perplexity Claude Google AI Mode

See the exact question being sent

I am checking hydraulic hose repair information for "Case CX360B Hose Length & Fitting Data". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/machines/case/cx360b--435833363042/

Verify, where applicable:
1. Exact machine model and any serial-number range.
2. Hydraulic system and installation route.
3. Hose part number and diagram pipe number.
4. Finished length, hose specification, and pressure rating.
5. Both end fittings, including thread, sealing seat, size, and angle.
6. Installation-diagram position and routing.

State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.

Choose a system

Find a hose on this machine

Workshop measurements

Hose Length and Fitting List

Common Repair Questions

Ask an AI search tool to check this repair data
