Caterpillar 320C Hydraulic Hose Length & Fitting Lookup

Available Caterpillar 320C workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Digitized data and source sheets

Caterpillar 320C Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Caterpillar 320C workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part number	Recorded length
4I-080	1,700 mm
4I-0836	1,200 mm
4I-1739	1,020 mm
087-51P	1,060 mm
184-920S	1,230 mm
AI-0794	500 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

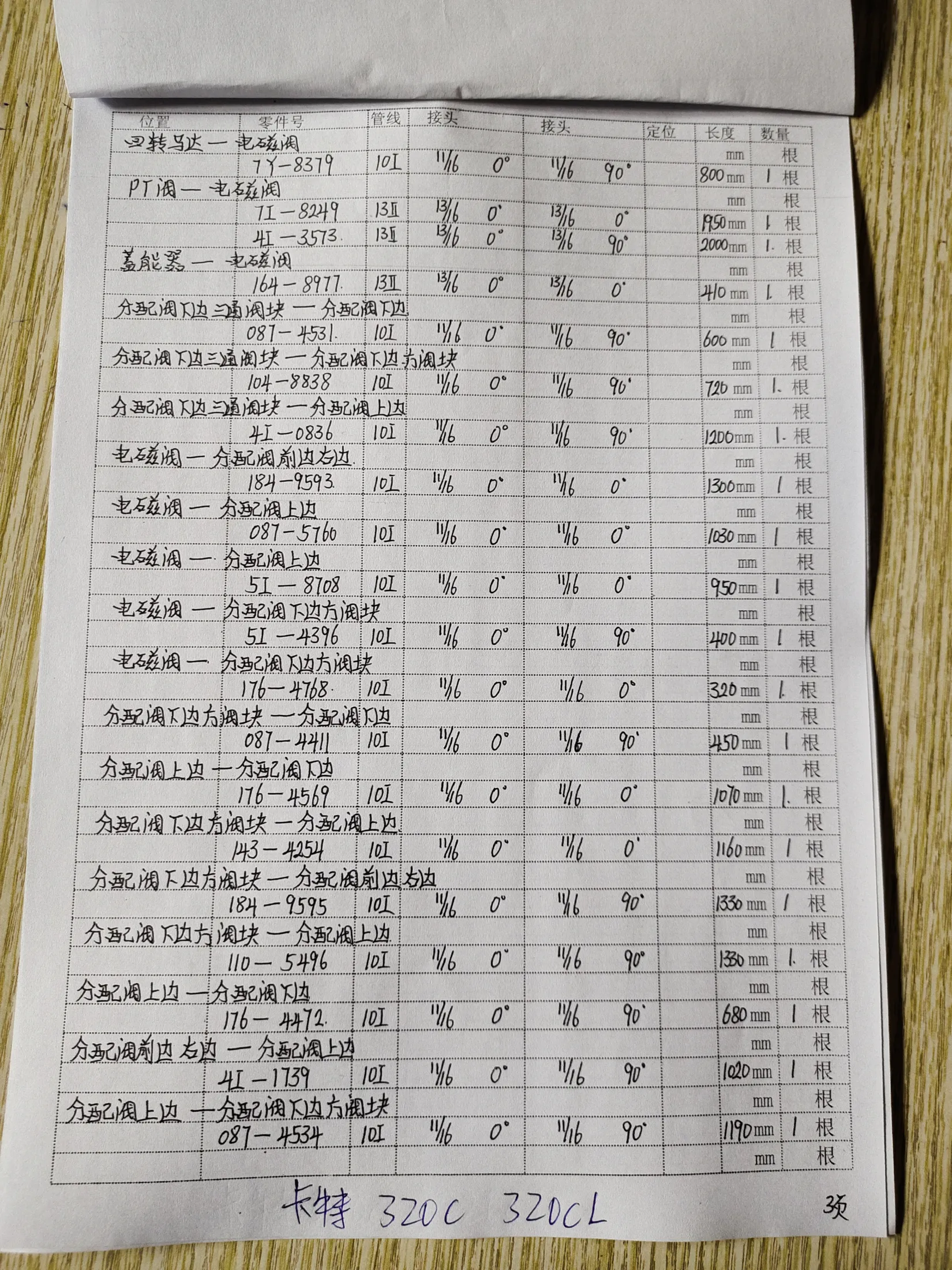

Caterpillar 320C hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5 — recorded hose parts 4I-0836, 4I-1739 — **Notebook page 3 of 5**Recorded on this sheet: 4I-0836 — 1,200 mm; 4I-1739 — 1,020 mm.

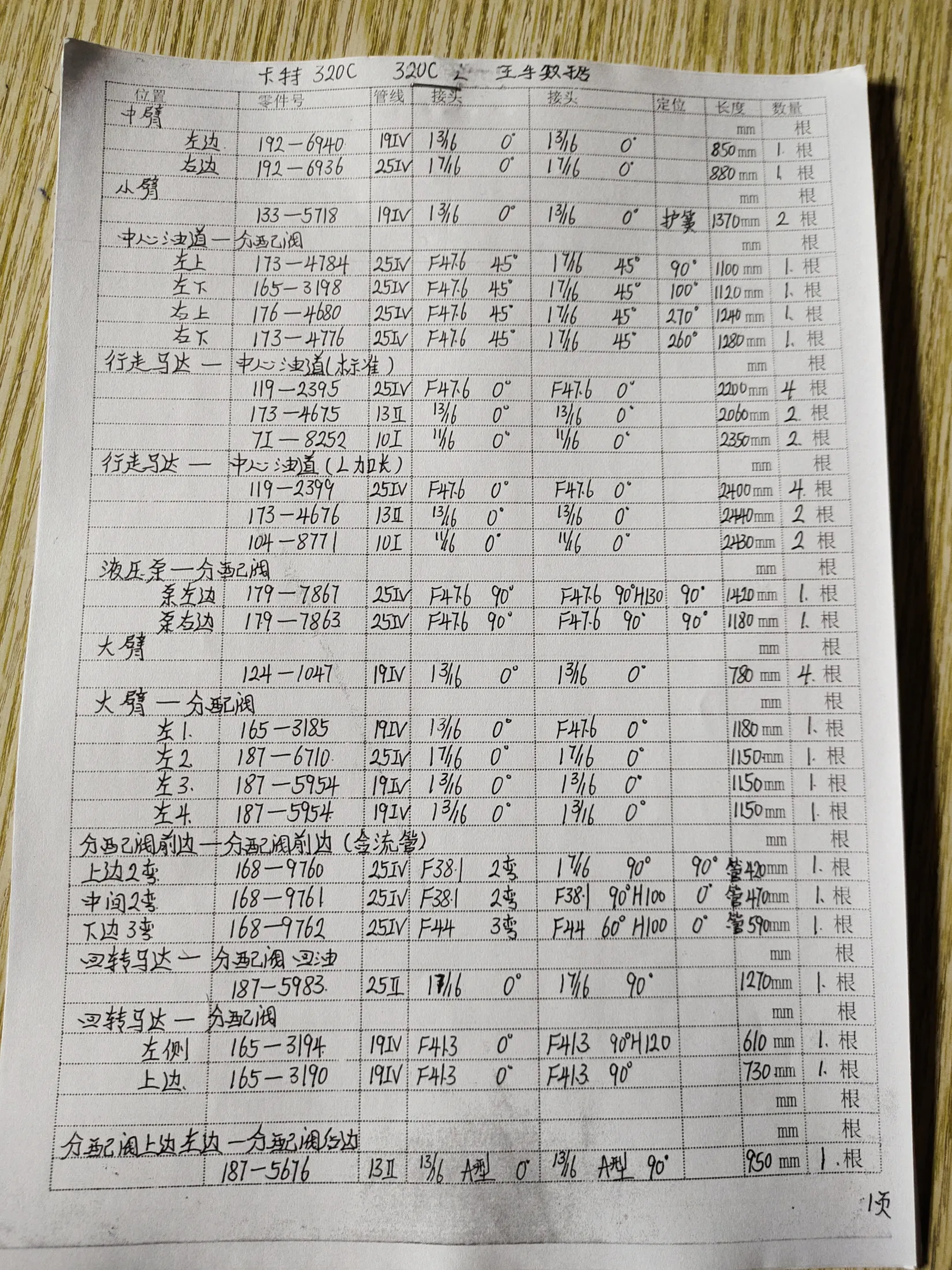

Caterpillar 320C hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5 — **Notebook page 1 of 5**

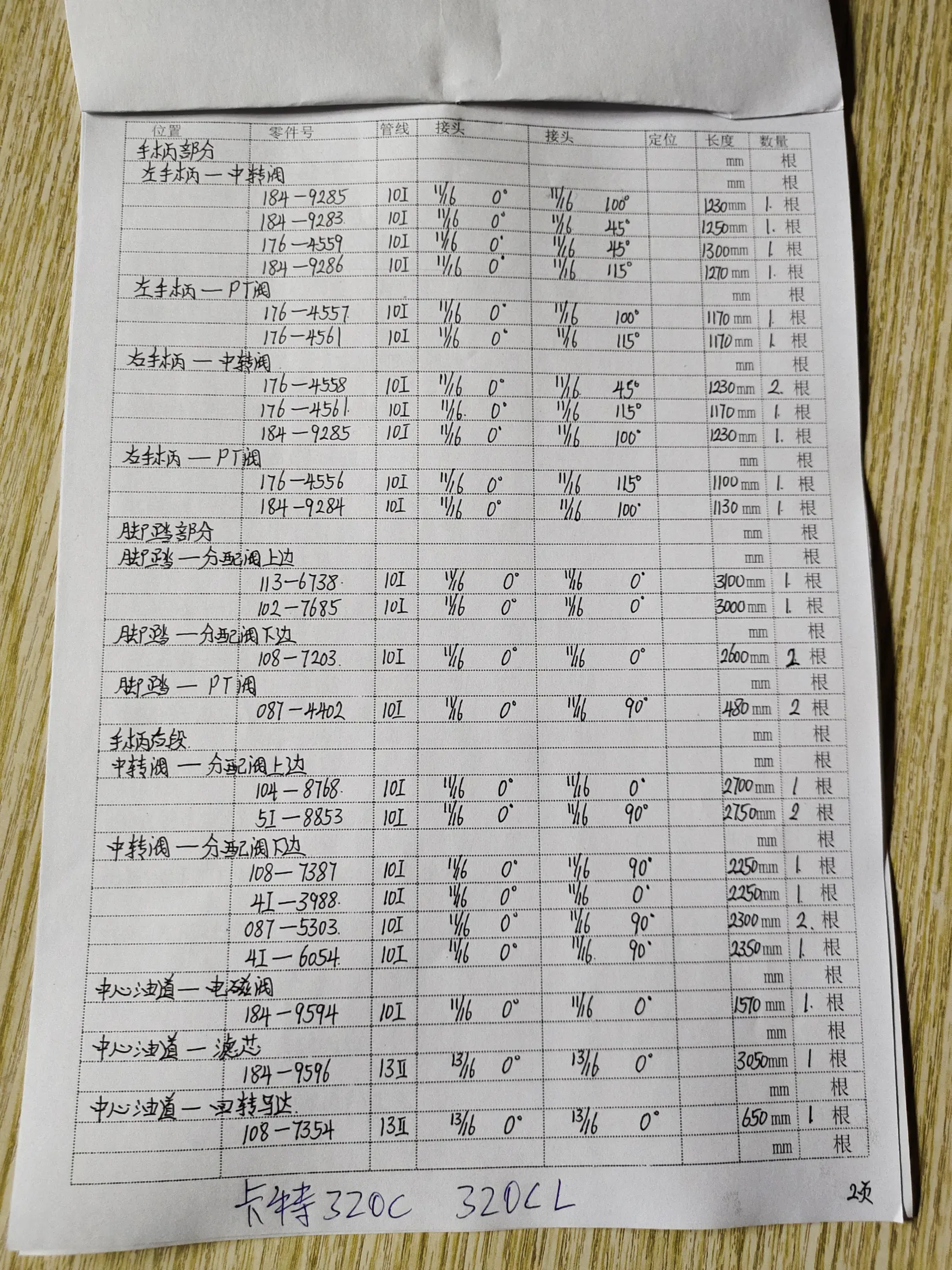

Caterpillar 320C hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5 — recorded hose parts 184-920S — **Notebook page 2 of 5**Recorded on this sheet: 184-920S — 1,230 mm.

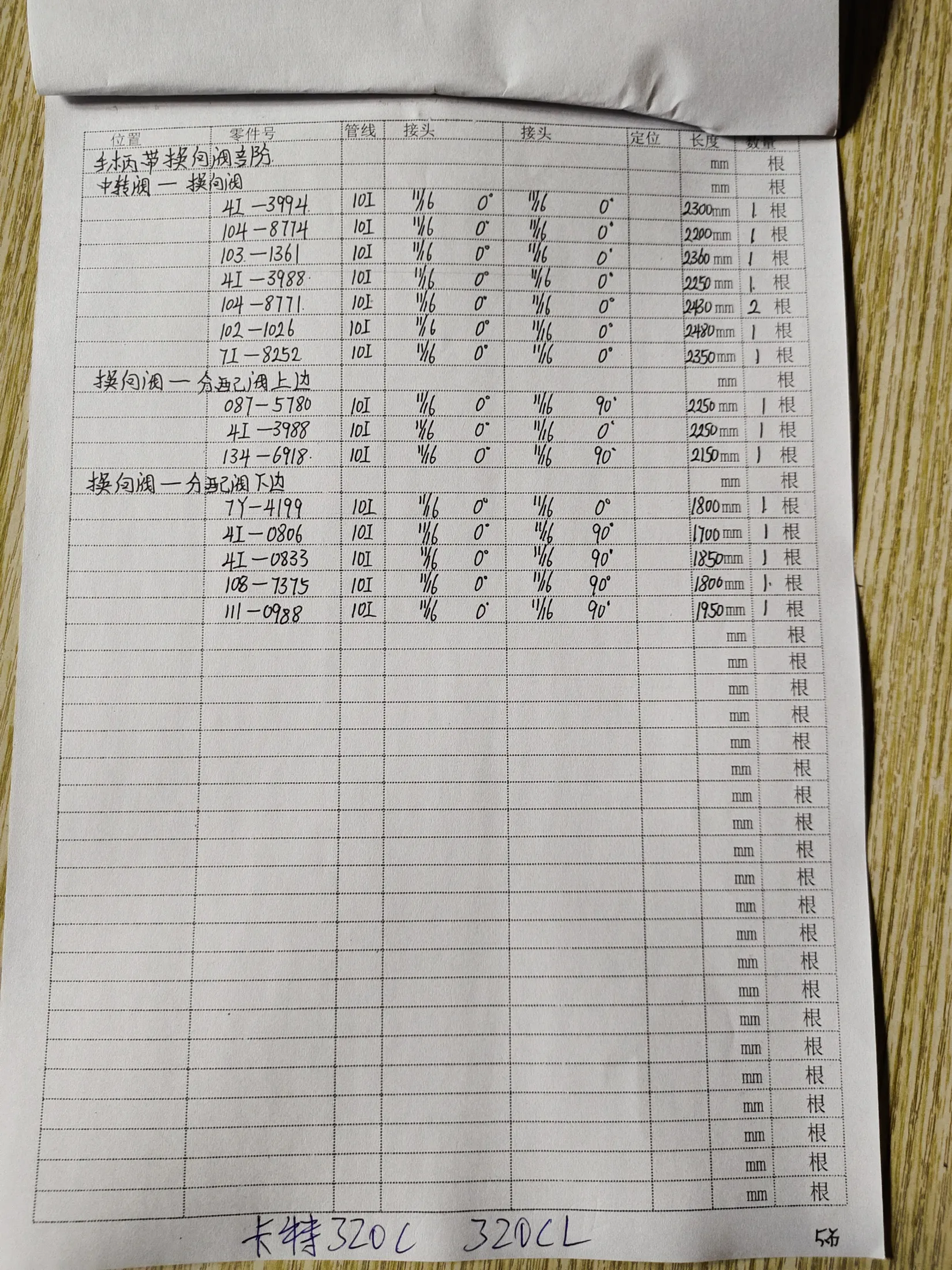

Caterpillar 320C hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5 — recorded hose parts 4I-080 — **Notebook page 5 of 5**Recorded on this sheet: 4I-080 — 1,700 mm.

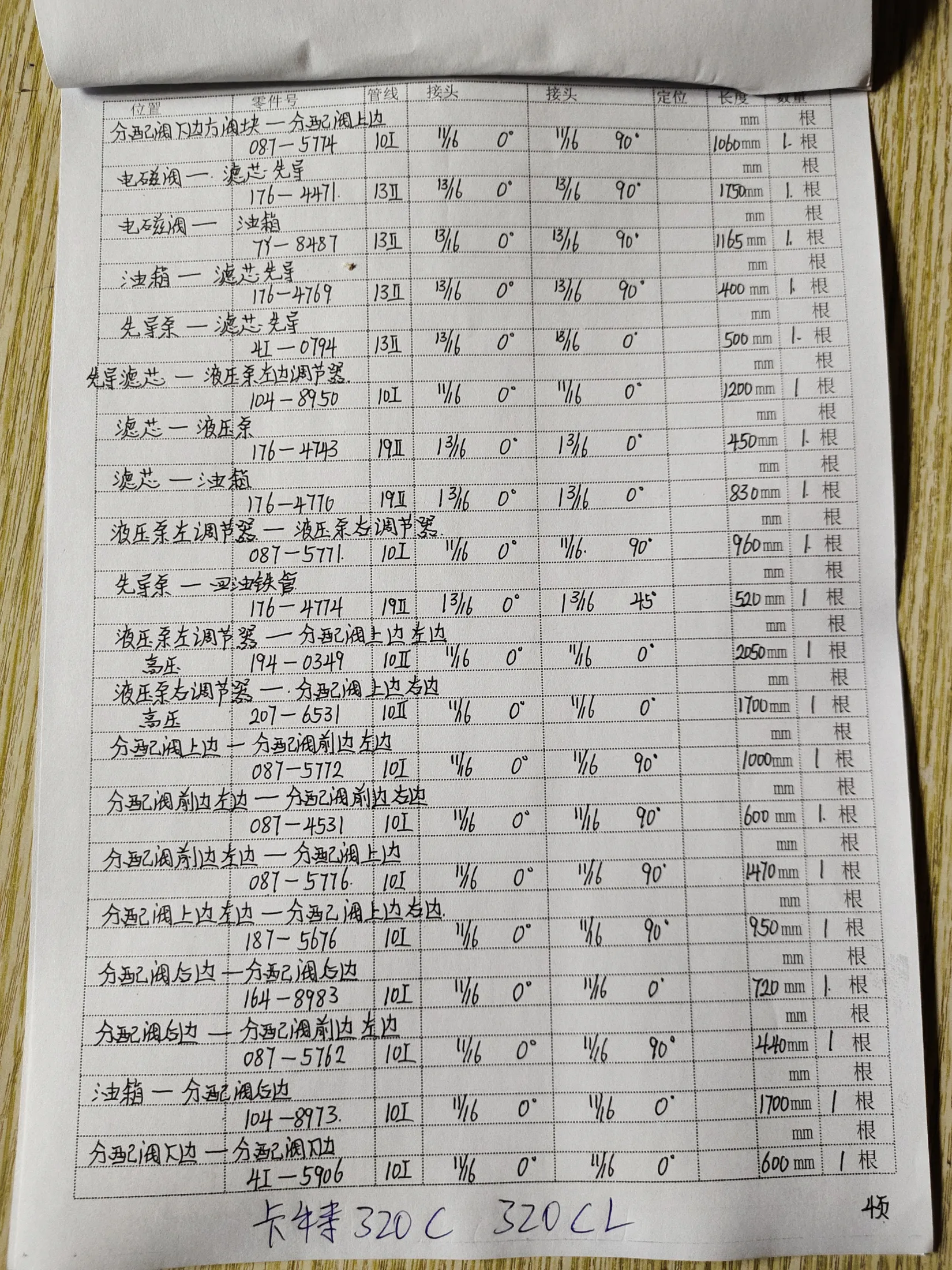

Caterpillar 320C hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5 — recorded hose parts 087-51P, AI-0794 — **Notebook page 4 of 5**Recorded on this sheet: 087-51P — 1,060 mm; AI-0794 — 500 mm.
