Caterpillar 326DL Hydraulic Hose Length & Fitting Lookup
Available Caterpillar 326DL workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Caterpillar 326DL Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Caterpillar 326DL workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 4I-0836 | 1,200 mm |
| 4I-613 | 1,500 mm |
| 4I-1739 | 1,020 mm |
| 4I-7816 | 3,800 mm |
| 087-441110I416 | 450 mm |
| 7248-987825IV1716A11H5 | 1,185 mm |
| 34187-599419IVF430 | 730 mm |
| F121202-3994 | 690 mm |
| I248-952125IVFH6 | 1,070 mm |
| L248-987425IV | 1,320 mm |
| T1-7904 | 820 mm |
| TY-4390 | 2,400 mm |
| X248-987025IV16A7 | 1,150 mm |
| Z4179-750025IVF47690 | 1,300 mm |

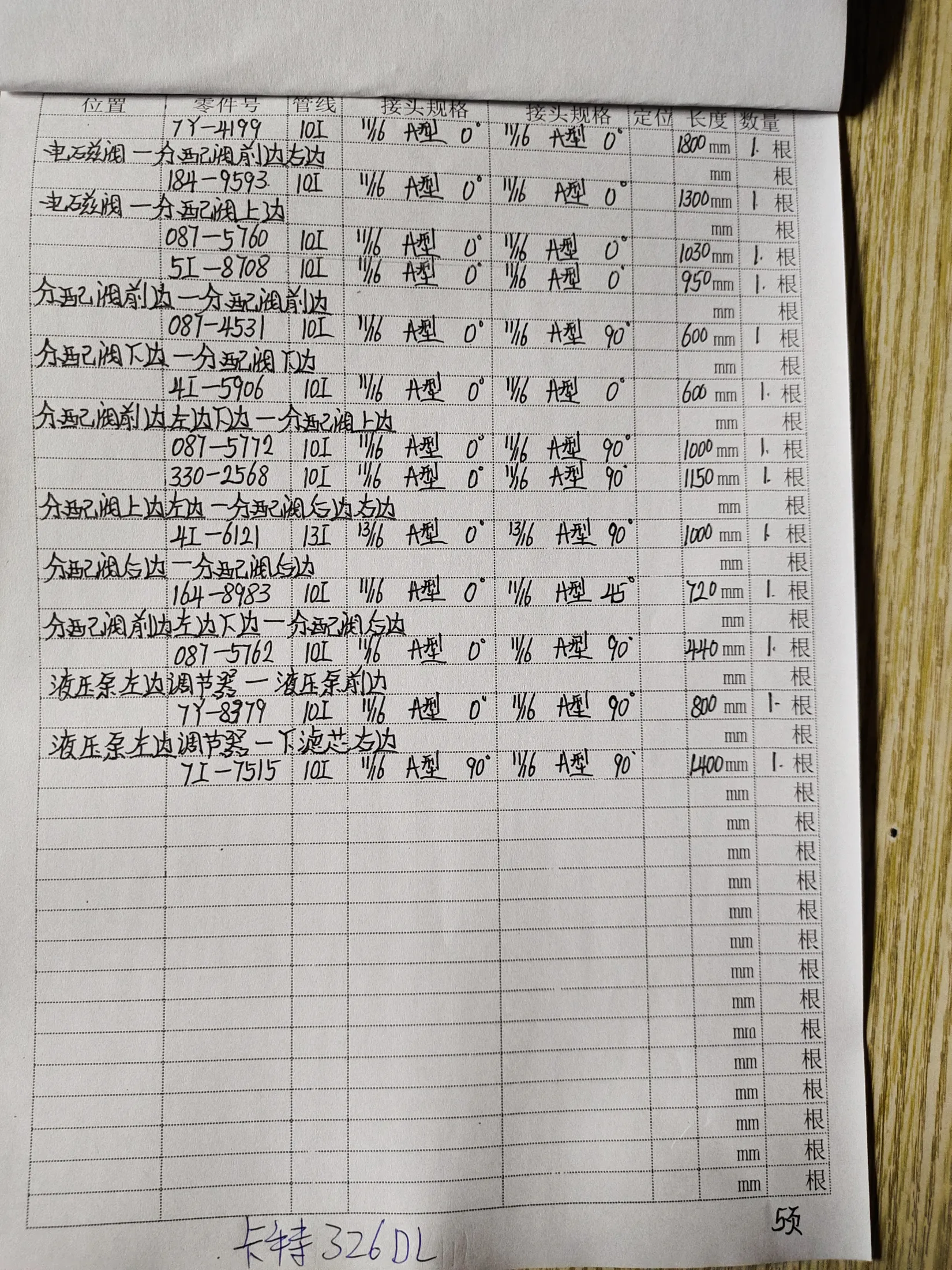

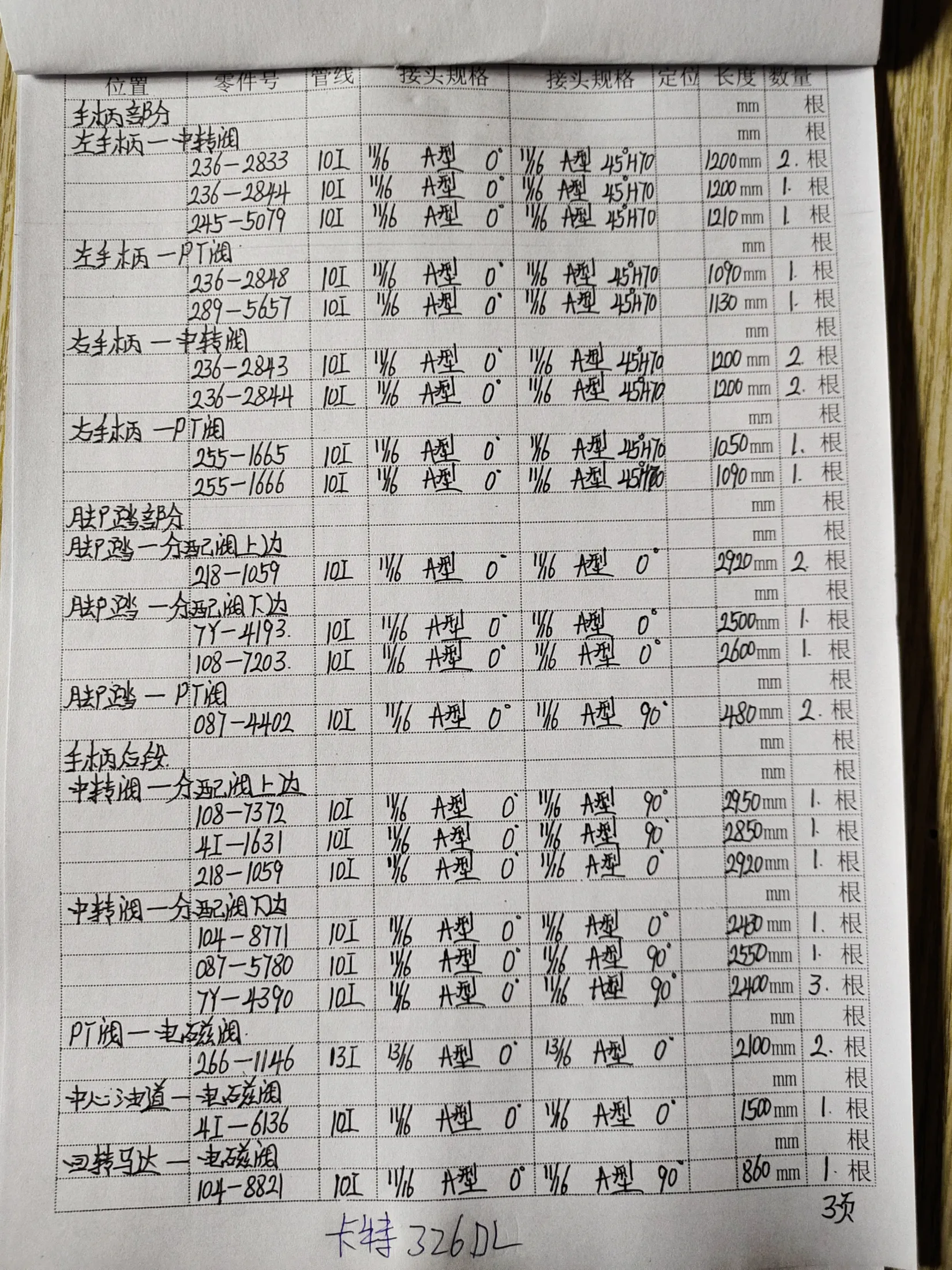

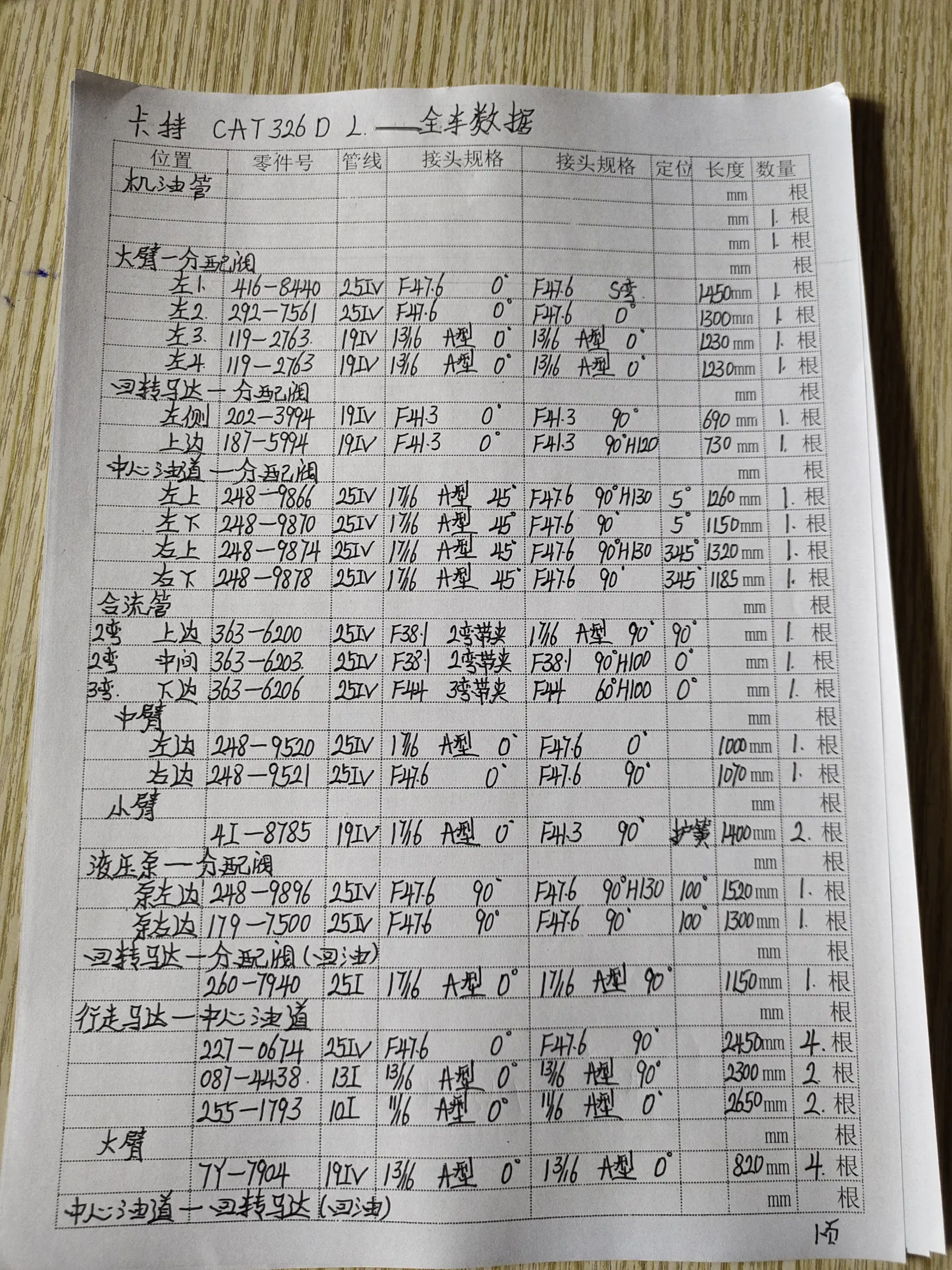

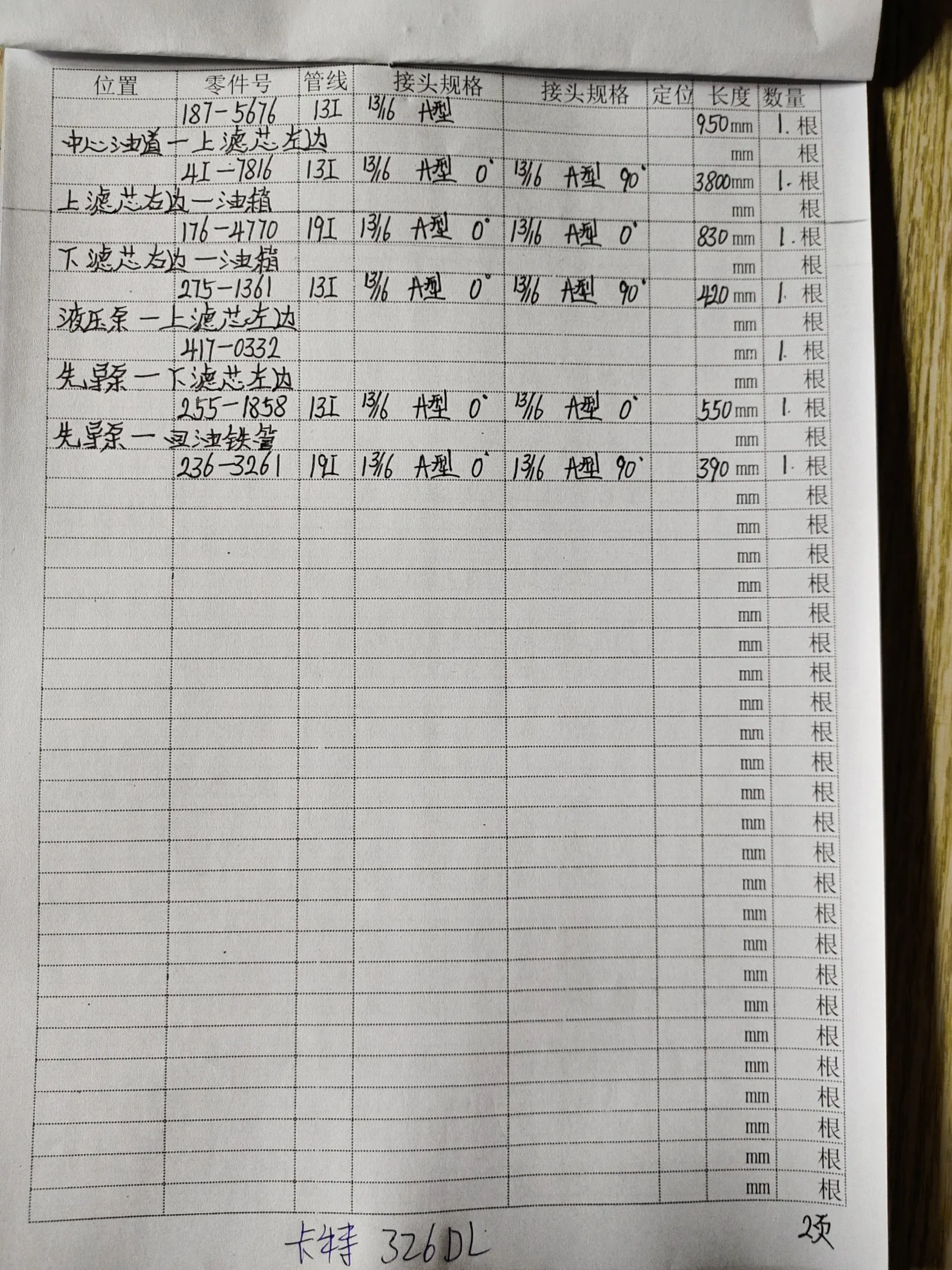

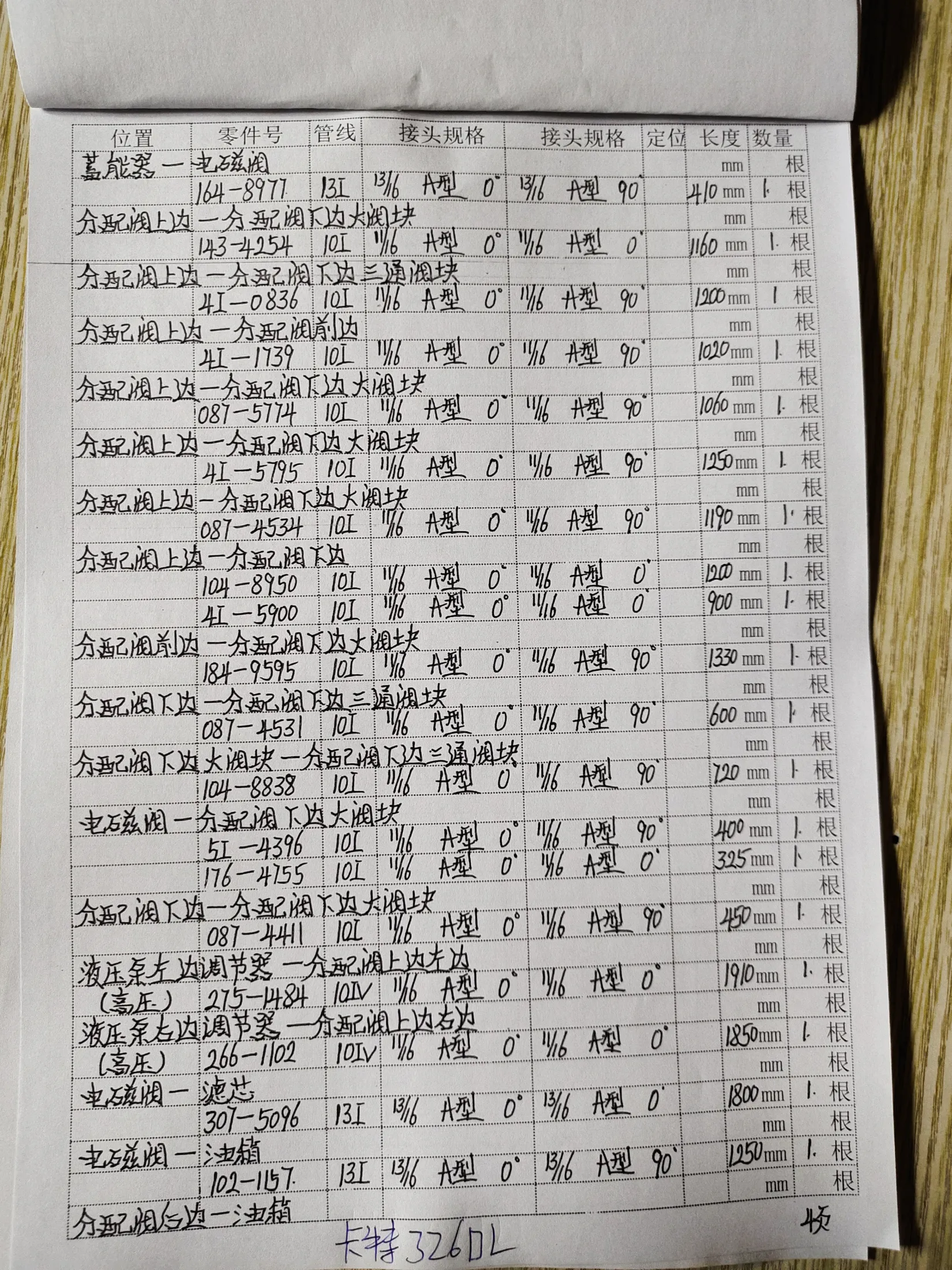

Original handwritten sheets
