Caterpillar 329D2L Hydraulic Hose Length & Fitting Lookup
Available Caterpillar 329D2L workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Caterpillar 329D2L Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Caterpillar 329D2L workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 4I-083 | 1,200 mm |
| 4I-0836 | 1,200 mm |
| 4I-1631 | 2,920 mm |
| 4I-1739 | 1,020 mm |
| 4I-5900 | 900 mm |
| 4I-5906 | 600 mm |
| 4I-6136 | 1,500 mm |
| 5I-4396 | 400 mm |
| 5I-8708 | 950 mm |
| 7Y-4193 | 12,500 mm |
| 7Y-7904 | 820 mm |
| KI416-8441 | 140 mm |
| T248-9878 | 1,185 mm |
| TY-4390 | 12,400 mm |

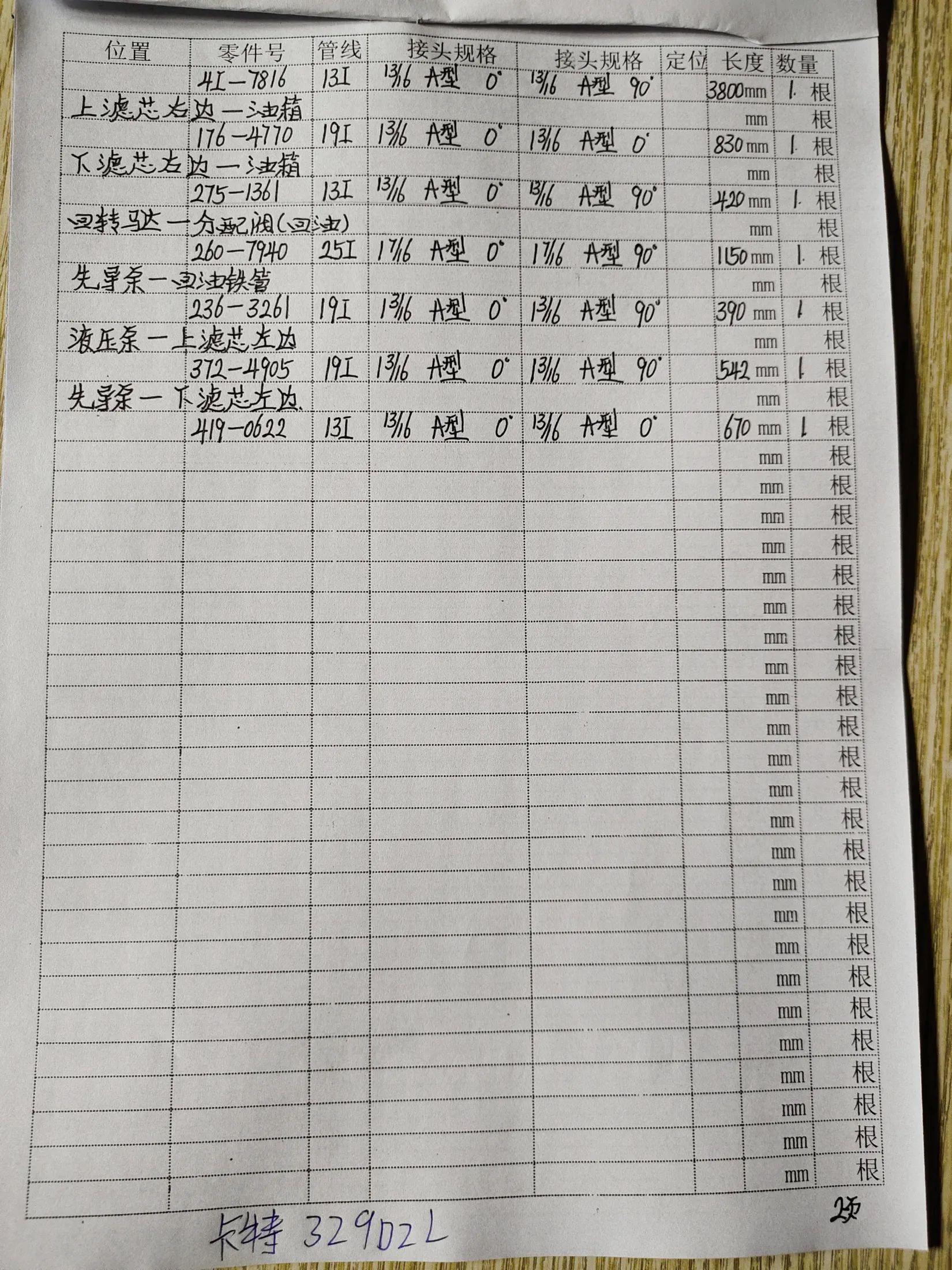

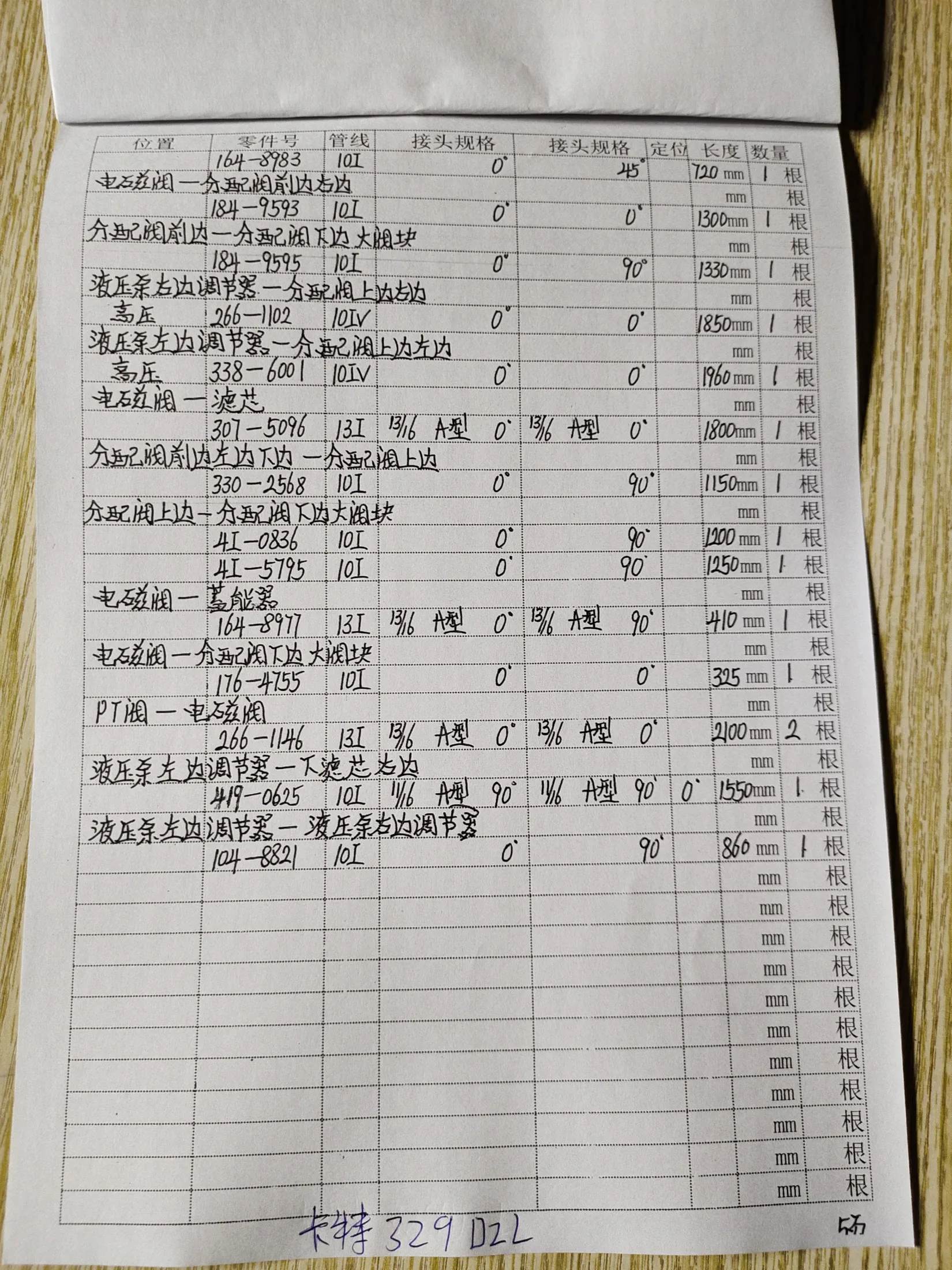

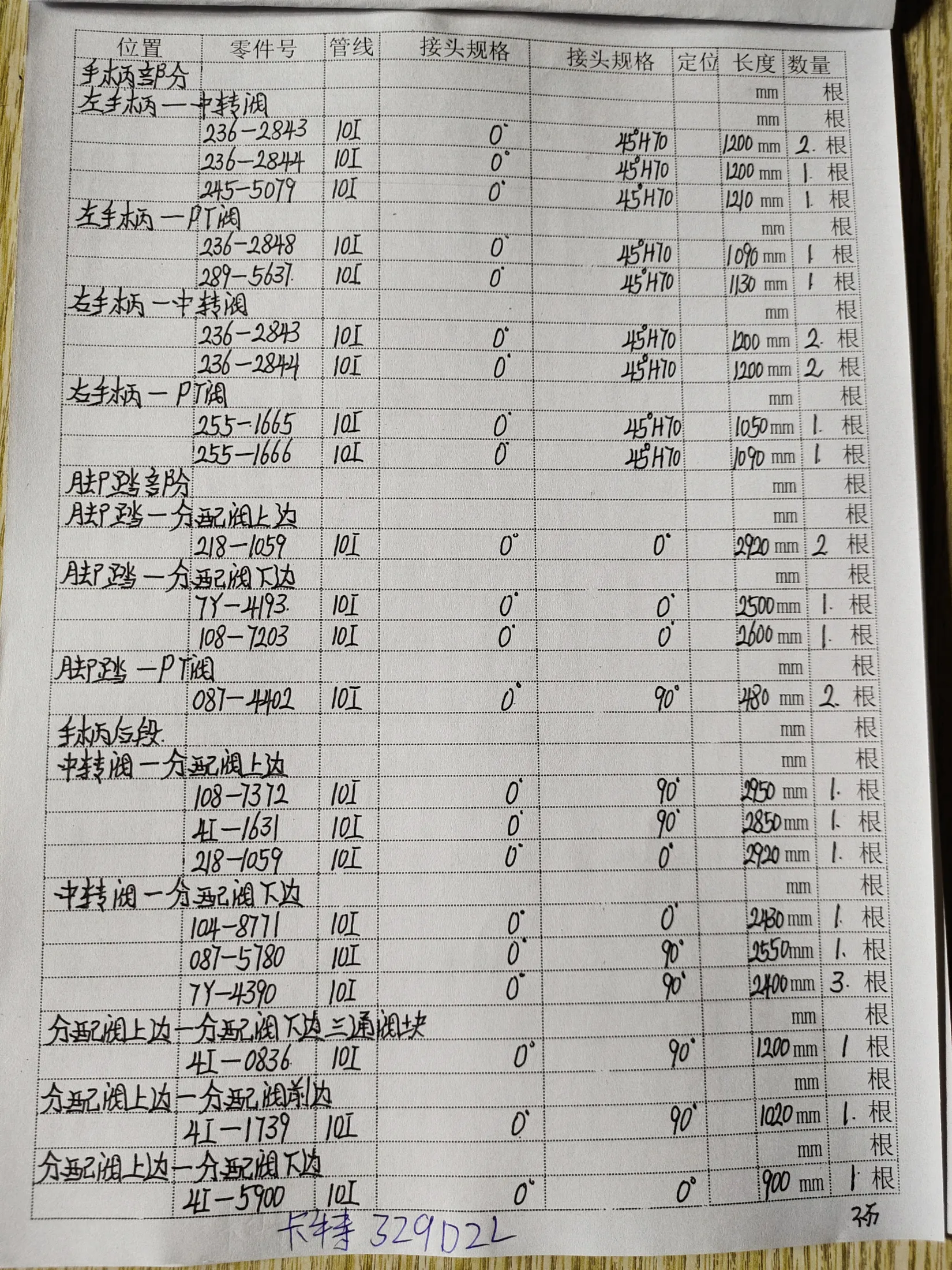

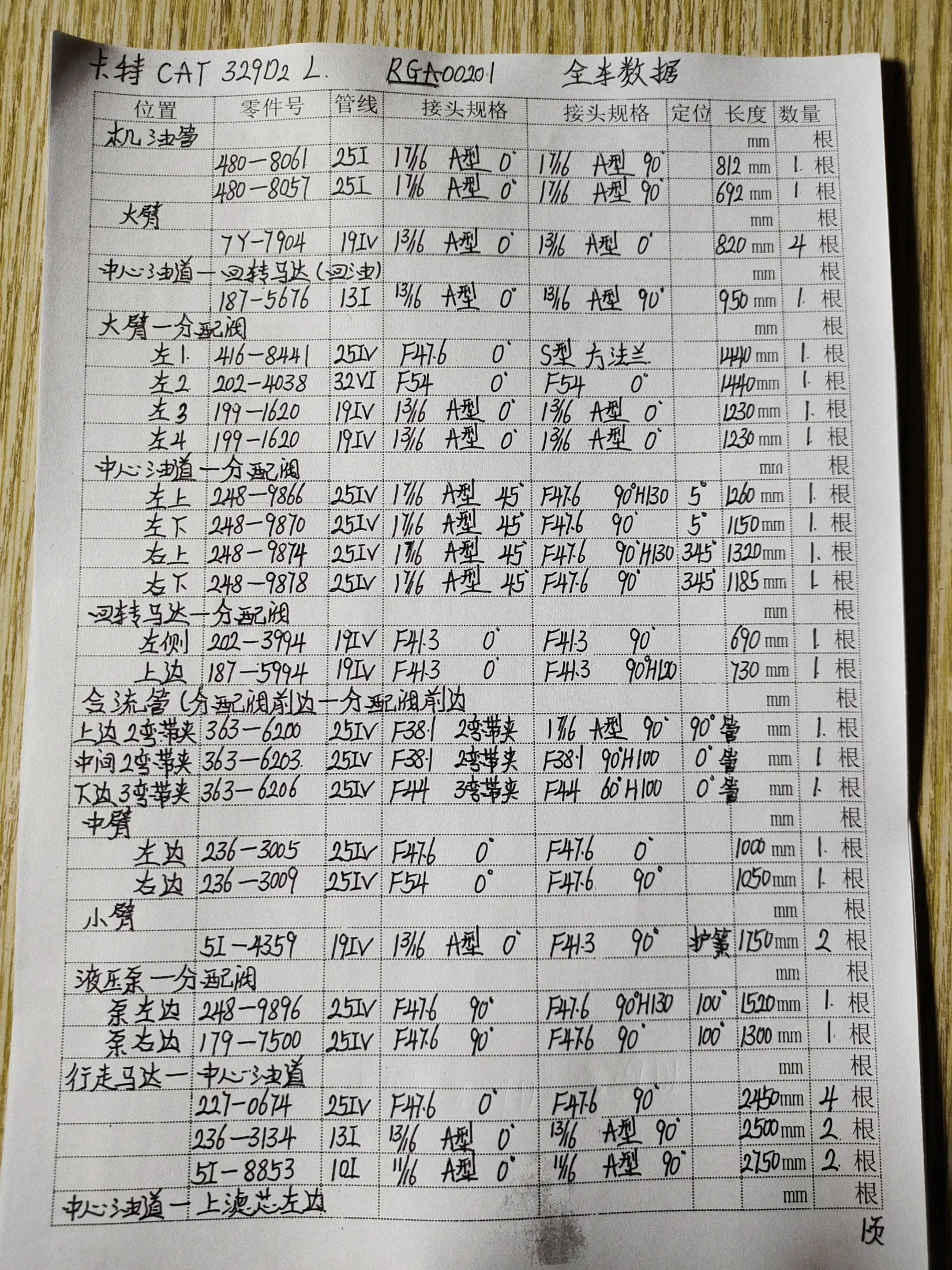

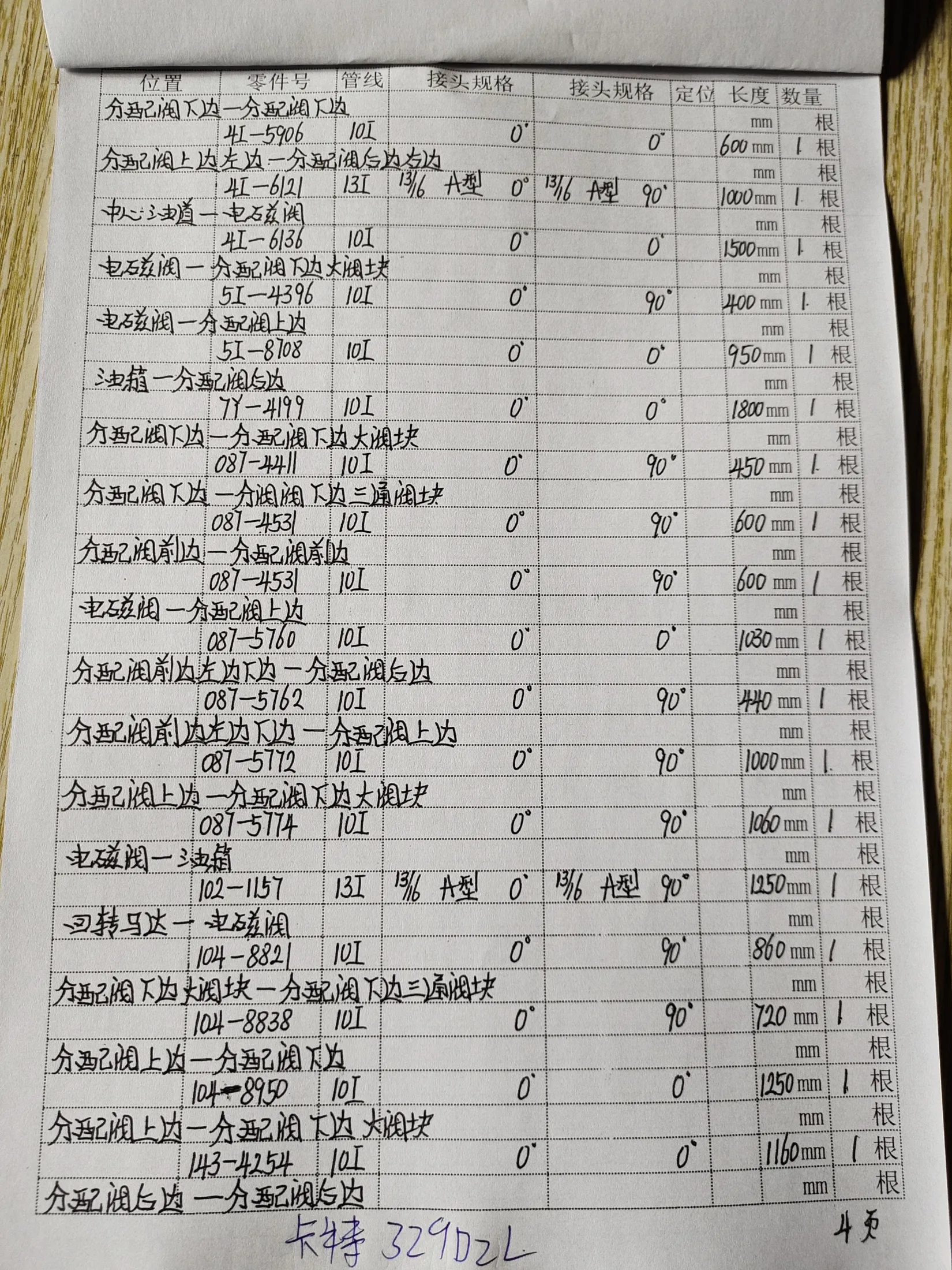

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
