Caterpillar 329DL Hydraulic Hose Length & Fitting Lookup

Available Caterpillar 329DL workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Digitized data and source sheets

Caterpillar 329DL Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Caterpillar 329DL workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part number	Recorded length
4I-0121	1,000 mm
4I-613	1,500 mm
4I-5906	600 mm
7Y-4193	2,500 mm
HI-7816	3,806 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

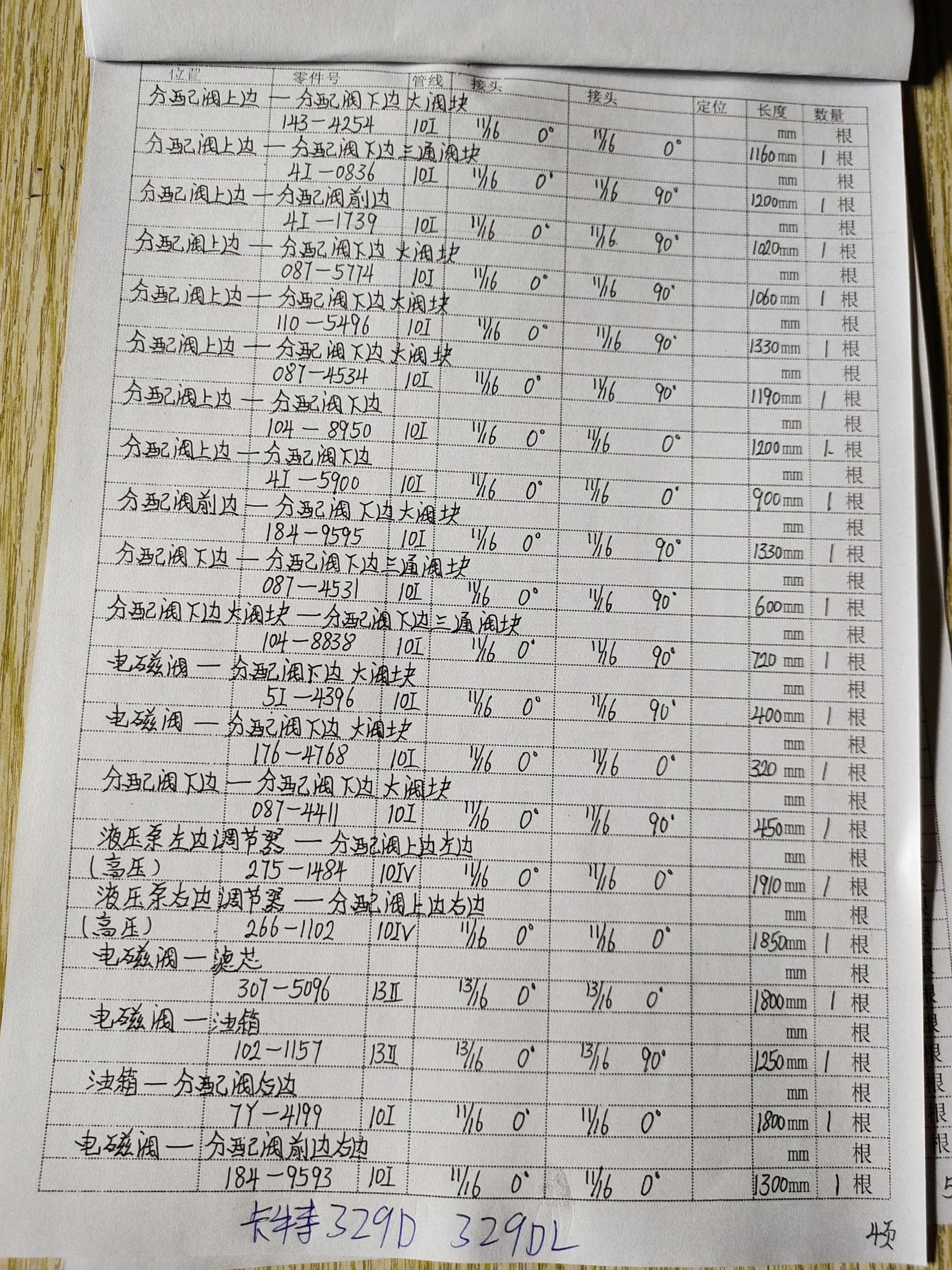

Caterpillar 329DL hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5 — **Notebook page 4 of 5**

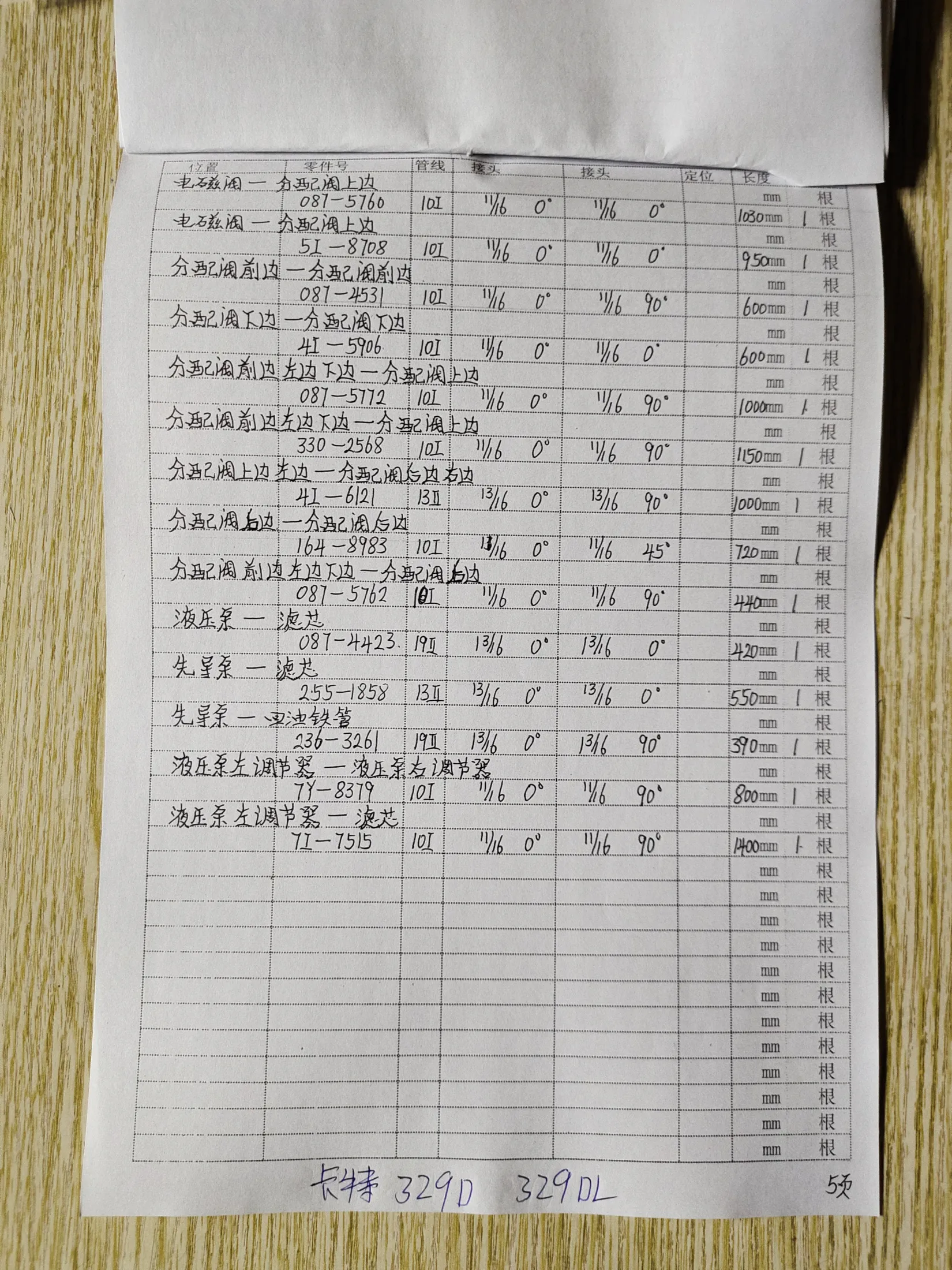

Caterpillar 329DL hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5 — recorded hose parts 4I-0121, 4I-5906 — **Notebook page 5 of 5**Recorded on this sheet: 4I-0121 — 1,000 mm; 4I-5906 — 600 mm.

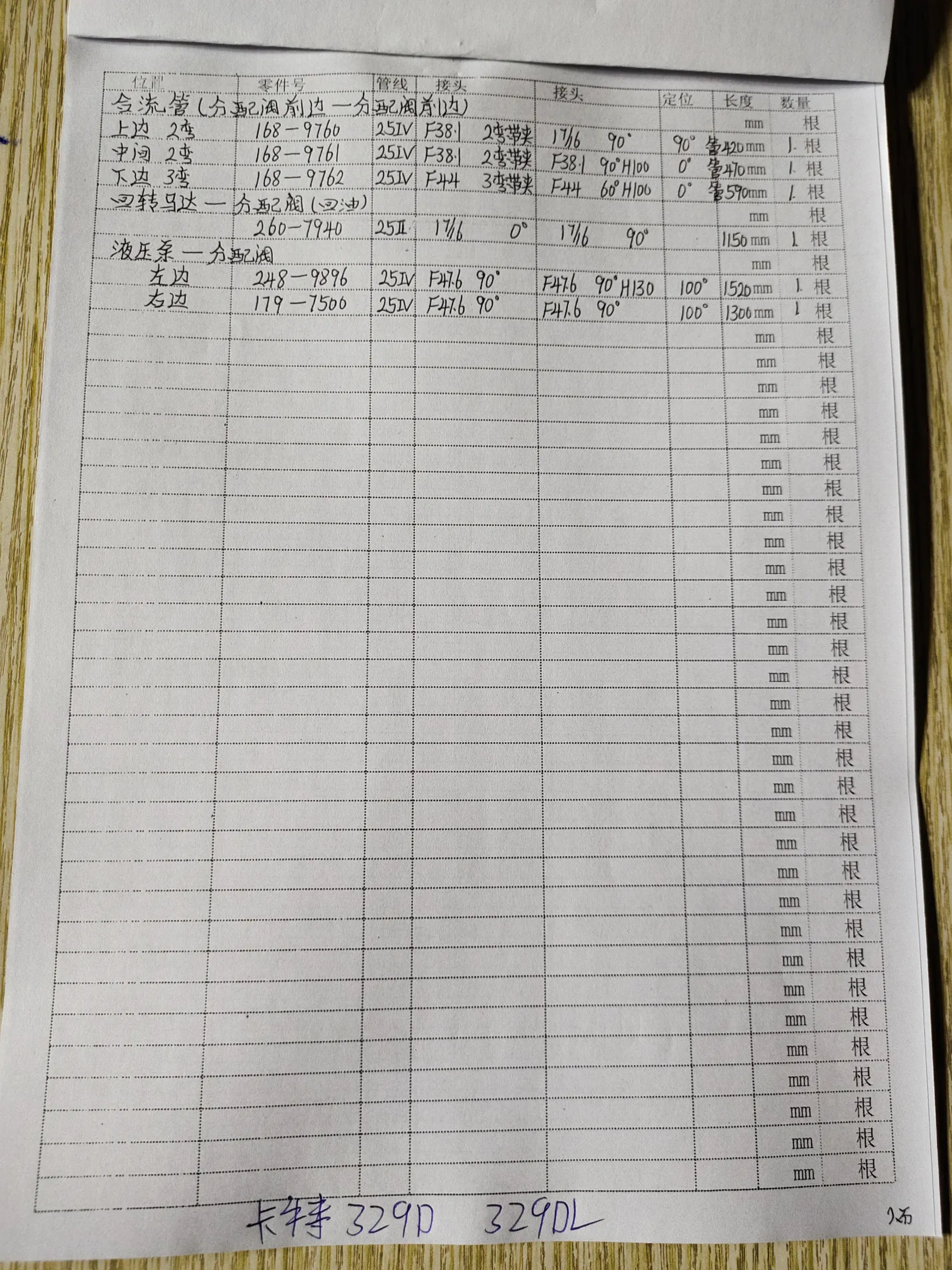

Caterpillar 329DL hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5 — **Notebook page 2 of 5**

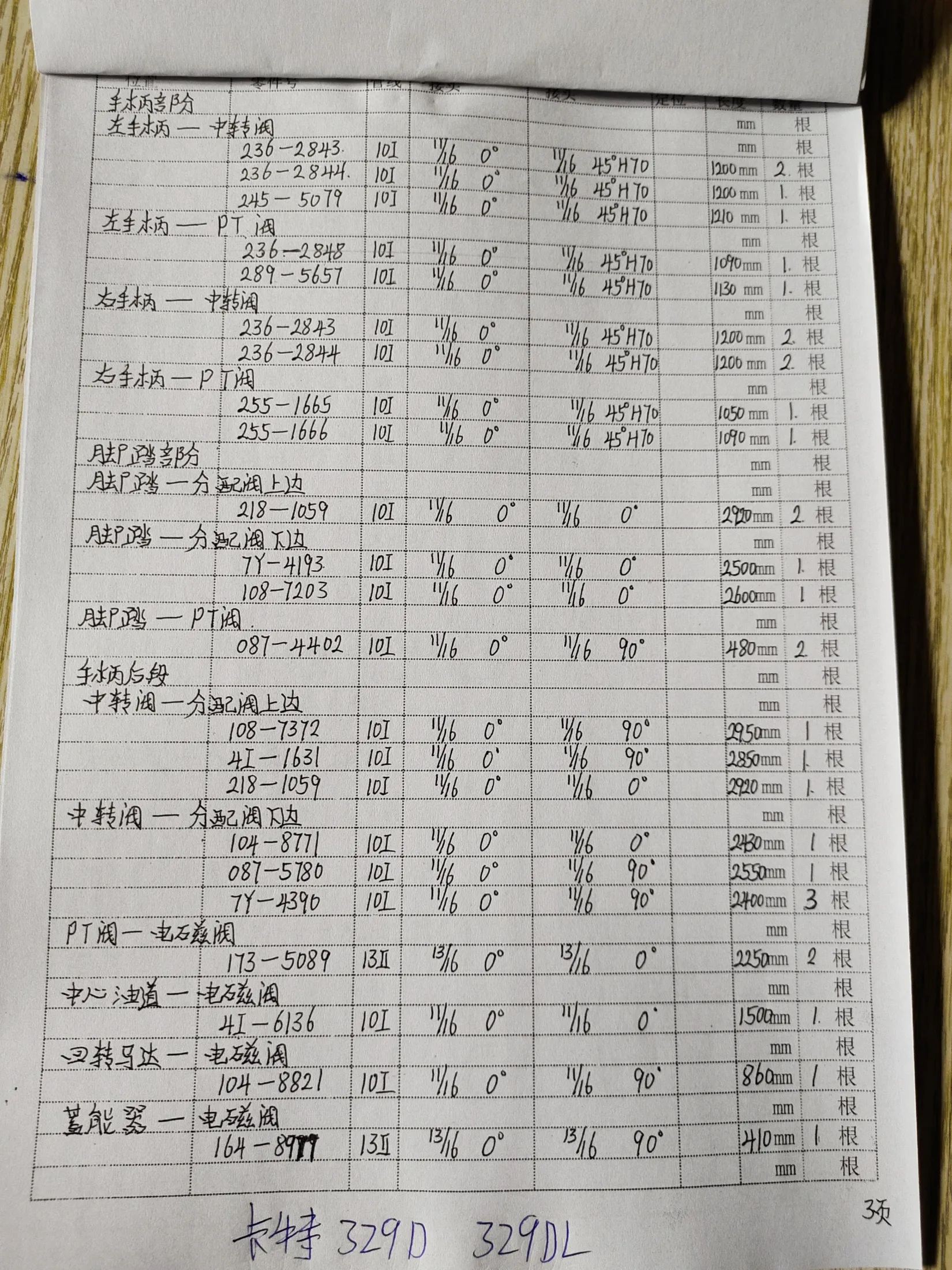

Caterpillar 329DL hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5 — recorded hose parts 4I-613, 7Y-4193 — **Notebook page 3 of 5**Recorded on this sheet: 4I-613 — 1,500 mm; 7Y-4193 — 2,500 mm.

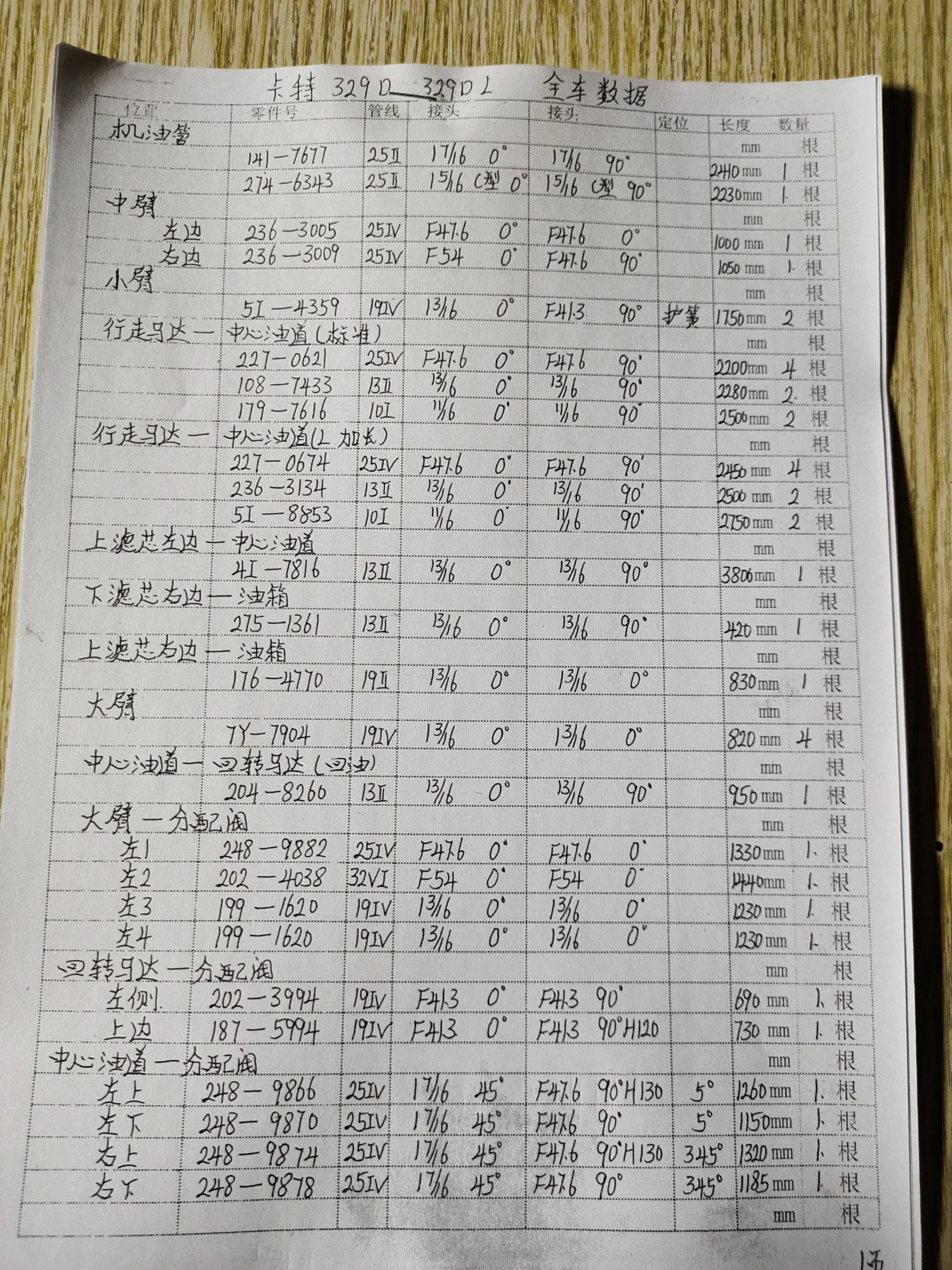

Caterpillar 329DL hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5 — recorded hose parts HI-7816 — **Notebook page 1 of 5**Recorded on this sheet: HI-7816 — 3,806 mm.
