Caterpillar 345C Hydraulic Hose Length & Fitting Lookup
Available Caterpillar 345C workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Caterpillar 345C Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Caterpillar 345C workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 4I-079 | 1,350 mm |
| 4I-0821 | 650 mm |
| 4I-0995 | 12,000 mm |
| 4I-600 | 2,650 mm |
| 4I-3573 | 12,000 mm |
| 4I-5795 | 1,250 mm |
| 5I-4396 | 400 mm |
| 5I-7290 | 900 mm |
| 7I-1244 | 12,000 mm |
| 345C1 | 12,800 mm |
| HI-0818 | 820 mm |
| I-5795 | 11,250 mm |

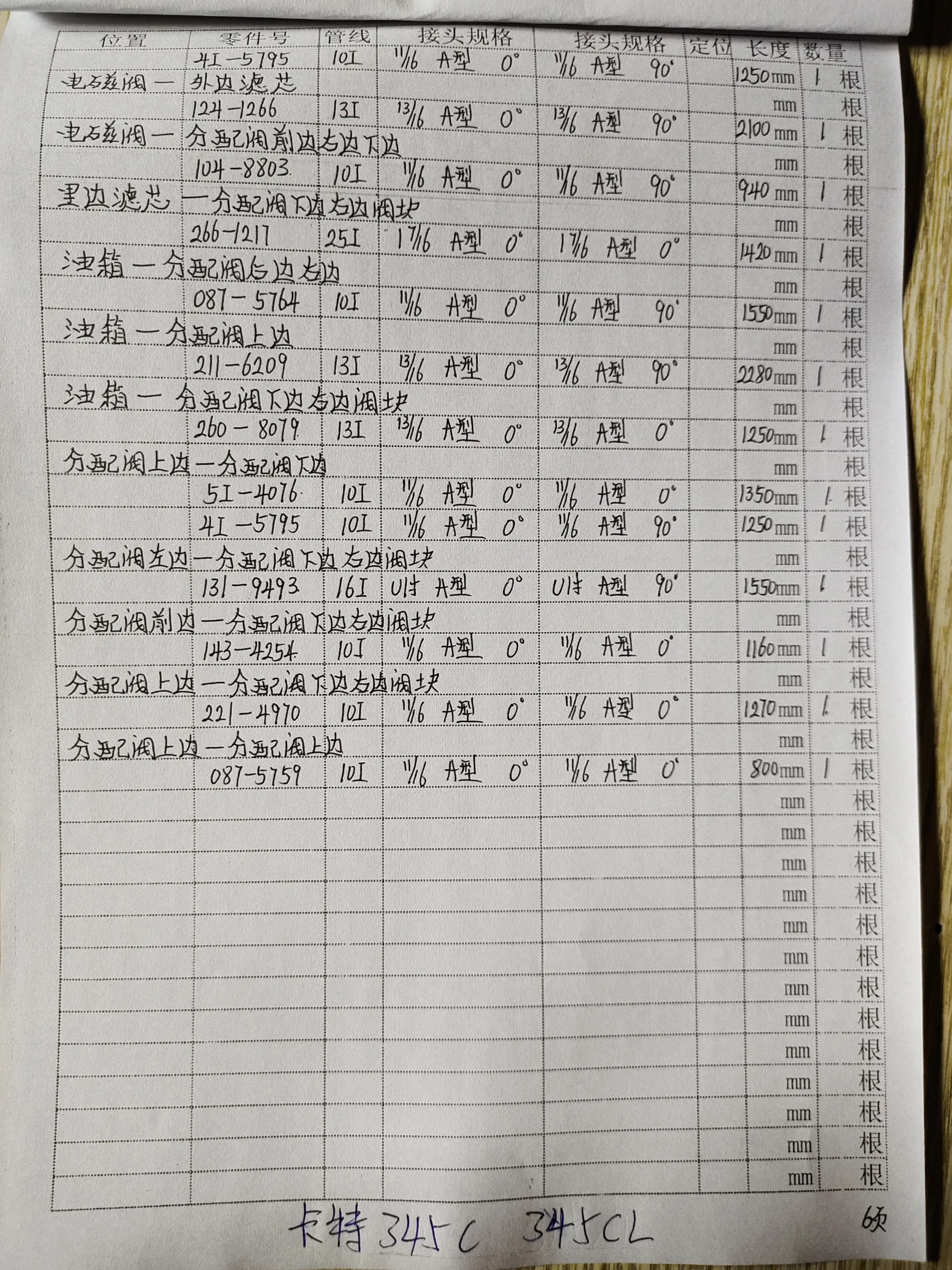

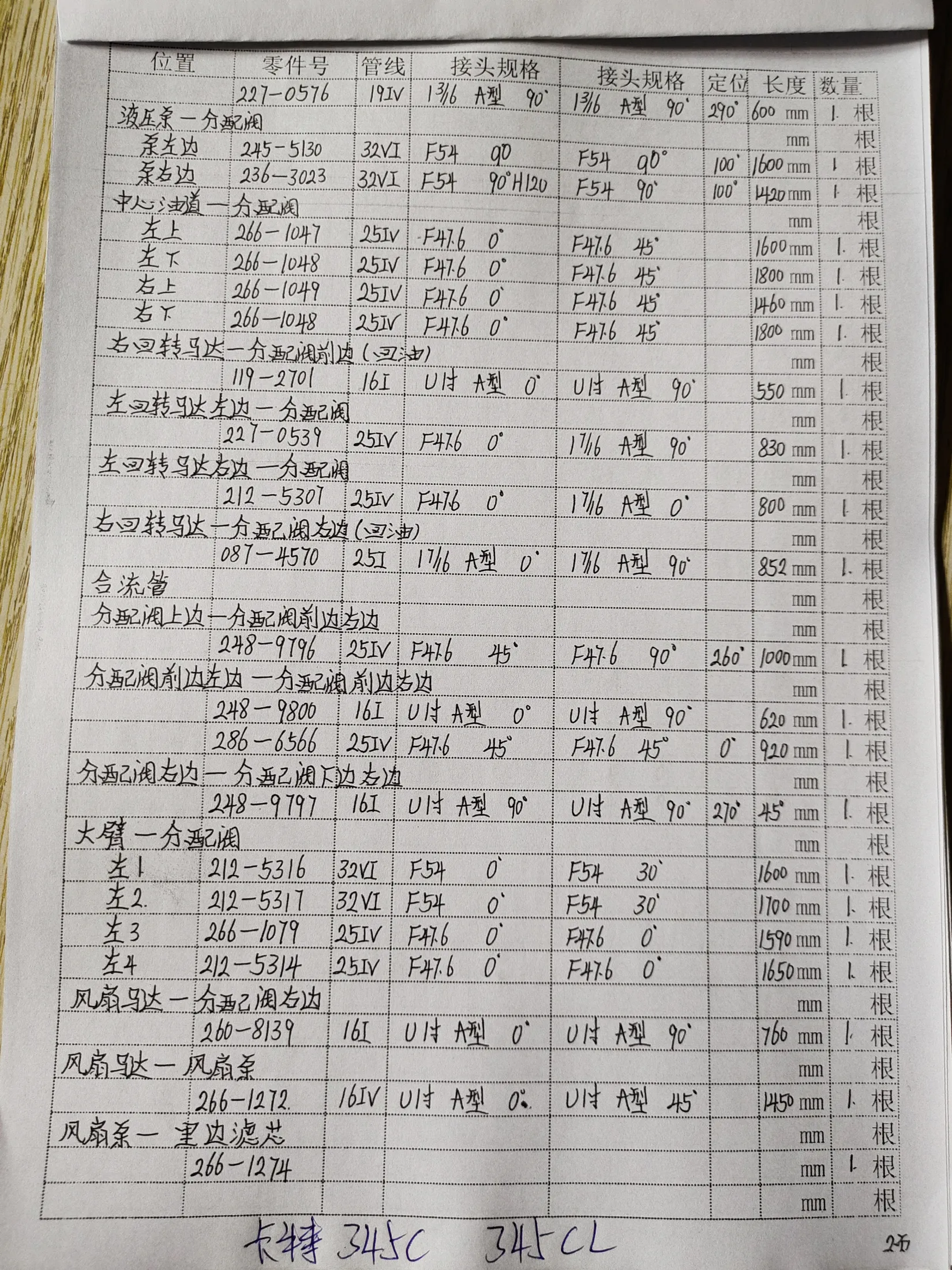

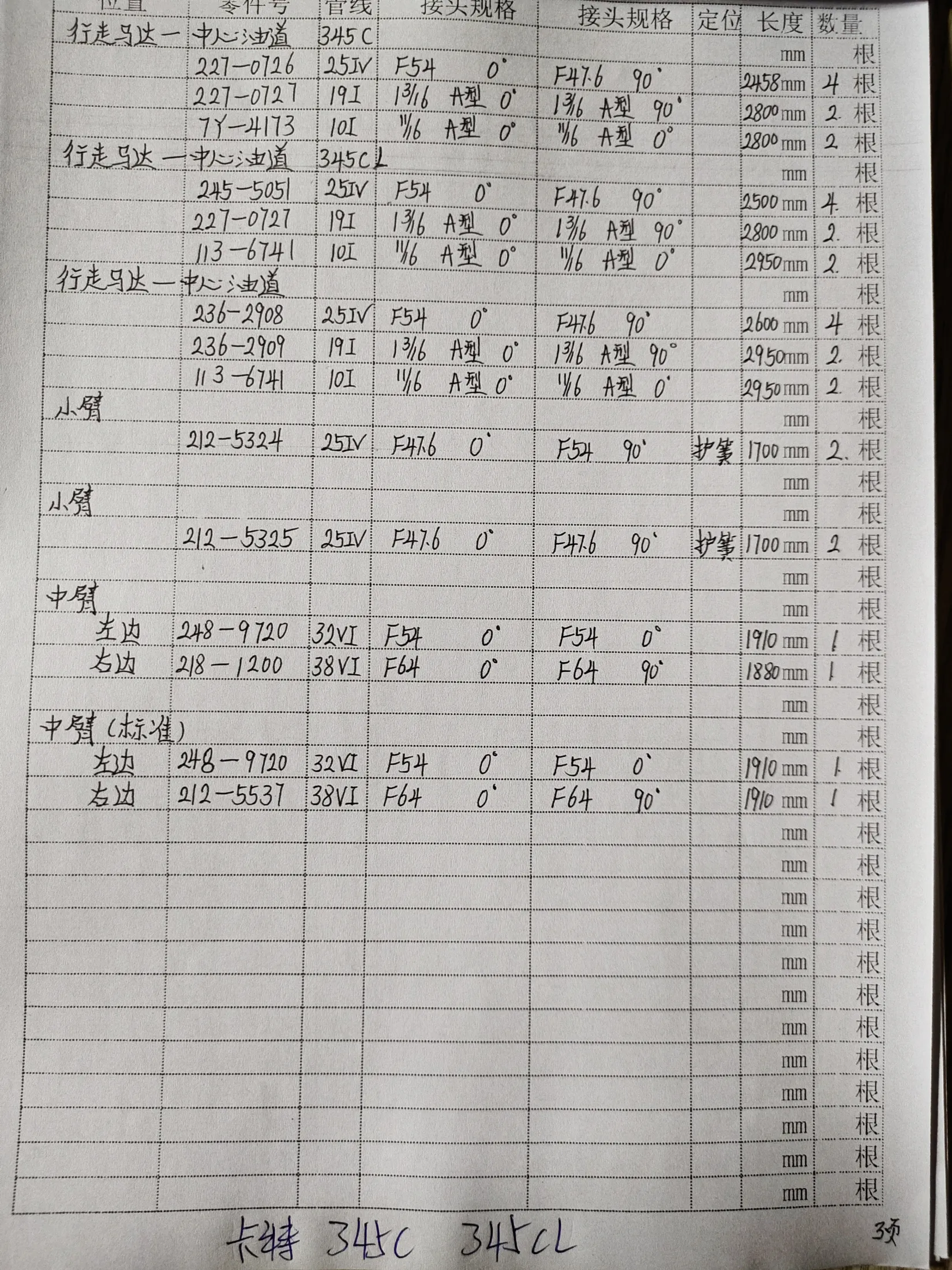

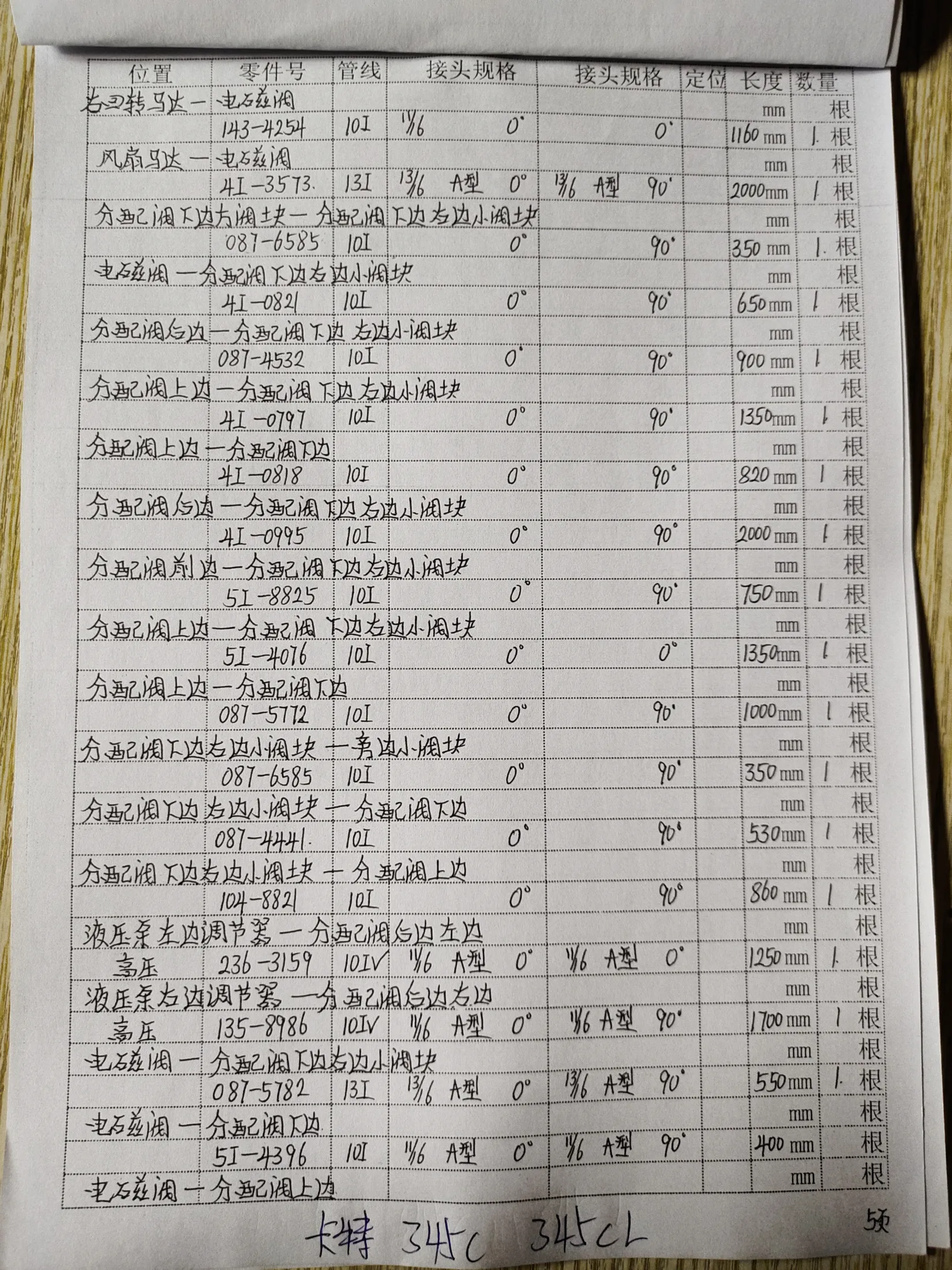

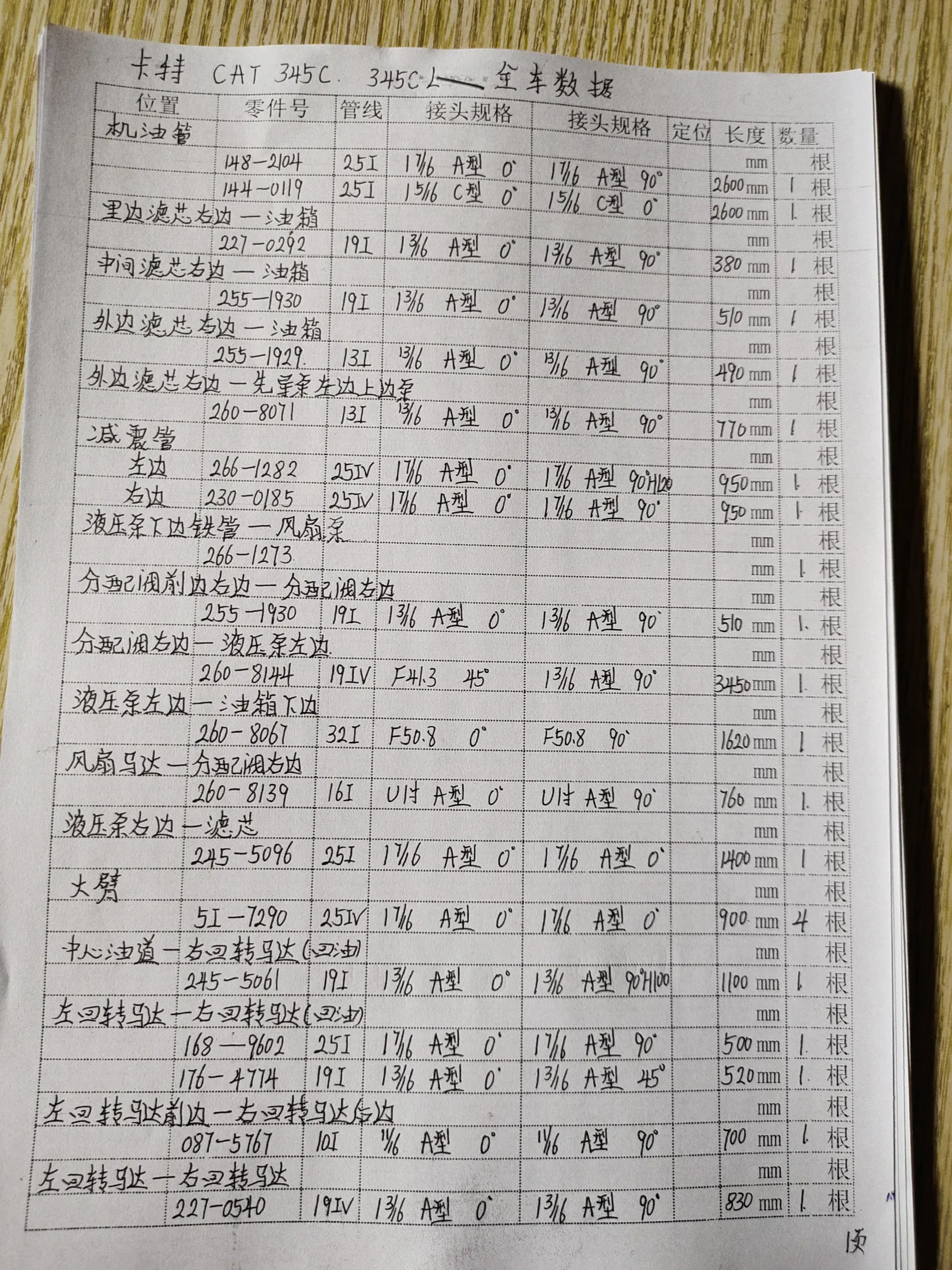

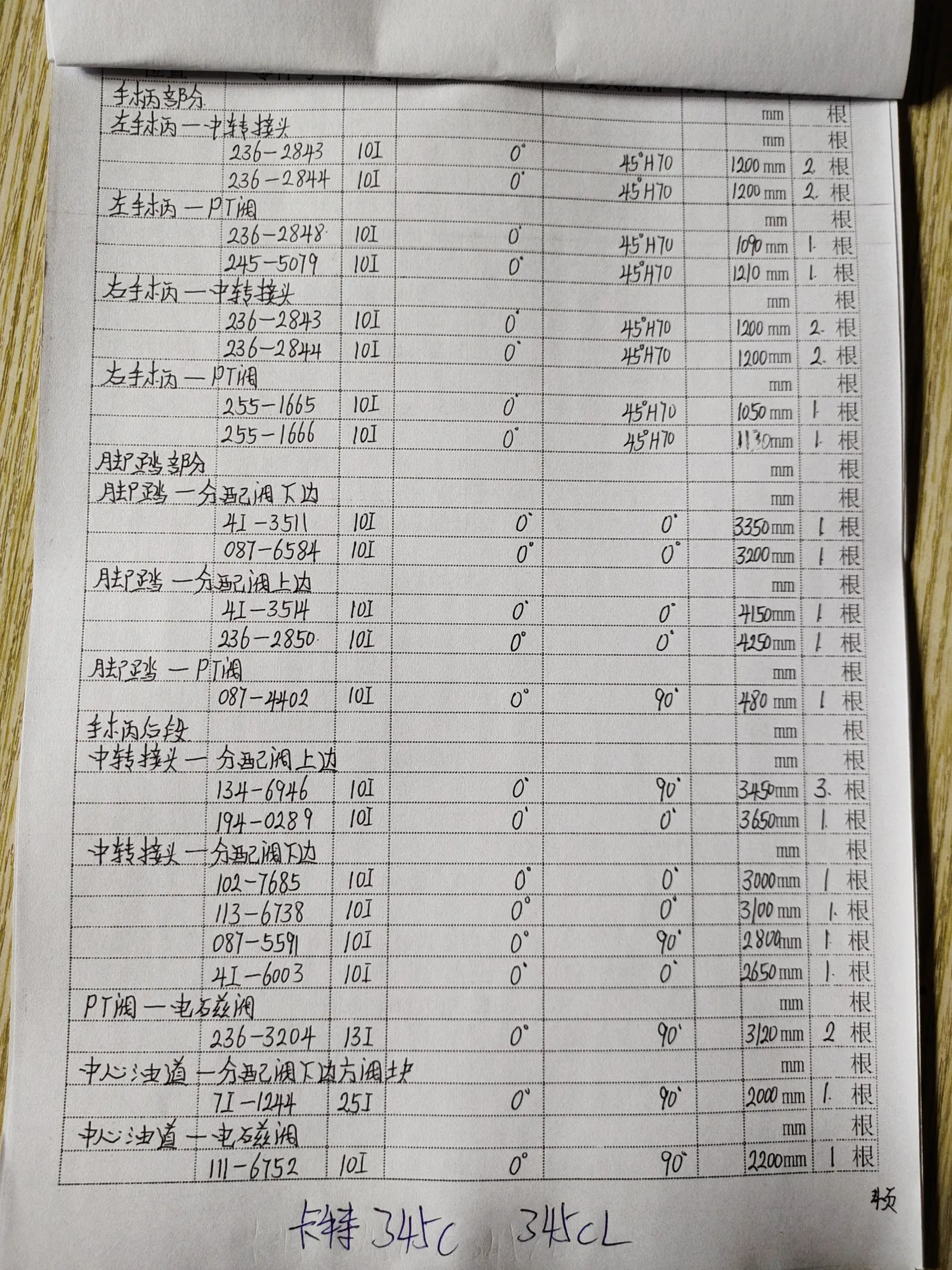

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
