Doosan DH420LC Hydraulic Hose Length & Fitting Lookup
Available Doosan DH420LC workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Doosan DH420LC Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Doosan DH420LC workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 10S205588 | 1,080 mm |
| D52040408 | 1,450 mm |
| D52054326 | 150 mm |
| D52054329 | 12,080 mm |
| D52070654 | 1,170 mm |
| D52092118 | 550 mm |
| D52093016 | 1,700 mm |
| D52093227 | 3,530 mm |
| D52094036 | 1,650 mm |
| D52094121 | 540 mm |
| D52095003 | 1,950 mm |
| D520401358 | 1,280 mm |
| D520551406 | 850 mm |
| DS20937 | 3,090 mm |
| DS201326 | 12,300 mm |
| DS2053823 | 12,270 mm |
| DS2053879 | 2,060 mm |
| DS2055883 | 960 mm |
| DS2092080 | 900 mm |
| DS2093013 | 460 mm |
| DS2093131 | 1,620 mm |
| DS2093283 | 2,766 mm |
| DS2094006 | 400 mm |
| DS2094020 | 1,540 mm |
| DS2094110 | 970 mm |
| DS2094122 | 1,280 mm |
| DS2095004 | 2,000 mm |
| DS209402101 | 810 mm |

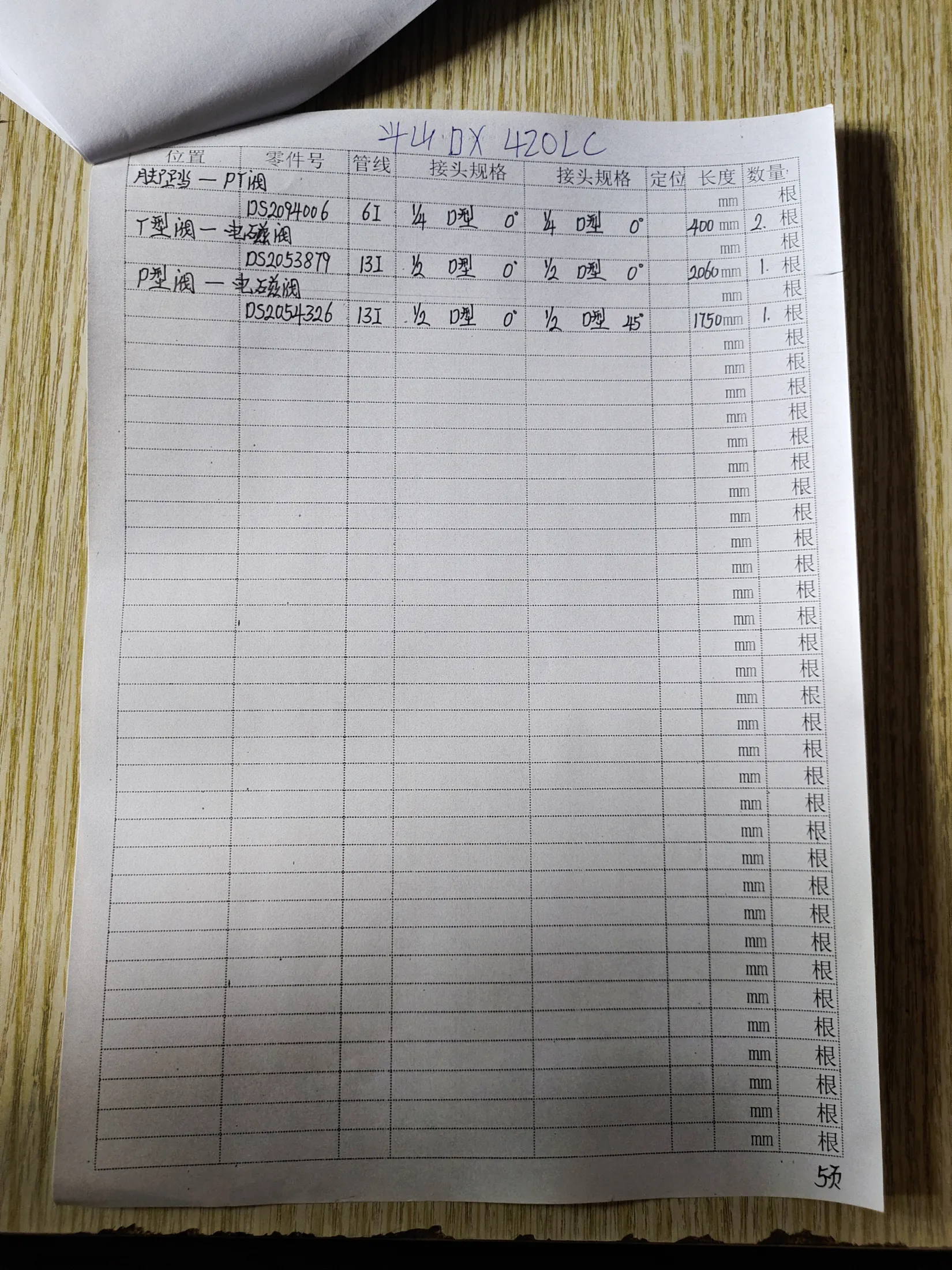

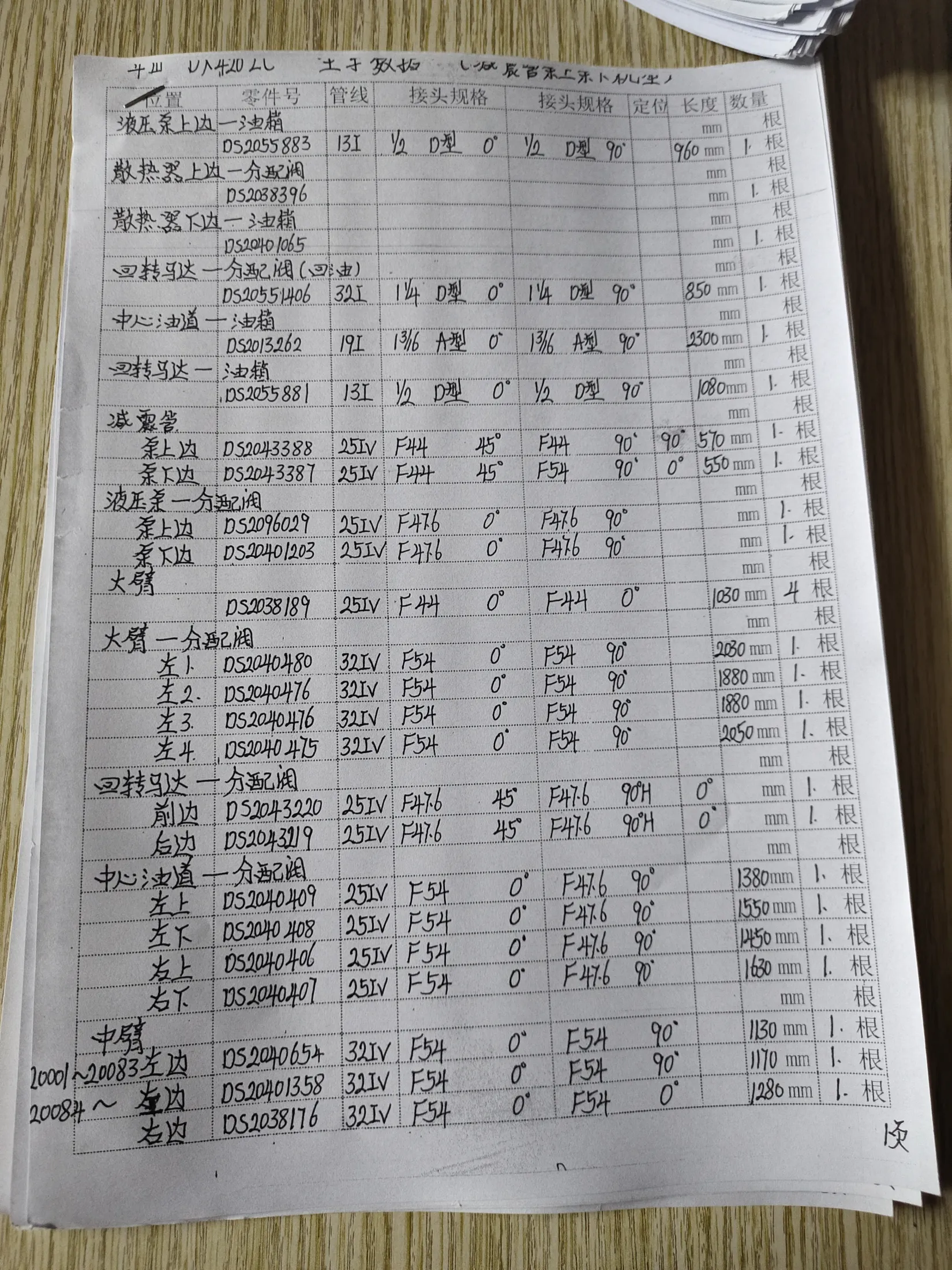

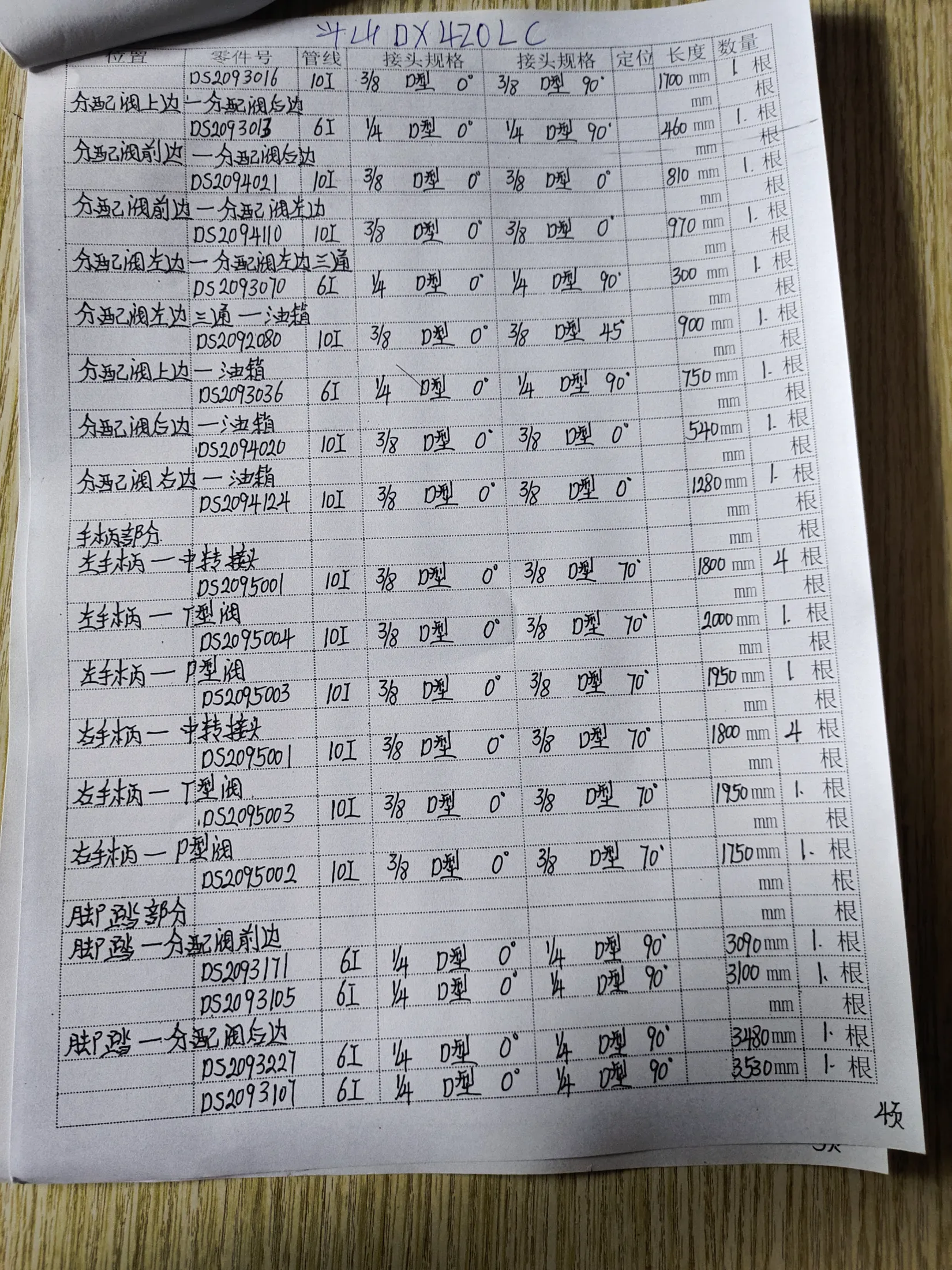

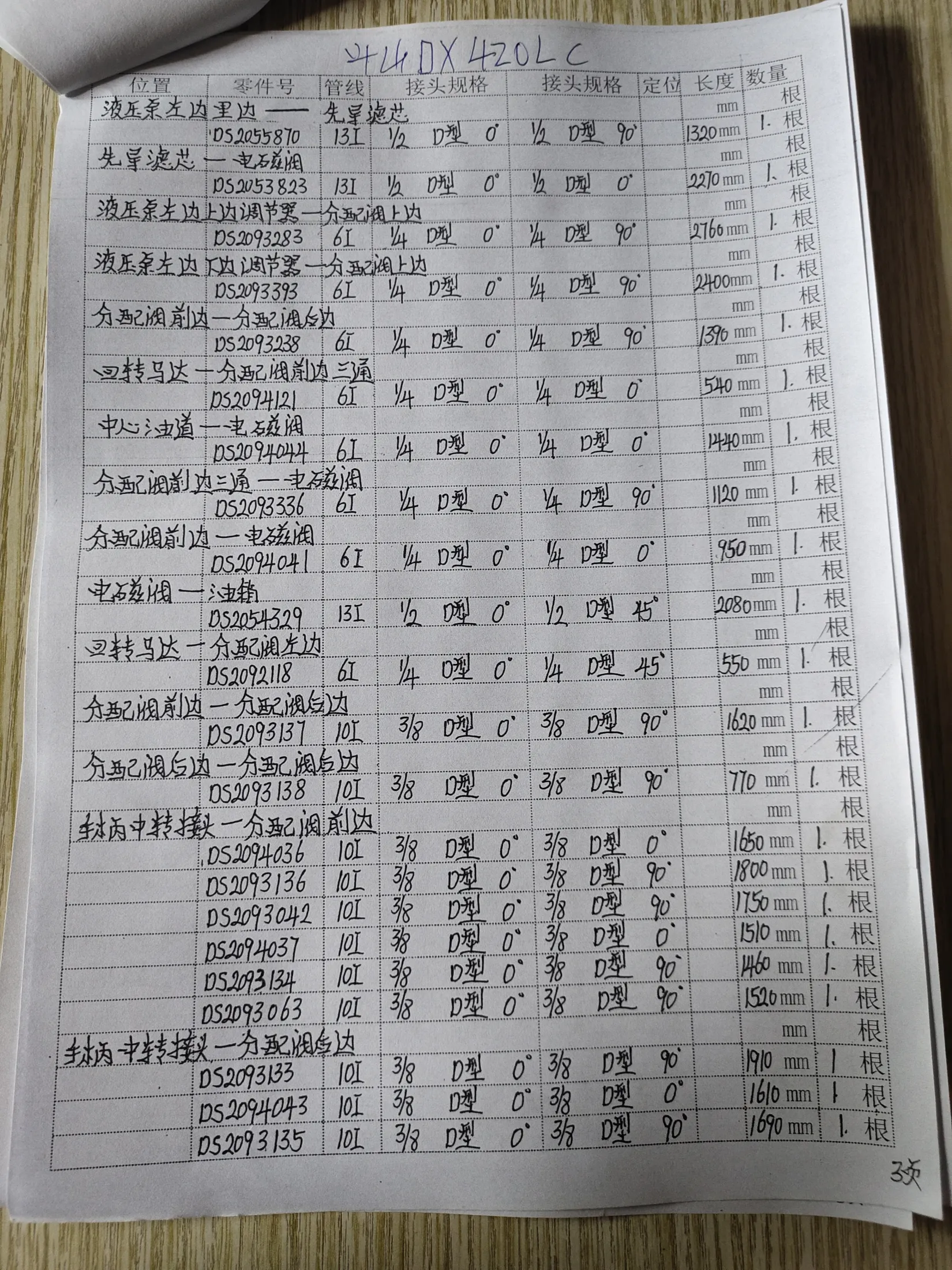

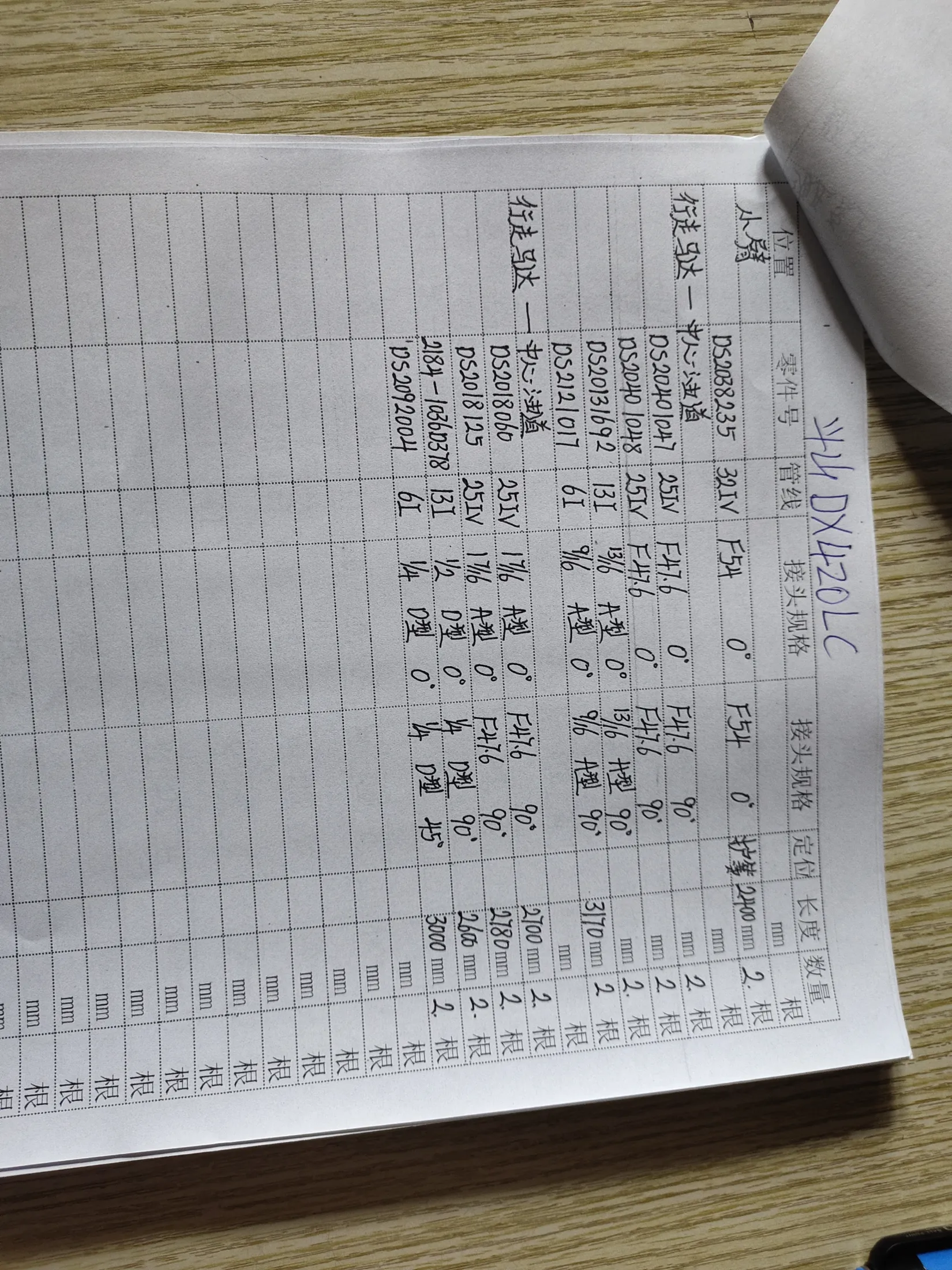

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
