Doosan DH55G0LD Hydraulic Hose Length & Fitting Lookup
Available Doosan DH55G0LD workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Doosan DH55G0LD Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Doosan DH55G0LD workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 284-1036D146 | 1,650 mm |
| 2184-1026DT4 | 400 mm |
| 2184-1045D77 | 1,480 mm |
| 2184-1045D148 | 1,800 mm |
| 2184-1046D114 | 1,350 mm |
| 2184-1046D161 | 880 mm |
| 2184-1060D4 | 290 mm |
| 2184-1060DII7 | 1,350 mm |
| 2184-7046D143 | 1,000 mm |
| 12184-036D14 | 1,420 mm |
| 2847036D355-19I | 695 mm |
| 20002200T | 1,820 mm |
| 21841036D157-B | 1,725 mm |
| 21841045D11I | 1,570 mm |
| C84-0001 | 1,080 mm |
| C184-00003 | 1,620 mm |
| C184-00014 | 1,620 mm |
| D52091167 | 1,795 mm |
| D52093721 | 2,230 mm |
| D52093849 | 1,605 mm |
| DS2053090 | 375 mm |
| DS2053103 | 770 mm |
| DS2053759 | 420 mm |
| DS2055096 | 1,890 mm |
| DS2091174 | 1,795 mm |
| DS2092207 | 2,030 mm |
| DS2093720 | 2,280 mm |
| DS2093723 | 2,060 mm |
| DS2093850 | 1,800 mm |
| DS2109022 | 1,680 mm |
| DS20531260 | 430 mm |

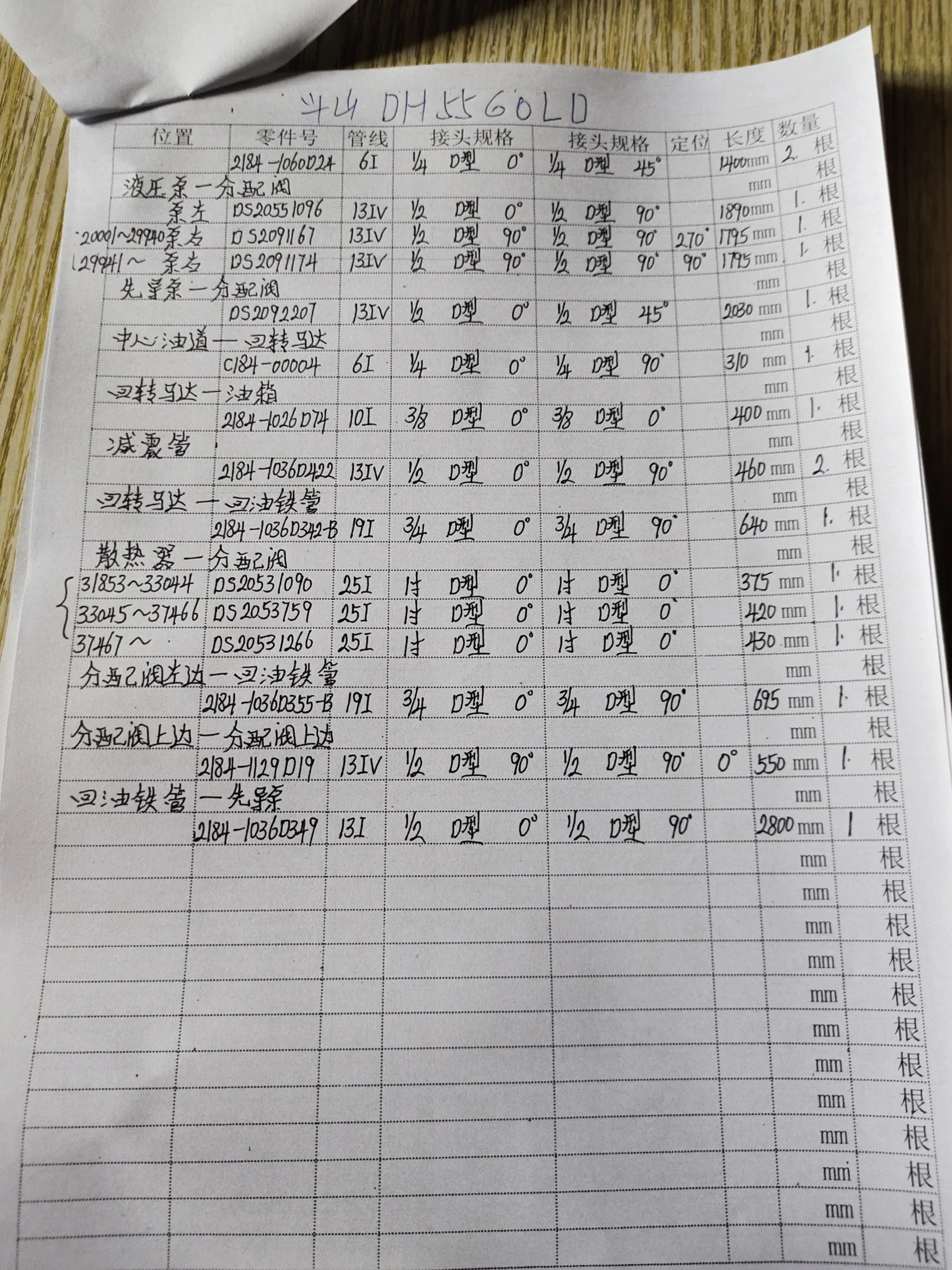

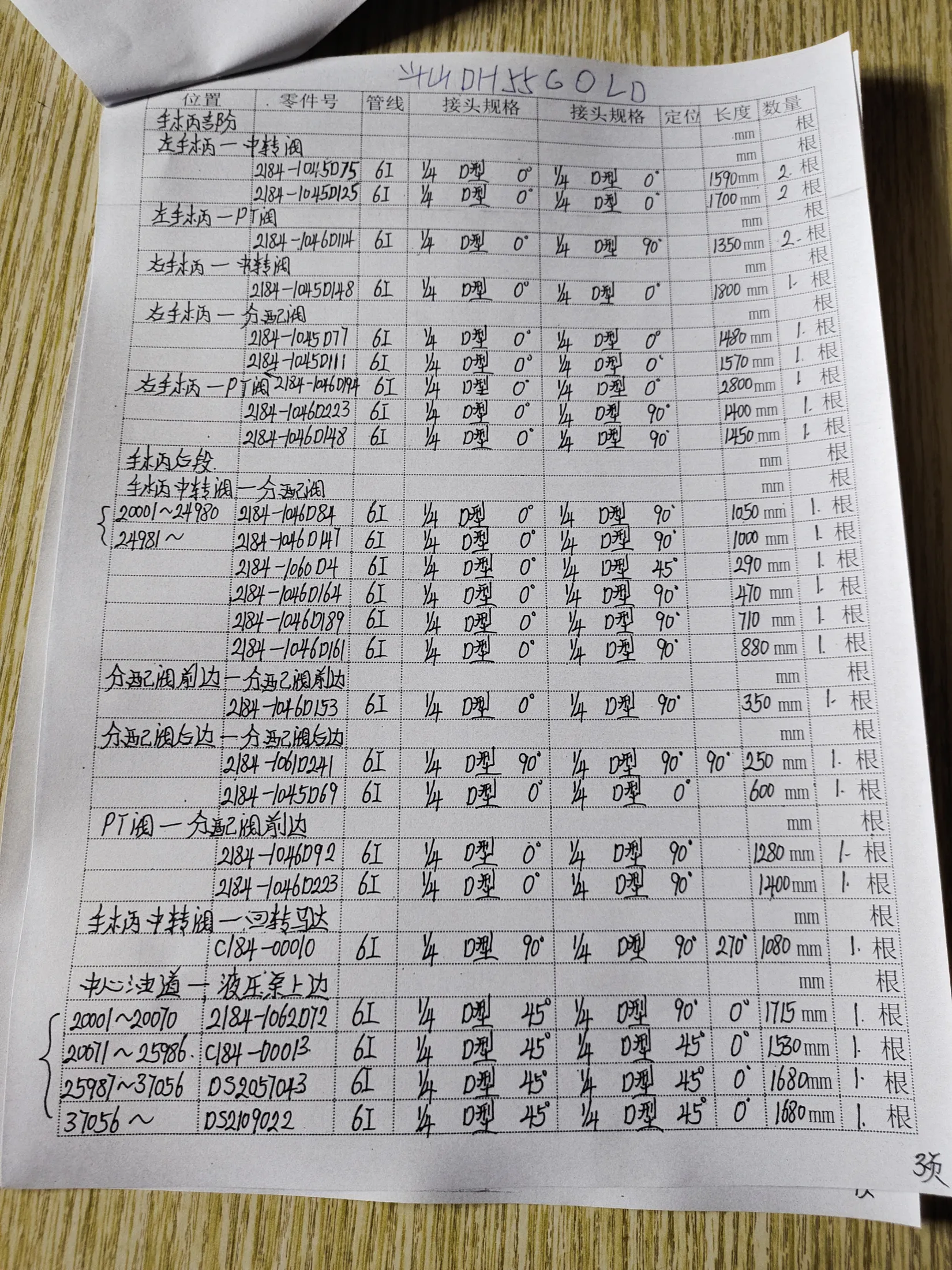

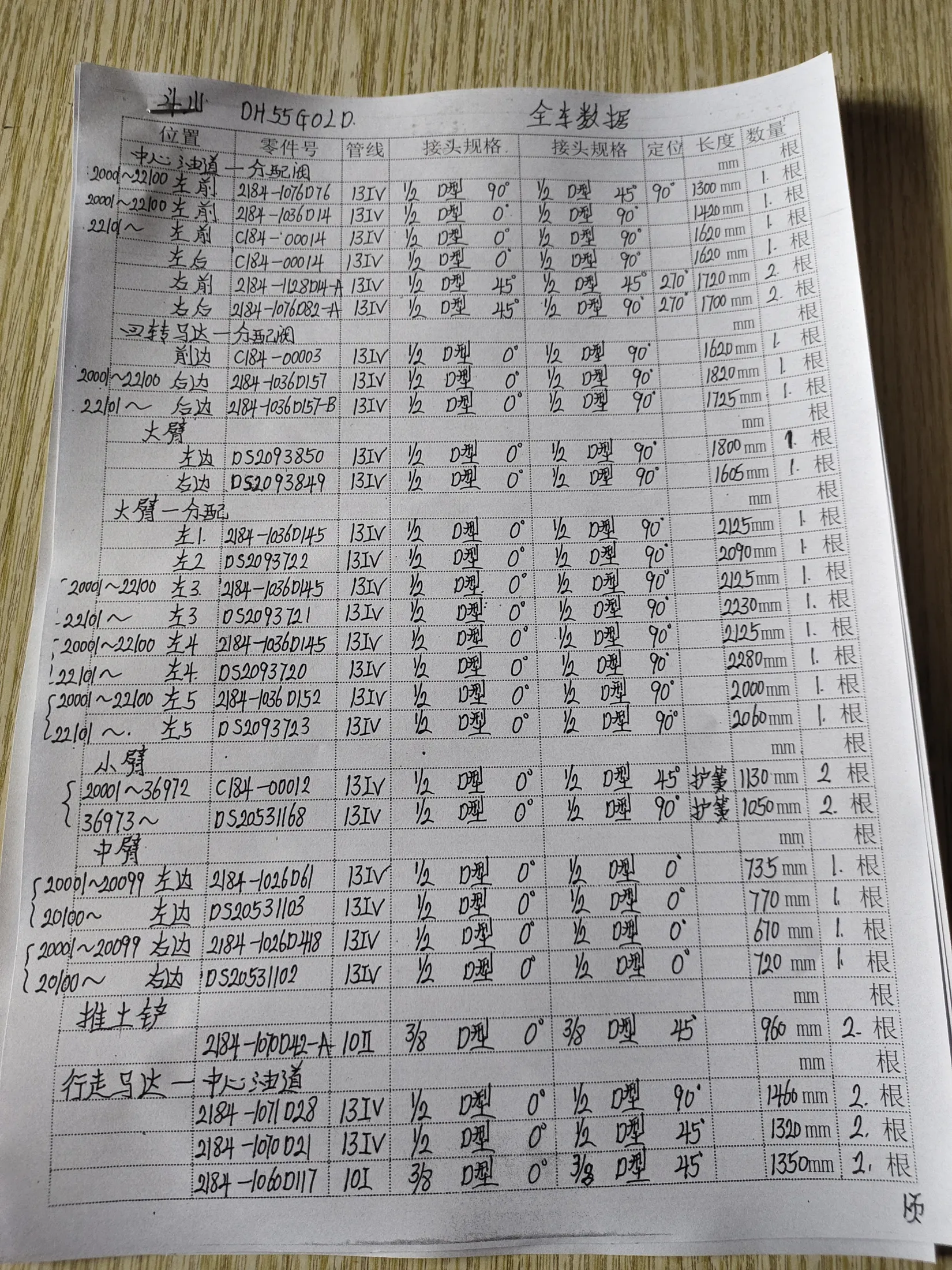

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
