Hydraulic workshop data
Hydraulic hose routing and cut lengths

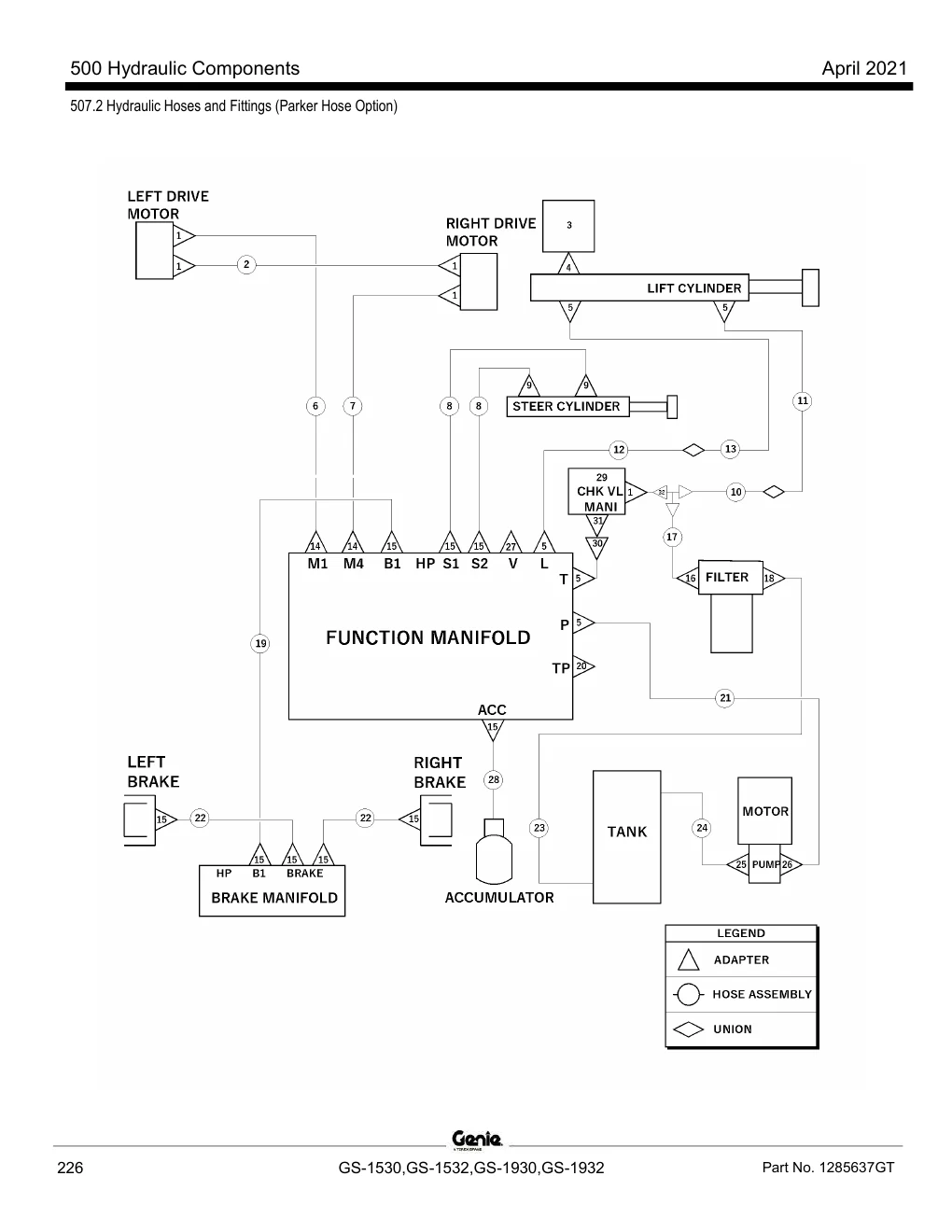

Genie GS-1530, GS-1532, GS-1930 and GS-1932 — Parker hose option. Match the item number in the schematic, then confirm the part number and fittings on the machine.
12 hose entriesHow to read fitting codes
| Item | Part number | Position / use | Hose-only length | Left / right fitting | Hose code | Qty. |
|---|---|---|---|---|---|---|
| 2 | 96350GT | Motor crossover | 1352.6 mm53.25 in | 3989039890 | 56776 | 1 |
| 6 | 105059GT | Drive motors, mini | 717.6 mm28.25 in | 3989039890 | 56776 | — |
| 7 | 105653GT | Drive motors, mini | 787.4 mm31 in | 3989039890 | 56776 | 1 |
| 8 | 96351GT | Steer | 558.8 mm22 in | 7885578855 | 78852 | 2 |
| 11 | 105261GT | Upper vent | 2717.8 mm107 in | 9640796770 | 75631 | 1 |
| 12 | 105264GT | Upper hydraulic line | 330.2 mm13 in | 3989047223 | 56776 | — |
| 13 | 105262GT | Upper lift | 1854.2 mm73 in | 3989039890 | 56776 | — |
| 17 | 105285GT | Hydraulic line | 558.8 mm22 in | 9640696406 | 75631 | 1 |
| 19 | 105284GT | Brake | 1168.4 mm46 in | 7885578855 | 78852 | 1 |
| 21 | 96353GT | Pressure | 1016.0 mm40 in | 3989039890 | 56776 | 1 |
| 22 | 96391GT | Brake | 431.8 mm17 in | 7885578855 | 78852 | 2 |
| 28 | 105283GT | Manifold to accumulator | 355.6 mm14 in | 7885578855 | 78852 | 1 |
