Hitachi 210K-5G Hydraulic Hose Length & Fitting Lookup
Available Hitachi 210K-5G workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Hitachi 210K-5G Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Hitachi 210K-5G workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 1A00007002 | 3,200 mm |
| 3A00010451 | 3,300 mm |
| 9268625Y | 950 mm |
| A00000450 | 2,950 mm |
| YA00003817 | 3,000 mm |
| YA00003819 | 2,150 mm |
| YA00007000 | 2,900 mm |
| YA00007003 | 1,360 mm |
| YA60016317 | 1,500 mm |

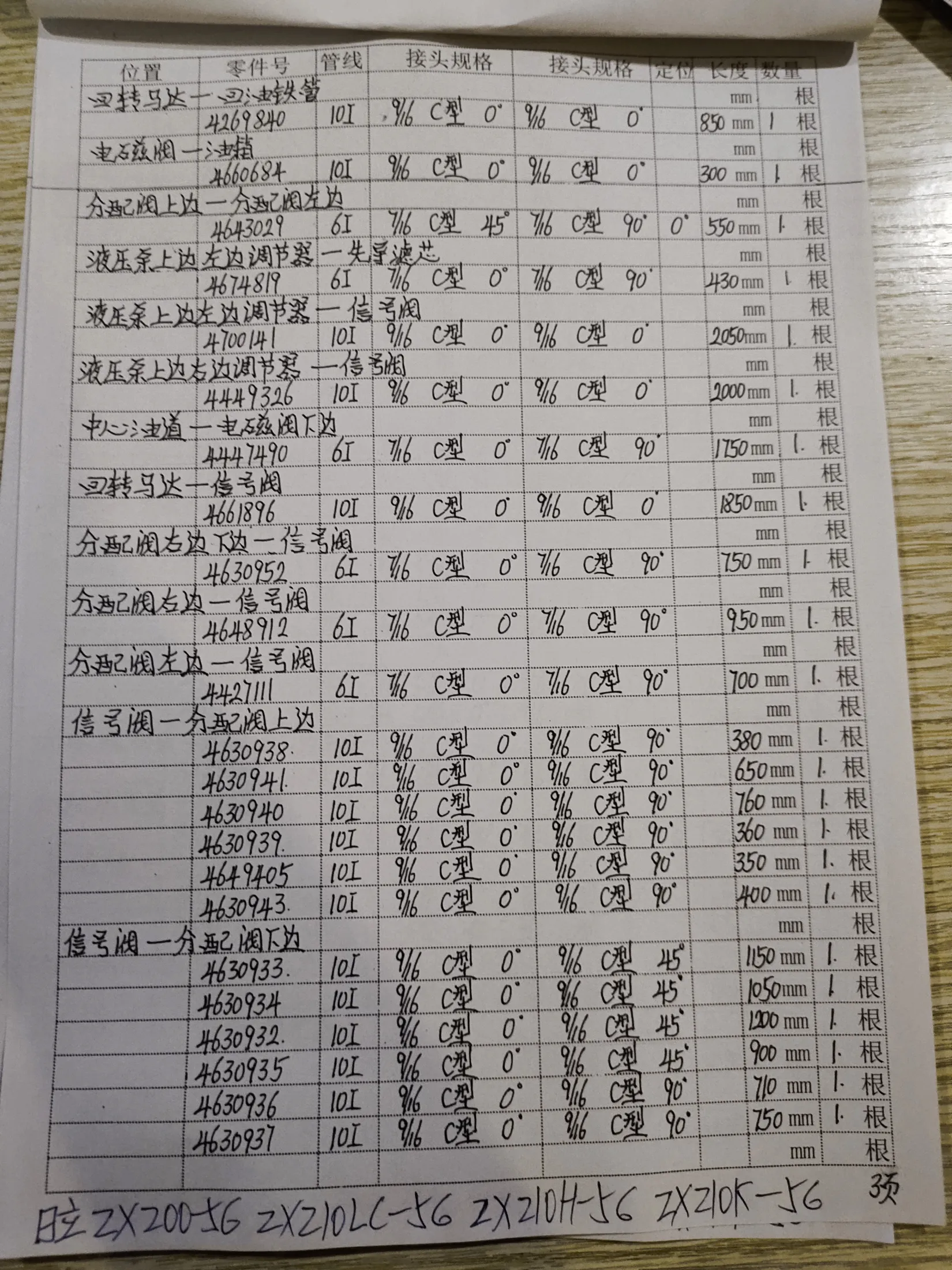

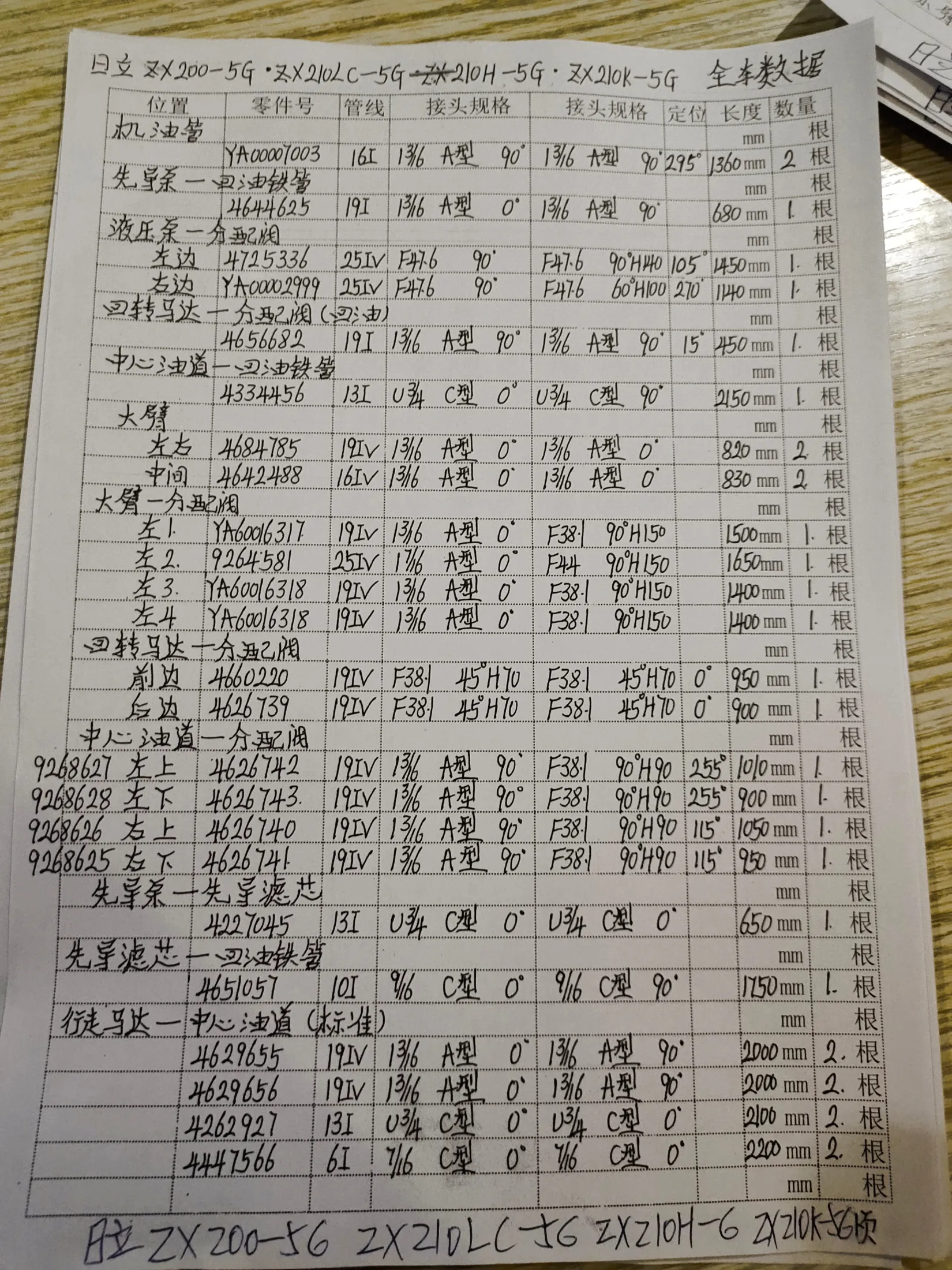

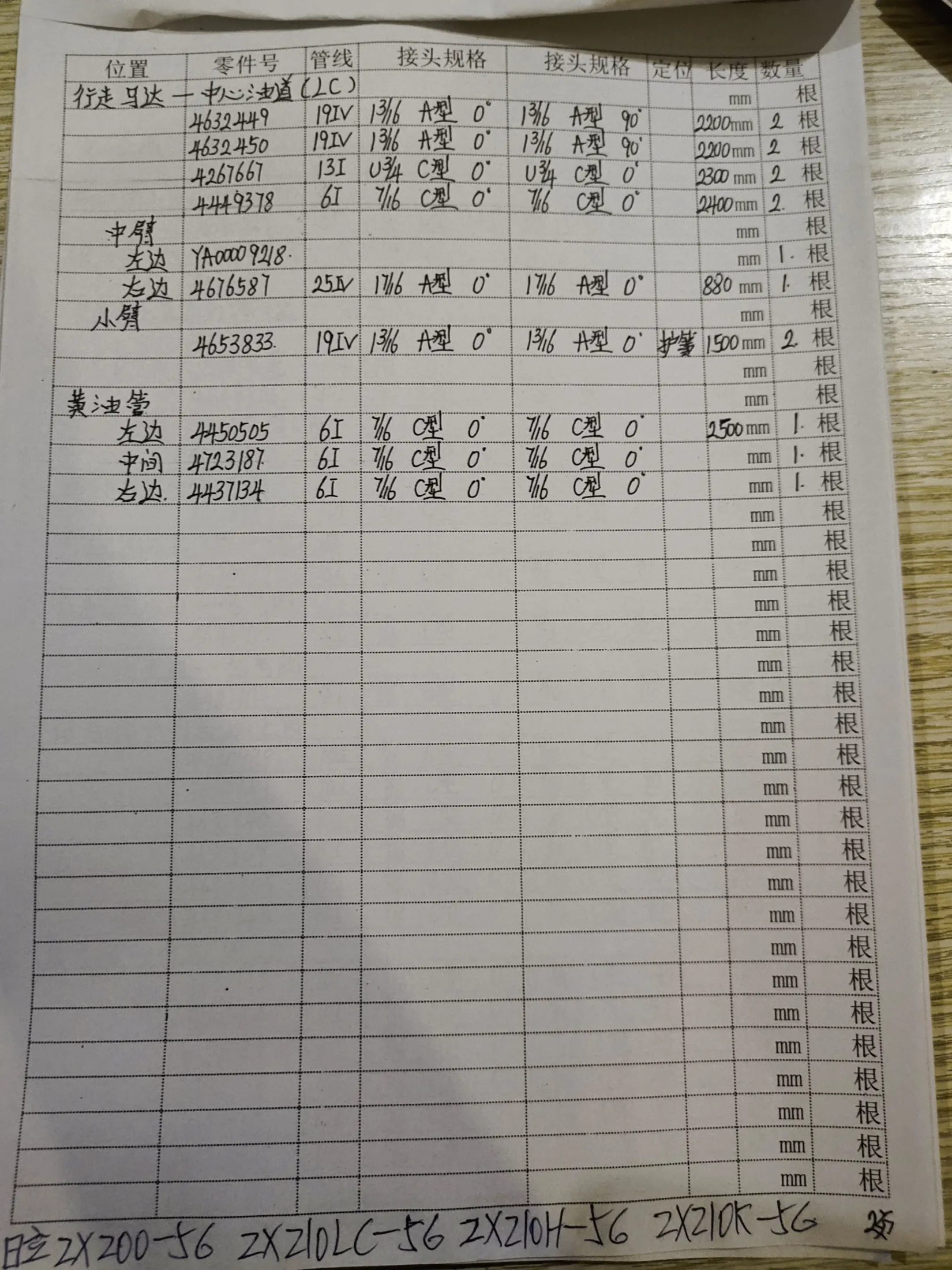

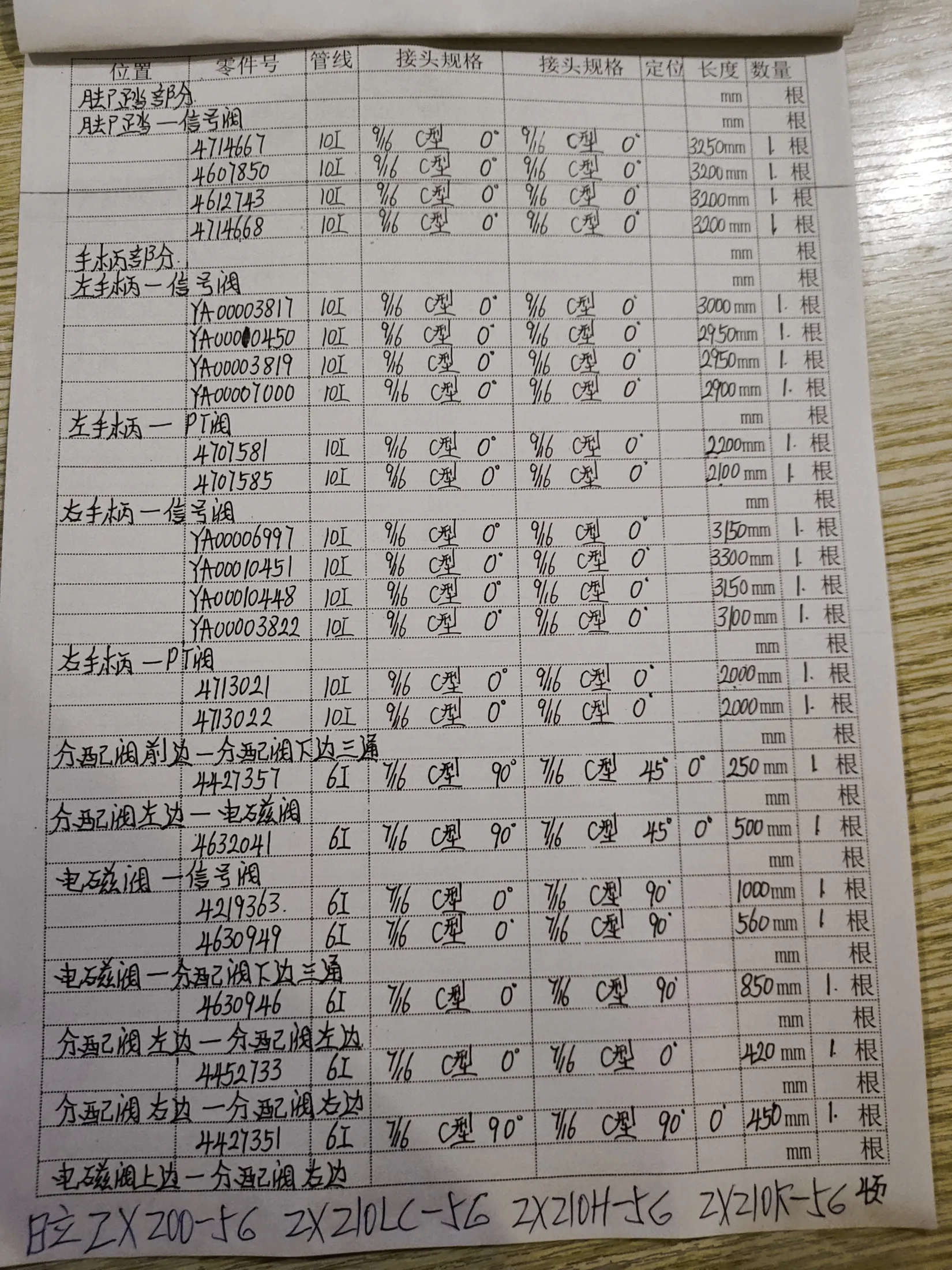

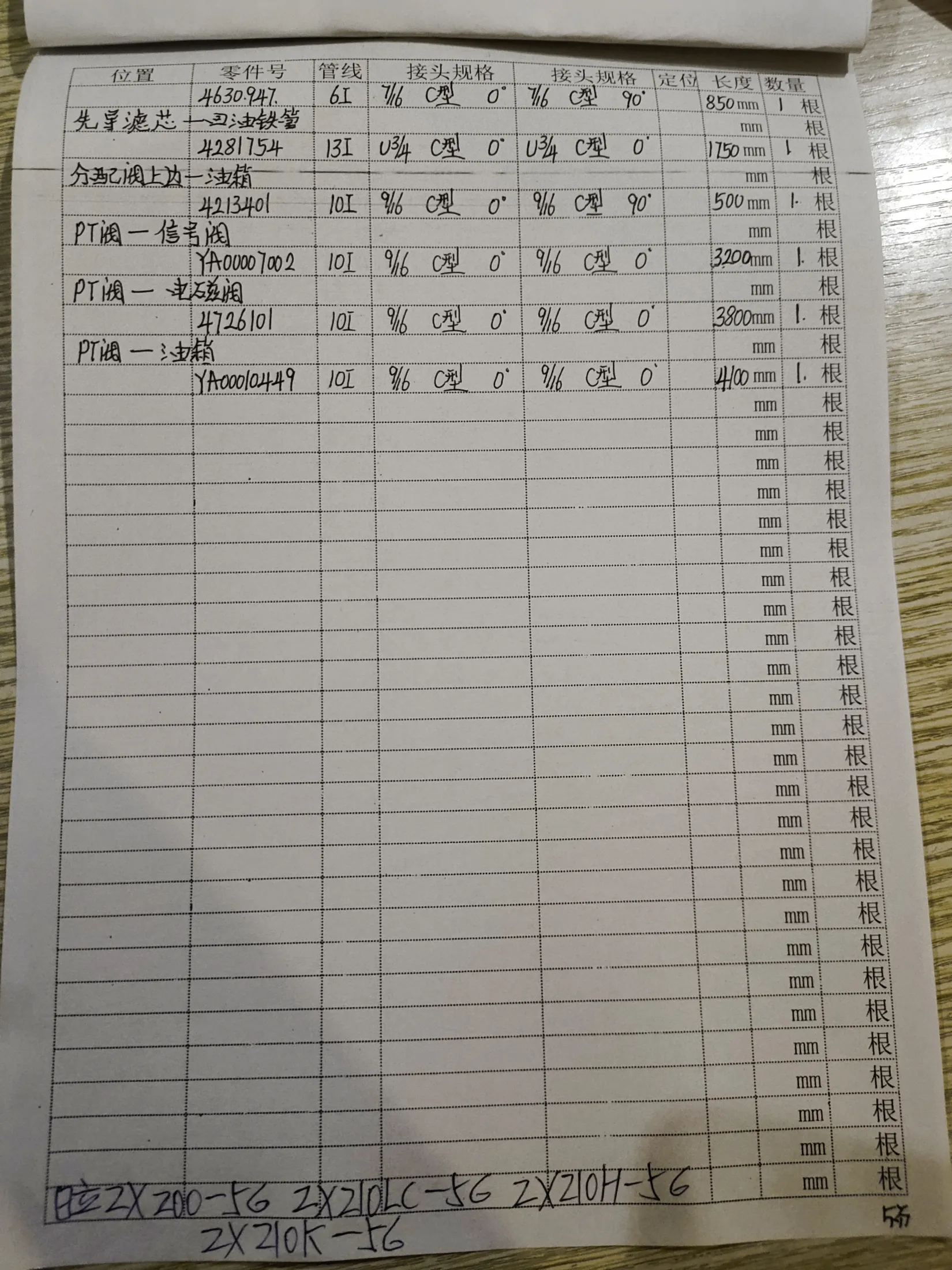

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
