Hitachi EX200LC-5HHE Hose Repair Data

Coverage details
Hoses
2 records
Full specifications
2 records
Systems
2 systems
Length range
700–700 mm

Current machine

Find a hose on this machine

Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.

Search another machine

Hose repair details

Hose Length and Fitting List

Hose record

4334909

Installation route: 回转马达—电磁阀

Length
700 mm
Specification
6I（手写管线代码）
Left fitting
7/16″ 0°（手写接头规格）
Right fitting
7/16″ 90°（手写接头规格）
View full repair specifications

Digitized data and source sheets

Hitachi EX200LC-5HHE Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Hitachi EX200LC-5HHE workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
4334909700 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

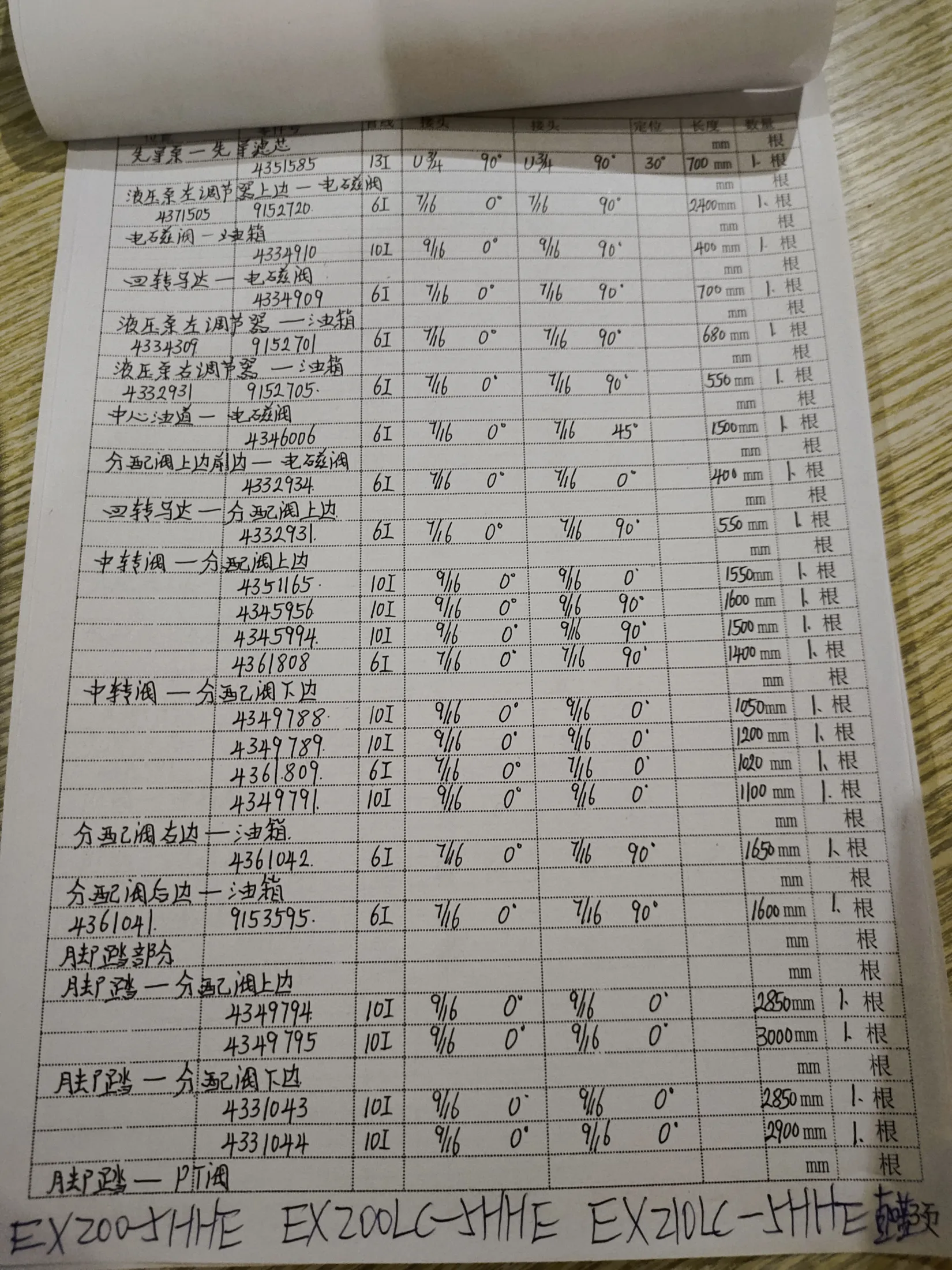

Hitachi EX200LC-5HHE hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 1
Notebook page 1 of 1

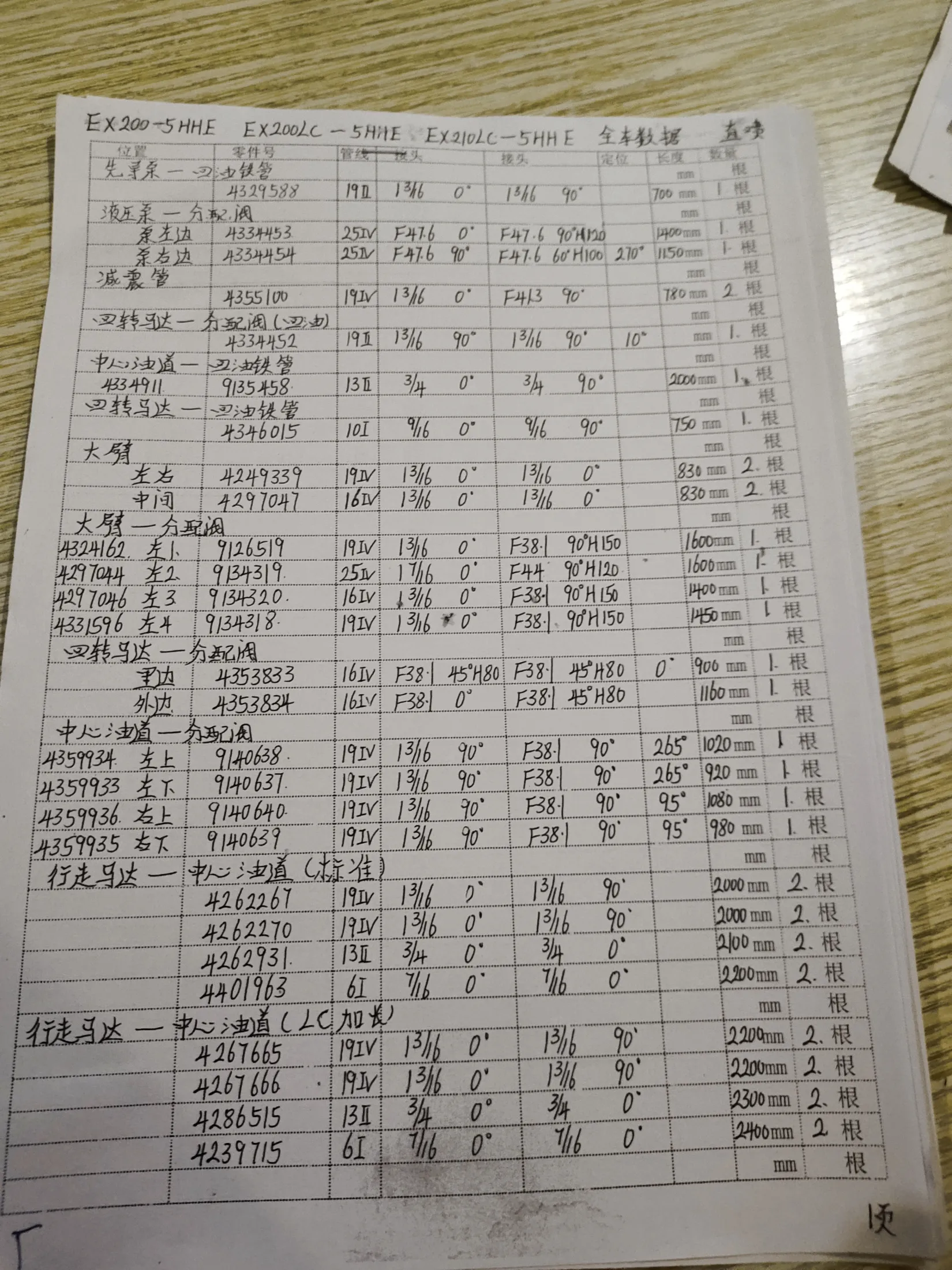

Hitachi EX200LC-5HHE hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 4
Notebook page 1 of 4

Workshop guide

Finding the correct hydraulic hose for Hitachi EX200LC-5HHE

Start with the machine and route

For Hitachi EX200LC-5HHE, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.

Read the dimensions before cutting

Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.

Records to compare

  • 4329588700 mm · 19II · 先导泵—回油铁管
  • 4334909700 mm · 6I（手写管线代码） · 回转马达—电磁阀

Use the drawing as a location check

Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.

Based on current published data

Common Repair Questions

Questions appear only when a published record or linked PDF page provides the answer.

What is the hose length range for Hitachi EX200LC-5HHE?

Based on published records with valid lengths, the range is 700 mm. Open the individual record to verify its installation position and both end fittings before fabrication.

Which hose specifications are common for Hitachi EX200LC-5HHE?

The most frequent raw specifications in the current published records are: 19II (1 records), 6I（手写管线代码） (1 records). Verify the specification together with length, pressure, and fitting details.

How can I identify the left and right hose fittings for Hitachi EX200LC-5HHE?

Each record keeps the left and right fitting descriptions separate. Current examples: 4329588: left 13/16 0°; right 13/16 90°; 4334909: left 7/16″ 0°（手写接头规格）; right 7/16″ 90°（手写接头规格）. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
