Kobelco SK20LC-6E Hydraulic Hose Length & Fitting Lookup
Available Kobelco SK20LC-6E workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Kobelco SK20LC-6E Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Kobelco SK20LC-6E workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 244RIILYDO46 | 760 mm |
| 2420K349D0426I | 426 mm |
| 2420K537D115 | 1,150 mm |
| 2420K537D300 | 3,000 mm |
| 2420R349D065 | 650 mm |
| 2420R3490085 | 850 mm |
| 2420R3490090 | 900 mm |
| 2420R5370120 | 1,206 mm |
| 2444R1190195 | 1,950 mm |
| 2444RIII70302 | 2,500 mm |
| IN68H000102 | 2,050 mm |
| IN68H000104 | 2,050 mm |
| YN68H000101 | 1,050 mm |

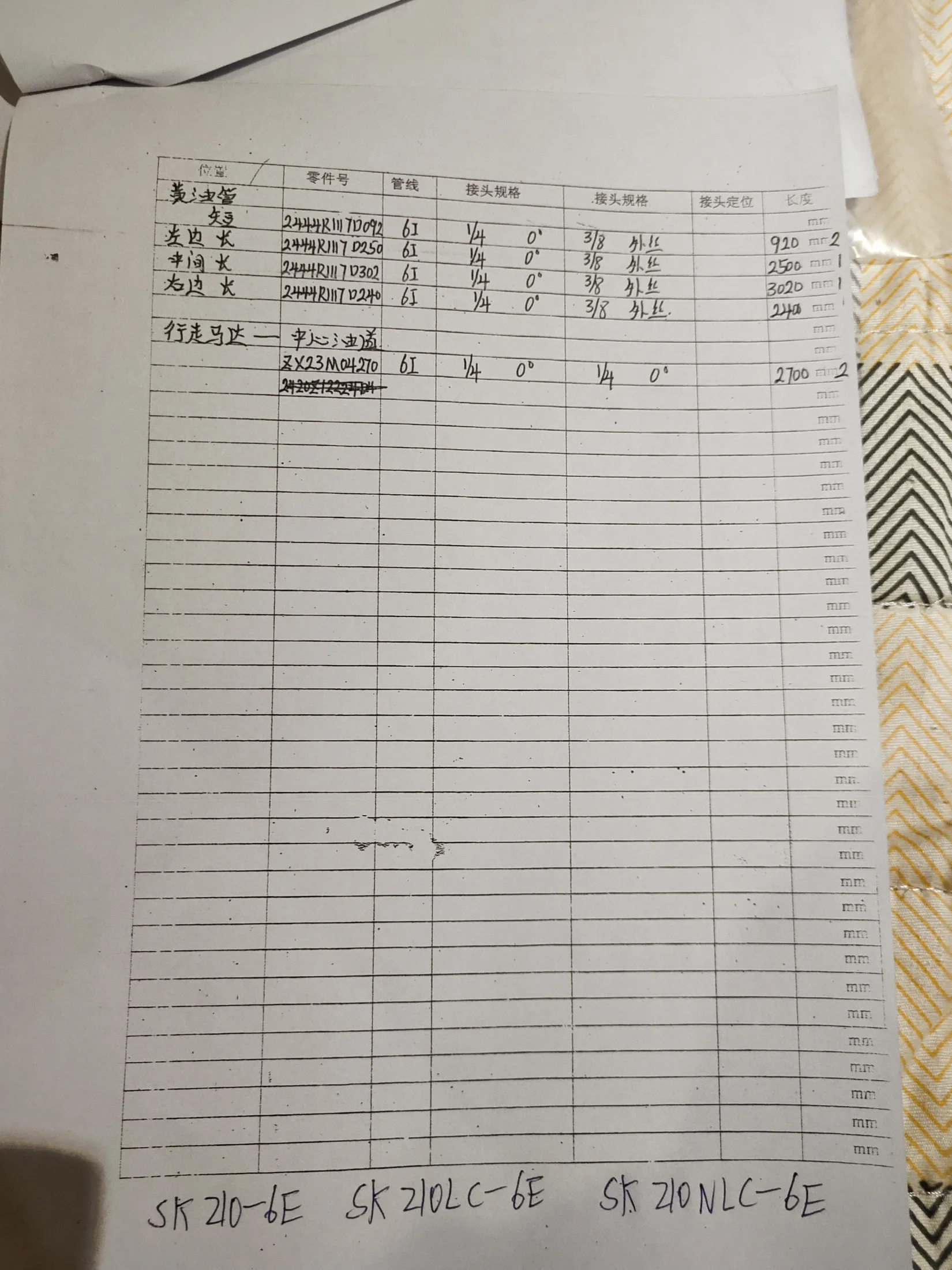

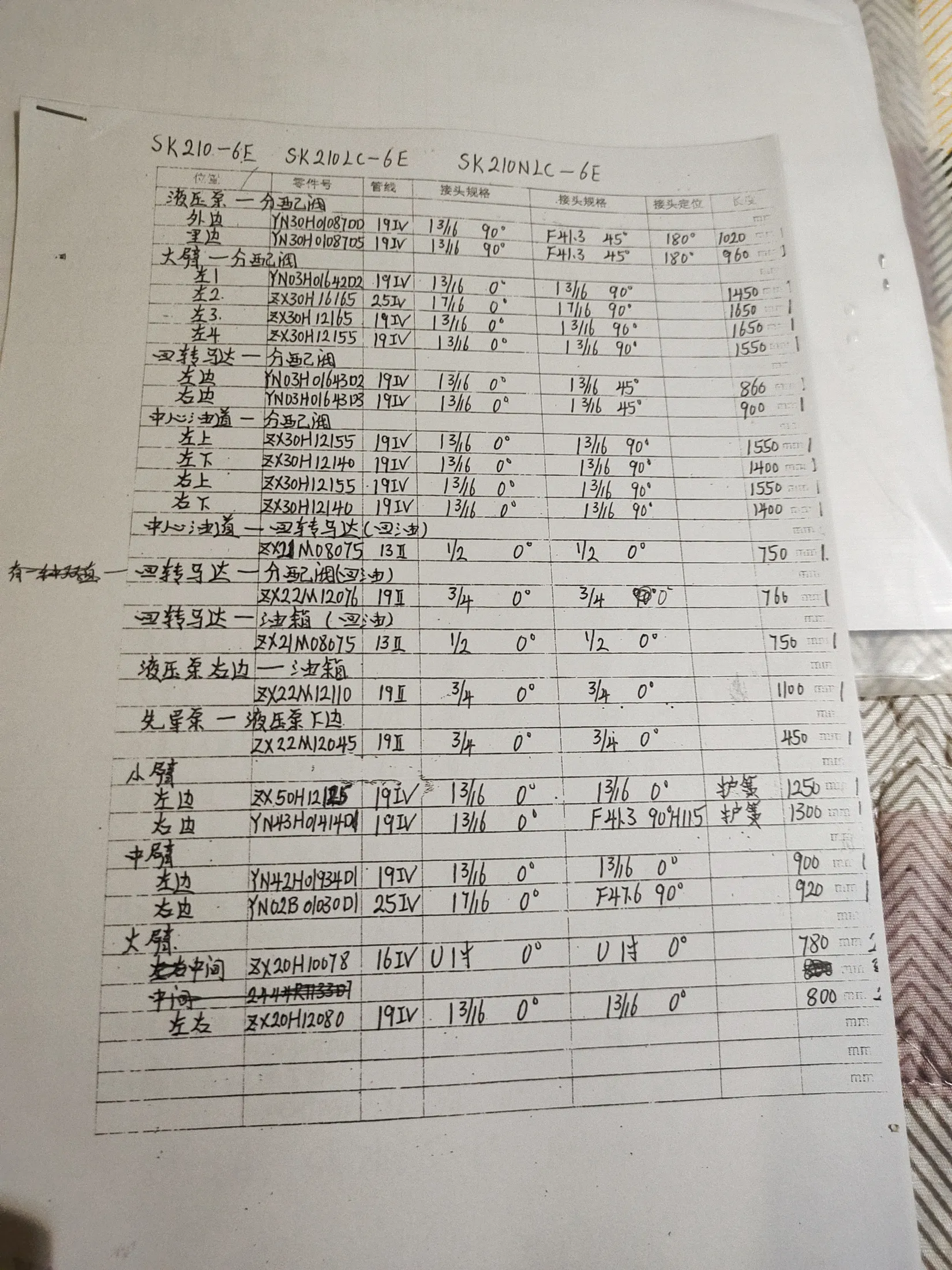

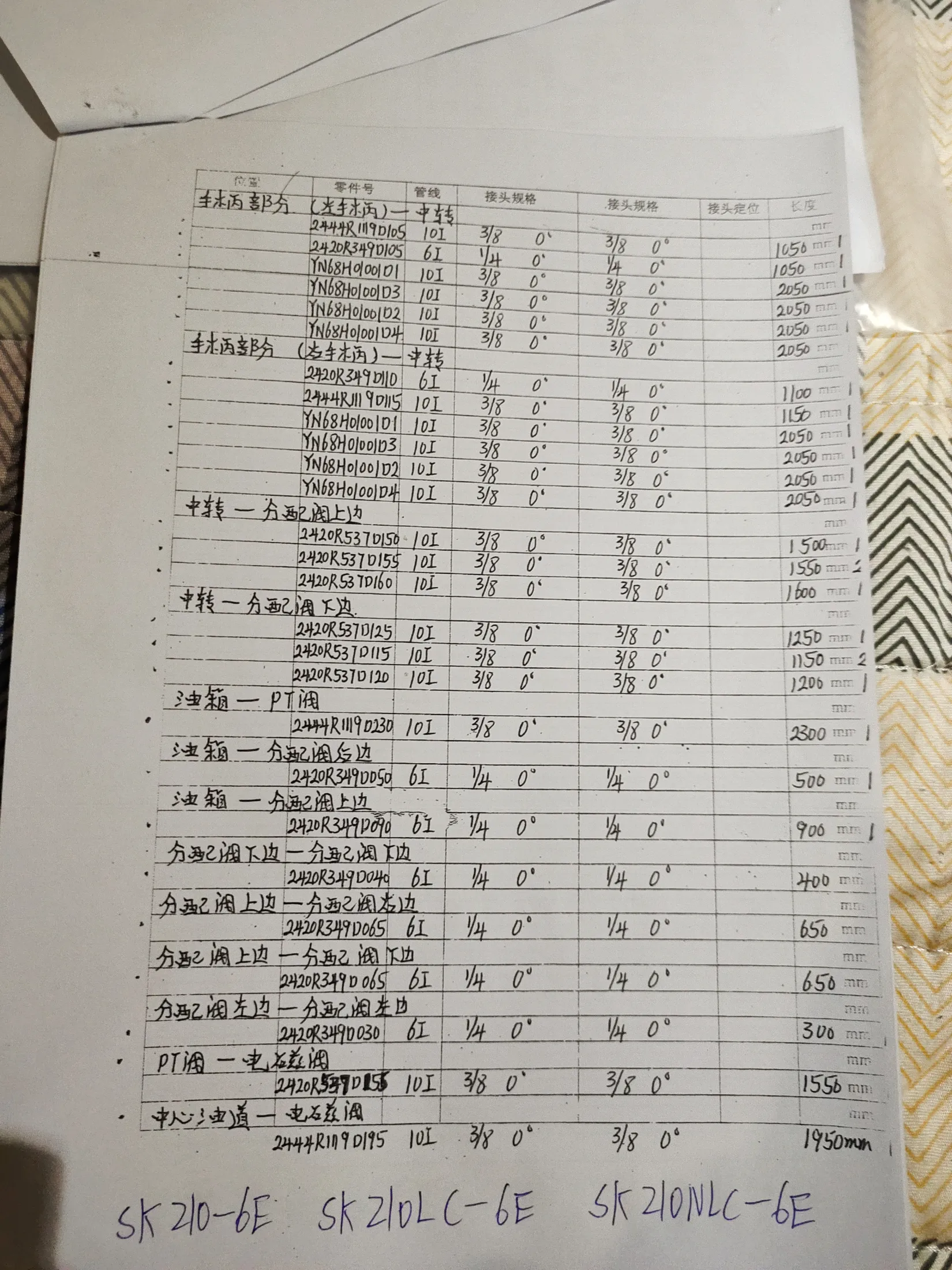

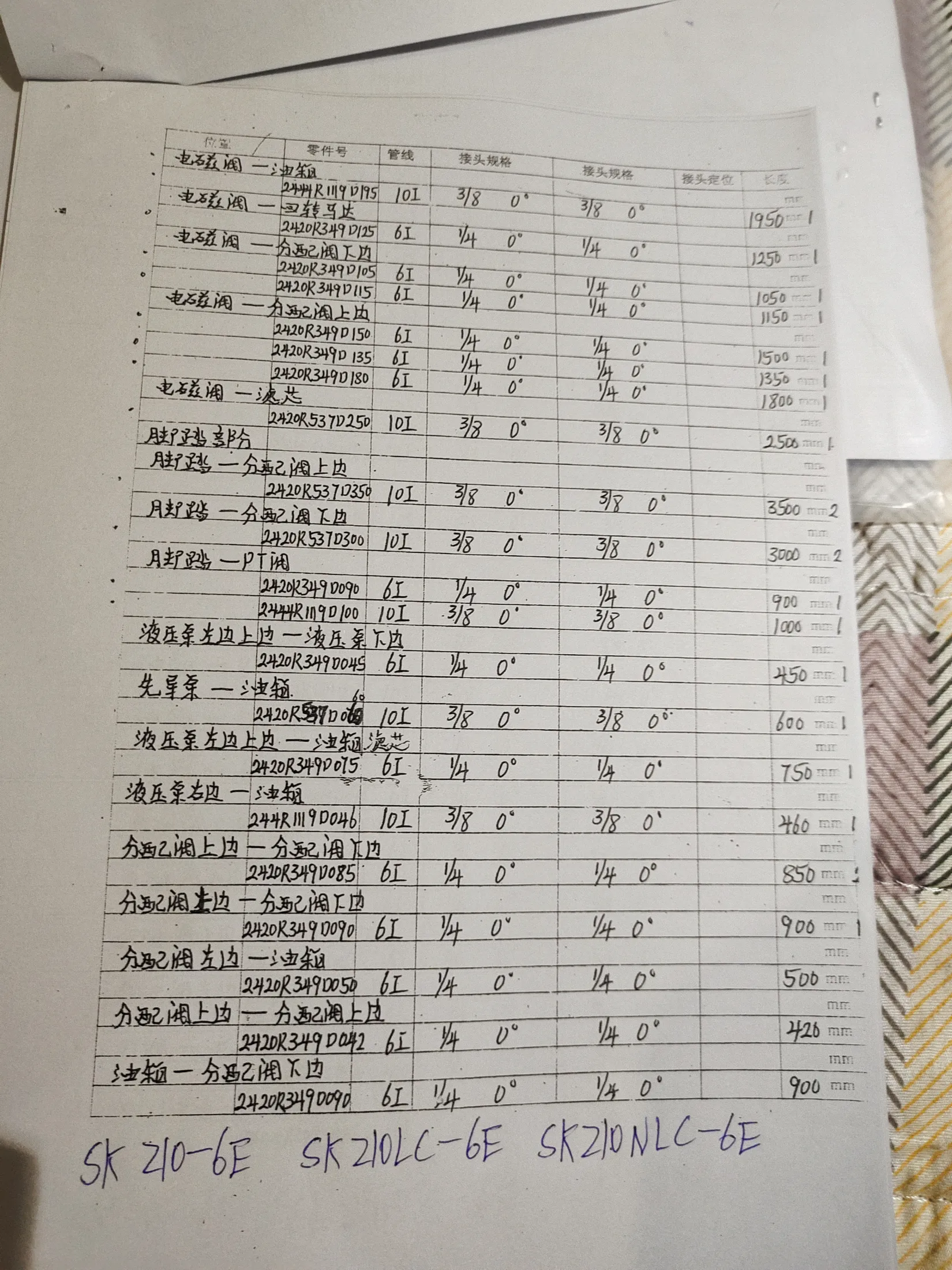

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
