Komatsu 200L-8 Hydraulic Hose Length & Fitting Lookup
Available Komatsu 200L-8 workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Komatsu 200L-8 Hose Data and Original Handwritten Sheets

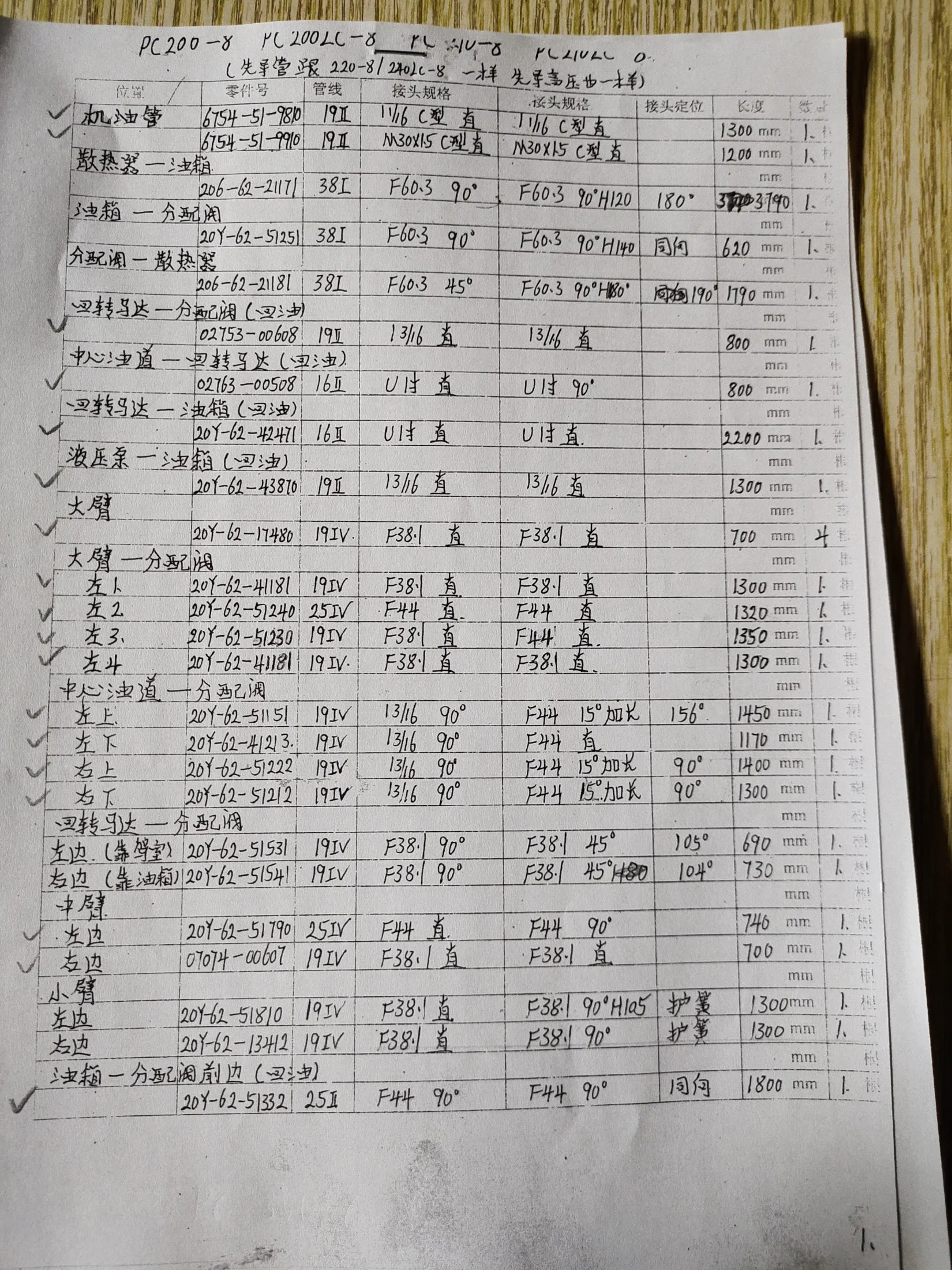

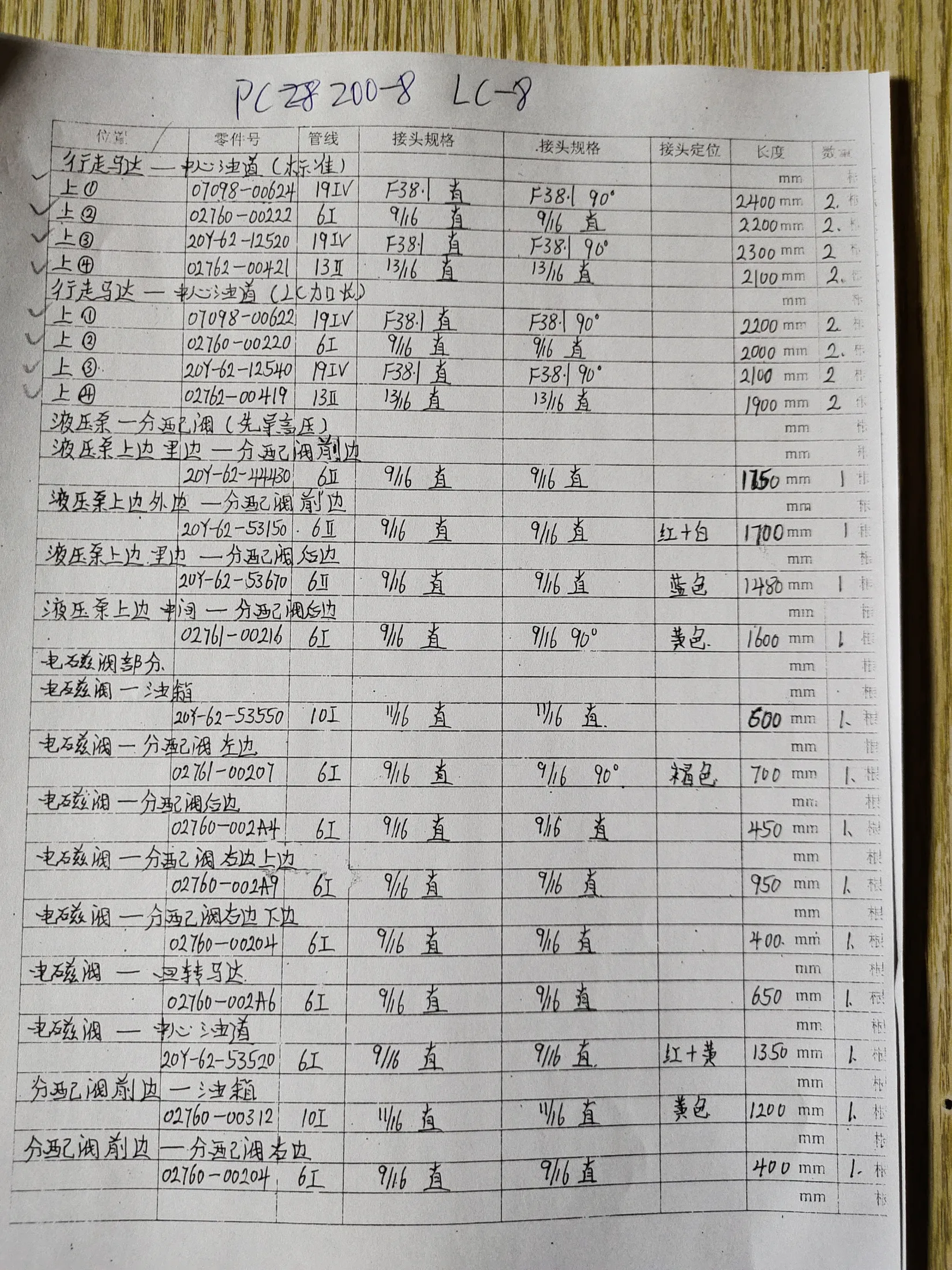

The table is a searchable transcription of the Komatsu 200L-8 workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 20Y-62-42471 | 2,200 mm |
| 20Y-62-44620 | 2,650 mm |
| 20Y-62-51151 | 1,450 mm |
| 20Y-62-531500II | 1,700 mm |
| 21K-62-71860 | 3,300 mm |
| 21K-62-71870 | 3,350 mm |
| 21K-62-71981 | 1,050 mm |
| 21K-62-72160 | 300 mm |
| 21K-62-73270 | 1,200 mm |
| 21K-62-73450 | 1,000 mm |
| 0276-002A4 | 450 mm |
| 02760-002A4 | 450 mm |
| 02760-002A9 | 950 mm |
Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
