SANY 235-88C Hydraulic Hose Length & Fitting Lookup
Available SANY 235-88C workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
SANY 235-88C Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the SANY 235-88C workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| A8321200006I | 1,200 mm |
| A8323065000 | 650 mm |
| A83123050000 | 500 mm |
| A831213035000 | 350 mm |
| B2300300224 | 820 mm |
| B2300300304 | 550 mm |
| B2300300598 | 1,600 mm |
| B2300300898 | 260 mm |
| B23003000284 | 200 mm |
| B23003000822 | 400 mm |
| B23003000871 | 1,400 mm |
| B23003001168 | 580 mm |
| B23003001456 | 1,200 mm |
| B23003001563 | 3,300 mm |
| B23003001947 | 550 mm |
| B23003002113 | 2,150 mm |
| B23003002114 | 2,850 mm |
| B23003002263 | 1,400 mm |
| B23003002316 | 1,400 mm |
| B23003002473 | 2,550 mm |
| B23003002657 | 280 mm |
| B23003002688 | 1,450 mm |
| B23003002712 | 450 mm |
| B23003003016 | 2,300 mm |
| B23003005397 | 1,300 mm |
| B23003006443 | 750 mm |
| B23010300164 | 680 mm |
| B230030021146I | 2,850 mm |
| B230103002115 | 2,800 mm |
| B230103002116 | 3,400 mm |
| B230103002117 | 2,950 mm |
| B230103002275 | 3,050 mm |
| B230103002603 | 900 mm |
| B230103002689 | 1,350 mm |
| B230103005139 | 1,600 mm |
| B23010300081861 | 700 mm |
| LTB23003002318 | 1,420 mm |

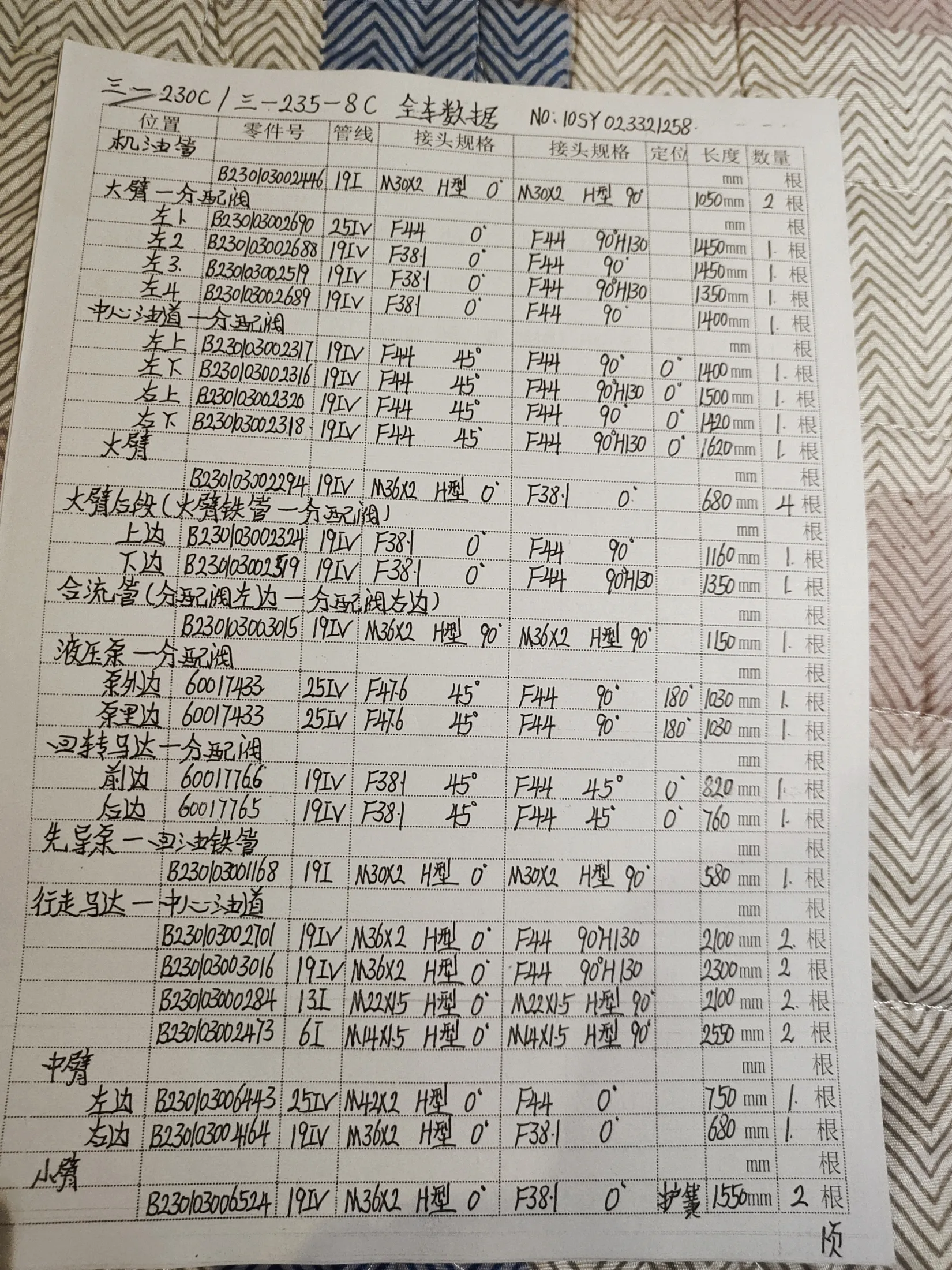

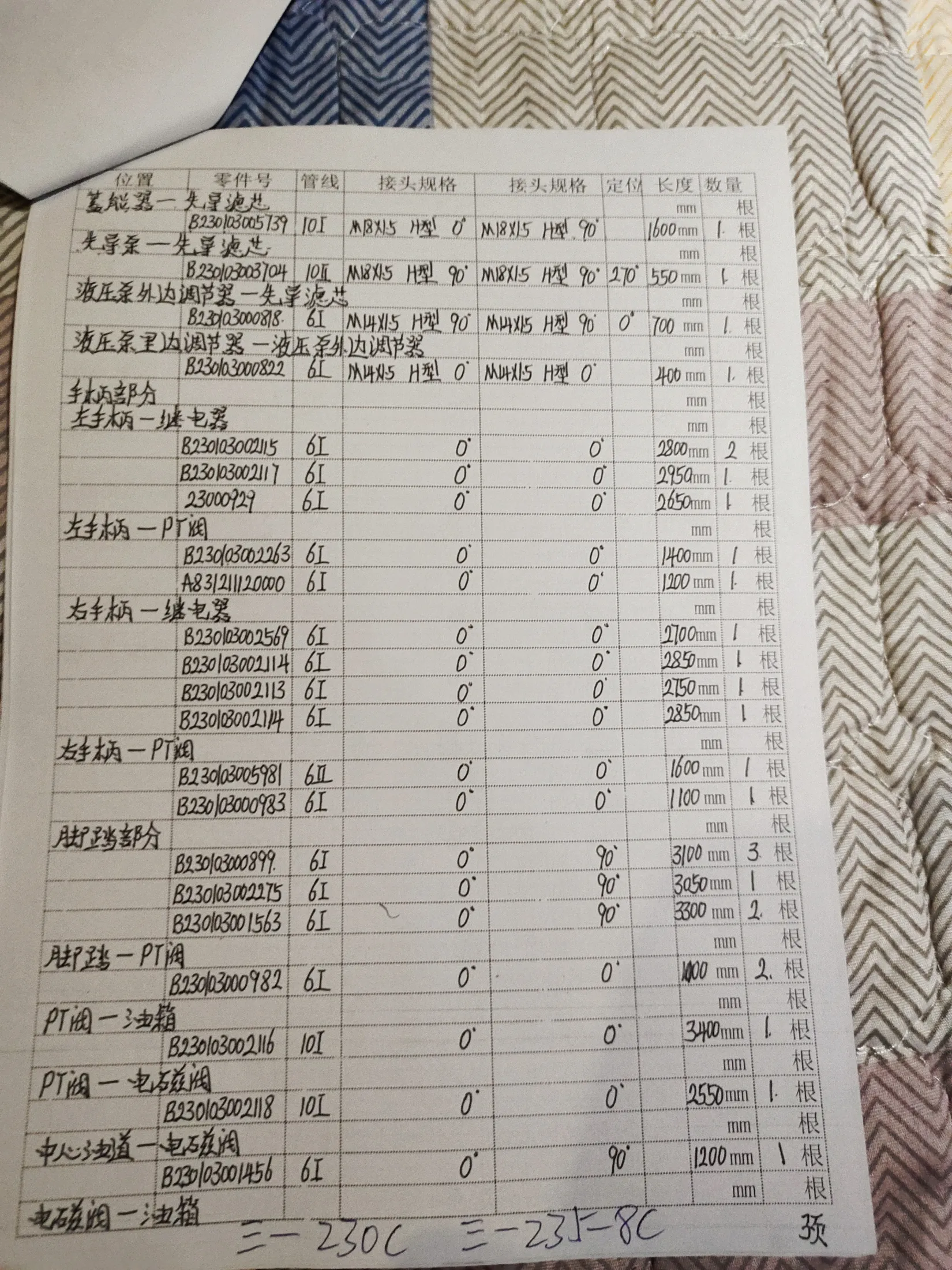

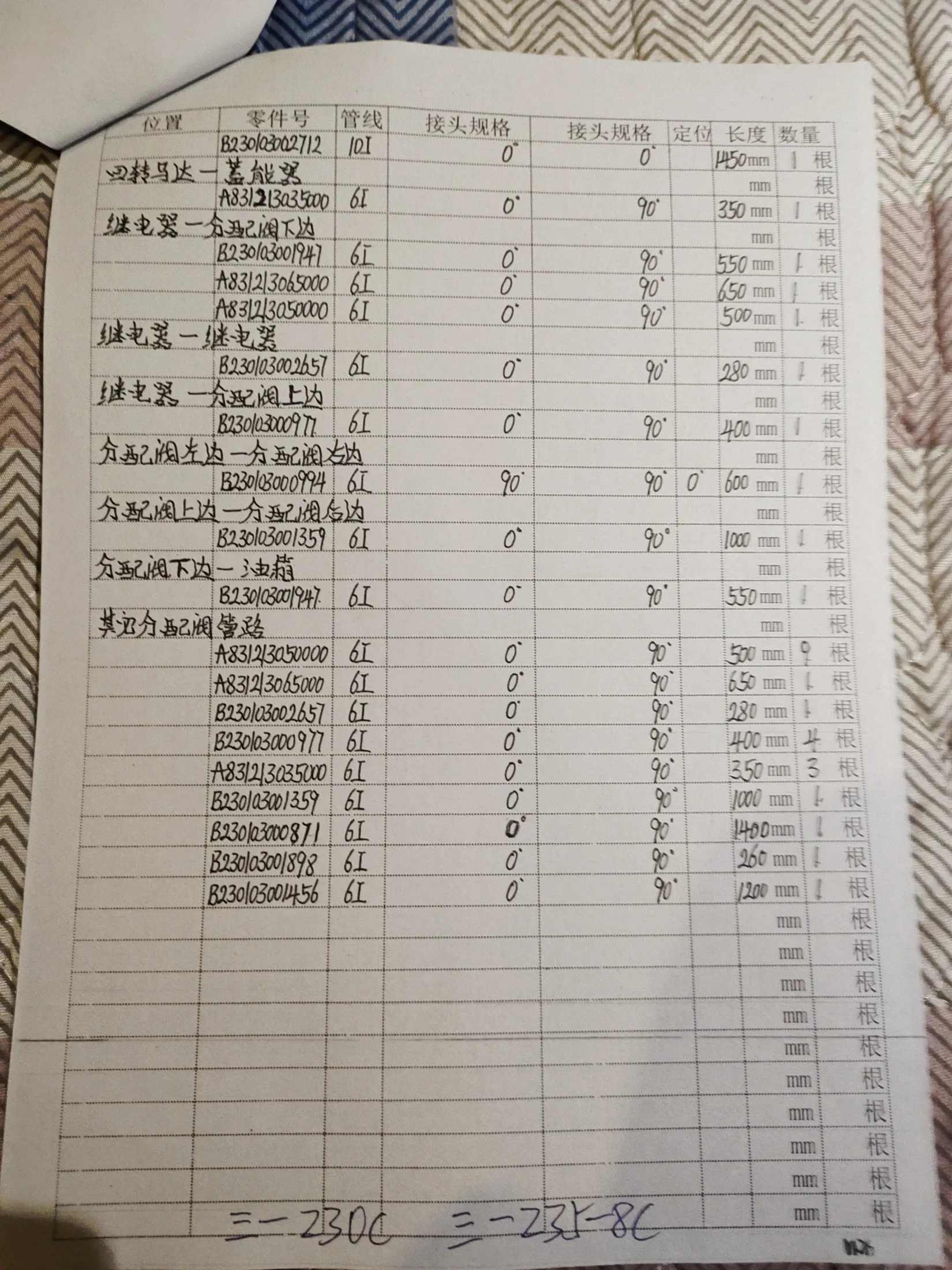

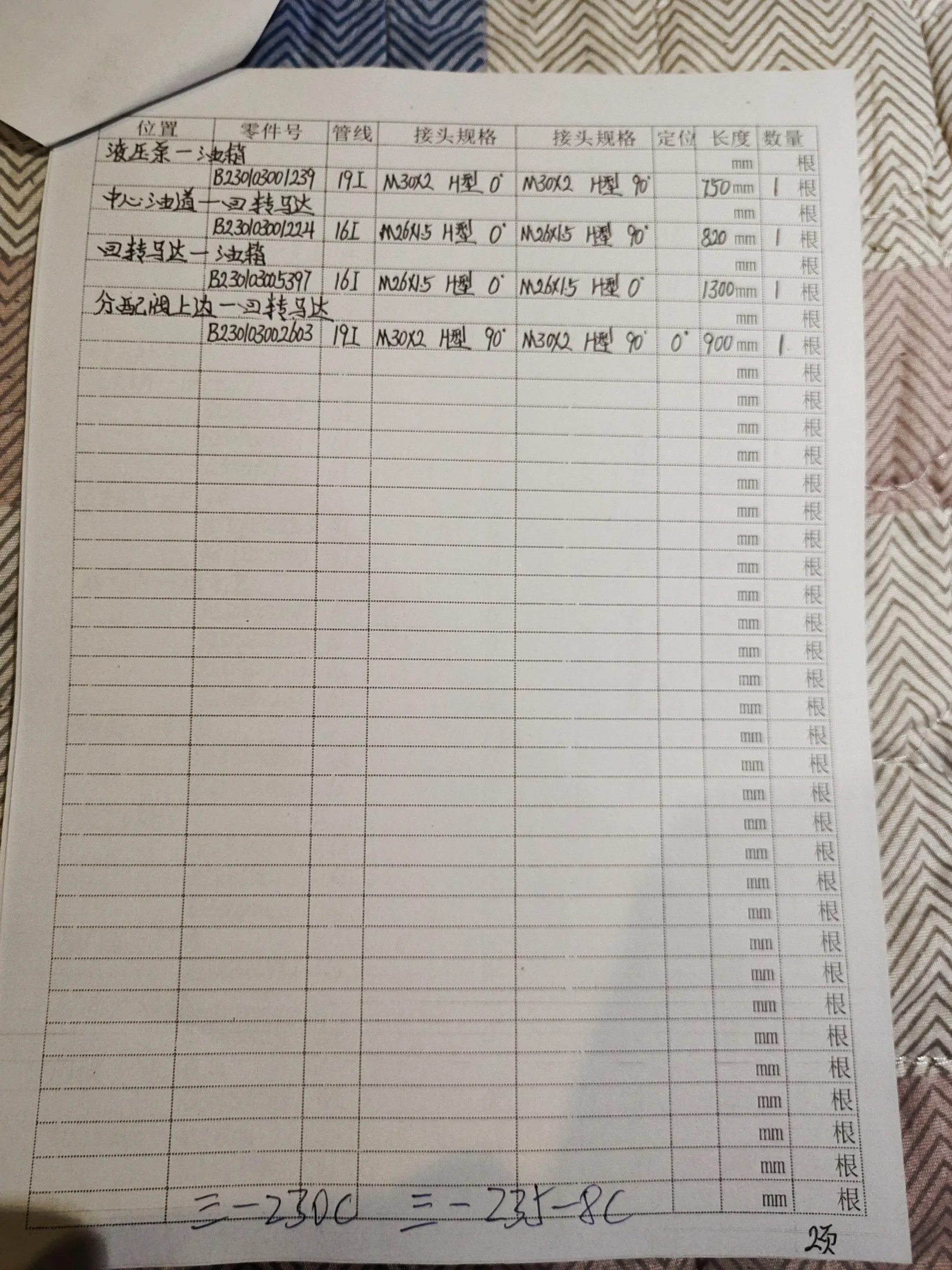

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
