SANY 285-9C9I2KO Hydraulic Hose Length & Fitting Lookup
Available SANY 285-9C9I2KO workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
SANY 285-9C9I2KO Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the SANY 285-9C9I2KO workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| A832305000 | 500 mm |
| A8321120000 | 400 mm |
| A8323050001 | 500 mm |
| A8323065000 | 650 mm |
| A83123065000 | 650 mm |
| A832713060000 | 600 mm |
| B23003000671 | 1,950 mm |
| B23003000895 | 1,850 mm |
| B23003000980 | 850 mm |
| B23003000988 | 1,600 mm |
| B23003002700 | 2,900 mm |
| B23003003547 | 1,700 mm |
| B23003004133 | 300 mm |
| B23003004806 | 1,000 mm |
| B23003005509 | 1,450 mm |
| B23008001359 | 1,000 mm |
| B23010300456 | 200 mm |
| B230030030466 | 1,950 mm |
| B230030032616 | 350 mm |
| B230030034236I | 250 mm |
| B230103000980 | 850 mm |
| B230103000982 | 1,000 mm |
| B230103000985 | 1,600 mm |
| B230103002118 | 2,550 mm |
| B230103004282 | 650 mm |
| B2300300122116I | 820 mm |
| B2301030020456I | 300 mm |
| B2301030030466I | 950 mm |

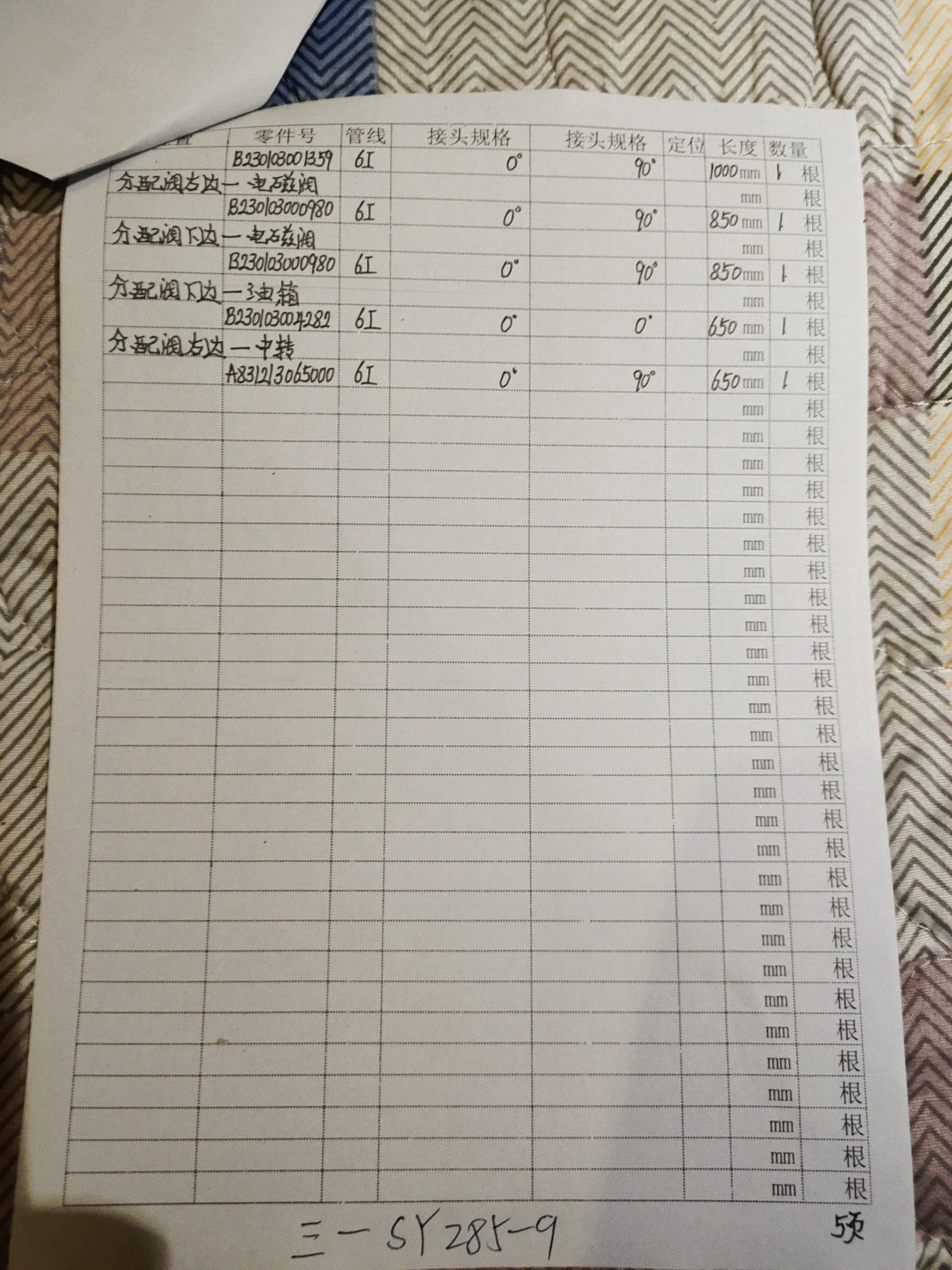

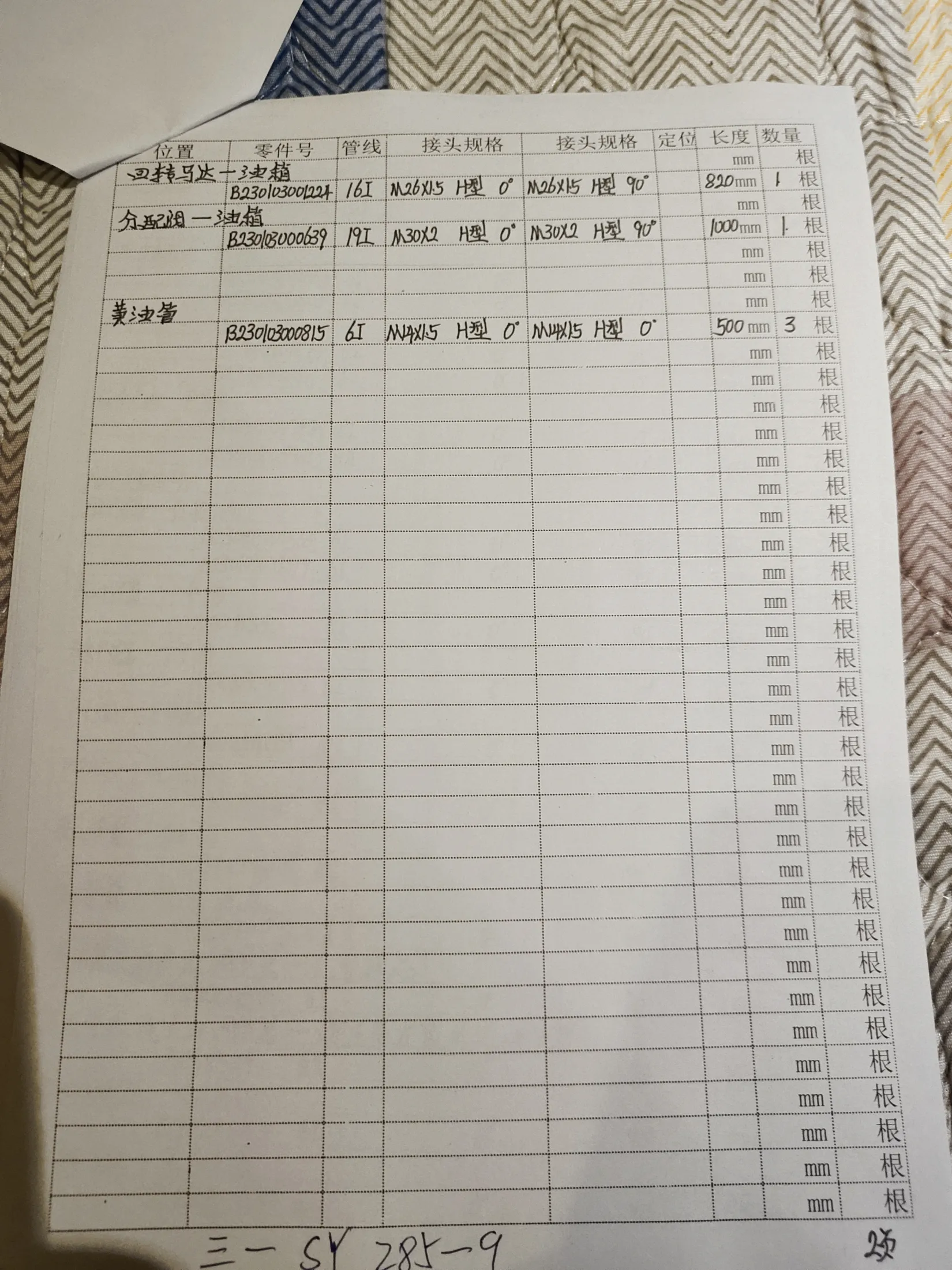

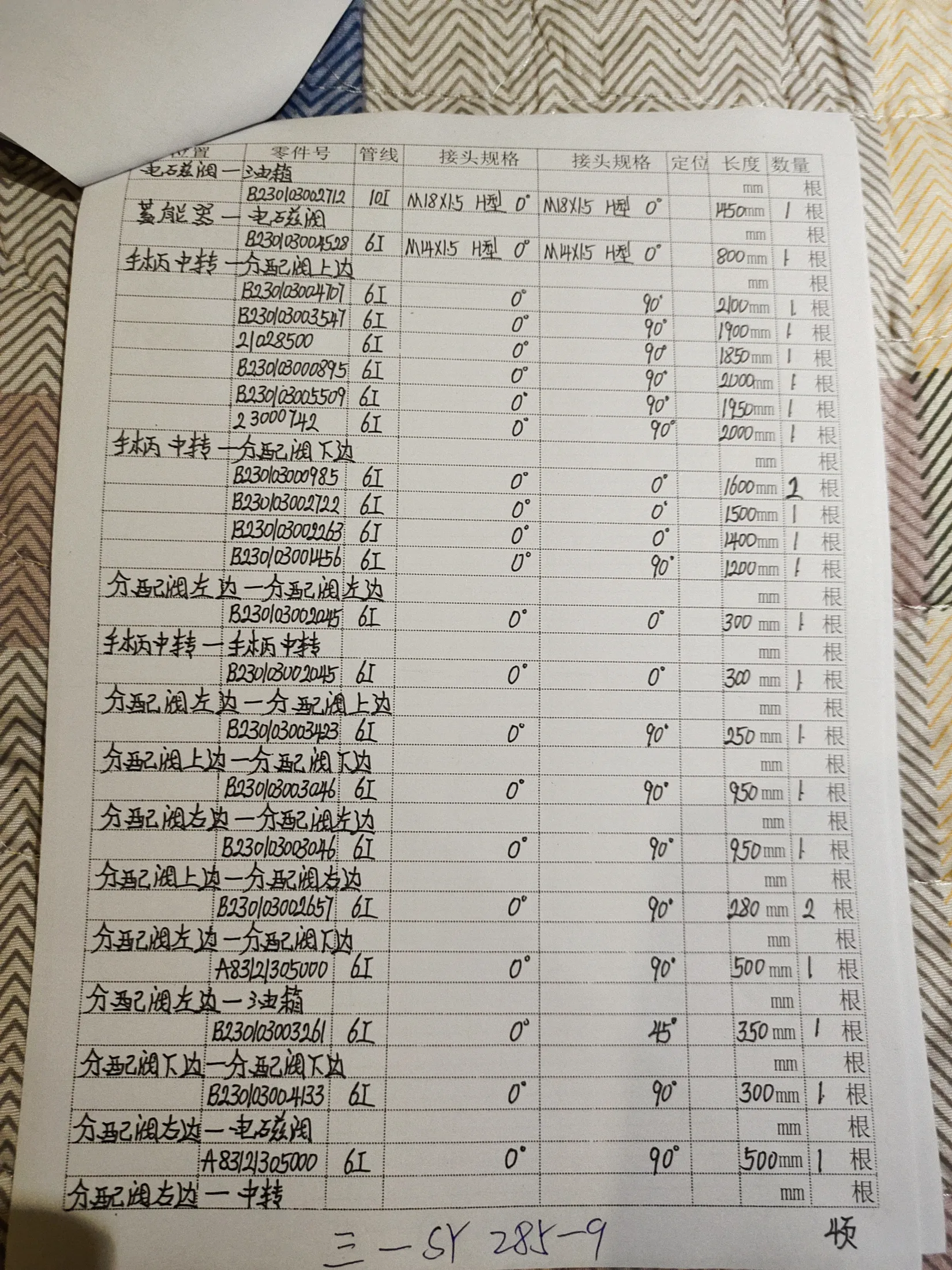

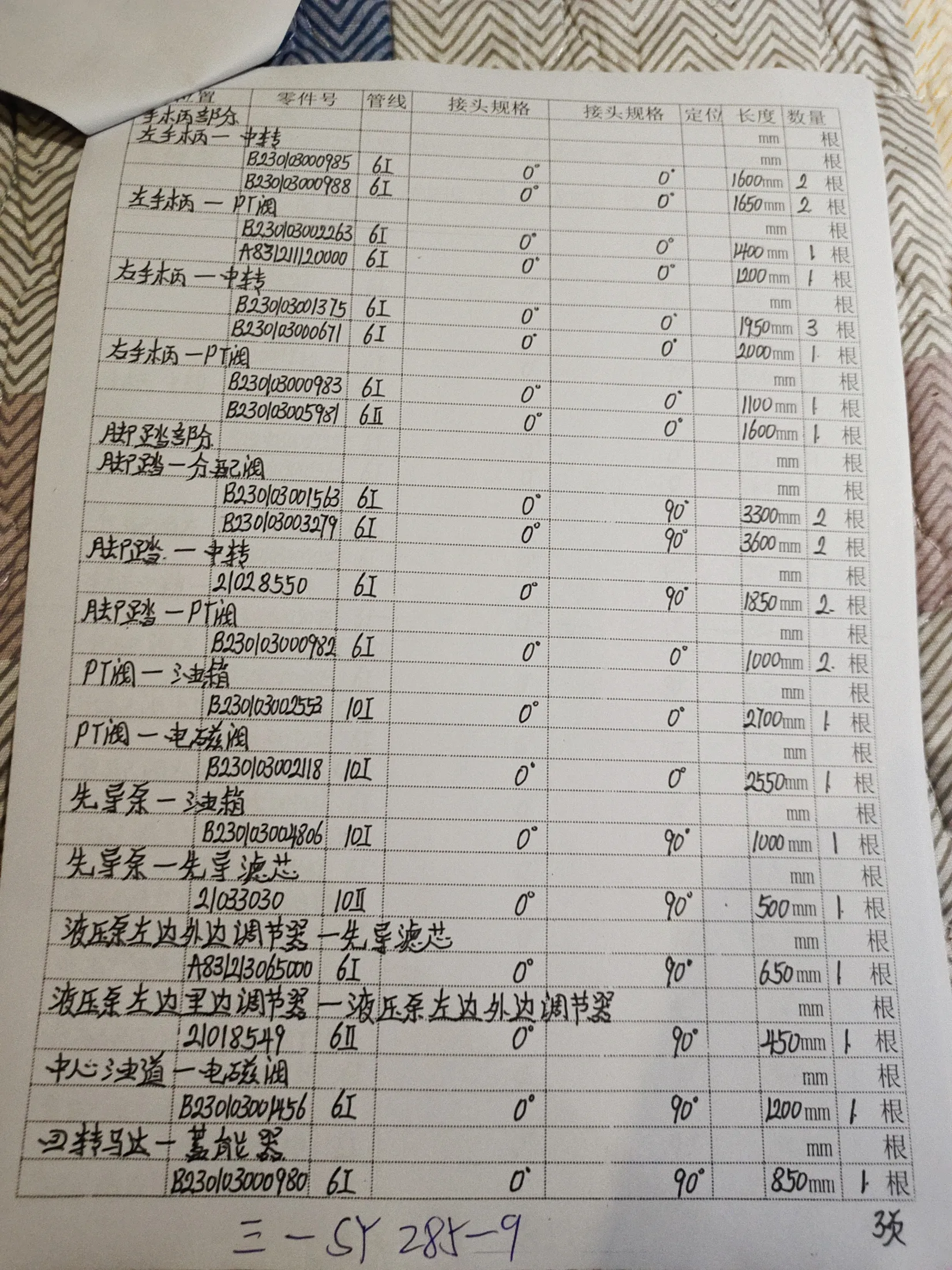

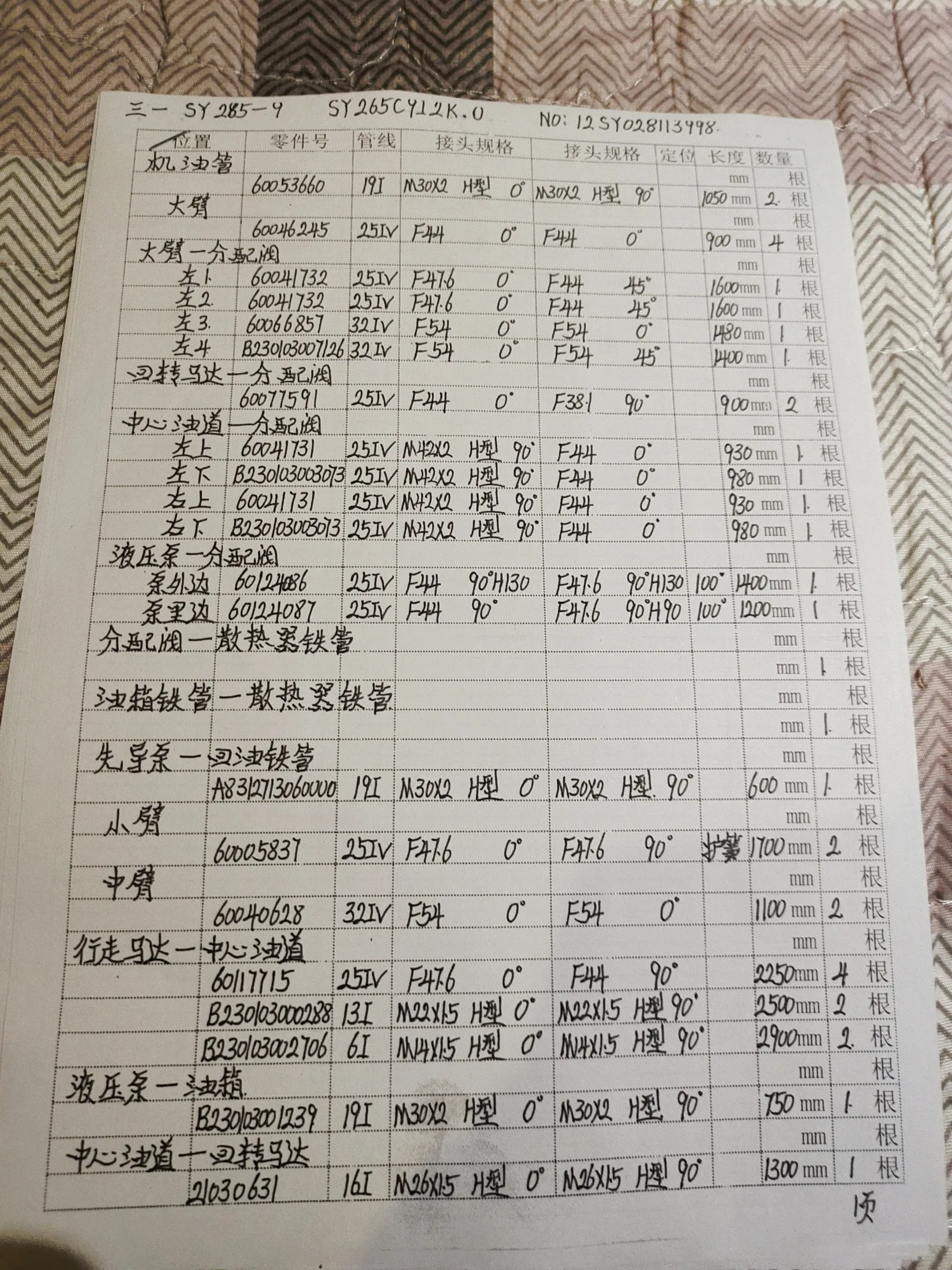

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
