SANY SY215-9 Hose Length & Fitting Data

Coverage details
Hoses
1 records
Full specifications
1 records
Systems
1 systems
Length range
580–580 mm

Current machine

Find a hose on this machine

Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.

Search another machine

Hose repair details

Hose Length and Fitting List

Digitized data and source sheets

SANY SY215-9 Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the SANY SY215-9 workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
6014233Z1,300 mm
A83211200001,200 mm
A8323065000650 mm
A832130500006I500 mm
B23003002381,620 mm
B230030000741,600 mm
B23003000815500 mm
B230030008861,450 mm
B230030009851,600 mm
B23003000993800 mm
B23003001168580 mm
B230030013751,950 mm
B230030023171,400 mm
B2300300270212,200 mm
B230030032022,400 mm
B23003003704550 mm
B23003060863500 mm
B23010300200I2,750 mm
B230030026570I280 mm
B2301030016331,450 mm
B230103002045300 mm
B230103002263400 mm
B2301030024732,550 mm
B2301030026583,200 mm
B2301030032951,700 mm
B2301030040551,400 mm
B2300300229419IVM30X2HS680 mm
B2301030041336I300 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

SANY SY215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5 — recorded hose parts B23003000815, B23003060863, B230103002473
Notebook page 2 of 5Recorded on this sheet: B23003000815 — 500 mm; B23003060863 — 500 mm; B230103002473 — 2,550 mm.

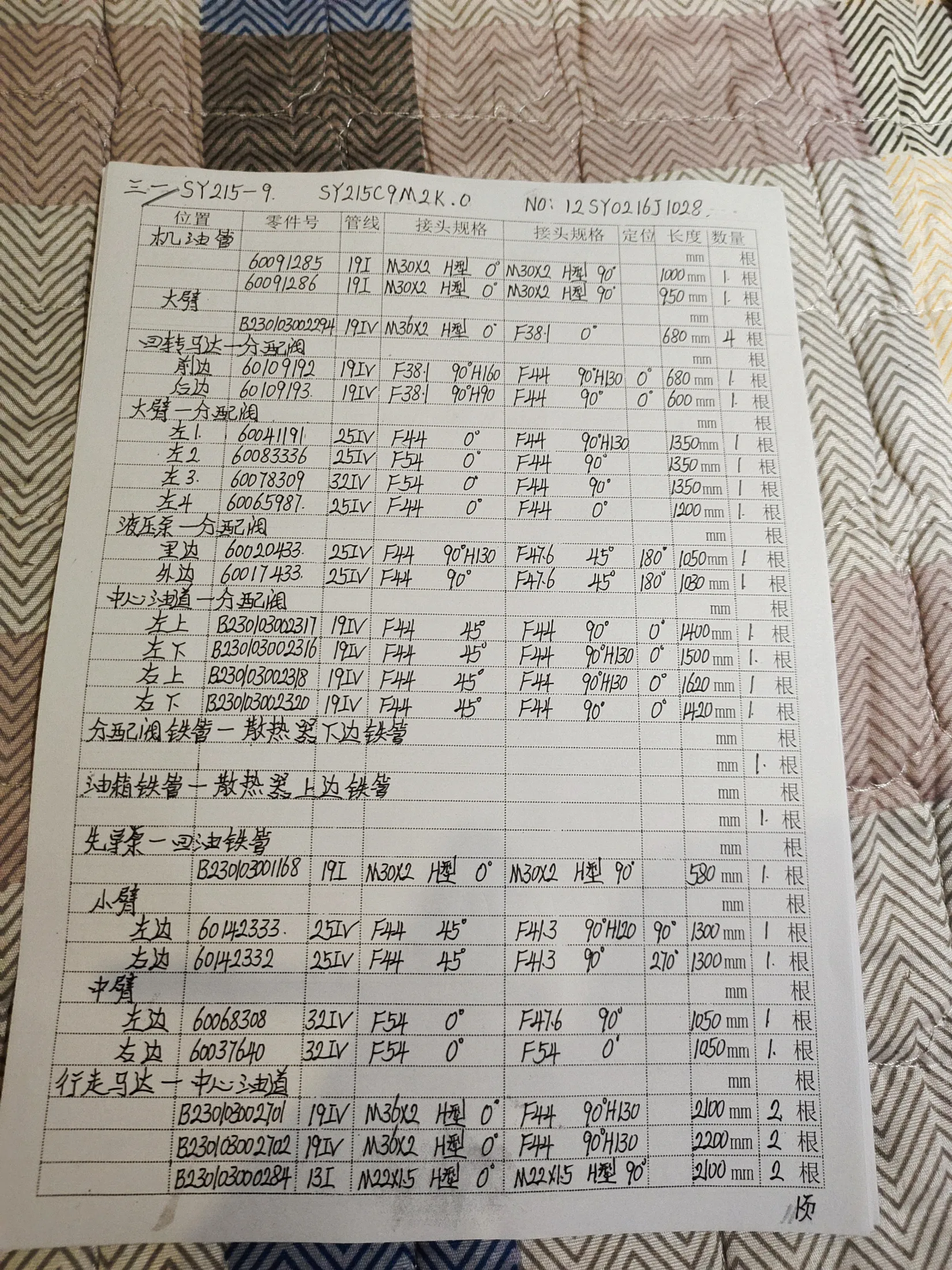

SANY SY215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5 — recorded hose parts 6014233Z, B23003001168, B2300300229419IVM30X2HS
Notebook page 1 of 5Recorded on this sheet: 6014233Z — 1,300 mm; B23003001168 — 580 mm; B2300300229419IVM30X2HS — 680 mm; B23003002317 — 1,400 mm; and 2 more recorded hoses.

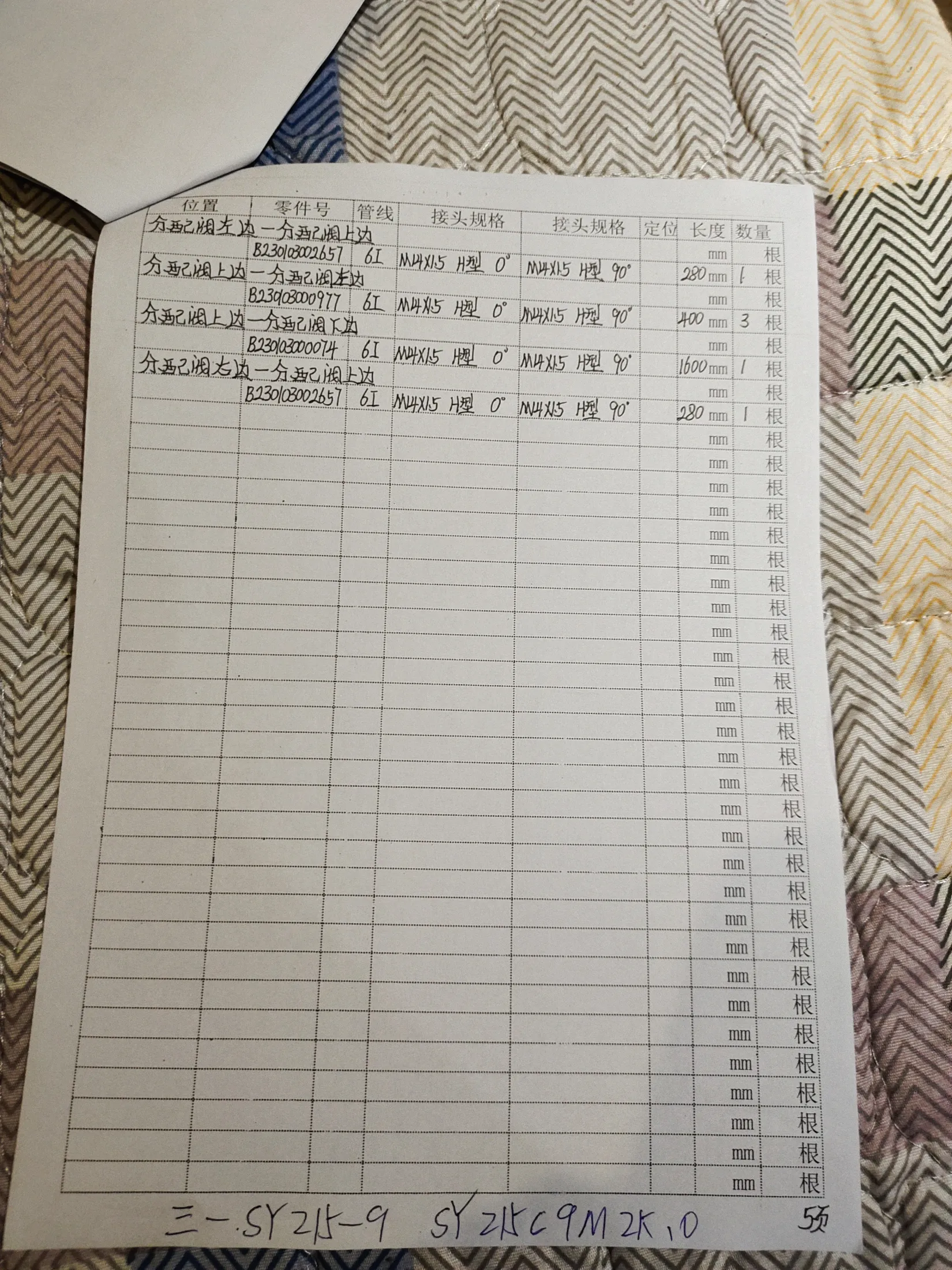

SANY SY215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5 — recorded hose parts B23003000074, B230030026570I
Notebook page 5 of 5Recorded on this sheet: B23003000074 — 1,600 mm; B230030026570I — 280 mm.

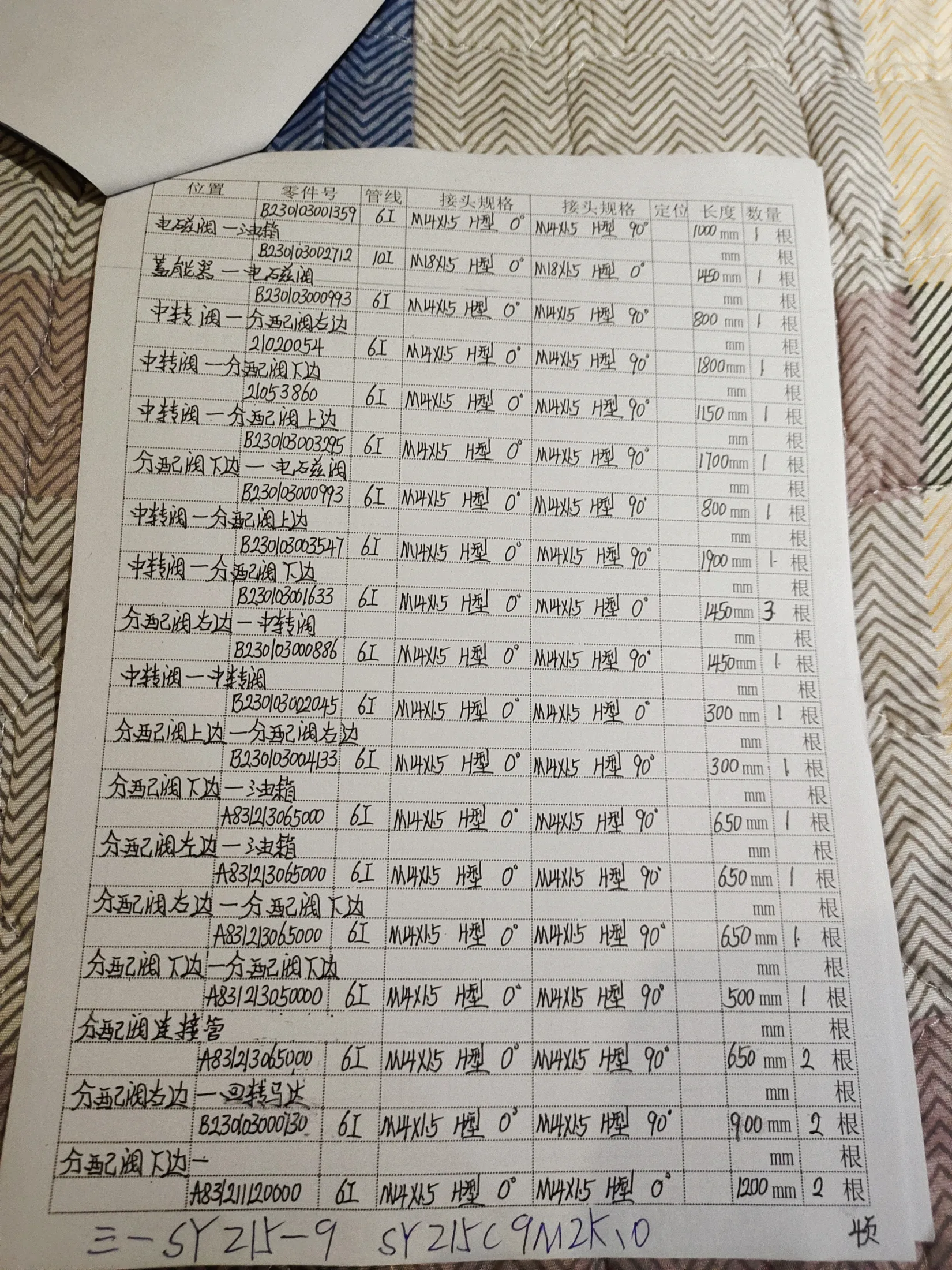

SANY SY215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5 — recorded hose parts A832130500006I, A8323065000, B23003000886
Notebook page 4 of 5Recorded on this sheet: A832130500006I — 500 mm; A8323065000 — 650 mm; B23003000886 — 1,450 mm; B23003000993 — 800 mm; and 4 more recorded hoses.

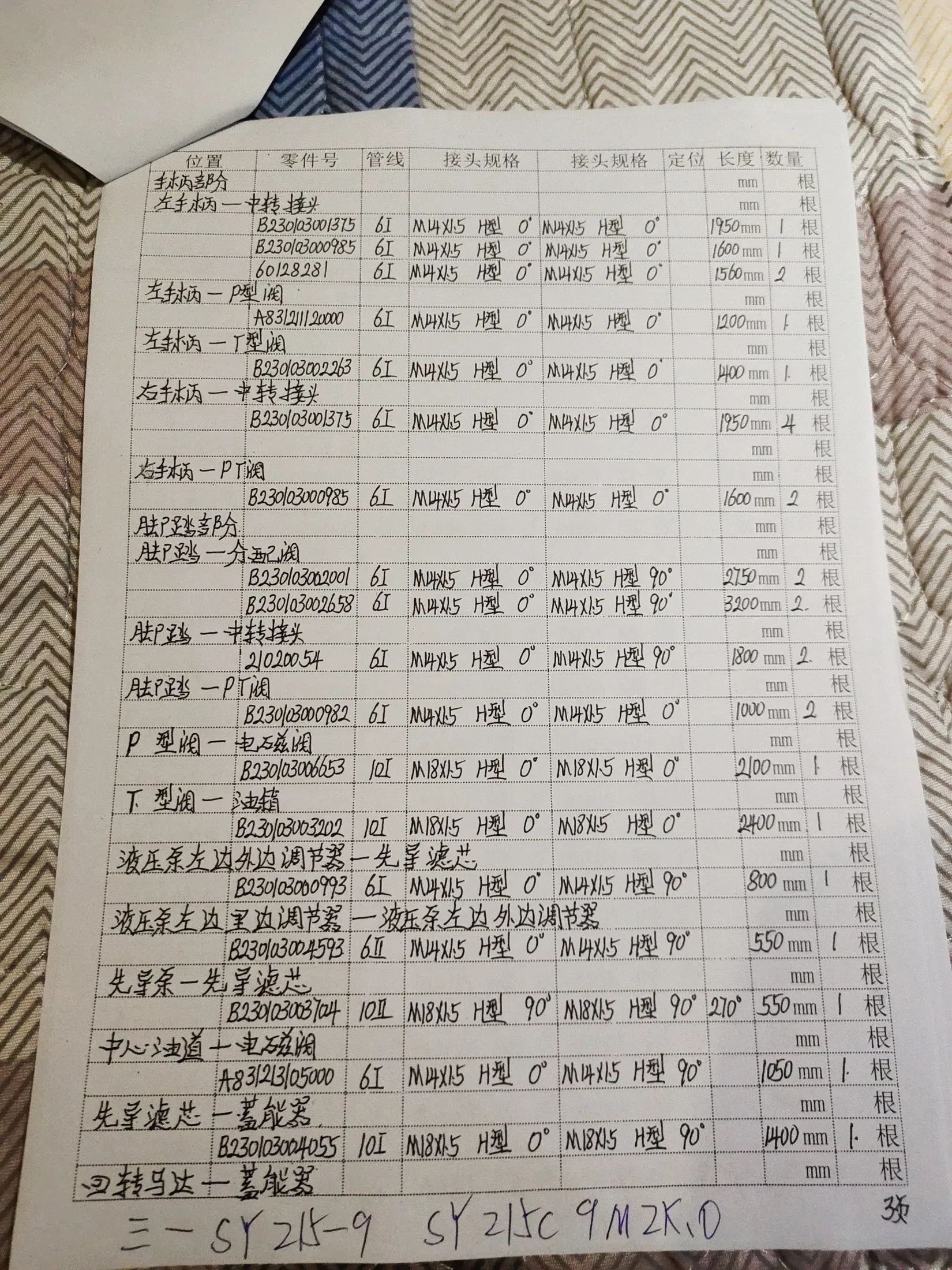

SANY SY215-9 hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5 — recorded hose parts A8321120000, B23003000985, B23003001375
Notebook page 3 of 5Recorded on this sheet: A8321120000 — 1,200 mm; B23003000985 — 1,600 mm; B23003001375 — 1,950 mm; B23003003202 — 2,400 mm; and 5 more recorded hoses.

Workshop guide

Finding the correct hydraulic hose for SANY SY215-9

Start with the machine and route

For SANY SY215-9, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.

Read the dimensions before cutting

Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.

Records to compare

Use the drawing as a location check

Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.

Based on current published data

Common Repair Questions

Questions appear only when a published record or linked PDF page provides the answer.

What is the hose length range for SANY SY215-9?

Based on published records with valid lengths, the range is 580 mm. Open the individual record to verify its installation position and both end fittings before fabrication.

Which hose specifications are common for SANY SY215-9?

The most frequent raw specifications in the current published records are: 19I (1 records). Verify the specification together with length, pressure, and fitting details.

How can I identify the left and right hose fittings for SANY SY215-9?

Each record keeps the left and right fitting descriptions separate. Current examples: B230103001168: left M30×2 H型 0°（手写接头规格）; right M30×2 H型 90°（手写接头规格）. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
