SANY SY335C9IK2K Hydraulic Hose Length & Fitting Lookup
Available SANY SY335C9IK2K workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
SANY SY335C9IK2K Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the SANY SY335C9IK2K workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 25IVF44 | 1,180 mm |
| A8312305000 | 350 mm |
| A8323035000 | 450 mm |
| A8323050000 | 500 mm |
| B230030094 | 550 mm |
| B2300300081 | 500 mm |
| B2300300227 | 3,300 mm |
| B2300300463 | 3,600 mm |
| B23003000808 | 600 mm |
| B23003000899 | 3,050 mm |
| B23003000977 | 500 mm |
| B23003000982 | 3,200 mm |
| B23003000993 | 800 mm |
| B23003001456 | 1,200 mm |
| B23003002657 | 300 mm |
| B23003004133 | 300 mm |
| B23003060871 | 1,400 mm |
| B23003061258 | 450 mm |
| B23003062712 | 1,600 mm |
| B23010300307 | 1,120 mm |
| B230030009776I | 400 mm |
| B230030022636I | 1,400 mm |
| B230103000074 | 1,850 mm |
| B230103002649 | 3,300 mm |
| B230103003046 | 280 mm |
| B2300300097761 | 400 mm |
| B2300300123919I | 750 mm |
| B2300300244619I | 1,050 mm |
| B2300300255310I | 12,700 mm |
| B2300300439061 | 350 mm |
| B2300306204561 | 300 mm |
| B2301030059816I | 1,600 mm |
| B230103000293131 | 2,800 mm |

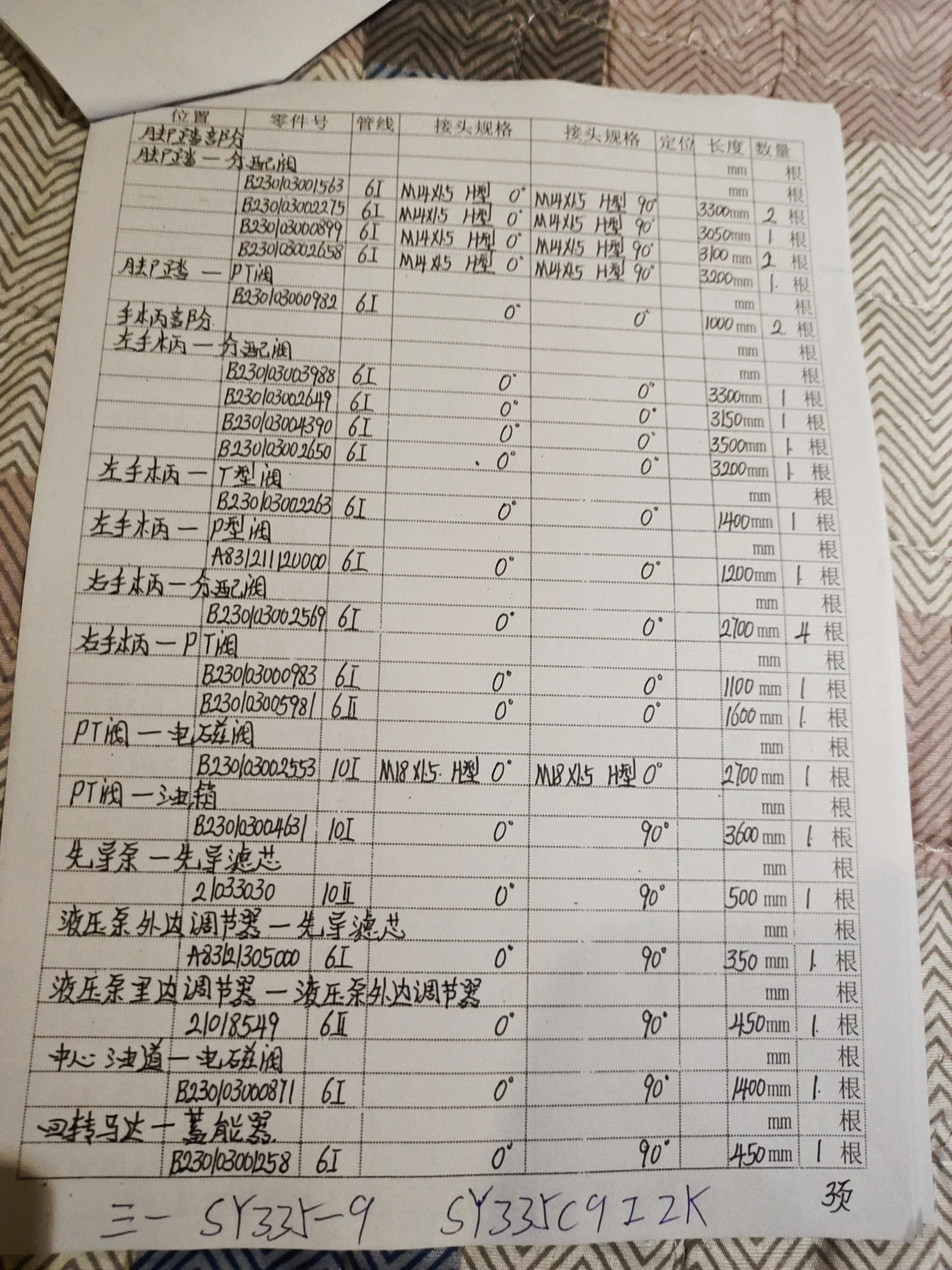

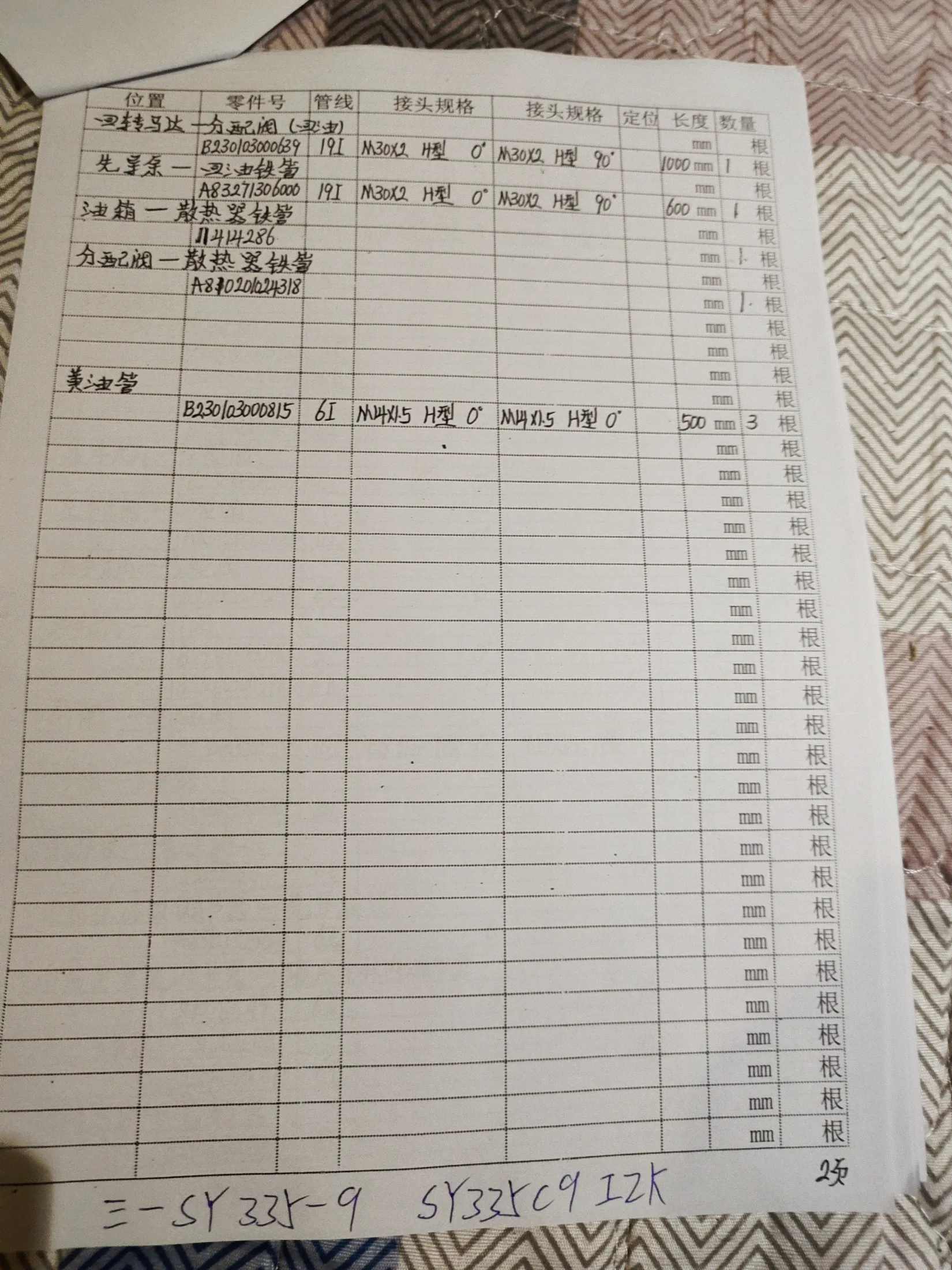

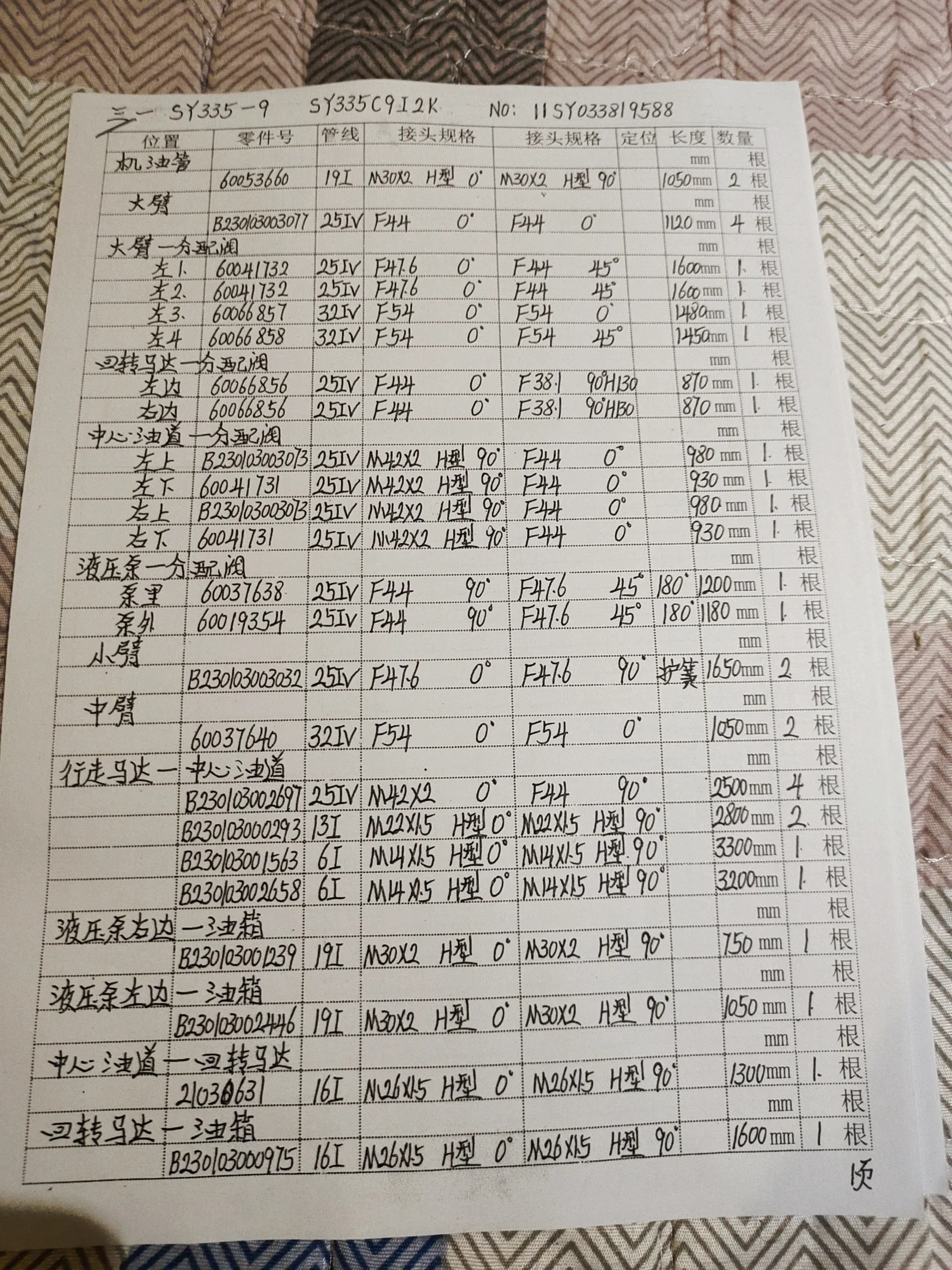

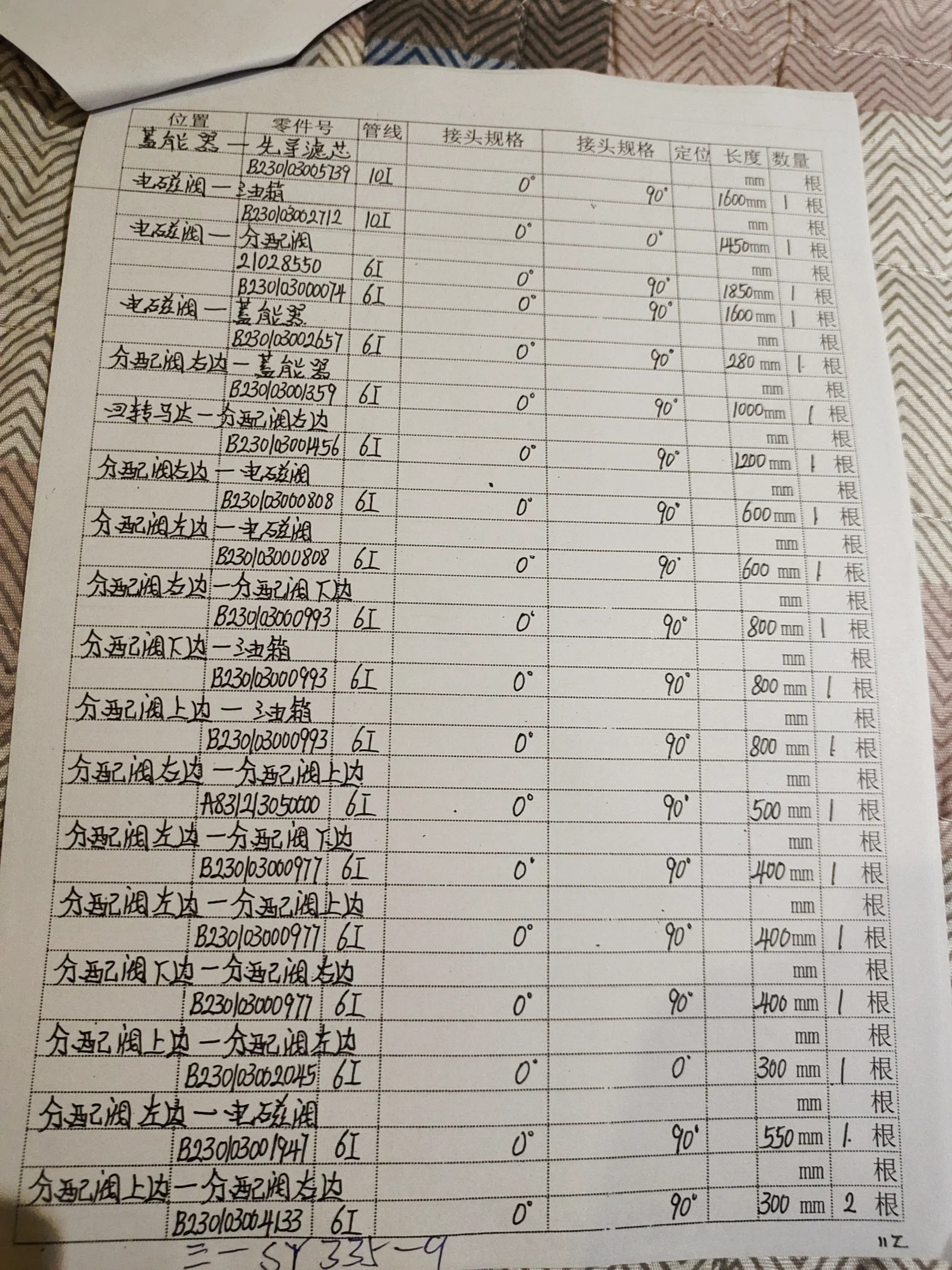

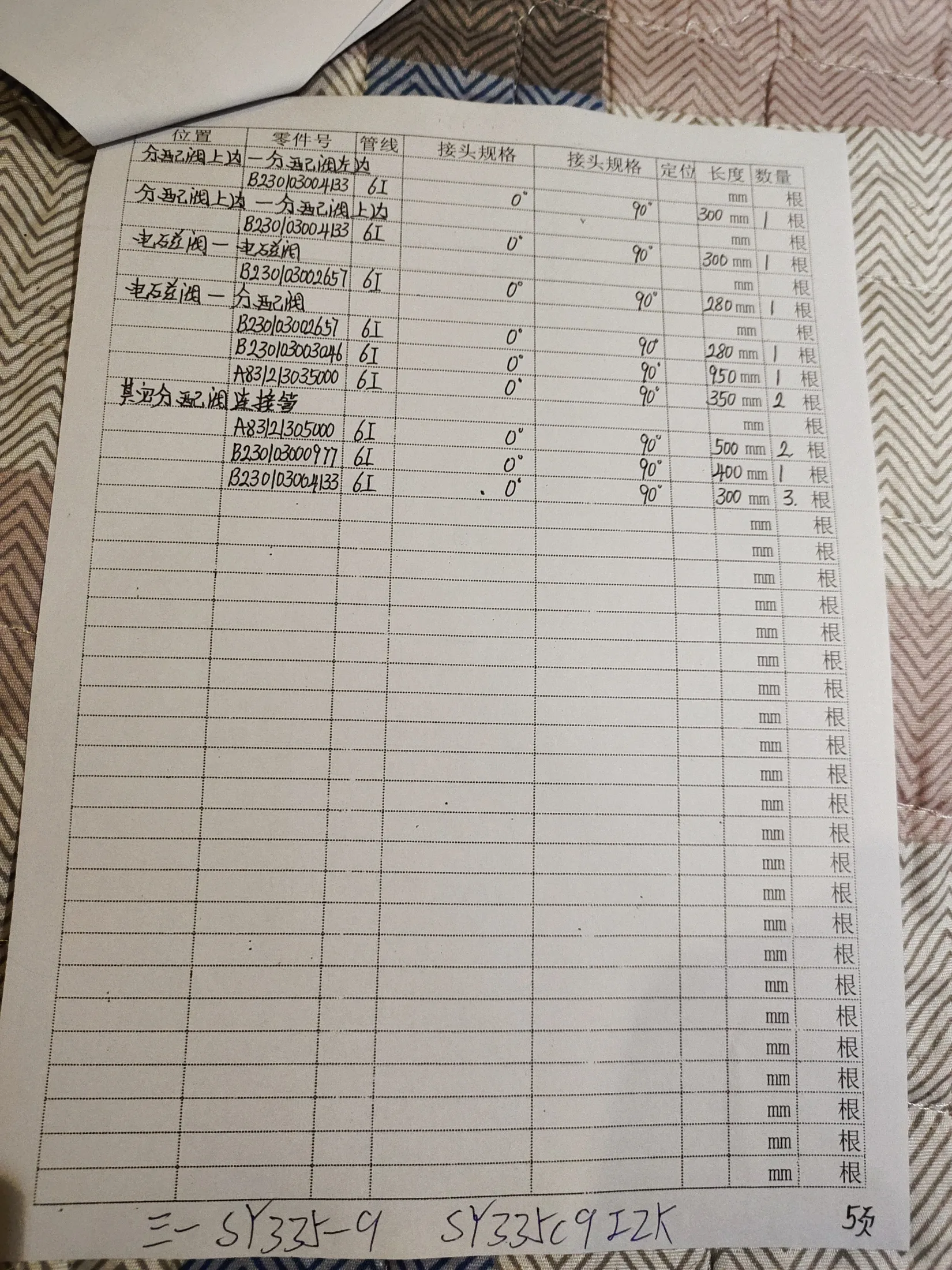

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
