SANY SY465 Hydraulic Hose Length & Fitting Lookup
Available SANY SY465 workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
SANY SY465 Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the SANY SY465 workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| A833045000 | 450 mm |
| A83133035000 | 350 mm |
| B230030024 | 13,200 mm |
| B230030070 | 750 mm |
| B2300300012 | 1,500 mm |
| B2300300249 | 2,600 mm |
| B2300300313 | 1,200 mm |
| B2300300412 | 1,000 mm |
| B2300300483 | 1,300 mm |
| B2300300885 | 600 mm |
| B2300300890 | 480 mm |
| B23003000694 | 1,200 mm |
| B23003001213 | 380 mm |
| B23003001233 | 400 mm |
| B23003001502 | 13,000 mm |
| B23003003136 | 1,200 mm |
| B23003003144 | 480 mm |
| B23010300029 | 2,700 mm |
| B23010300063 | 920 mm |
| B230103000894 | 850 mm |
| B230103001215 | 1,600 mm |
| B230103001755 | 1,450 mm |
| B230103002275 | 3,050 mm |
| B230103002543 | 650 mm |
| B230103003138 | 1,500 mm |
| B230103003612 | 300 mm |
| B230103004207 | 3,600 mm |
| B230103005572 | 12,150 mm |
| B23010300255310I | 2,700 mm |
| B23010300340519I | 650 mm |

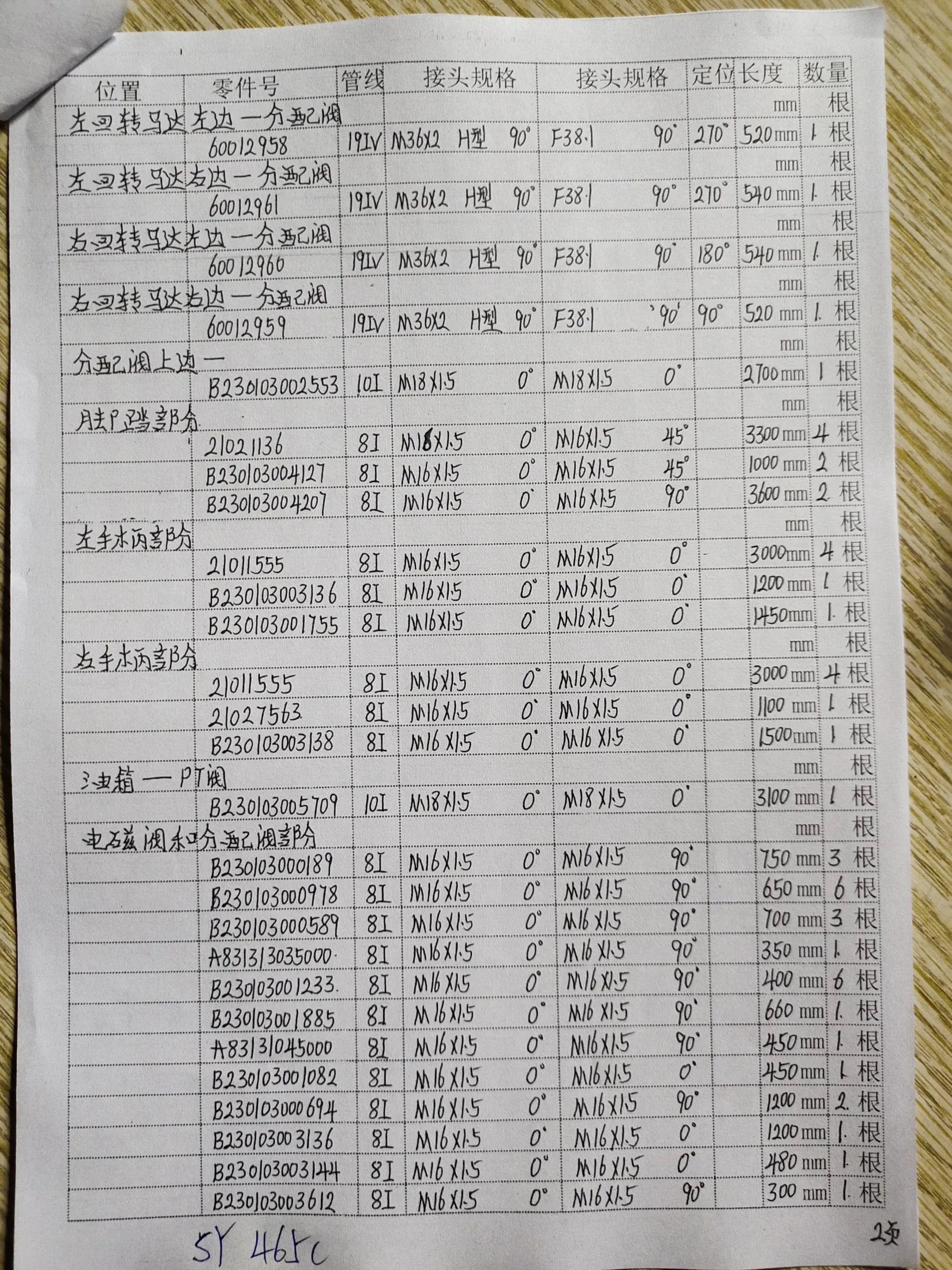

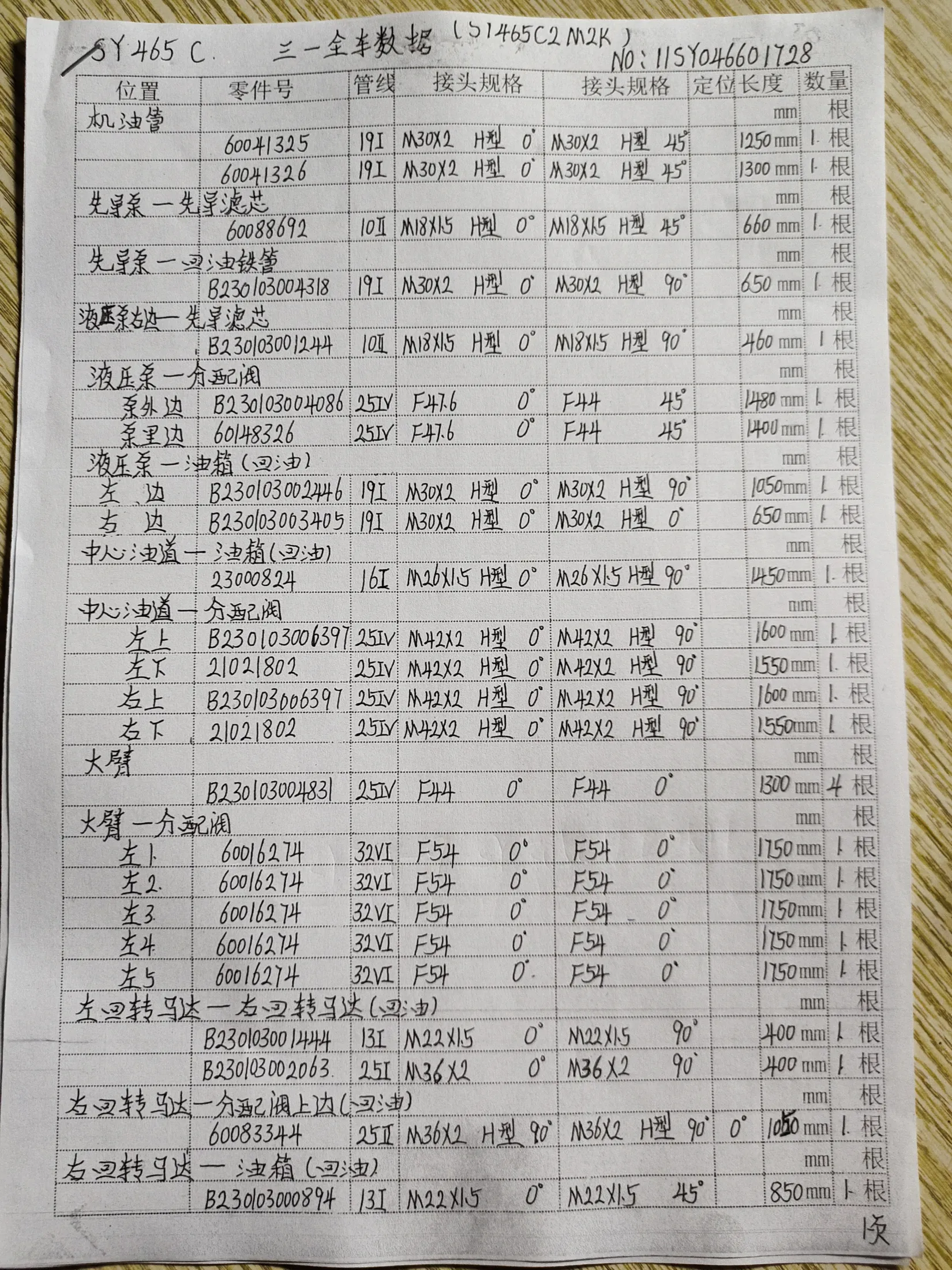

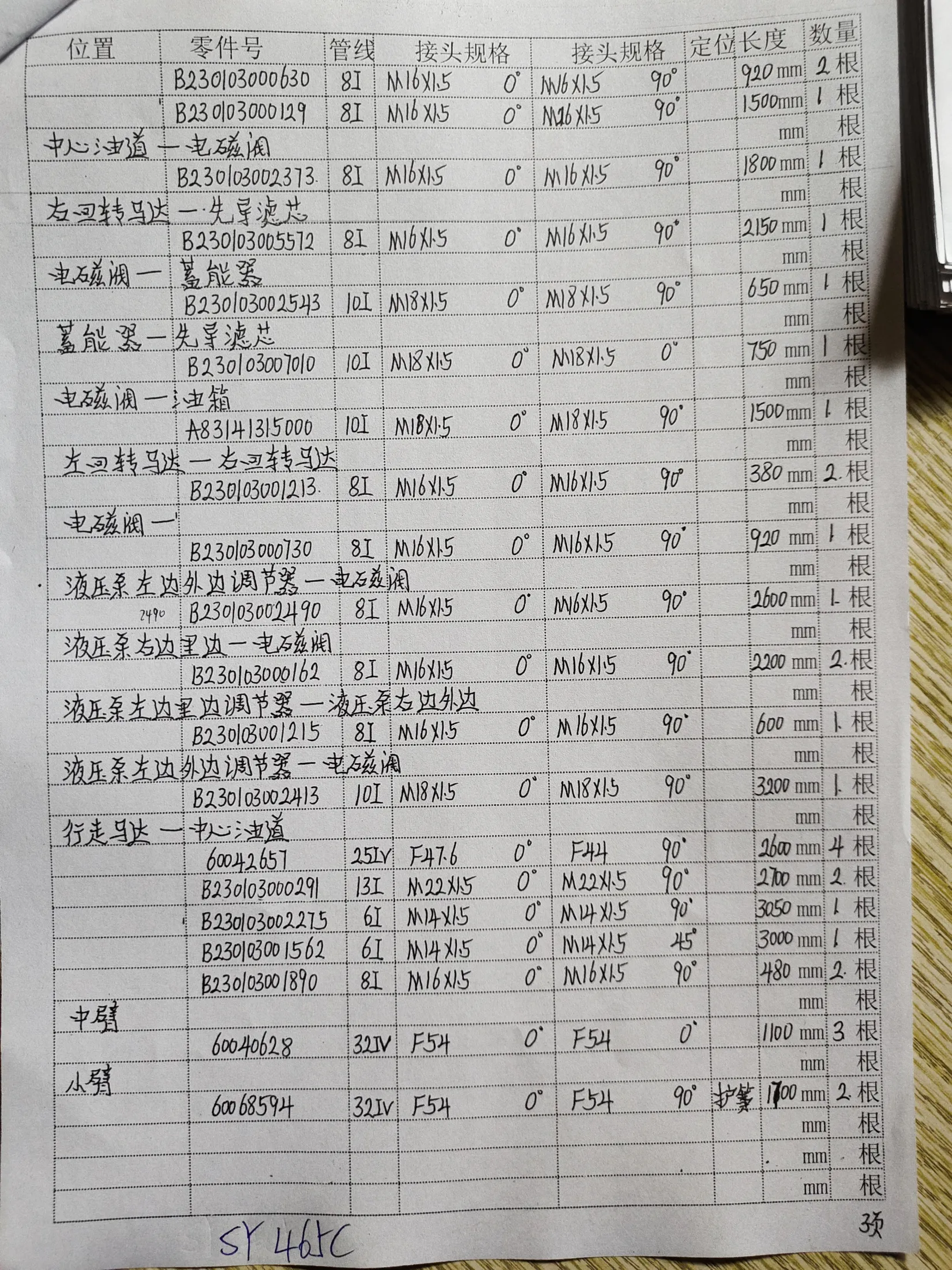

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
