Sumitomo 210 LC-5 Hydraulic Hose Length & Fitting Lookup
Available Sumitomo 210 LC-5 workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Sumitomo 210 LC-5 Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Sumitomo 210 LC-5 workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| CPJ0734 | 900 mm |
| KBJ2809 | 450 mm |
| KBJ3115 | 850 mm |
| KHJ206 | 1,600 mm |
| KHJ299 | 2,950 mm |
| KHJ1306 | 550 mm |
| KHJ2036 | 750 mm |
| KHJ2054 | 1,200 mm |
| KHJ2084 | 350 mm |
| KHJ2097 | 1,150 mm |
| KHJ2107 | 2,700 mm |
| KHJ2148 | 550 mm |
| KHJ2166 | 2,300 mm |
| KHJ2181 | 580 mm |
| KHJ2199 | 2,950 mm |
| KHJ2244 | 600 mm |
| KHJ2248 | 3,000 mm |
| KHJ2249 | 950 mm |
| KHJ2318 | 1,200 mm |
| KHJ2327 | 1,550 mm |
| KHJ2342 | 380 mm |
| KHJ2370 | 2,650 mm |
| KHJ11140 | 550 mm |
| KHJ11520 | 900 mm |
| KHJ11530 | 1,250 mm |
| KHJ11540 | 1,450 mm |
| KHJ11570 | 1,300 mm |
| KHJ11590 | 1,400 mm |
| KHJ14900 | 2,600 mm |
| KHJ14910 | 800 mm |
| KHJ14920 | 1,850 mm |
| KNJ1997 | 1,150 mm |
| KNJ2004 | 2,000 mm |
| KRA0873 | 2,150 mm |
| KRJ083 | 1,670 mm |
| KRJ4134 | 1,850 mm |
| KRJ4381 | 1,800 mm |
| KRJ6320 | 100 mm |
| KRJ10710 | 780 mm |
| KRJ10750 | 650 mm |
| KRJ10770 | 1,290 mm |
| KRJ10820 | 1,700 mm |
| KRJ10840 | 1,420 mm |
| KRJ10850 | 1,240 mm |
| KRJII180 | 520 mm |
| KRV19720 | 850 mm |
| KRV19740 | 1,500 mm |
| NWA1005 | 2,000 mm |

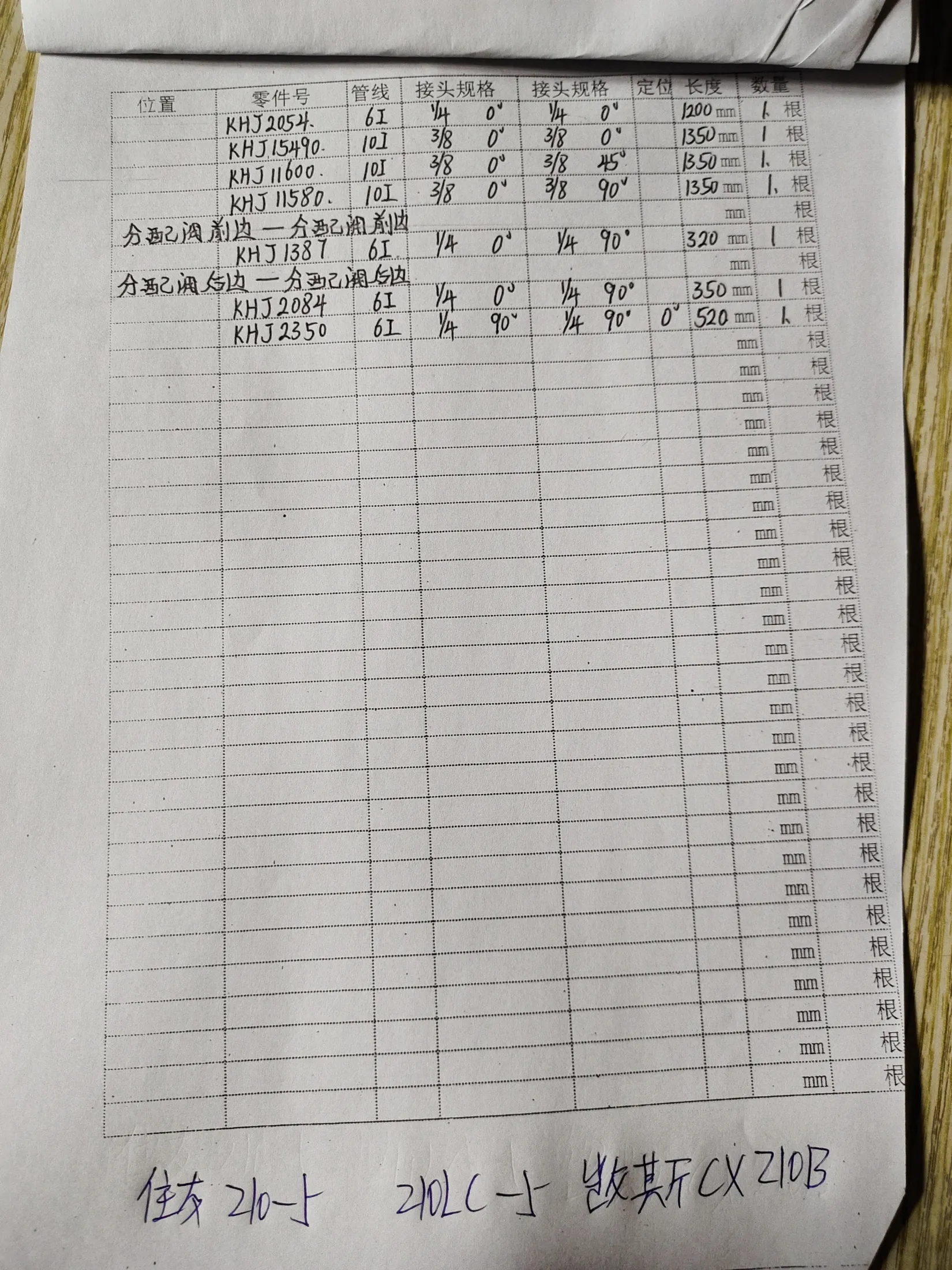

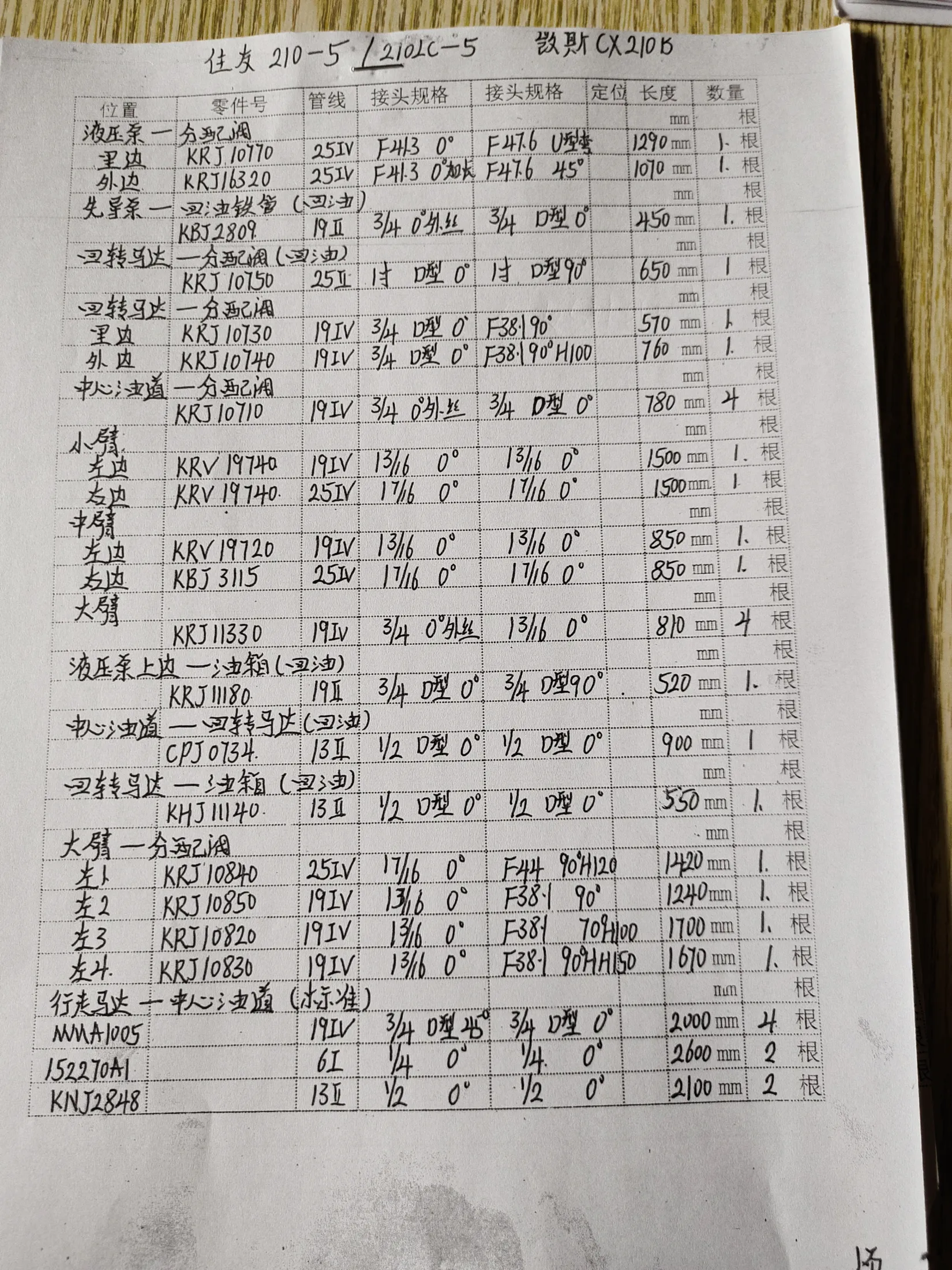

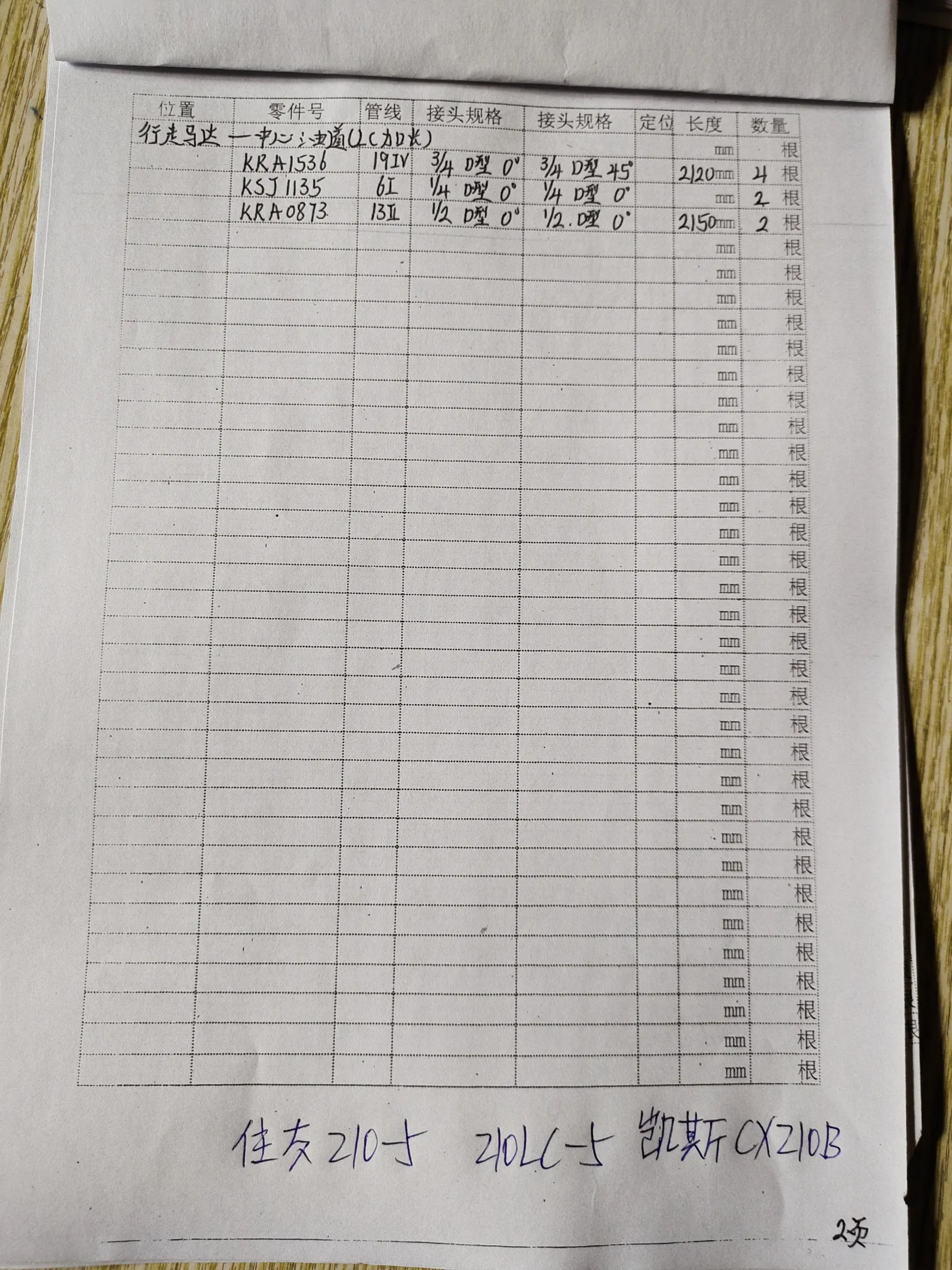

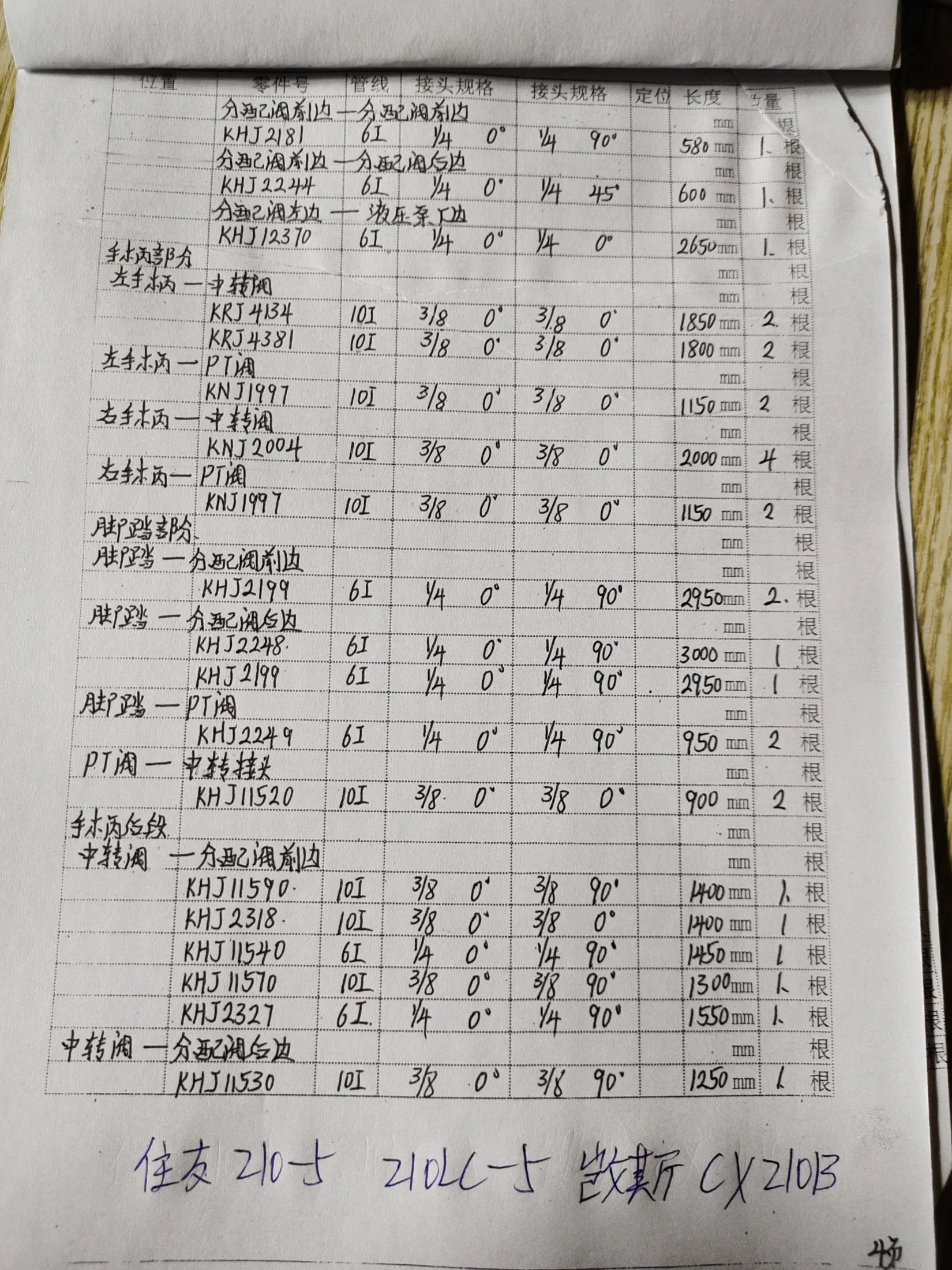

Original handwritten sheets
