Sumitomo SH350H-5A Hydraulic Hose Length & Fitting Lookup
Available Sumitomo SH350H-5A workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Sumitomo SH350H-5A Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Sumitomo SH350H-5A workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 15785A | 2,850 mm |
| KAJ2751 | 2,350 mm |
| KAJ2759 | 12,200 mm |
| KAJ3508 | 12,800 mm |
| KBJ2205 | 2,800 mm |
| KHJ1233 | 2,150 mm |
| KHJ1383 | 530 mm |
| KHJ1387 | 320 mm |
| KHJ1766 | 3,200 mm |
| KHJ2082 | 3,400 mm |
| KHJ2084 | 350 mm |
| KHJ2087 | 750 mm |
| KHJ2172 | 2,950 mm |
| KHJ2174 | 3,100 mm |
| KHJ2244 | 600 mm |
| KHJ2249 | 950 mm |
| KHJ2342 | 380 mm |
| KHJ2350 | 520 mm |
| KHJ2728 | 2,750 mm |
| KHJ11480 | 3,950 mm |
| KHJ12230 | 3,450 mm |
| KHJ12620 | 1,806 mm |
| KHJ15170 | 3,450 mm |
| KHJI140 | 550 mm |
| KHJII180 | 350 mm |
| KNJ1321 | 12,350 mm |
| KNJ1376 | 1,800 mm |
| KNJ1894 | 3,200 mm |
| KNJ2004 | 2,000 mm |
| KRJ2885 | 1,750 mm |
| KRJ3895 | 380 mm |
| KRJ4381 | 1,850 mm |
| KRJ4623 | 2,600 mm |
| KRJ4892 | 12,350 mm |
| KRJ4970 | 3,800 mm |
| KRJ6163 | 12,850 mm |
| KSA0678 | 2,360 mm |
| KSA1138 | 12,250 mm |
| KSA11830 | 2,350 mm |
| KSJ268 | 1,070 mm |
| KSJ2795 | 870 mm |
| KSJ2868 | 750 mm |
| KSJ2960 | 1,000 mm |
| KSJ12390 | 1,330 mm |
| KSJ12650 | 680 mm |
| KSJ12660 | 620 mm |
| KSJ12950 | 1,660 mm |
| KSJ13130 | 1,180 mm |
| KSJ13740 | 370 mm |
| KSV16680 | 1,700 mm |
| KSVI7080 | 1,350 mm |
| KTJ1641 | 1,700 mm |
| KTJ1644 | 350 mm |

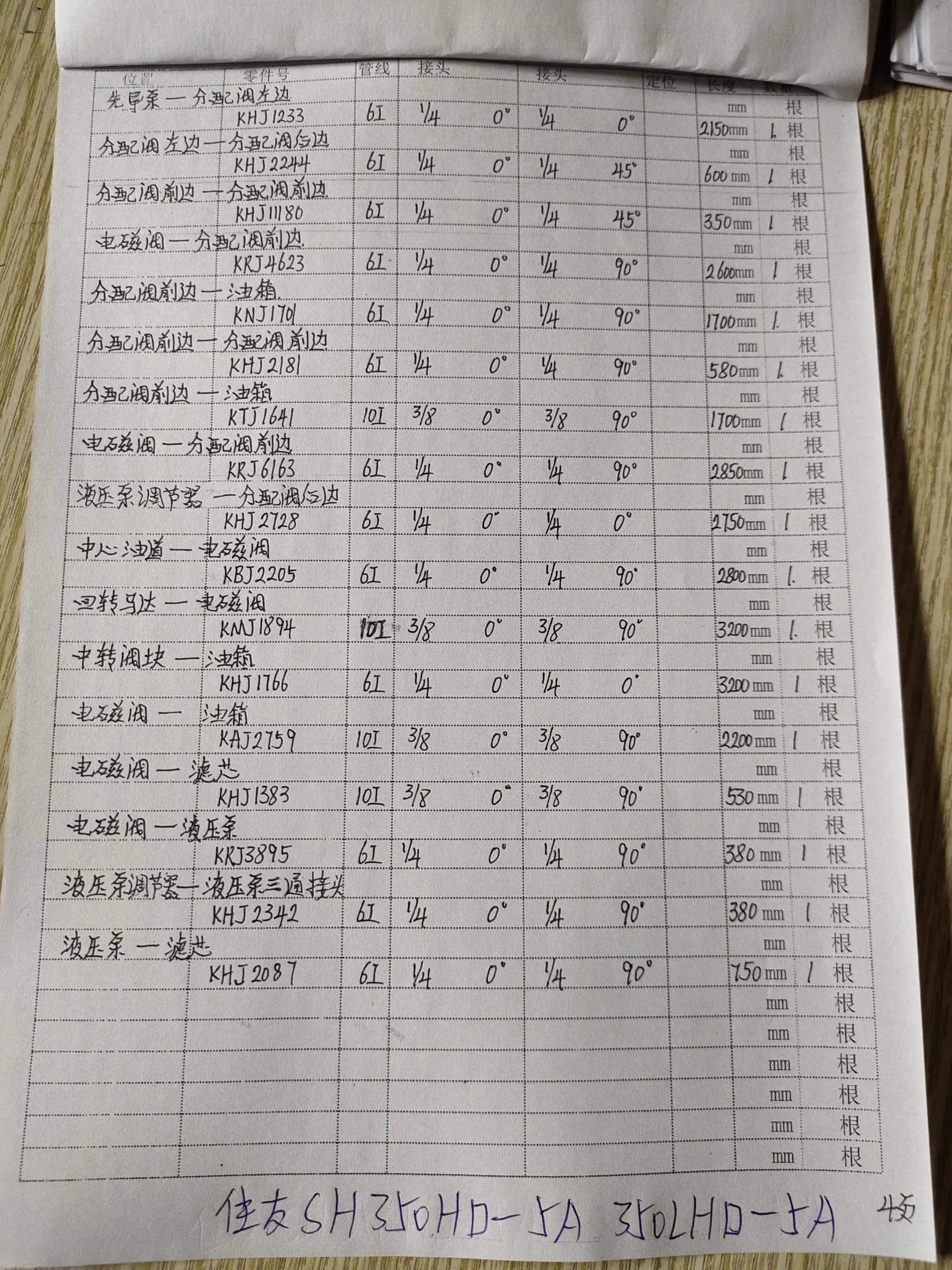

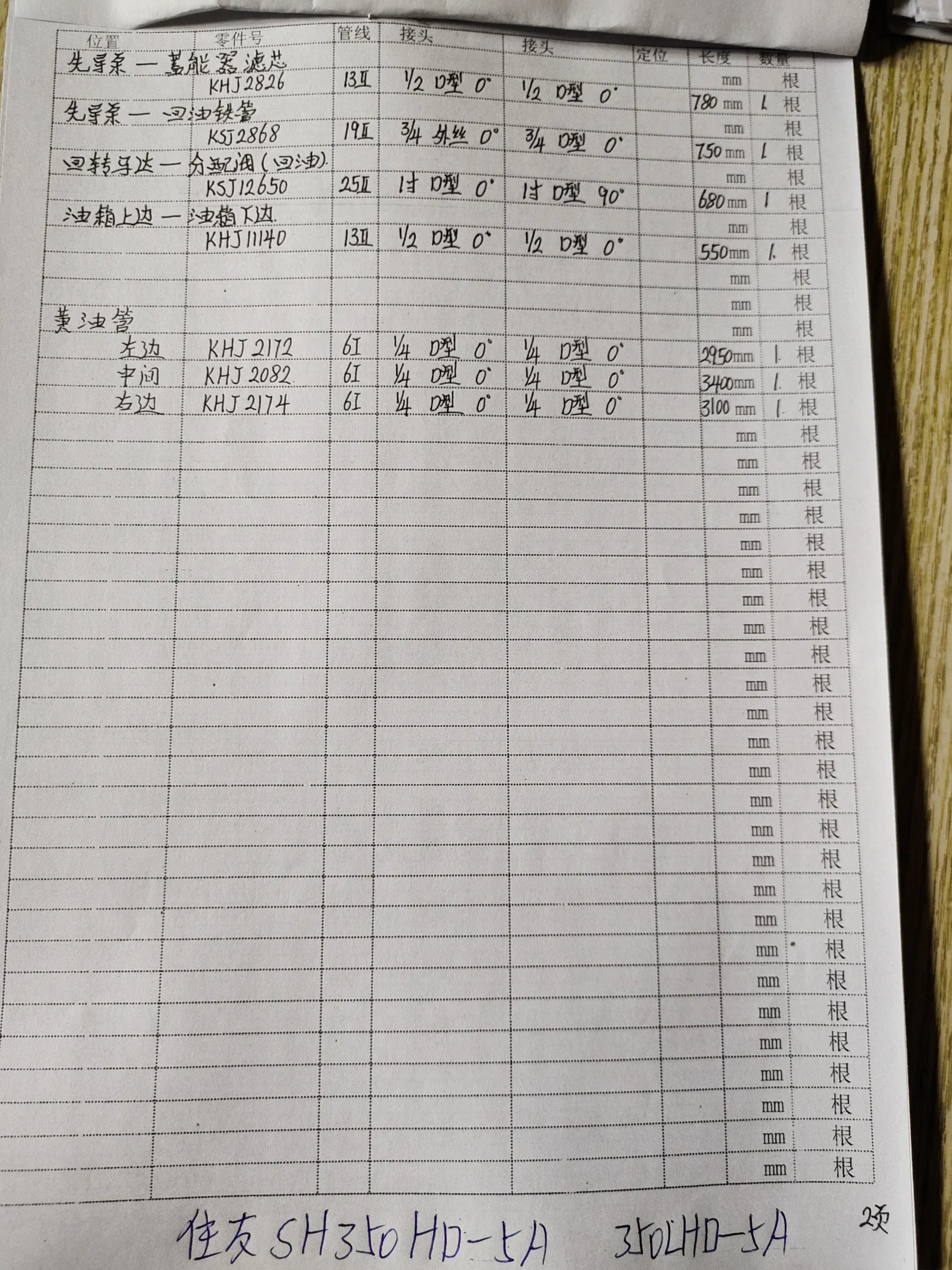

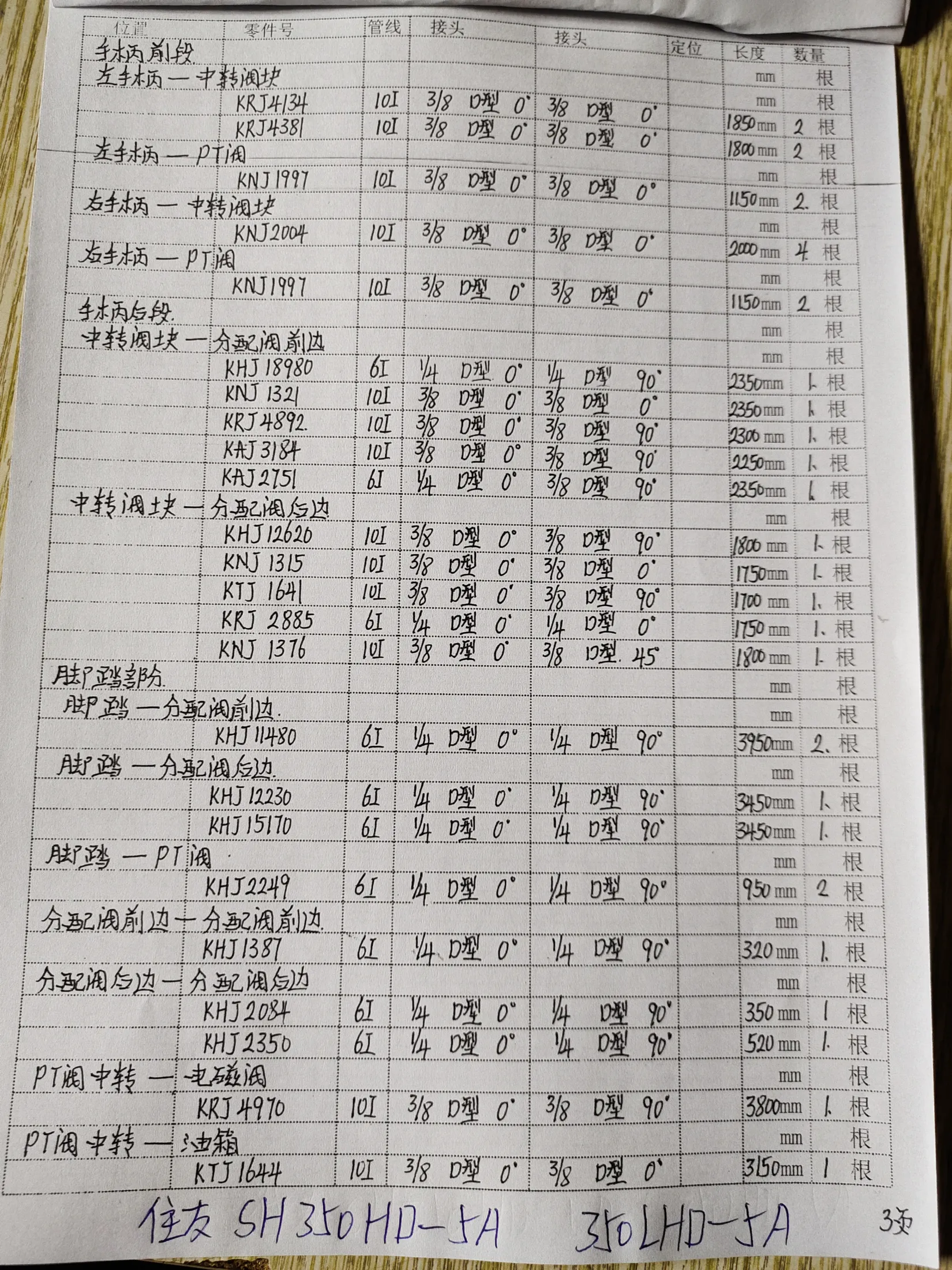

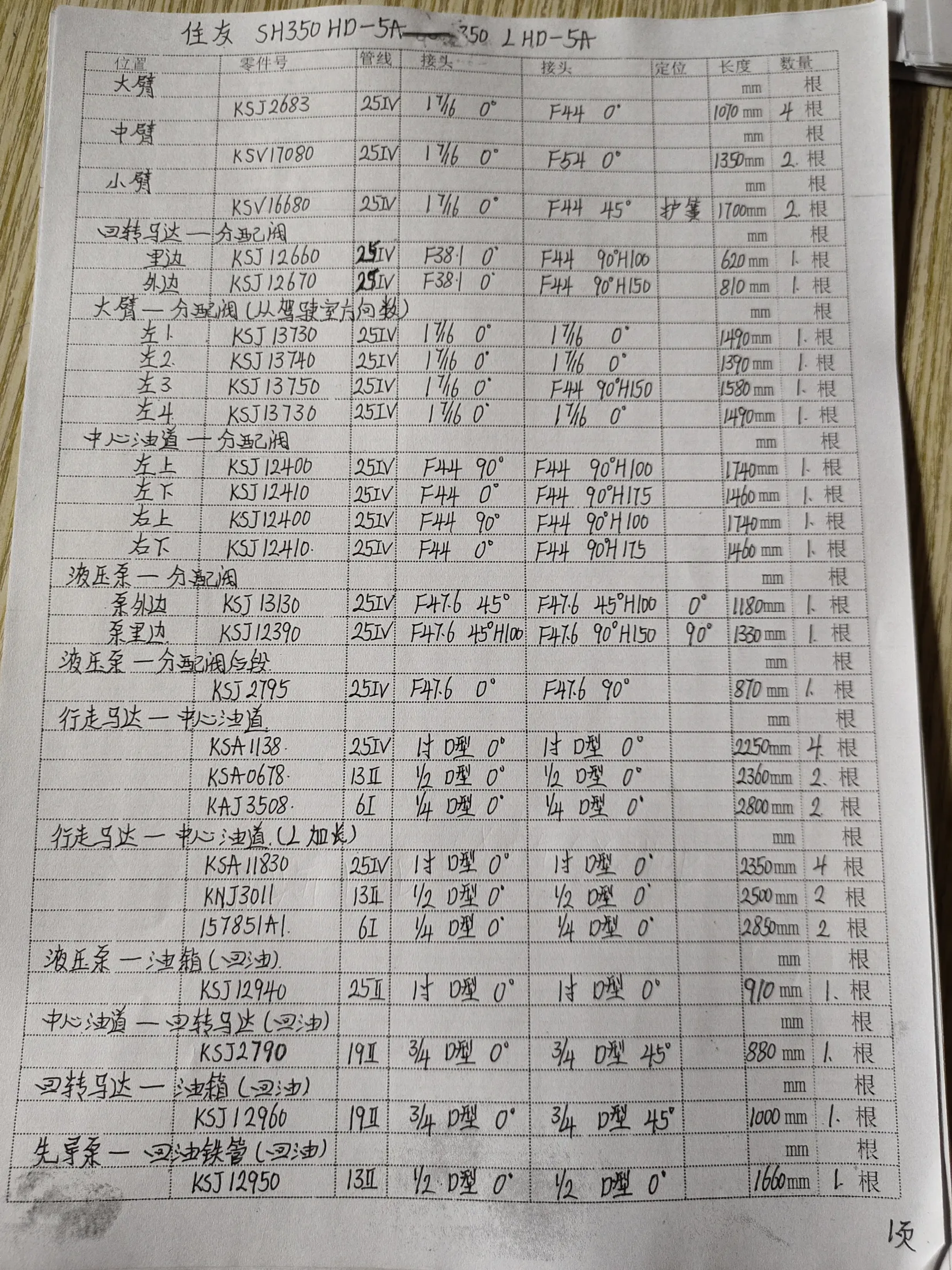

Original handwritten sheets
