Volvo 210BLC Hydraulic Hose Length & Fitting Lookup

Available Volvo 210BLC workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Digitized data and source sheets

Volvo 210BLC Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Volvo 210BLC workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
5A945-04341392,350 mm
5A9451-03242,450 mm
5A9451-032492,450 mm
5A9452-041482,400 mm
5A9453-02208400 mm
5A9453-023361,800 mm
5A9453-02342,300 mm
5A9453-03221,350 mm
AITVOE146026011,120 mm
S9403-05016800 mm
S9453-032653,250 mm
S49403-056231,150 mm
S79453-022126I600 mm
SA945-0326510I3,250 mm
SA945-05790145 mm
SA975-0220400 mm
SA9401-0562X1,206 mm
SA9402-0564519IV12,250 mm
SA9451-02211850 mm
SA9451-022116I550 mm
SA9451-02215750 mm
SA9451-0222116I11,050 mm
SA9451-022311,550 mm
SA9451-022321,600 mm
SA9451-022341,700 mm
SA9451-02250500 mm
SA9451-03223150 mm
SA9451-04218900 mm
SA9451-042452,250 mm
SA9452-032231,150 mm
SA9452-03234100 mm
SA9452-032371,850 mm
SA9452-0323710I1,850 mm
SA9452-03237101850 mm
SA9453-02201350 mm
SA9453-02206I500 mm
SA9453-0220710L1,350 mm
SA9453-022076I350 mm
SA9453-022081,400 mm
SA9453-02209450 mm
SA9453-022096I1,450 mm
SA9453-0221700 mm
SA9453-02210500 mm
SA9453-02213550 mm
SA9453-0221361650 mm
SA9453-02214700 mm
SA9453-022151,750 mm
SA9453-02216800 mm
SA9453-02218900 mm
SA9453-022186I900 mm
SA9453-02226306 mm
SA9453-0222761,350 mm
SA9453-022286I1,400 mm
SA9453-022306I1,500 mm
SA9453-022336I1,650 mm
SA9453-022376I1,850 mm
SA9453-02242,300 mm
SA9453-02257BI2,850 mm
SA9453-023462,300 mm
SA9453-03212600 mm
SA9453-03213650 mm
SA9453-032281,400 mm
SA9453-032291,450 mm
SA9453-03231,550 mm
SA9453-032301,500 mm
SA9453-032311,550 mm
SA9453-0324T9,350 mm
SA9453-0324110I2,350 mm
SA9453-032552,750 mm
SA9453-04209456 mm
SA9453-04211,650 mm
SA9453-04218900 mm
SA9453-042231,150 mm
SA9453-0433313I1,650 mm
SA9453-0521500 mm
SA9453-05210500 mm
SA9453-0521219I600 mm
SA9453-0523111,550 mm
SA9453-06208400 mm
SA9459-04260700 mm
SAY452-032231,150 mm
SAY453-02221611,350 mm
SH9453-032211,450 mm
VOE9362181,050 mm
VOE936219100 mm
VOE9362201,150 mm
VOE9362261,450 mm
VOE9362291,450 mm
VOE9363661,156 mm
VOE937169950 mm
VOE9371771,500 mm
VOE937829850 mm
VOE1488031Y850 mm
VOE14578415250 mm
VOE14587934450 mm
VOE14880158880 mm
VOE14880320970 mm
VOL93829850 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

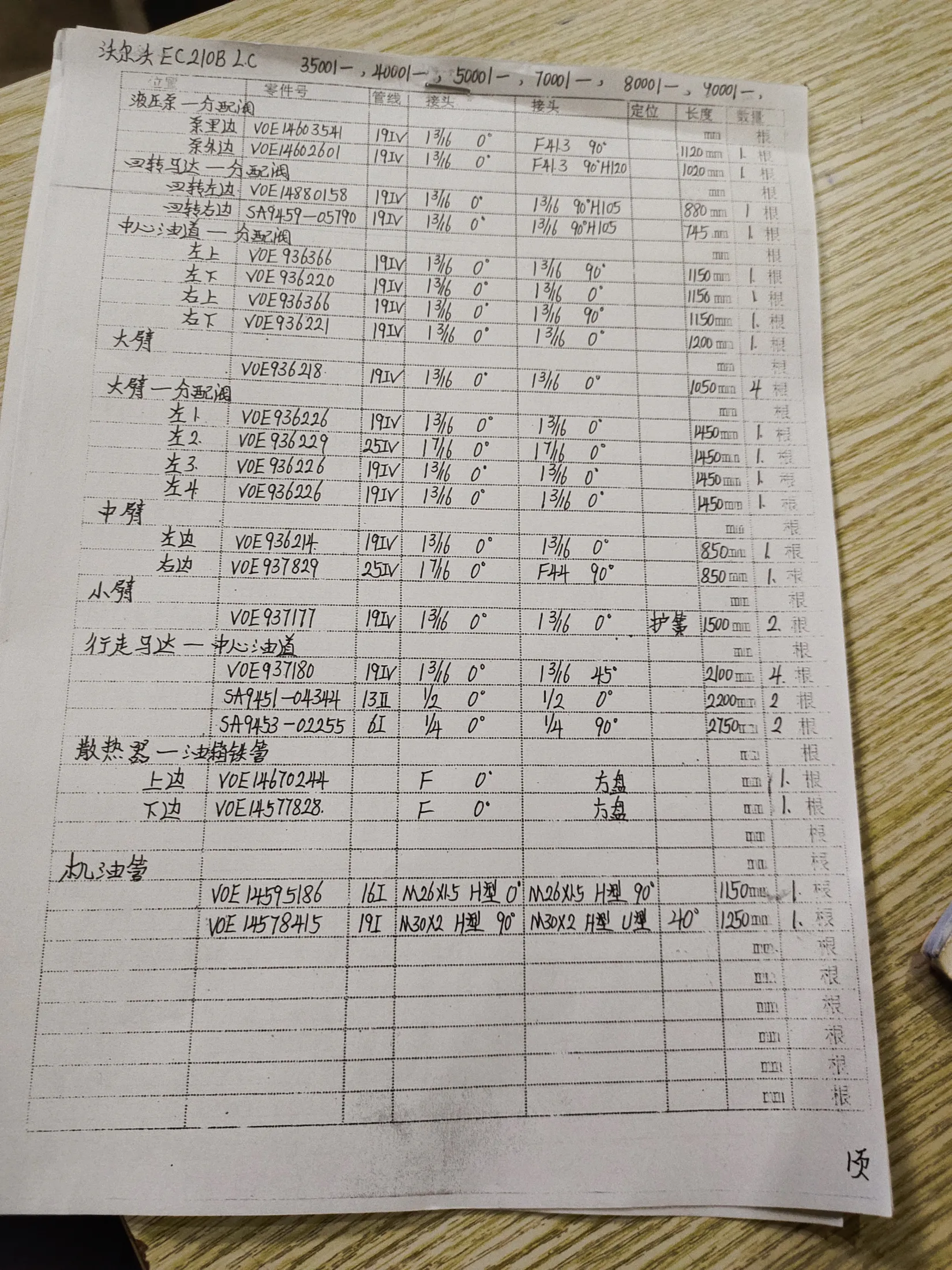

Volvo 210BLC hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 8 — recorded hose parts AITVOE14602601, VOE14578415, VOE936218
Notebook page 1 of 8Recorded on this sheet: AITVOE14602601 — 1,120 mm; VOE14578415 — 250 mm; VOE936218 — 1,050 mm; VOE936220 — 1,150 mm; and 2 more recorded hoses.

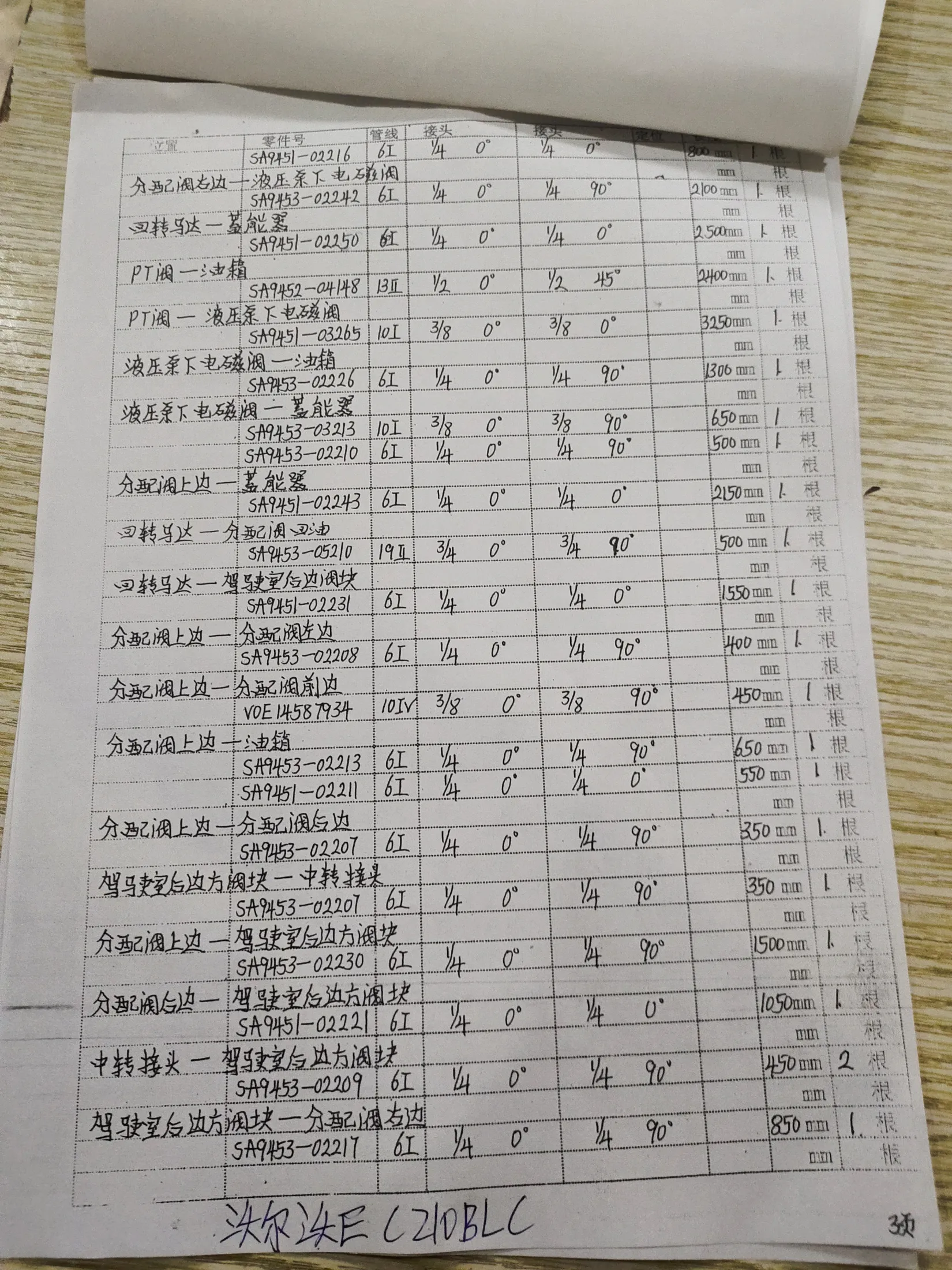

Volvo 210BLC hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 8 — recorded hose parts 5A9452-04148, SA945-0326510I, SA9451-0222116I
Notebook page 3 of 8Recorded on this sheet: 5A9452-04148 — 2,400 mm; SA945-0326510I — 3,250 mm; SA9451-0222116I — 11,050 mm; SA9451-0223 — 11,550 mm; and 9 more recorded hoses.

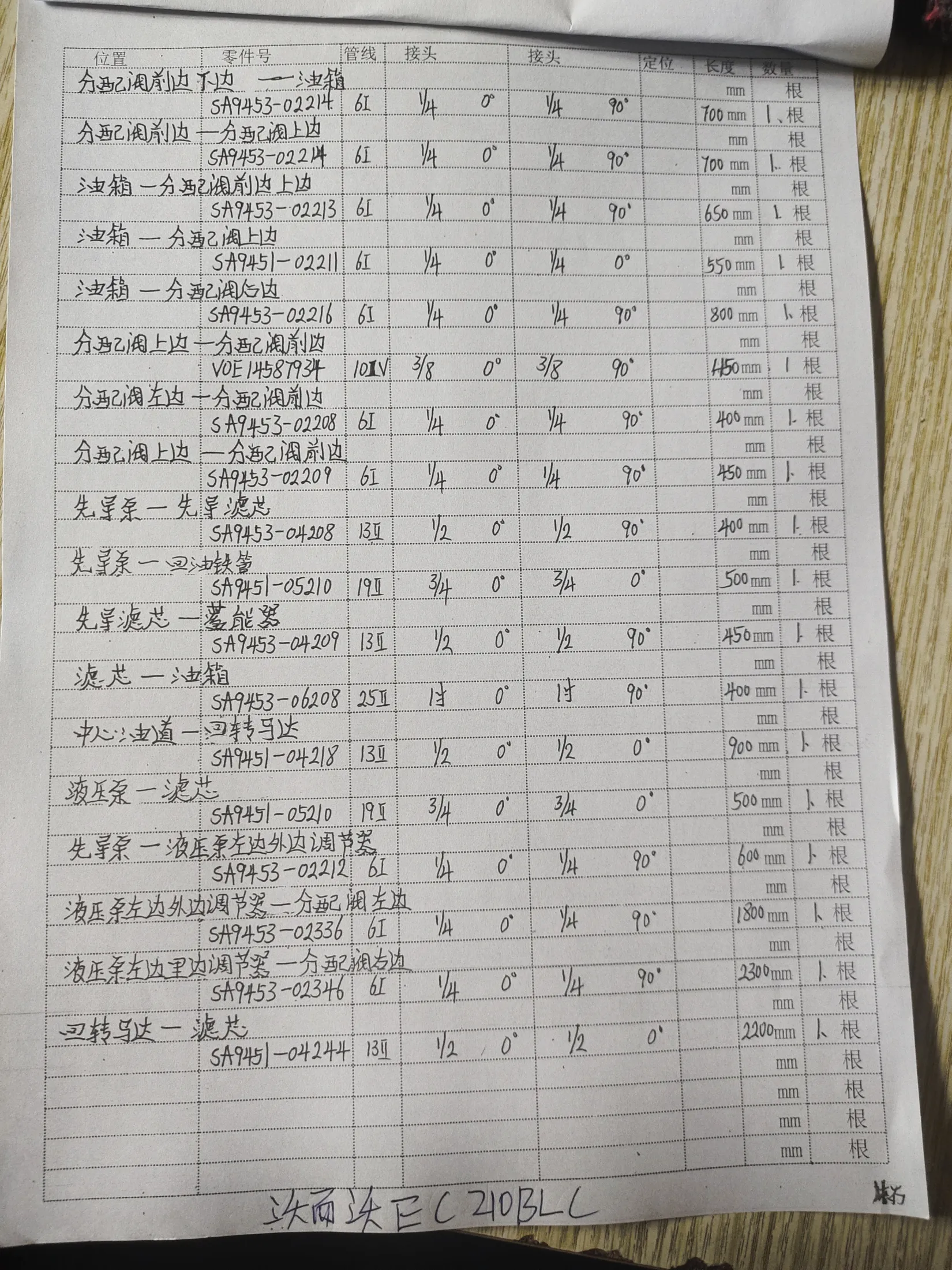

Volvo 210BLC hydraulic hose part numbers and recorded lengths — technician notebook page 8 of 8 — recorded hose parts 5A9453-02208, 5A9453-0234, SA9451-022116I
Notebook page 8 of 8Recorded on this sheet: 5A9453-02208 — 400 mm; 5A9453-0234 — 2,300 mm; SA9451-022116I — 550 mm; SA9451-04218 — 900 mm; and 7 more recorded hoses.

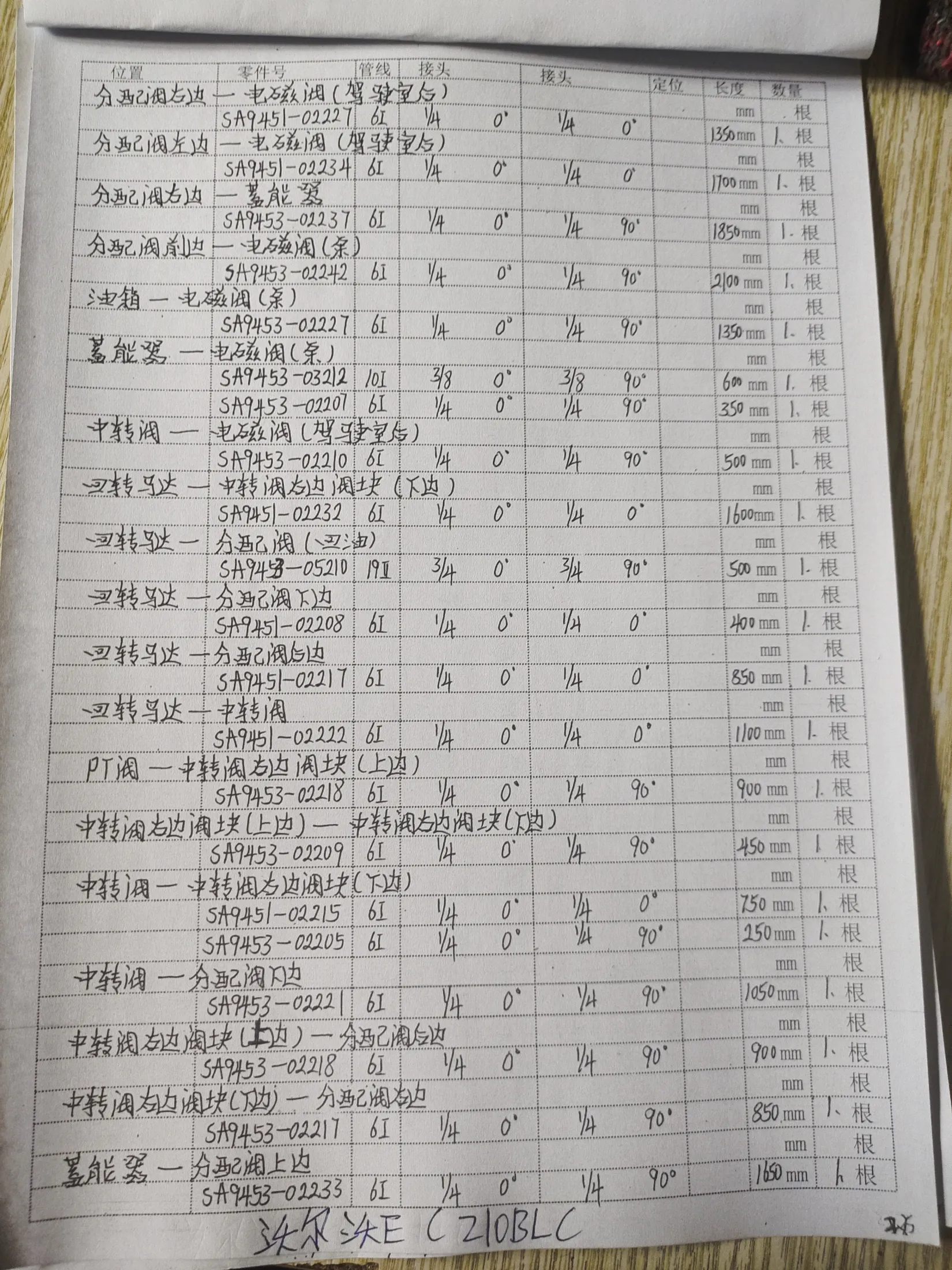

Volvo 210BLC hydraulic hose part numbers and recorded lengths — technician notebook page 7 of 8 — recorded hose parts SA9451-02211, SA9451-02215, SA9451-02232
Notebook page 7 of 8Recorded on this sheet: SA9451-02211 — 850 mm; SA9451-02215 — 750 mm; SA9451-02232 — 1,600 mm; SA9451-02234 — 1,700 mm; and 10 more recorded hoses.

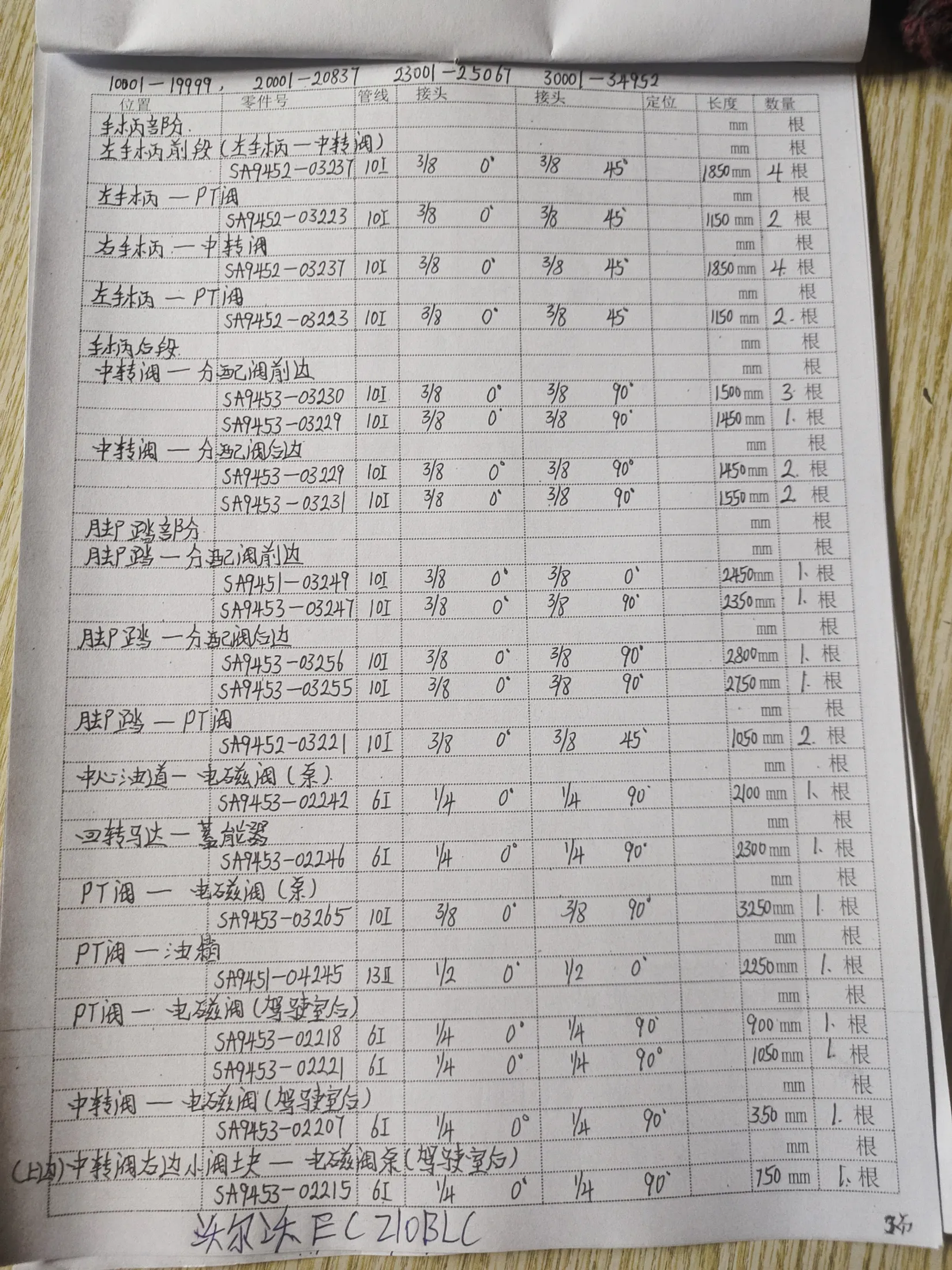

Volvo 210BLC hydraulic hose part numbers and recorded lengths — technician notebook page 6 of 8 — recorded hose parts 5A9451-0324, S9453-03265, SA9451-04245
Notebook page 6 of 8Recorded on this sheet: 5A9451-0324 — 2,450 mm; S9453-03265 — 3,250 mm; SA9451-04245 — 2,250 mm; SA9452-03223 — 1,150 mm; and 9 more recorded hoses.

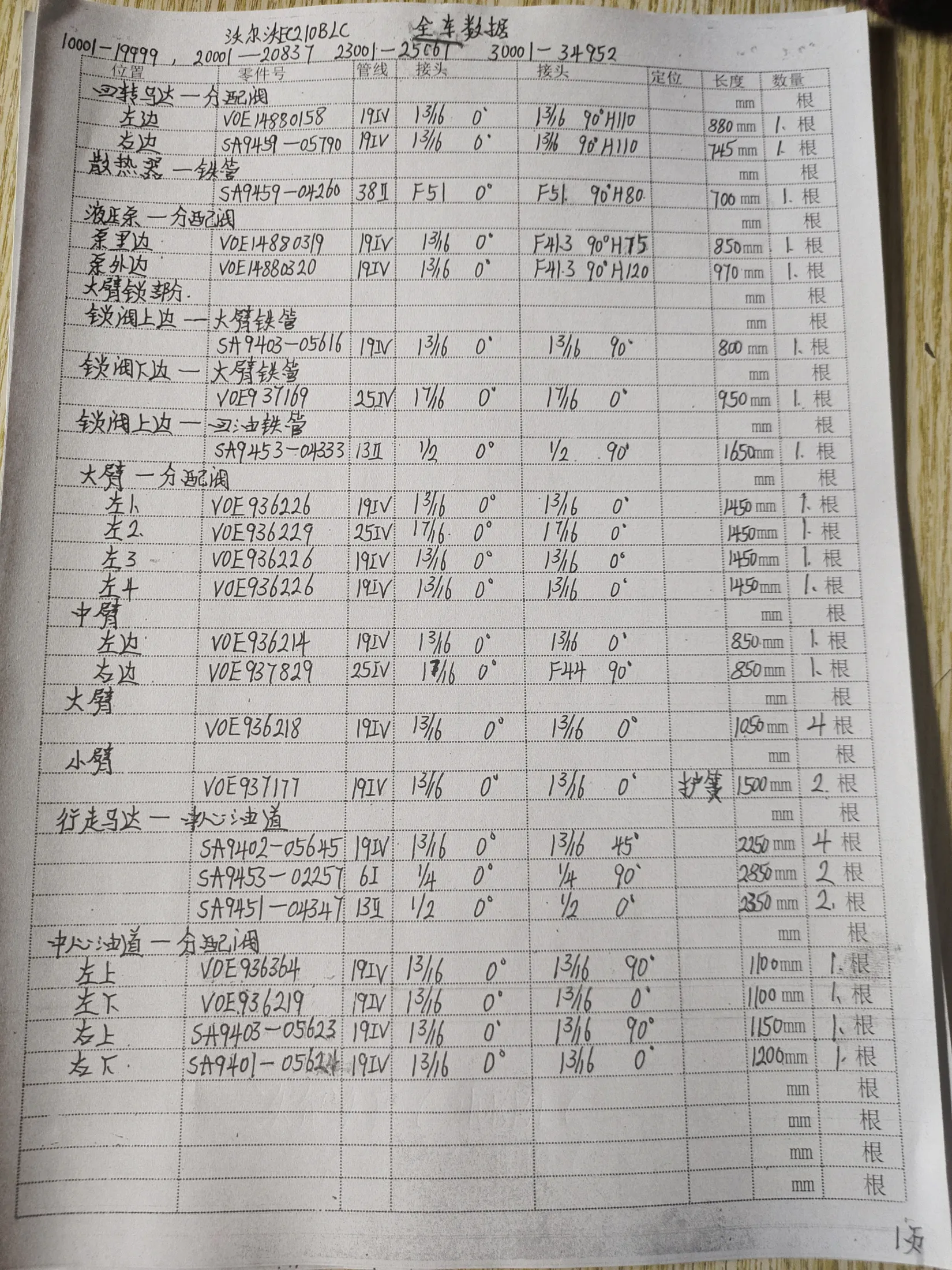

Volvo 210BLC hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 8 — recorded hose parts 5A945-0434139, S49403-05623, S9403-05016
Notebook page 5 of 8Recorded on this sheet: 5A945-0434139 — 2,350 mm; S49403-05623 — 1,150 mm; S9403-05016 — 800 mm; SA9401-0562X — 1,206 mm; and 14 more recorded hoses.

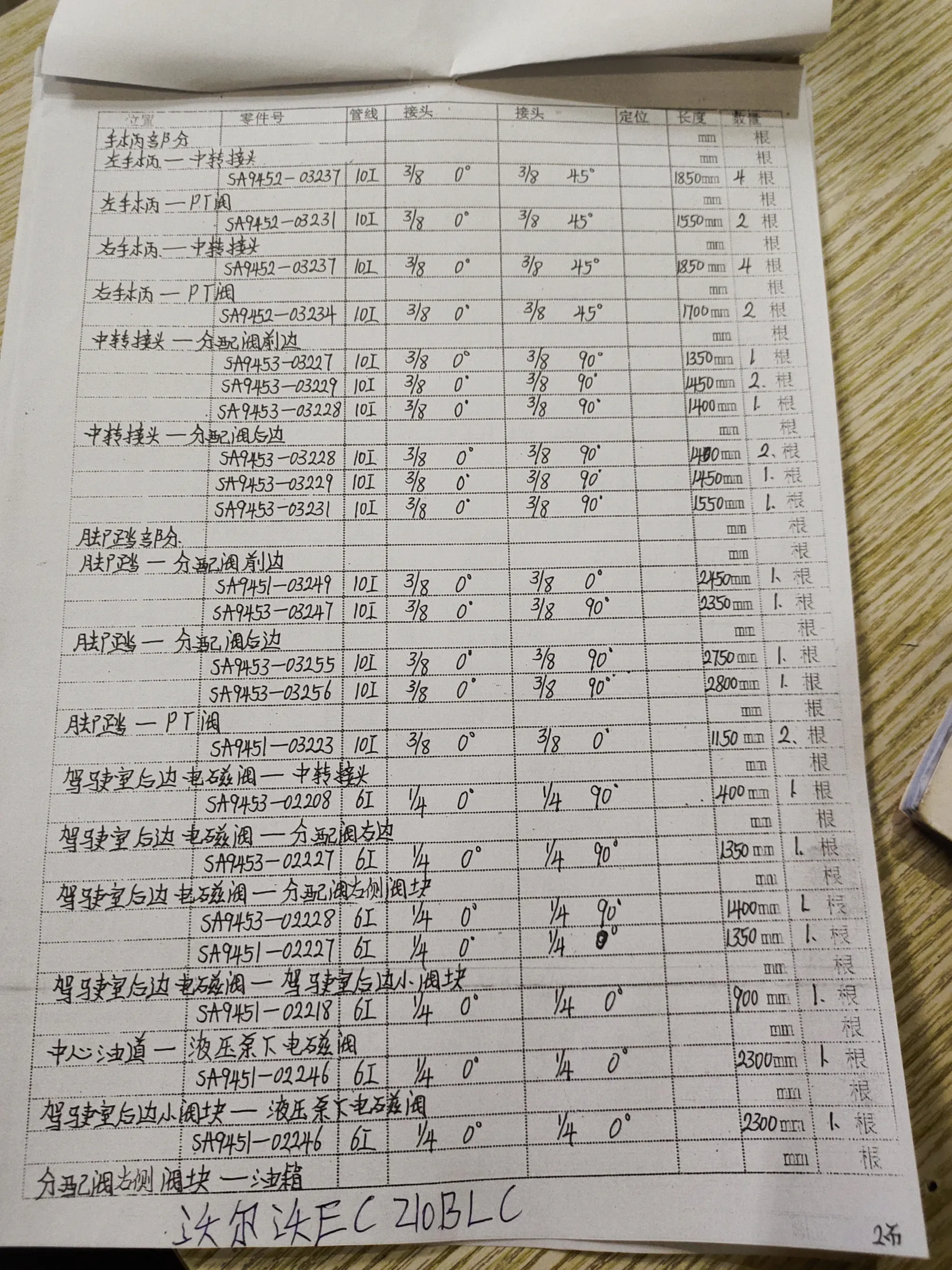

Volvo 210BLC hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 8 — recorded hose parts 5A9451-03249, 5A9453-0322, SA9451-03223
Notebook page 2 of 8Recorded on this sheet: 5A9451-03249 — 2,450 mm; 5A9453-0322 — 1,350 mm; SA9451-03223 — 150 mm; SA9452-03234 — 100 mm; and 8 more recorded hoses.

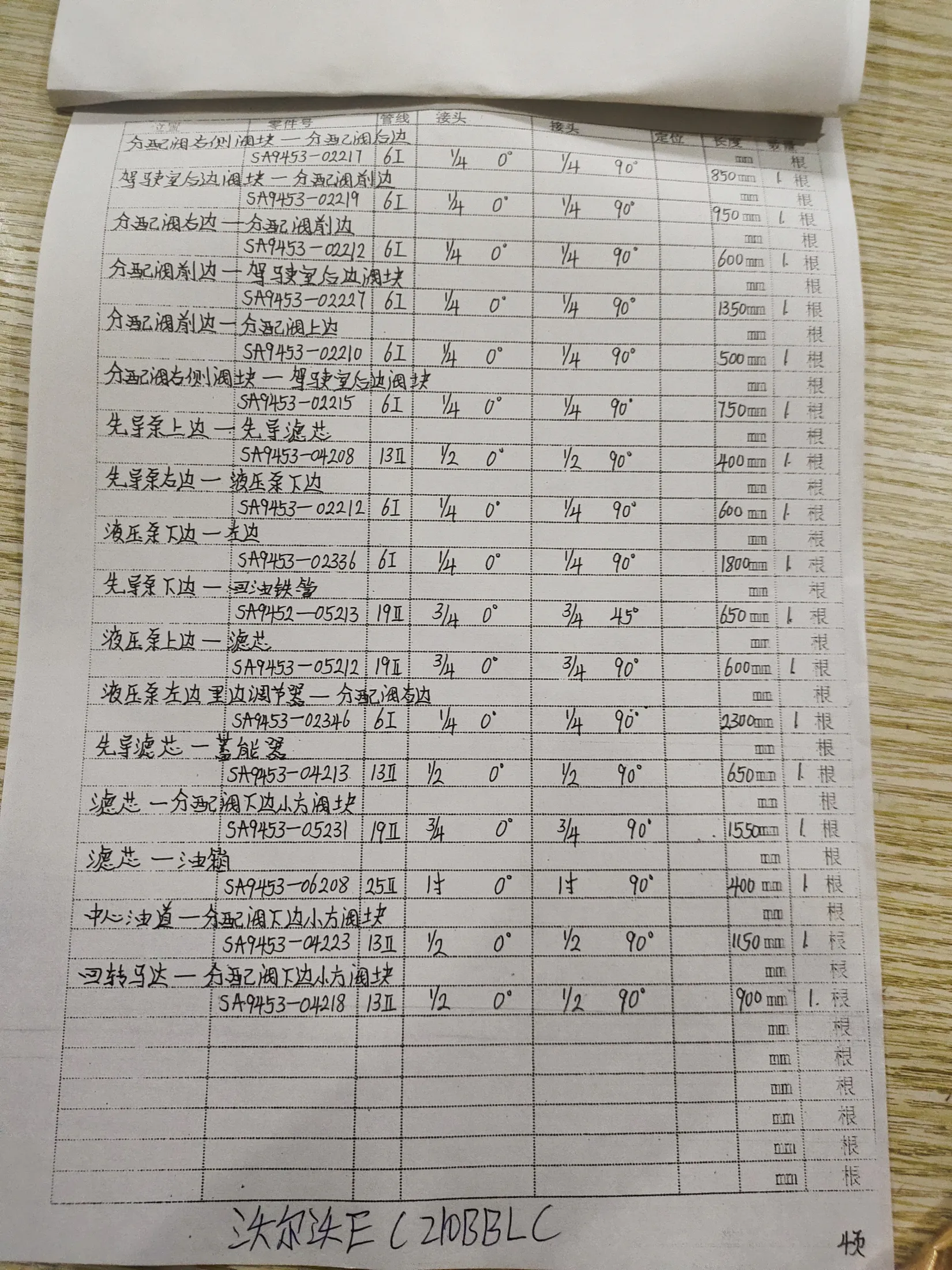

Volvo 210BLC hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 8 — recorded hose parts 5A9453-02336, S79453-022126I, SA9453-02210
Notebook page 4 of 8Recorded on this sheet: 5A9453-02336 — 1,800 mm; S79453-022126I — 600 mm; SA9453-02210 — 500 mm; SA9453-02215 — 1,750 mm; and 7 more recorded hoses.
