Volvo 360BLC Hydraulic Hose Length & Fitting Lookup
Available Volvo 360BLC workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
Volvo 360BLC Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the Volvo 360BLC workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| SA9A53-023476I | 12,350 mm |
| SA945-0321 | 600 mm |
| SA9451-02209 | 1,450 mm |
| SA9451-0323Z | 11,600 mm |
| SA9451-03243 | 2,150 mm |
| SA9451-03265 | 3,250 mm |
| SA9451-0439313I | 4,650 mm |
| SA9451-05218 | 900 mm |
| SA9451-05266 | 3,300 mm |
| SA9452-0322 | 1,250 mm |
| SA9452-03251 | 2,550 mm |
| SA9453-022 | 550 mm |
| SA9453-0220 | 450 mm |
| SA9453-0220Y | 450 mm |
| SA9453-02210 | 500 mm |
| SA9453-022186I | 900 mm |
| SA9453-0223 | 1,550 mm |
| SA9453-02240 | 12,400 mm |
| SA9453-02360 | 3,000 mm |
| SA9453-03224 | 1,200 mm |
| SA9453-04314 | 700 mm |
| SA9453-04509 | 450 mm |
| SA9453-07233 | 1,650 mm |
| VOE936277 | 1,250 mm |
| VOE936985 | 1,250 mm |
| VOE937308 | 1,150 mm |
| VOE937573 | 2,850 mm |
| VOE937616 | 2,900 mm |
| VOE1488213Y | 1,125 mm |
| VOE1488257 | 1,015 mm |
| VOE11423195 | 330 mm |
| VOE14662326 | 870 mm |
| VOEI1I2805Y | 1,560 mm |

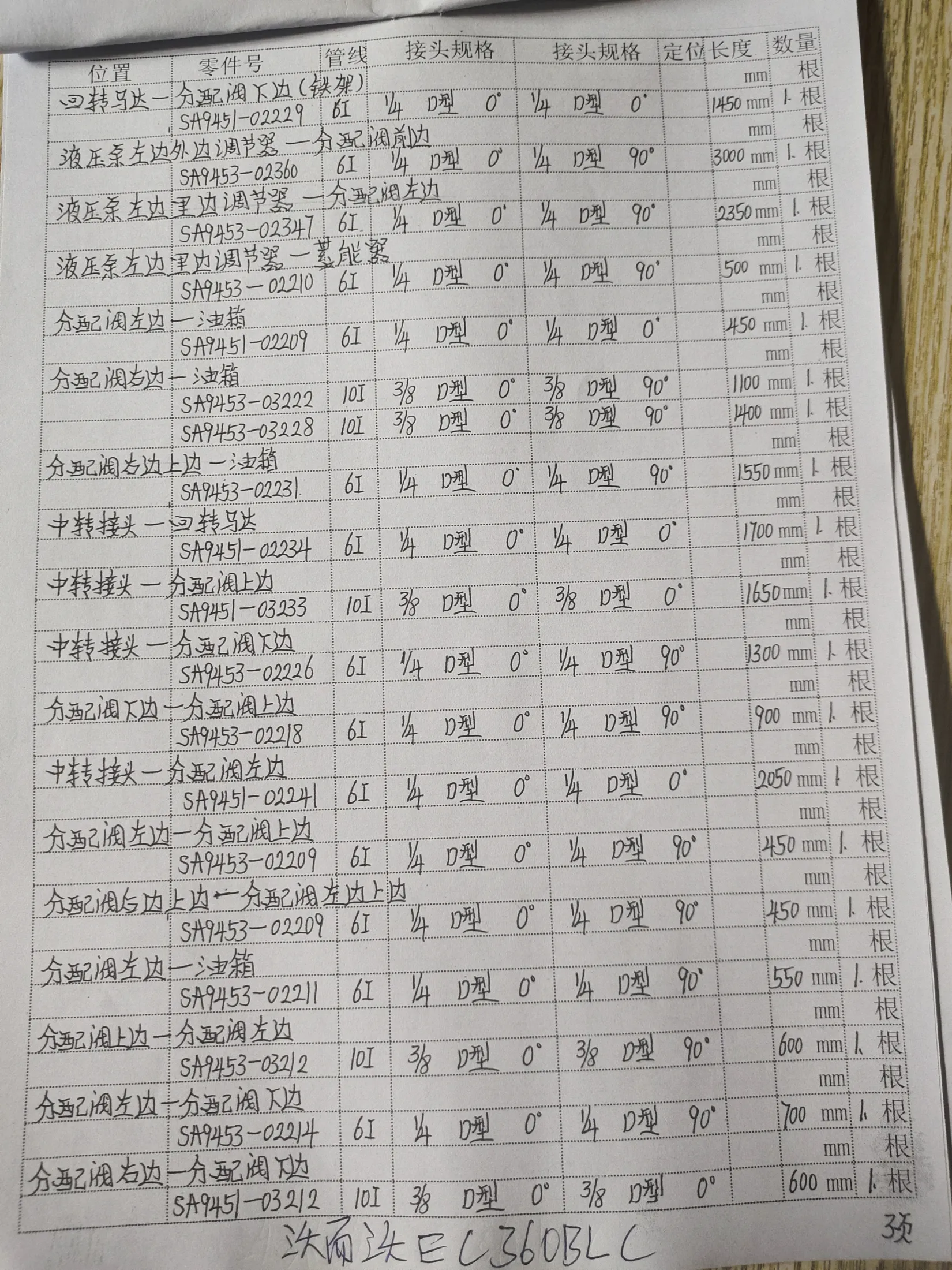

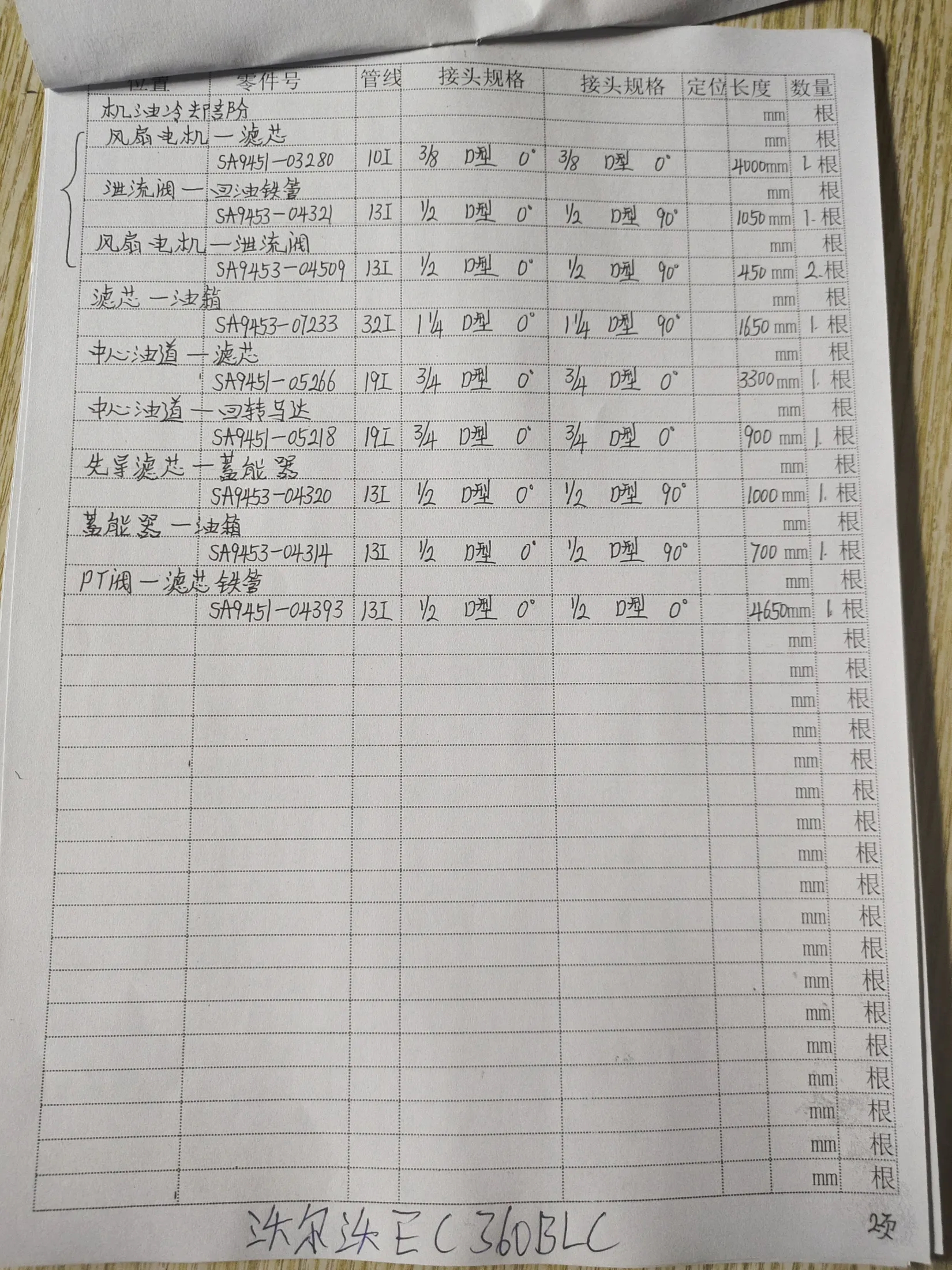

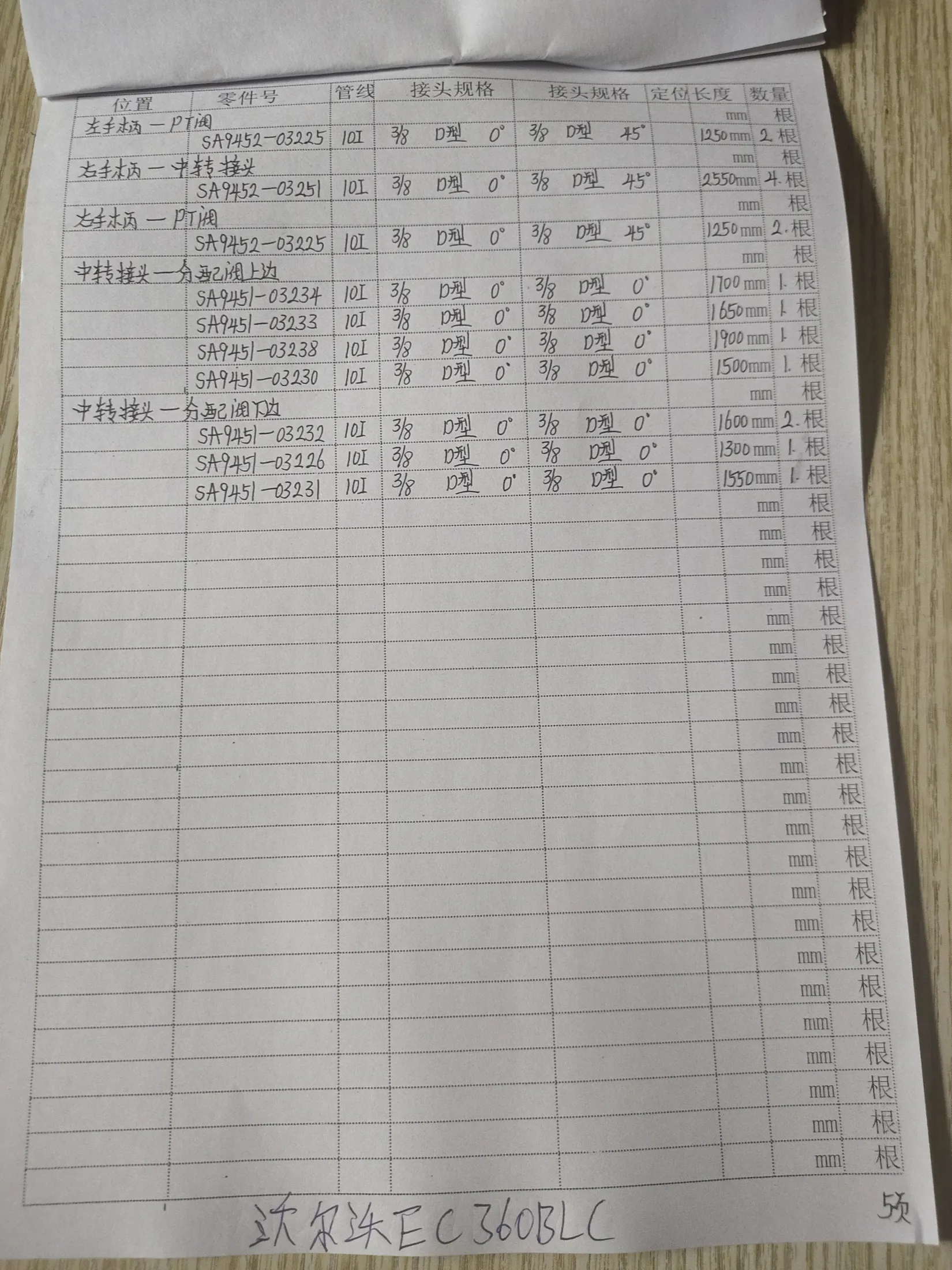

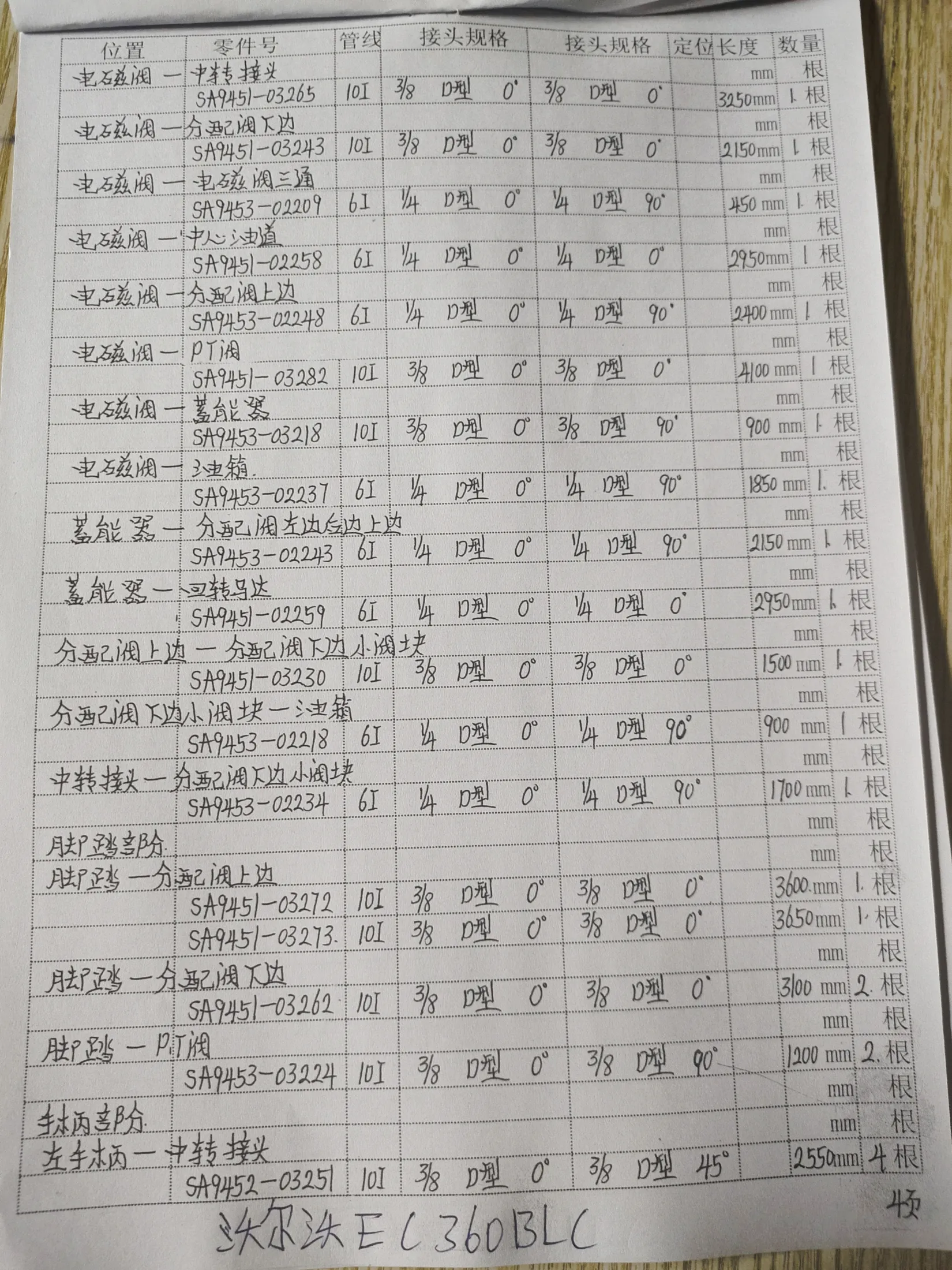

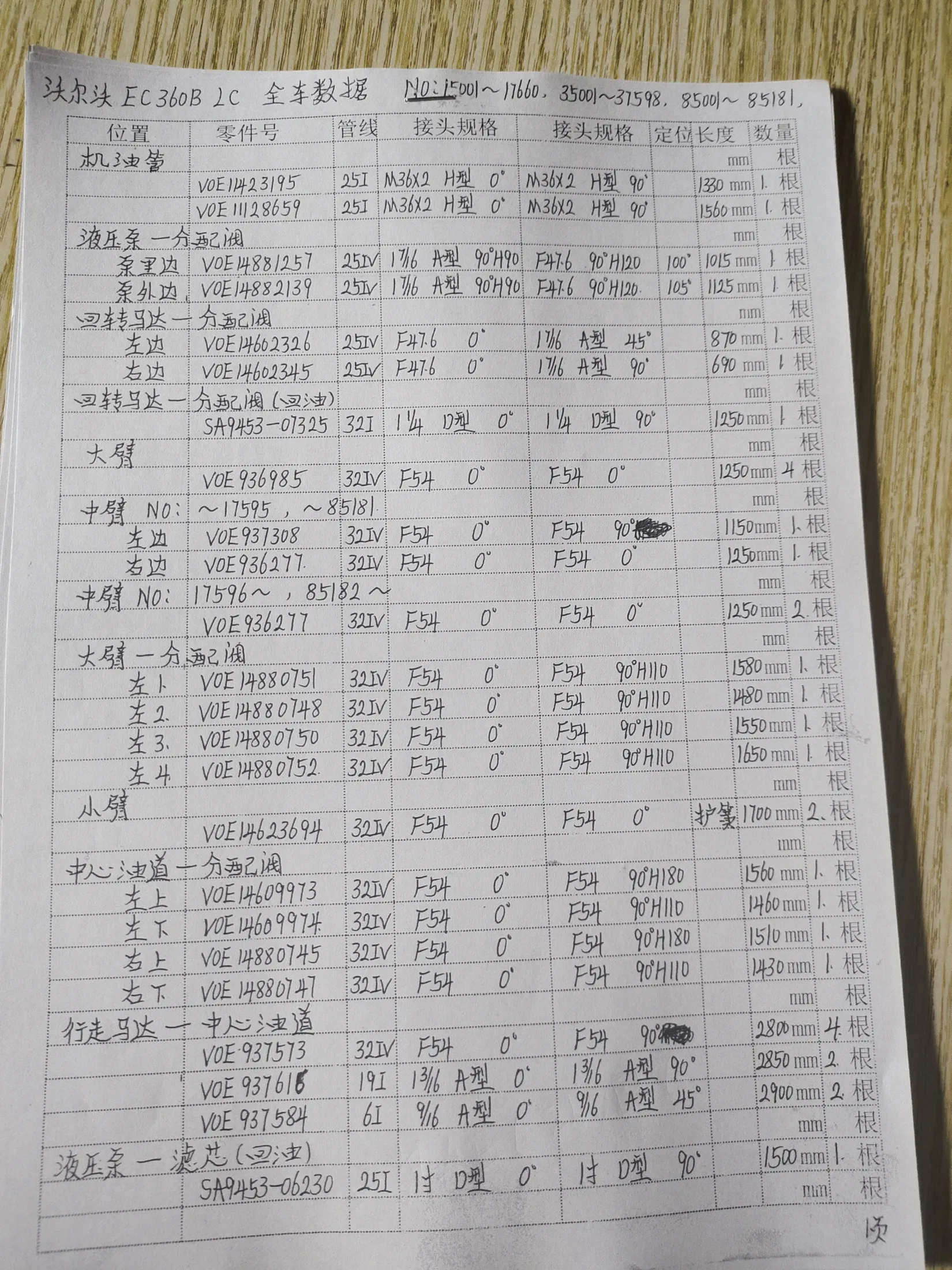

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
