Volvo 85001--85181 Hydraulic Hose Length & Fitting Lookup

Available Volvo 85001--85181 workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Digitized data and source sheets

Volvo 85001--85181 Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Volvo 85001--85181 workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
3L11VOE148821391,125 mm
7VOE148812571,015 mm
SA945-022291,450 mm
SA945-032804,000 mm
SA945-052003,300 mm
SA9451-022091,450 mm
SA9451-022341,700 mm
SA9451-02242,050 mm
SA9451-02252,950 mm
SA9451-032301,500 mm
SA9451-032311,550 mm
SA9451-032321,600 mm
SA9451-032331,700 mm
SA9451-032653,250 mm
SA9451-0327Z3,600 mm
SA9451-032733,650 mm
SA9451-0439313I4,650 mm
SA9452-03251,250 mm
SA9452-032512,550 mm
SA9453-02209450 mm
SA9453-02210500 mm
SA9453-02211550 mm
SA9453-022186I900 mm
SA9453-02221,300 mm
SA9453-022341,700 mm
SA9453-022371,850 mm
SA9453-023603,000 mm
SA9453-03218900 mm
SA9453-0322600 mm
SA9453-032221,100 mm
SA9453-032241,200 mm
SA9453-043201,000 mm
SA9453-04509450 mm
SA9453-072331,650 mm
SA9751-032261,300 mm
SA9753-043211,050 mm
VOE9362711,250 mm
VOE9362771,250 mm
VOE9369851,250 mm
VOE9375842,900 mm
VOE9376182,850 mm
VOE14880751,580 mm
VOE14602345690 mm
VOE148807471,430 mm
VOE17602326870 mm
VOEIII28651,560 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

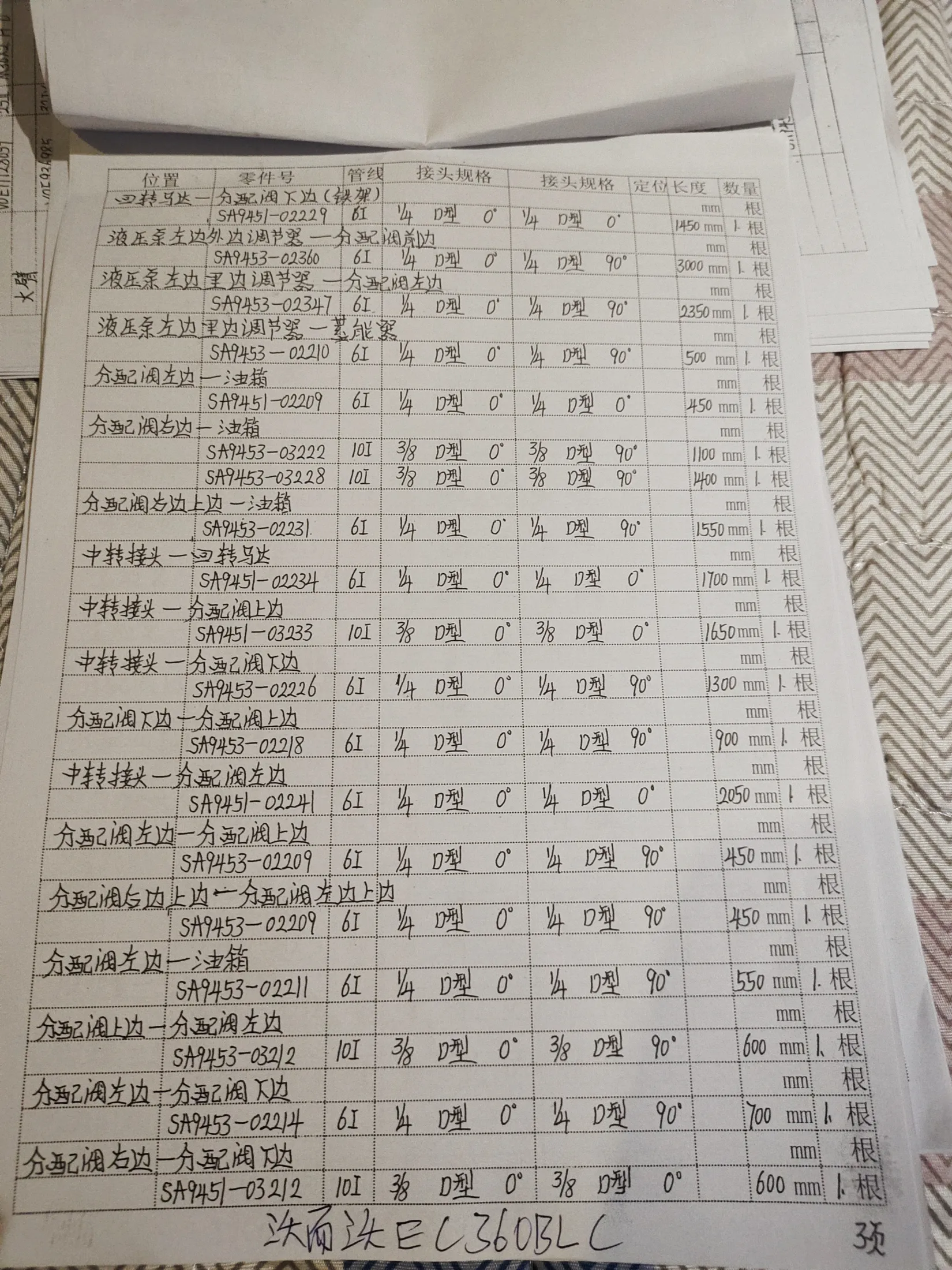

Volvo 85001--85181 hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5 — recorded hose parts SA945-02229, SA9451-02209, SA9451-02234
Notebook page 3 of 5Recorded on this sheet: SA945-02229 — 1,450 mm; SA9451-02209 — 1,450 mm; SA9451-02234 — 1,700 mm; SA9451-0224 — 2,050 mm; and 6 more recorded hoses.

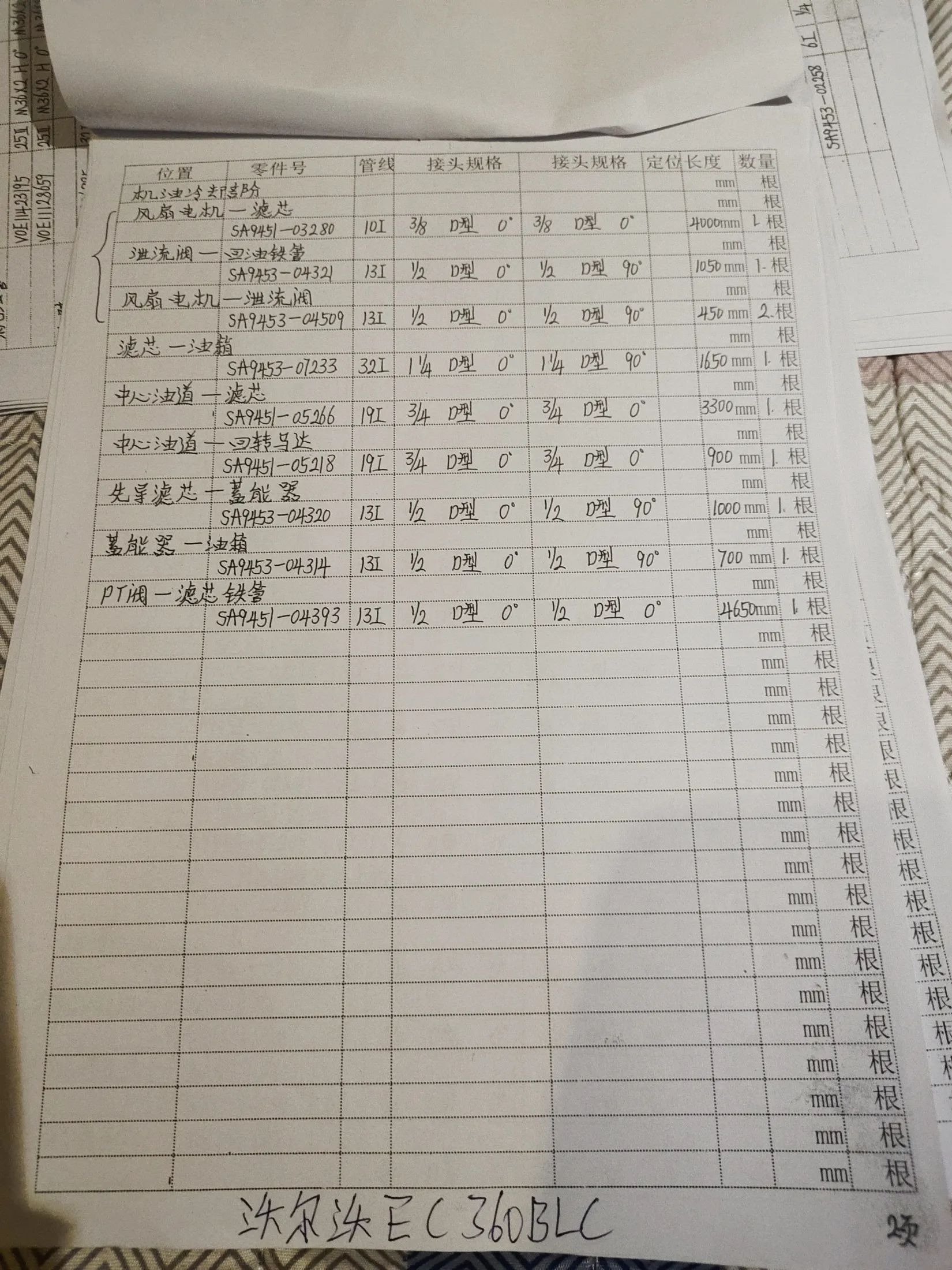

Volvo 85001--85181 hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5 — recorded hose parts SA945-03280, SA945-05200, SA9451-0439313I
Notebook page 2 of 5Recorded on this sheet: SA945-03280 — 4,000 mm; SA945-05200 — 3,300 mm; SA9451-0439313I — 4,650 mm; SA9453-04320 — 1,000 mm; and 3 more recorded hoses.

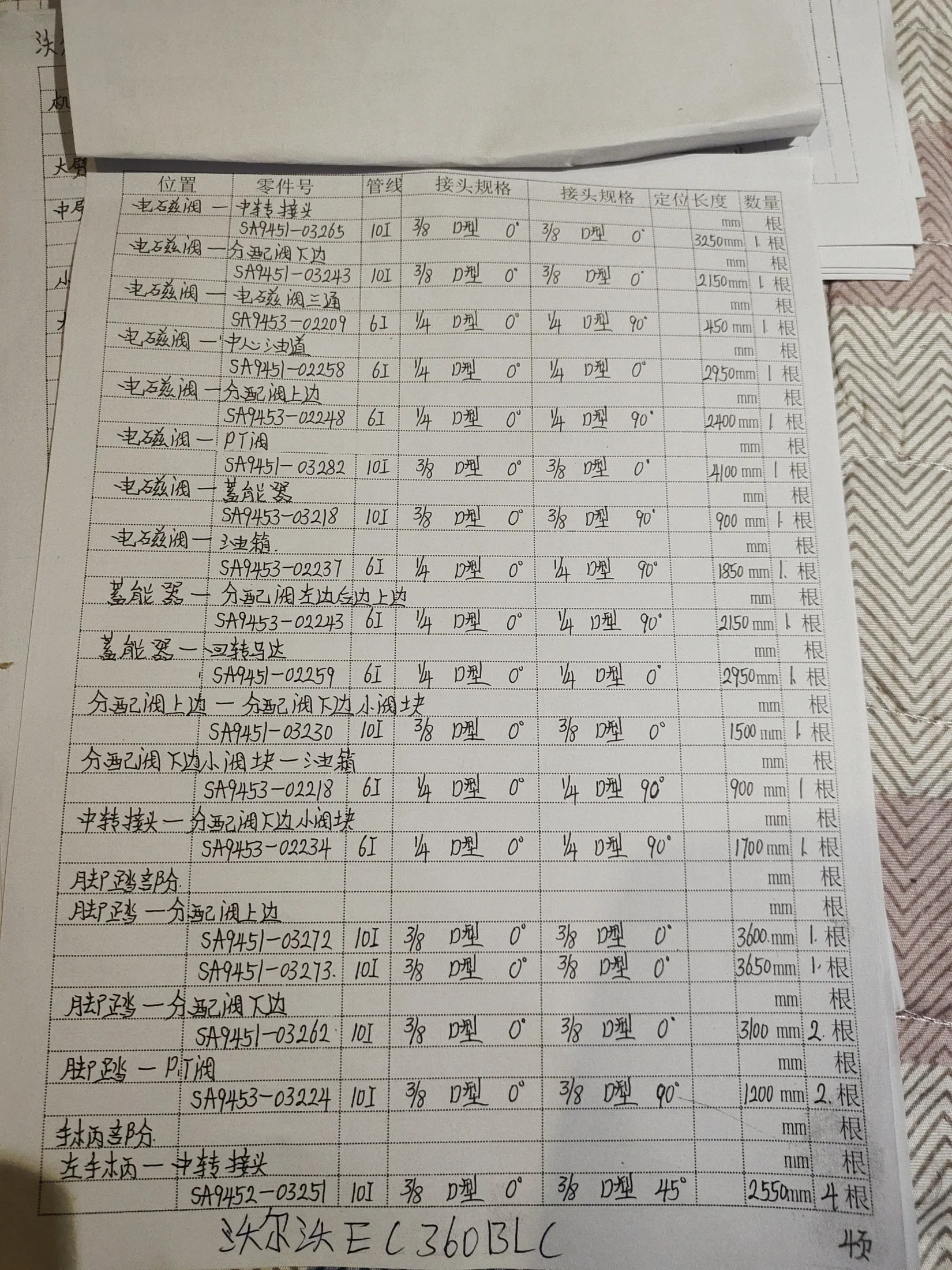

Volvo 85001--85181 hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5 — recorded hose parts SA9451-0225, SA9451-03265, SA9451-03273
Notebook page 4 of 5Recorded on this sheet: SA9451-0225 — 2,950 mm; SA9451-03265 — 3,250 mm; SA9451-03273 — 3,650 mm; SA9451-0327Z — 3,600 mm; and 7 more recorded hoses.

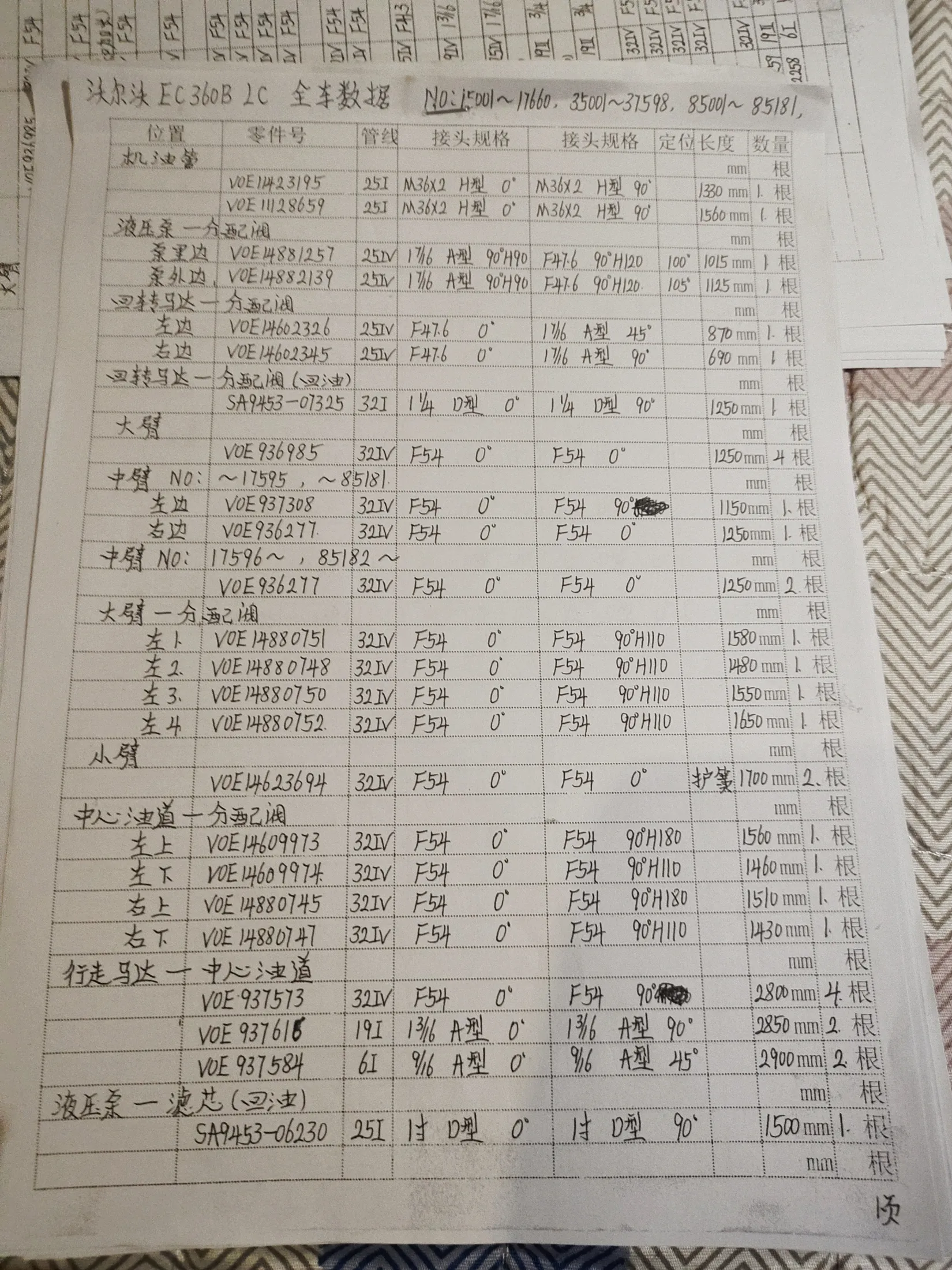

Volvo 85001--85181 hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5 — recorded hose parts 3L11VOE14882139, 7VOE14881257, VOE14602345
Notebook page 1 of 5Recorded on this sheet: 3L11VOE14882139 — 1,125 mm; 7VOE14881257 — 1,015 mm; VOE14602345 — 690 mm; VOE14880747 — 1,430 mm; and 8 more recorded hoses.

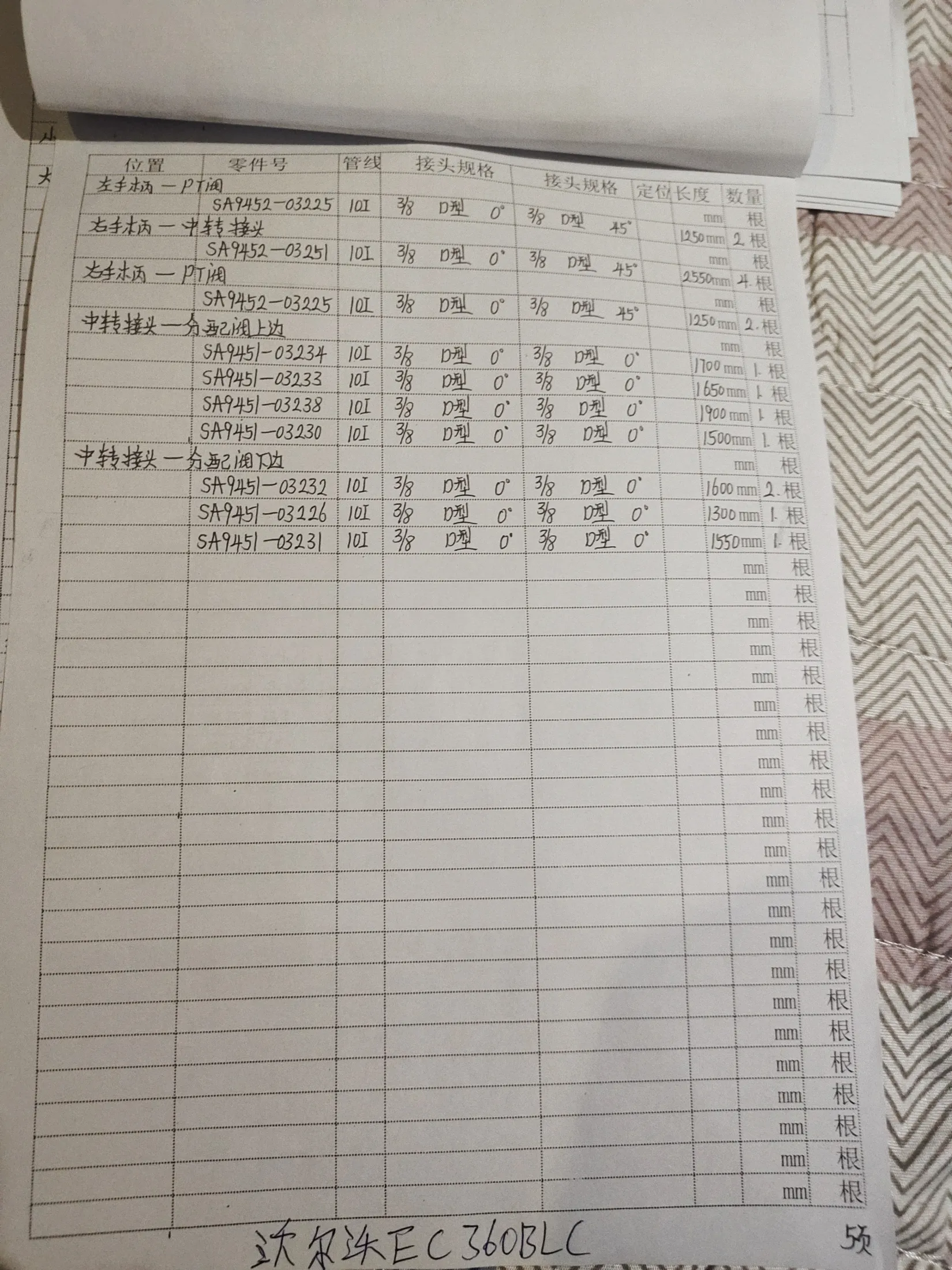

Volvo 85001--85181 hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5 — recorded hose parts SA9451-03230, SA9451-03231, SA9451-03232
Notebook page 5 of 5Recorded on this sheet: SA9451-03230 — 1,500 mm; SA9451-03231 — 1,550 mm; SA9451-03232 — 1,600 mm; SA9451-03233 — 1,700 mm; and 2 more recorded hoses.
