Volvo EC240B LC Hydraulic Hose Length & Fitting Lookup

Available Volvo EC240B LC workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Technician notes

Workshop measurements

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.

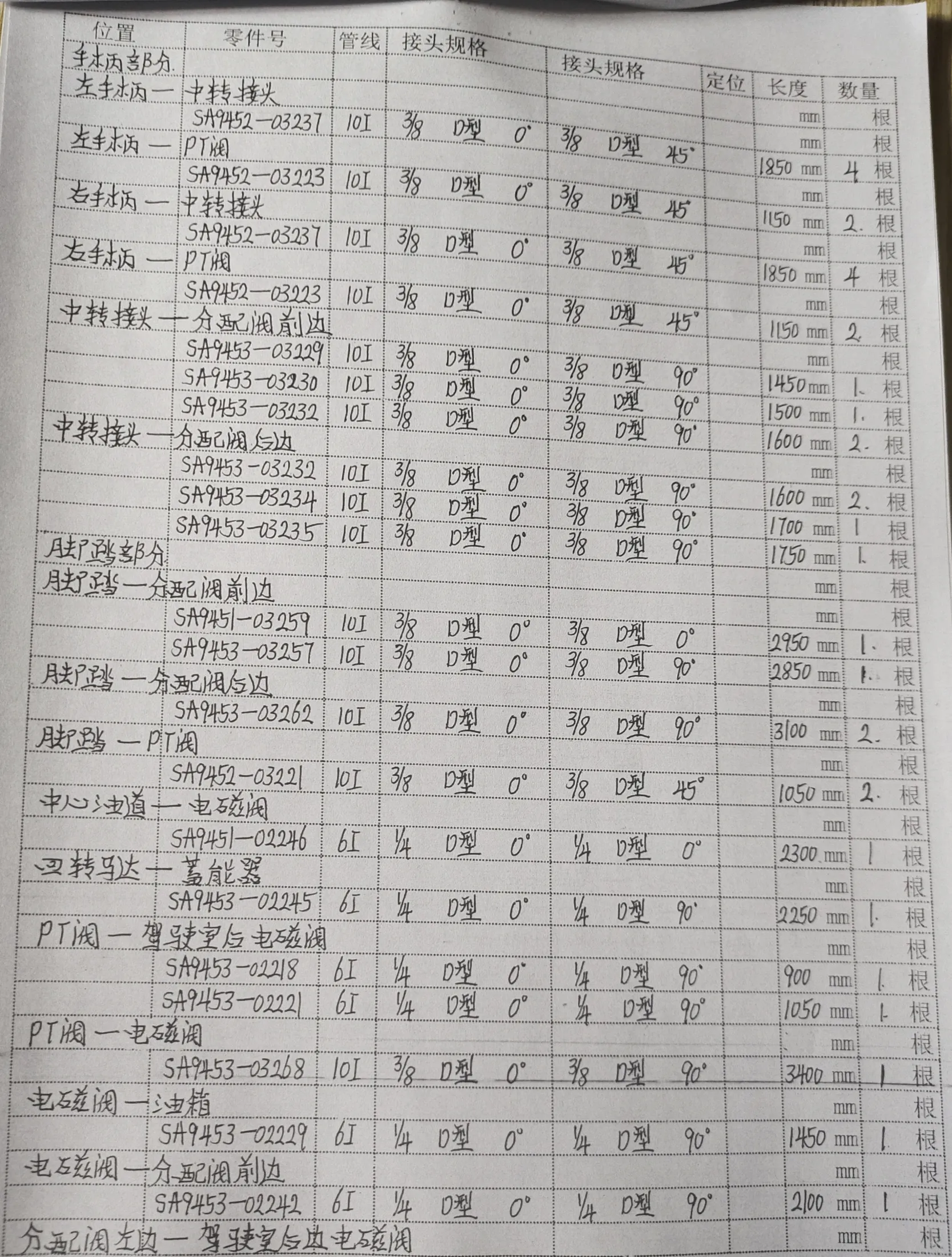

Volvo EC240B LC hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5
Notebook page 3 of 5View full-size

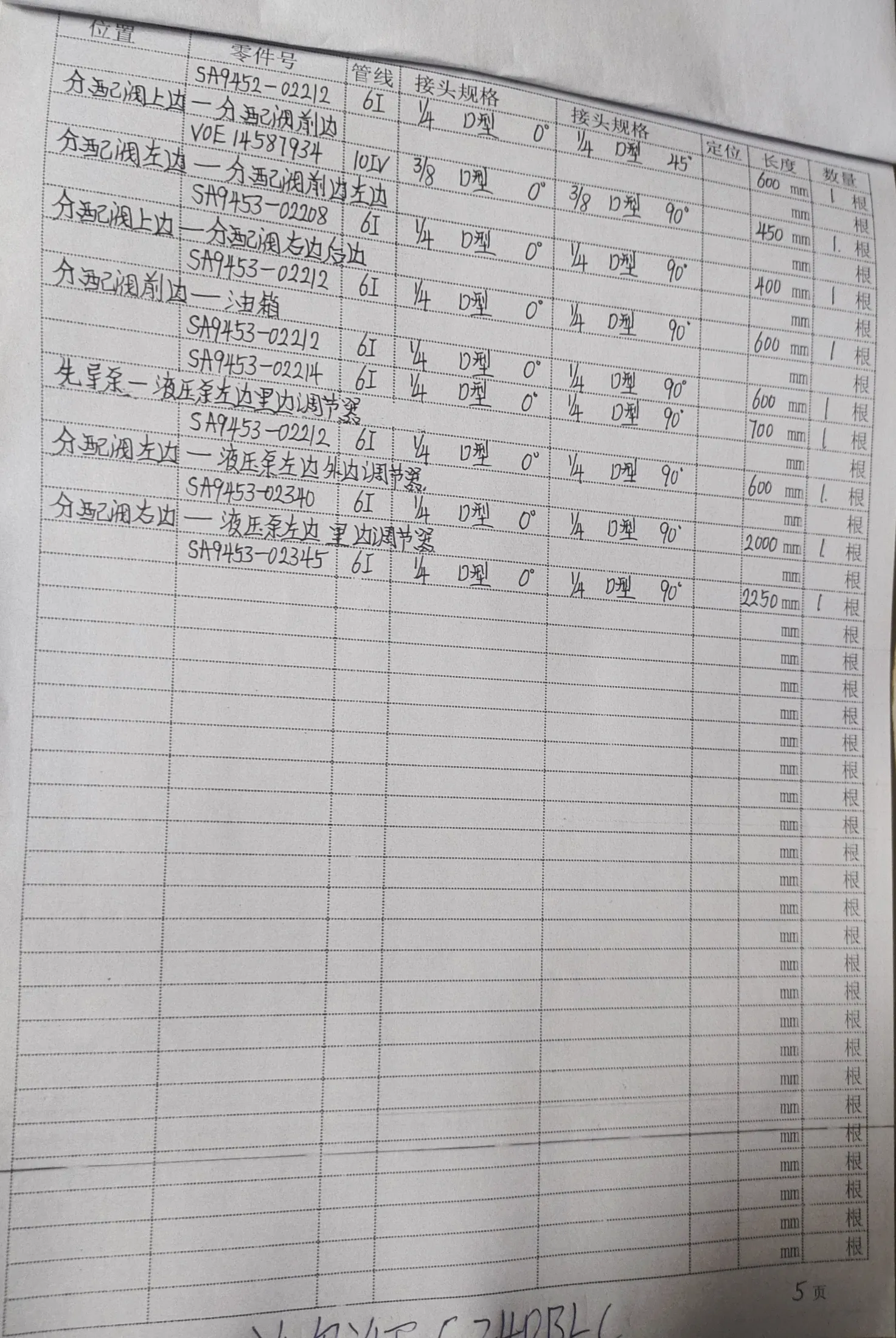

Volvo EC240B LC hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5
Notebook page 5 of 5View full-size

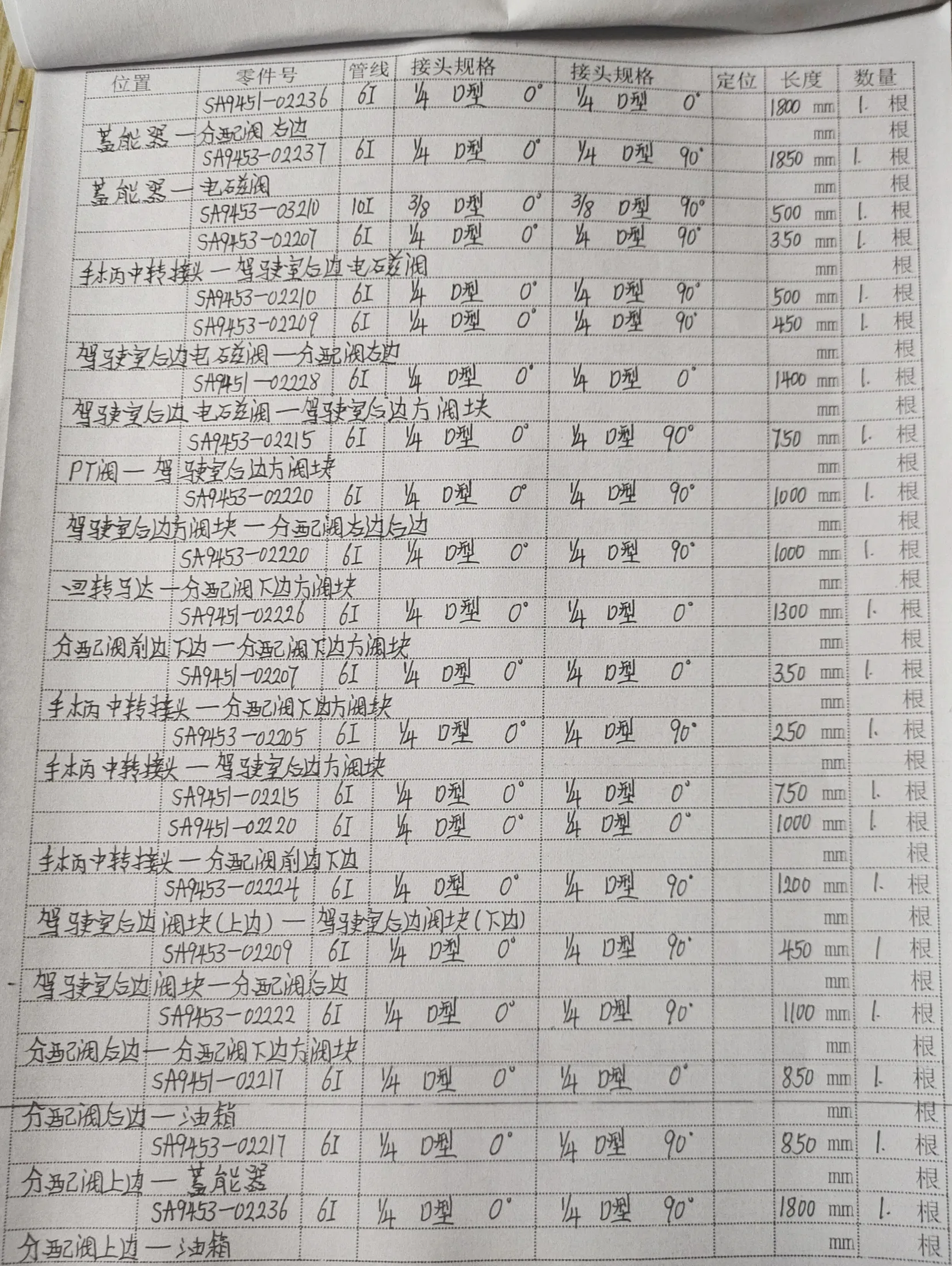

Volvo EC240B LC hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5
Notebook page 4 of 5View full-size

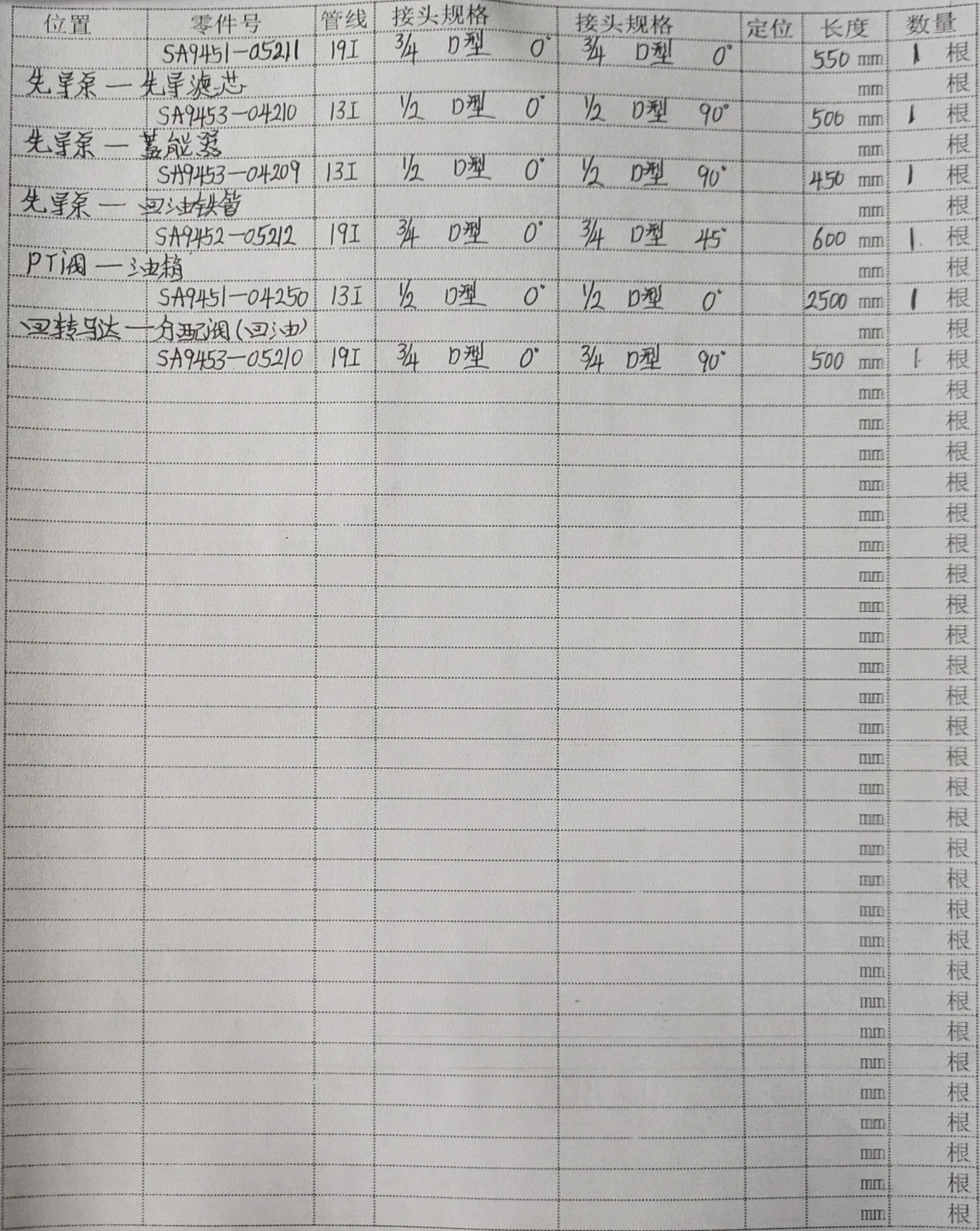

Volvo EC240B LC hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5
Notebook page 2 of 5View full-size

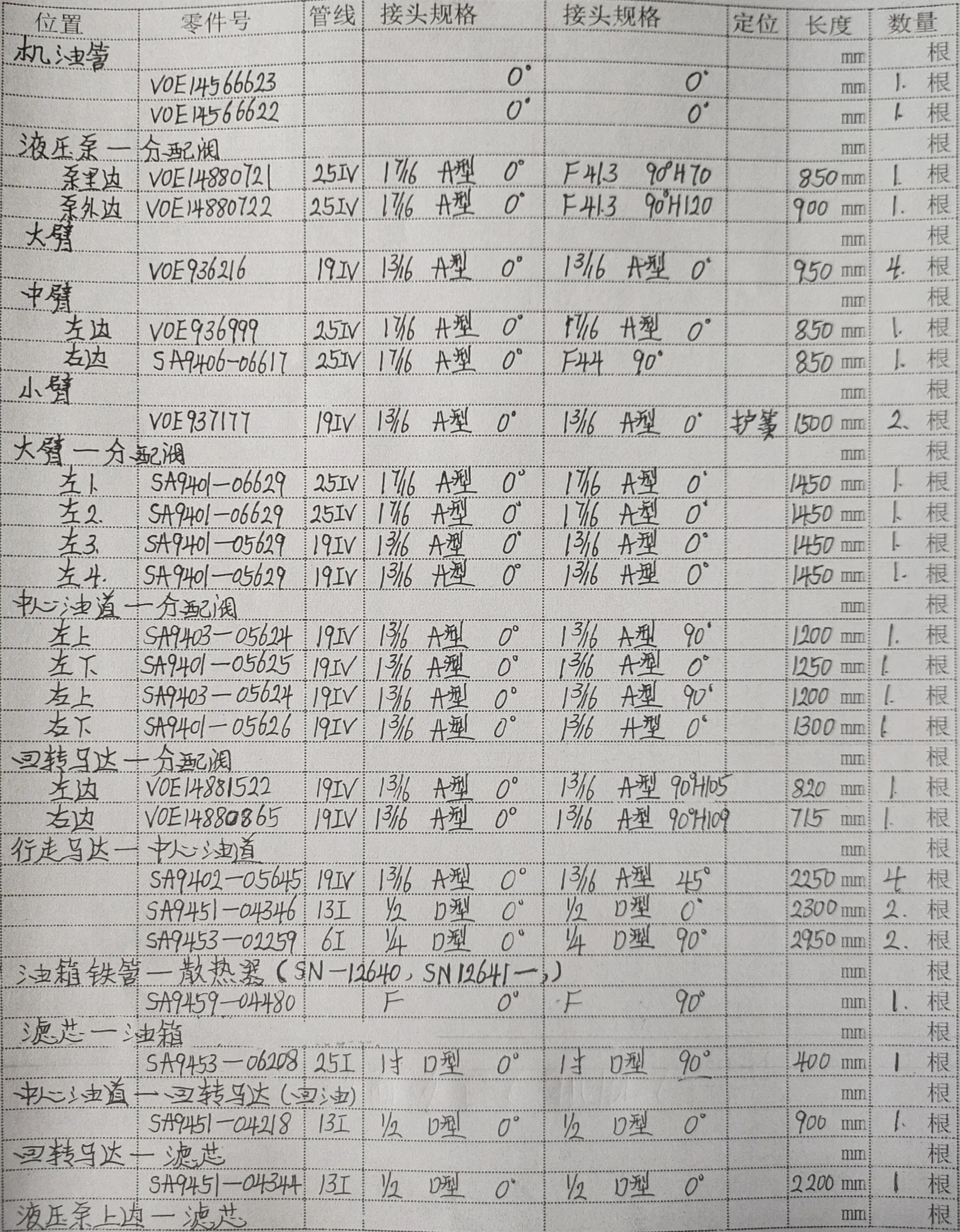

Volvo EC240B LC hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5
Notebook page 1 of 5View full-size
Workshop measurements
Part numberRecorded length
5A9400-06617850 mm
5H9753-02209450 mm
SA9H03-056241,200 mm
SA940-066291,450 mm
SA945-02207350 mm
SA7453-02212600 mm
SA94011,450 mm
SA9401-050251,250 mm
SA9401-056261,300 mm
SA9401-056291,450 mm
SA9401-066291,450 mm
SA9403-056271,200 mm
SA9451-0221850 mm
SA9451-02215750 mm
SA9451-022201,000 mm
SA9451-022361,800 mm
SA9451-02242,300 mm
SA9451-04218900 mm
SA9451-0425012,500 mm
SA9451-0434413I2,200 mm
SA9451-043462,300 mm
SA9451-05211550 mm
SA9452-032211,050 mm
SA9452-032231,150 mm
SA9452-032371,850 mm
SA9452-0521Z600 mm
SA9453-022I850 mm
SA9453-02205250 mm
SA9453-02212600 mm
SA9453-022201,000 mm
SA9453-022221,100 mm
SA9453-022241,200 mm
SA9453-02226I600 mm
SA9453-022291,450 mm
SA9453-022311,850 mm
SA9453-022361,800 mm
SA9453-0224512,250 mm
SA9453-022592,950 mm
SA9453-0234012,000 mm
SA9453-023452,250 mm
SA9453-03221,450 mm
SA9453-032301,500 mm
SA9453-032321,600 mm
SA9453-032341,700 mm
SA9453-032351,750 mm
SA9453-0325712,850 mm
SA9453-0420450 mm
SA9453-04210506 mm
SA9453-05210500 mm
SA9453-0620825I17DA0400 mm
SA9753-032083,400 mm
SAY45-0222011,300 mm
SAY453-02208400 mm
VOE936216950 mm
VOE936999850 mm
VOE1488012850 mm
VOE14581934450 mm
VOE14880722900 mm
VOE14880865715 mm
VOE14881522820 mm
