Volvo EC240BL Hydraulic Hose Length & Fitting Lookup

Available Volvo EC240BL workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Digitized data and source sheets

Volvo EC240BL Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Volvo EC240BL workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
SA945-02231,550 mm
SA945-04200400 mm
SA94511,400 mm
SA9451-022271,200 mm
SA9451-022482,400 mm
SA9451-022522,600 mm
SA9451-032251,150 mm
SA9452-032281,400 mm
SA9452-032311,850 mm
SA9452-03231IOI1,850 mm
SA9452-032321,600 mm
SA9452-0520400 mm
SA9453-02204450 mm
SA9453-02207350 mm
SA9453-02208400 mm
SA9453-02212600 mm
SA9453-02217850 mm
SA9453-02218900 mm
SA9453-02221,050 mm
SA9453-022206I1,000 mm
SA9453-022286I1,400 mm
SA9453-022296I450 mm
SA9453-022301,500 mm
SA9453-022311,550 mm
SA9453-0224312,150 mm
SA9453-022452,250 mm
SA9453-022596I2,950 mm
SA9453-023386I1,900 mm
SA9453-02345GI2,250 mm
SA9453-0321,550 mm
SA9453-03213650 mm
SA9453-032311,550 mm
SA9453-032331,650 mm
SA9453-032341,100 mm
SA9453-0325912,950 mm
SA9453-04217850 mm
SA9453-042171850 mm
SA9453-04252,550 mm
SA9453-0522519I1,250 mm
SA9453-0523191650 mm
SA9453-052331911,650 mm
SA9453-06208400 mm
SAY53-032512,850 mm
VOE936216950 mm
VOE9362261,450 mm
VOE9362291,450 mm
VOE936999850 mm
VOE937829850 mm
VOE15074131,300 mm
VOE15074731,300 mm
VOE14587934450 mm
VOE146180661,400 mm
VOE14619351800 mm
VOE146376551,450 mm
VOE14880326130 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

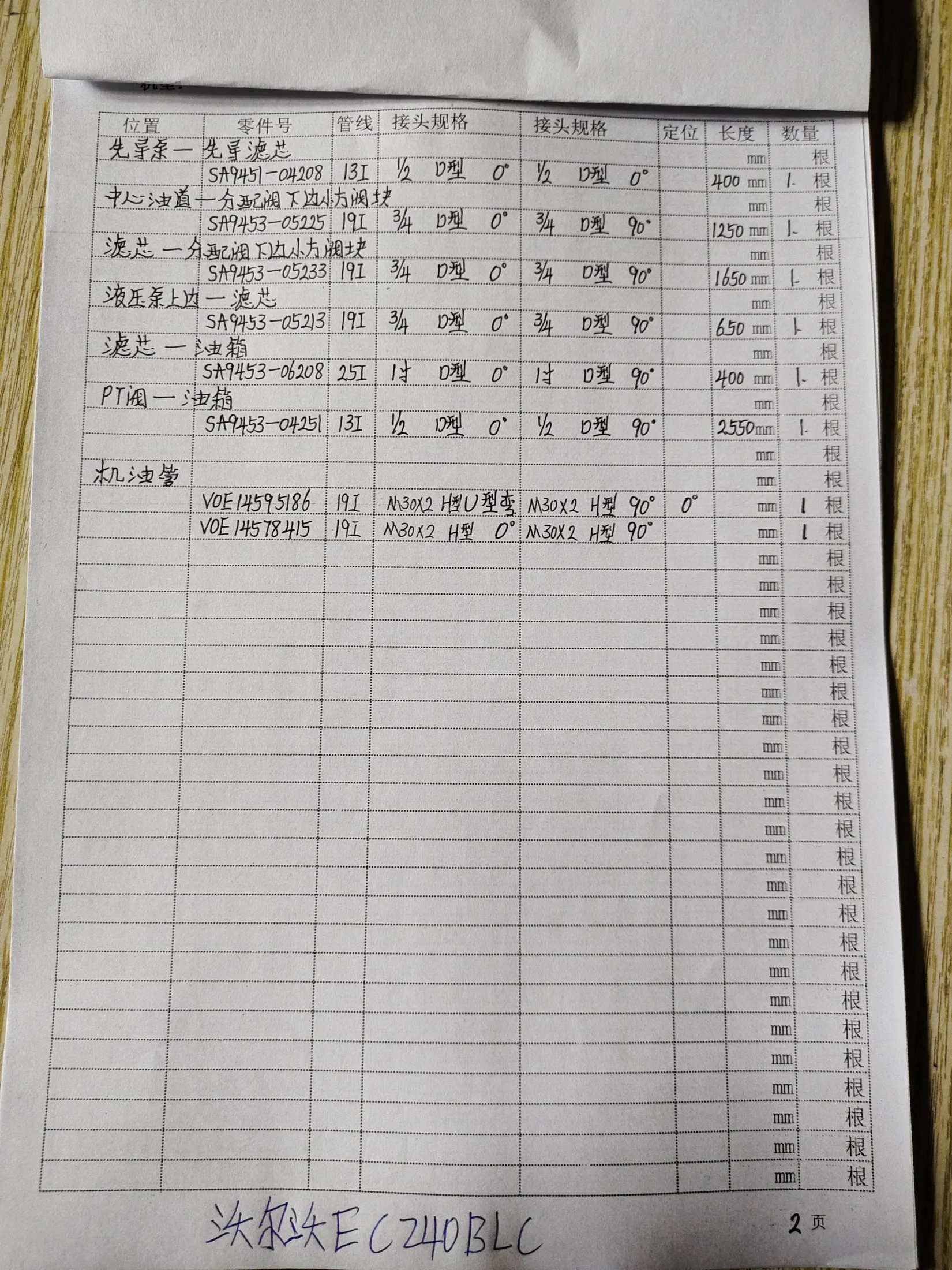

Volvo EC240BL hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5 — recorded hose parts SA945-04200, SA9453-0425, SA9453-0522519I
Notebook page 2 of 5Recorded on this sheet: SA945-04200 — 400 mm; SA9453-0425 — 2,550 mm; SA9453-0522519I — 1,250 mm; SA9453-0523191 — 650 mm; and 2 more recorded hoses.

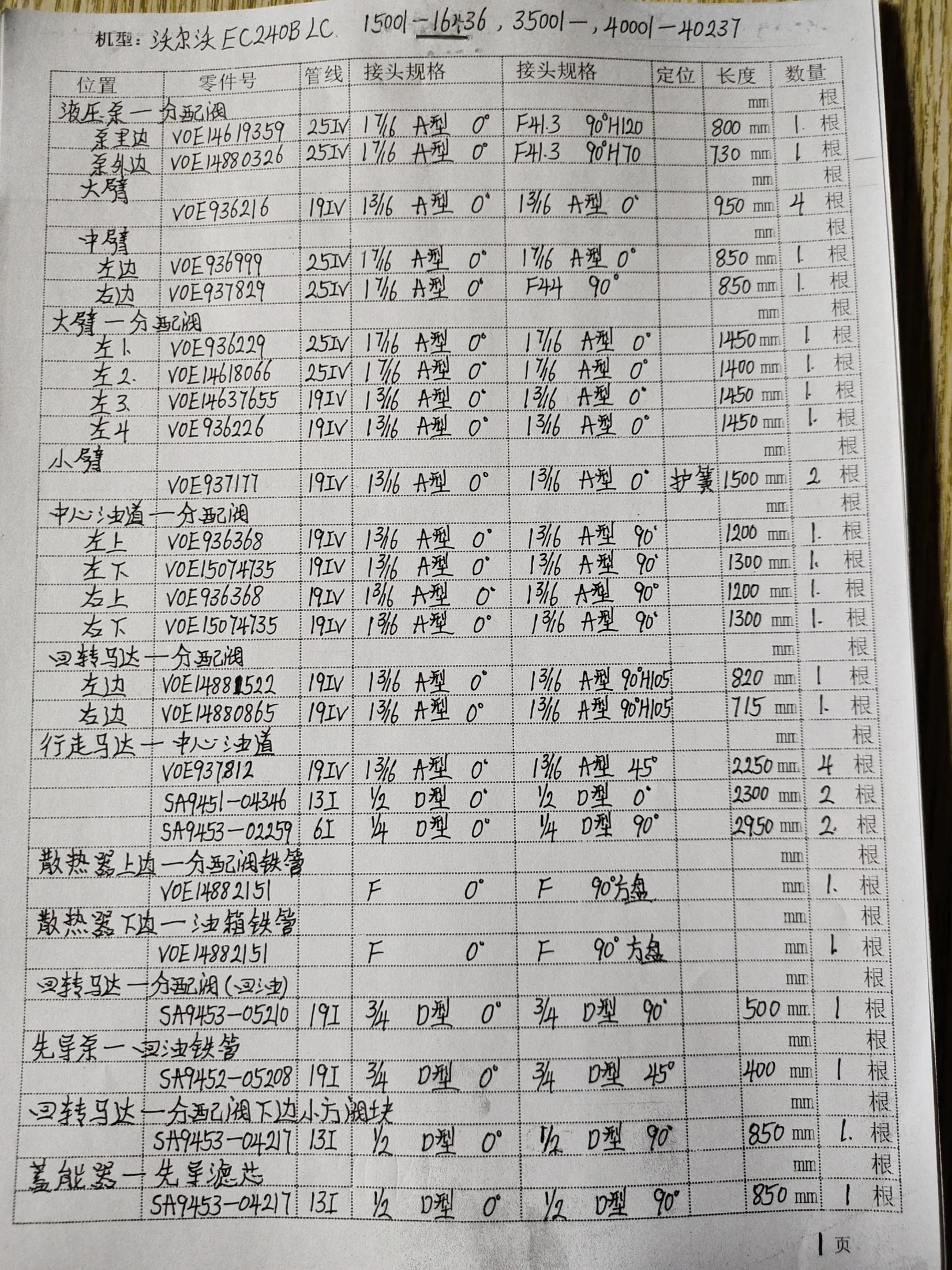

Volvo EC240BL hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5 — recorded hose parts SA9452-0520, SA9453-022596I, SA9453-04217
Notebook page 1 of 5Recorded on this sheet: SA9452-0520 — 400 mm; SA9453-022596I — 2,950 mm; SA9453-04217 — 850 mm; SA9453-042171 — 850 mm; and 11 more recorded hoses.

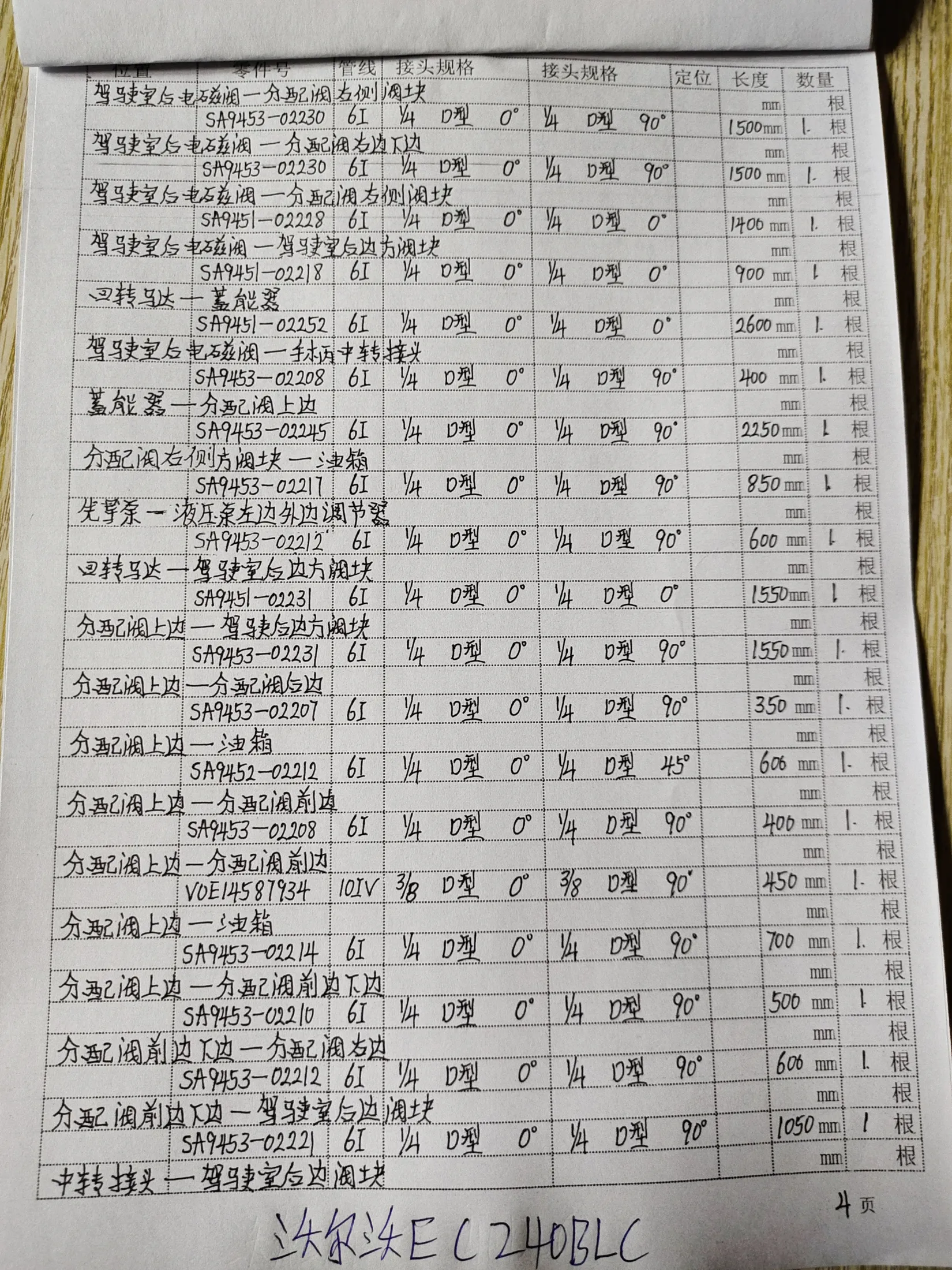

Volvo EC240BL hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5 — recorded hose parts SA945-0223, SA9451, SA9451-02252
Notebook page 4 of 5Recorded on this sheet: SA945-0223 — 1,550 mm; SA9451 — 1,400 mm; SA9451-02252 — 2,600 mm; SA9453-02207 — 350 mm; and 8 more recorded hoses.

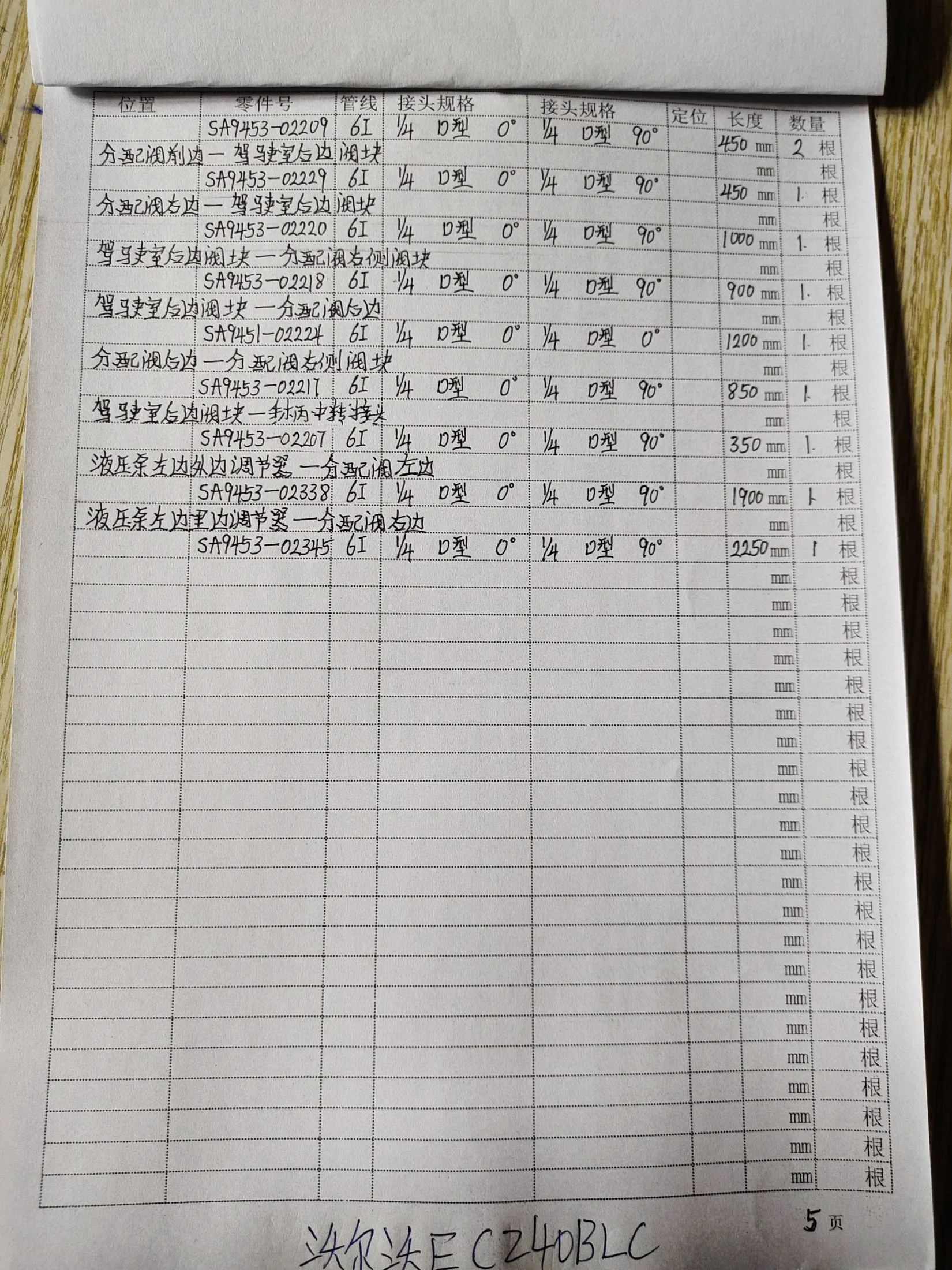

Volvo EC240BL hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5 — recorded hose parts SA9451-02227, SA9453-02204, SA9453-02218
Notebook page 5 of 5Recorded on this sheet: SA9451-02227 — 1,200 mm; SA9453-02204 — 450 mm; SA9453-02218 — 900 mm; SA9453-022206I — 1,000 mm; and 3 more recorded hoses.

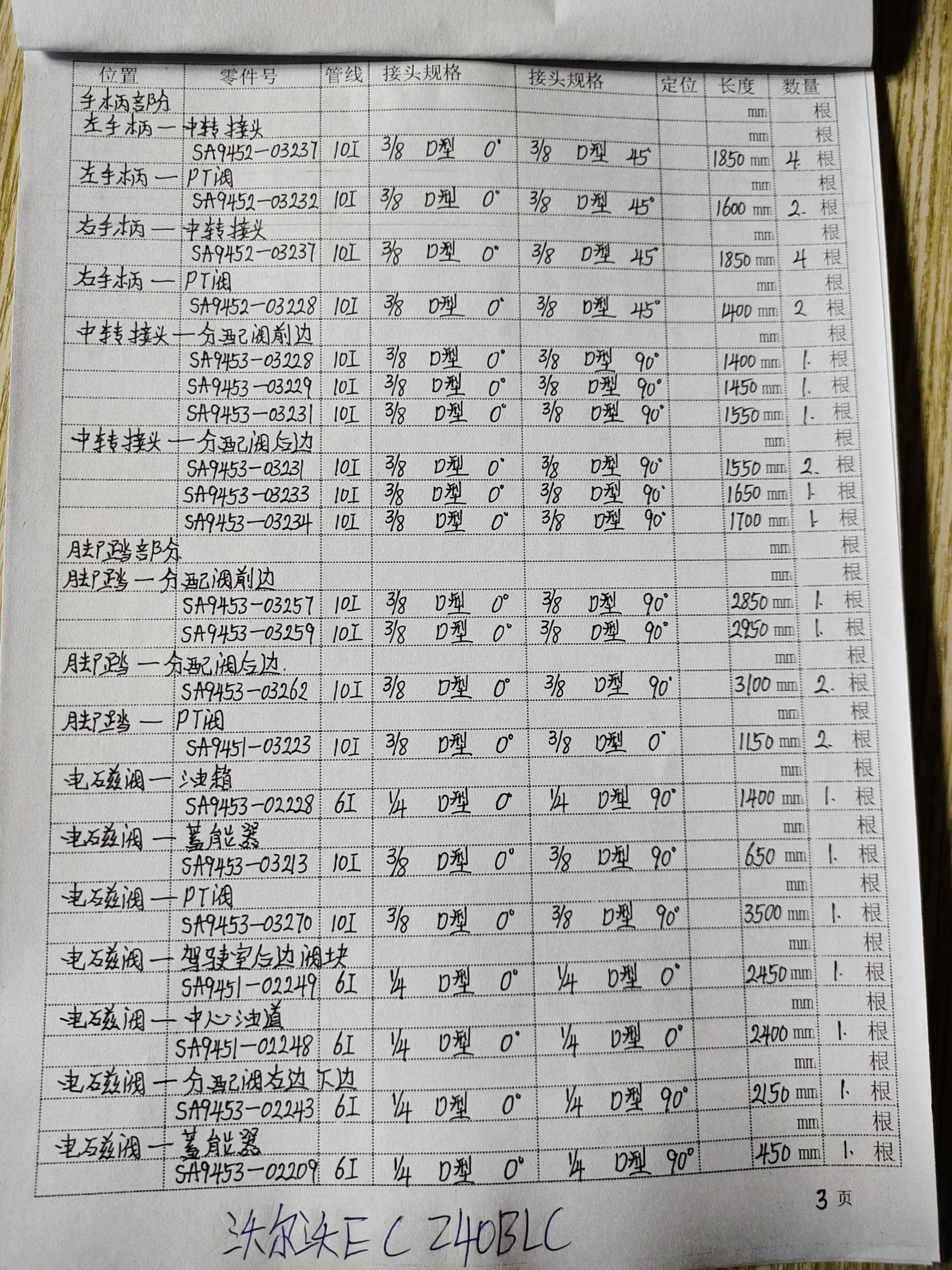

Volvo EC240BL hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5 — recorded hose parts SA9451-02248, SA9451-03225, SA9452-03228
