Volvo EC460 BL Hydraulic Hose Length & Fitting Lookup

Available Volvo EC460 BL workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Digitized data and source sheets

Volvo EC460 BL Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Volvo EC460 BL workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
5A9453-0221650 mm
5A9453-06216800 mm
5A9751-022603,000 mm
S19453-022231,150 mm
SA945-022201,000 mm
SA945-032331,650 mm
SA945-032341,700 mm
SA945-03250500 mm
SA1452-0322510I1,250 mm
SA9451-022261,300 mm
SA9451-02252,506 mm
SA9451-022502,500 mm
SA9451-032311,950 mm
SA9451-032361,800 mm
SA9451-032613,050 mm
SA9451-032673,350 mm
SA9451-0328300 mm
SA9451-043502,500 mm
SA9452-032251,250 mm
SA9452-032552,750 mm
SA9453-022I550 mm
SA9453-0220300 mm
SA9453-0221700 mm
SA9453-02210500 mm
SA9453-02213650 mm
SA9453-022201,000 mm
SA9453-022331,650 mm
SA9453-032121,600 mm
SA9453-03221,200 mm
SA9453-032201,300 mm
SA9453-032281,400 mm
SA9453-0431850 mm
SA9453-04314700 mm
SA9453-04315131750 mm
SA9453-04512600 mm
SAY452-0325512,750 mm
VOE1423951,330 mm
VOE9362771,250 mm
VOE936354650 mm
VOE9373201,450 mm
VOE937408900 mm
VOE9385282,850 mm
VOE14880721,700 mm
VOE14880821,090 mm
VOE148801391,800 mm
VOE148807231,680 mm
VOE148807241,650 mm
VOE148807251,690 mm
VOE14880825980 mm
VOE14881503760 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

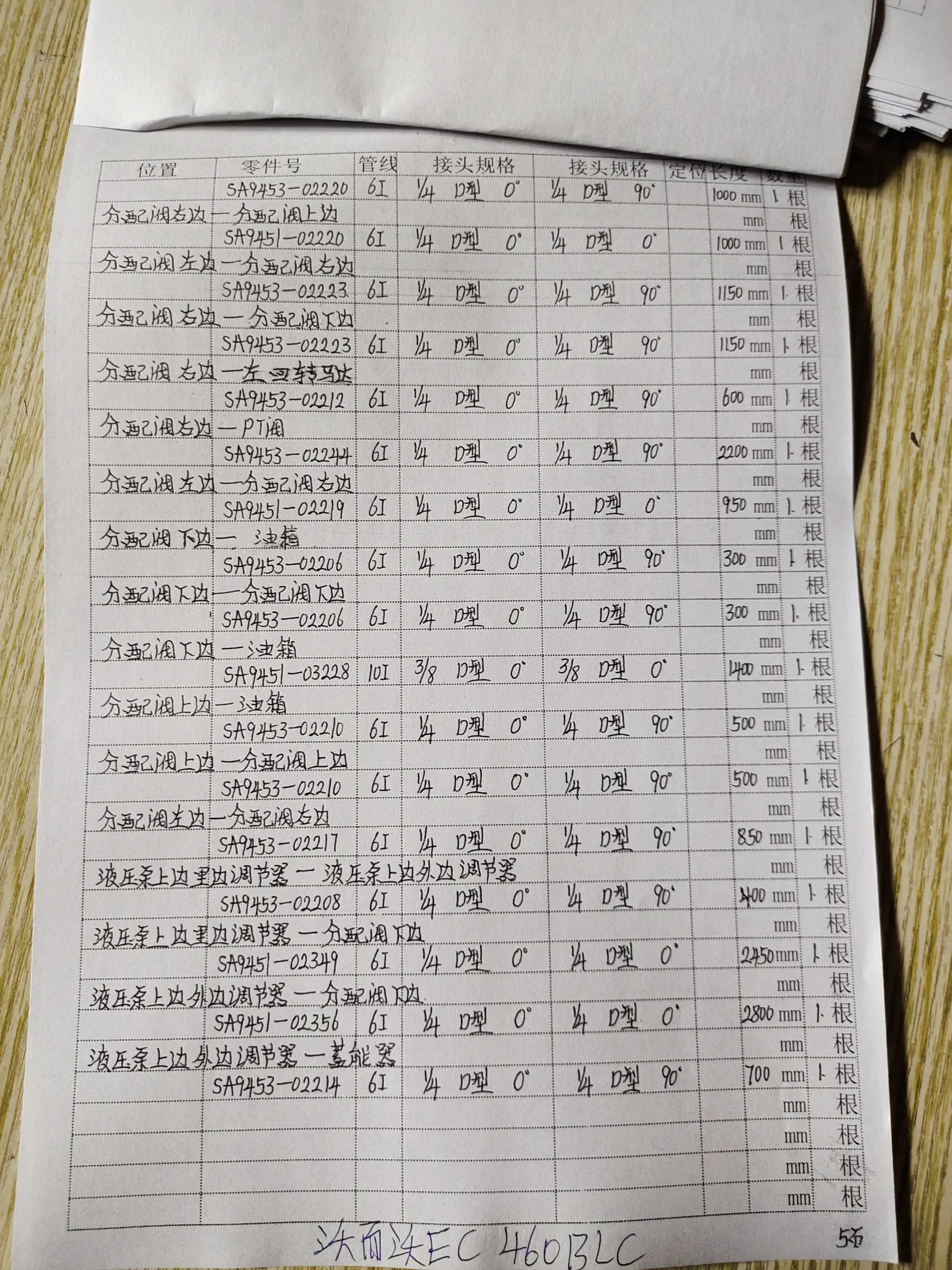

Volvo EC460 BL hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5 — recorded hose parts S19453-02223, SA945-02220, SA9453-0220
Notebook page 5 of 5Recorded on this sheet: S19453-02223 — 1,150 mm; SA945-02220 — 1,000 mm; SA9453-0220 — 300 mm; SA9453-0221 — 700 mm; and 2 more recorded hoses.

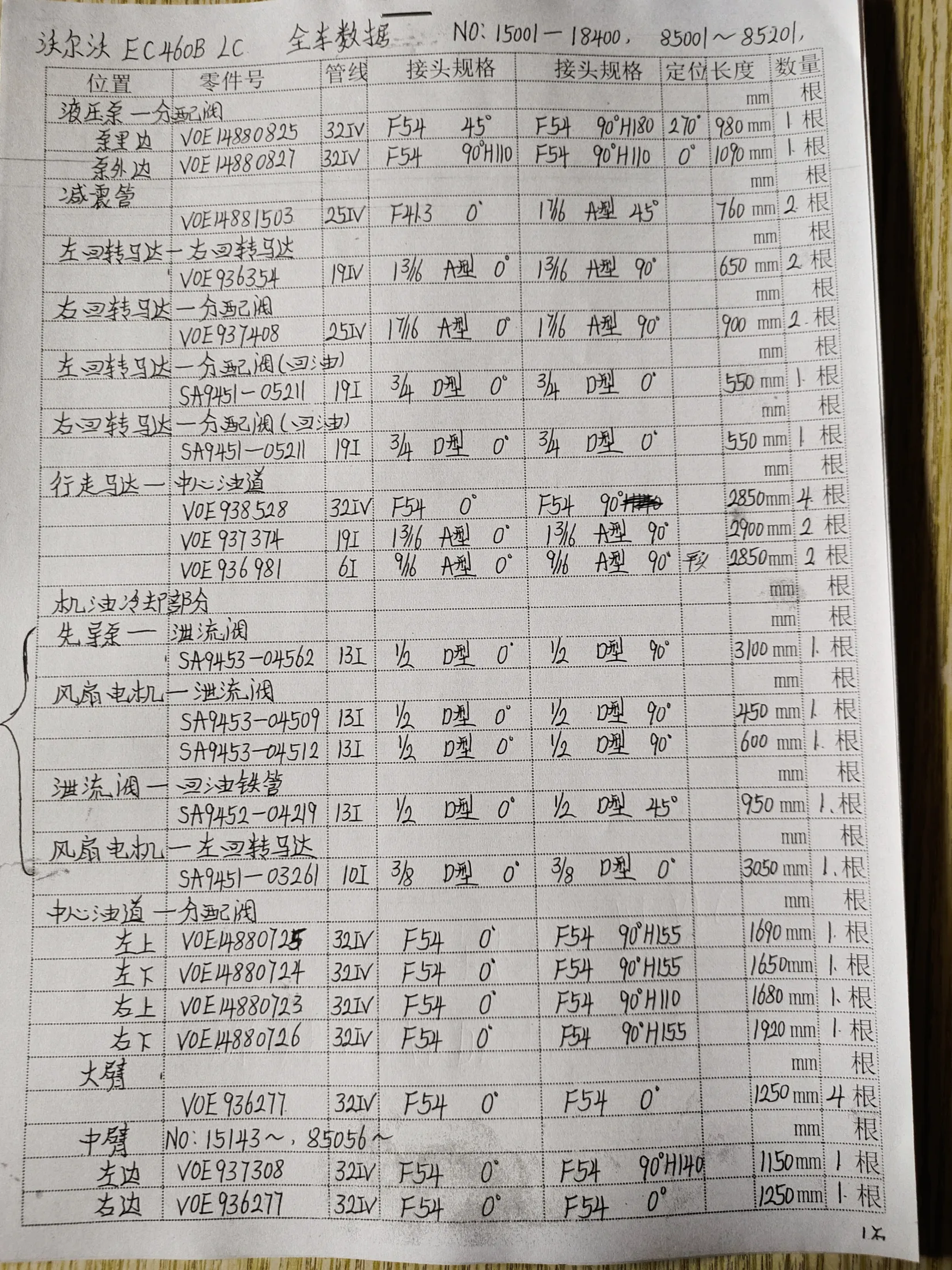

Volvo EC460 BL hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5 — recorded hose parts SA9451-03261, SA9453-04512, VOE14880723
Notebook page 1 of 5Recorded on this sheet: SA9451-03261 — 3,050 mm; SA9453-04512 — 600 mm; VOE14880723 — 1,680 mm; VOE14880724 — 1,650 mm; and 8 more recorded hoses.

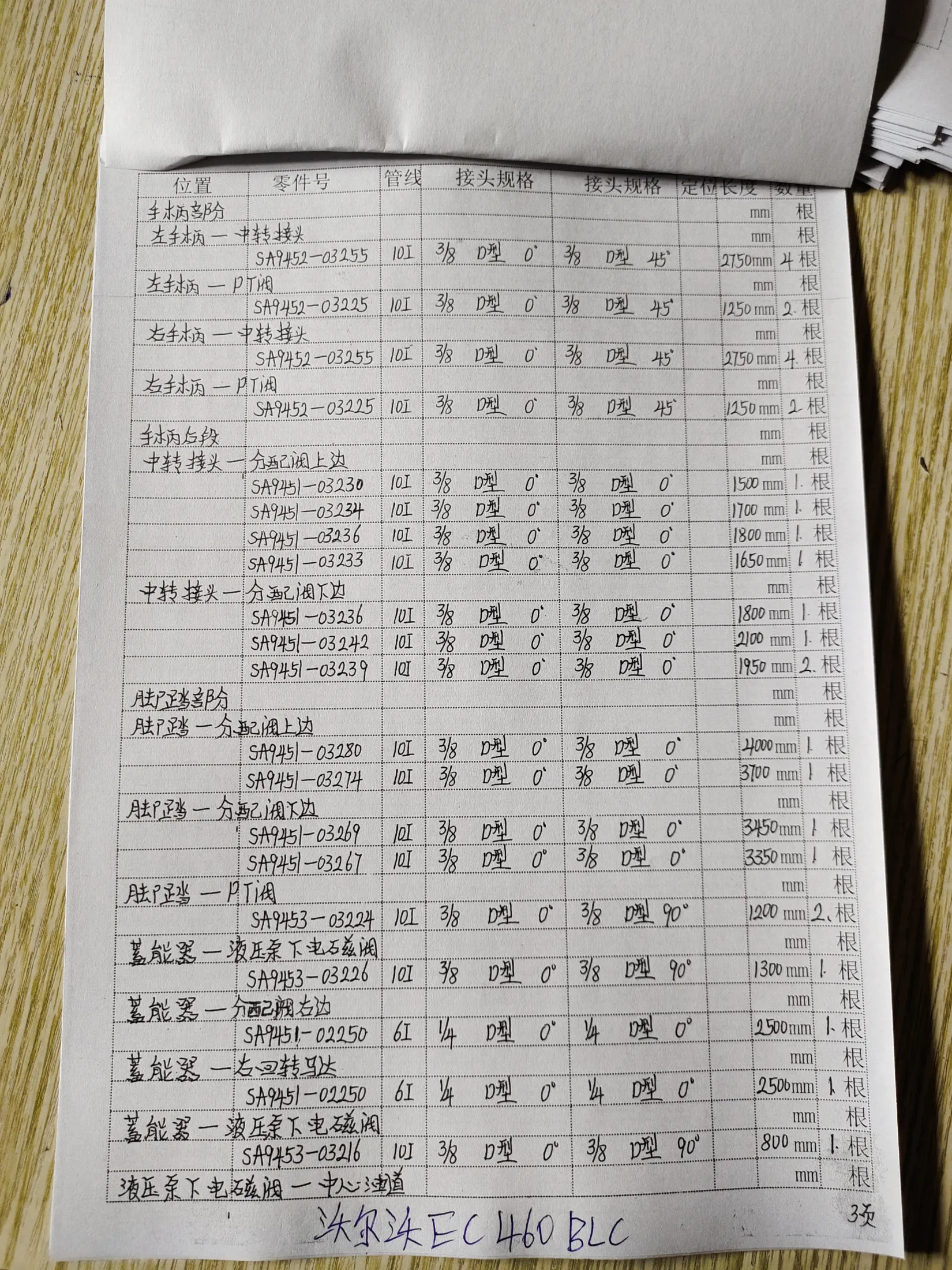

Volvo EC460 BL hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5 — recorded hose parts SA1452-0322510I, SA945-03233, SA945-03234
Notebook page 3 of 5Recorded on this sheet: SA1452-0322510I — 1,250 mm; SA945-03233 — 1,650 mm; SA945-03234 — 1,700 mm; SA945-03250 — 500 mm; and 10 more recorded hoses.

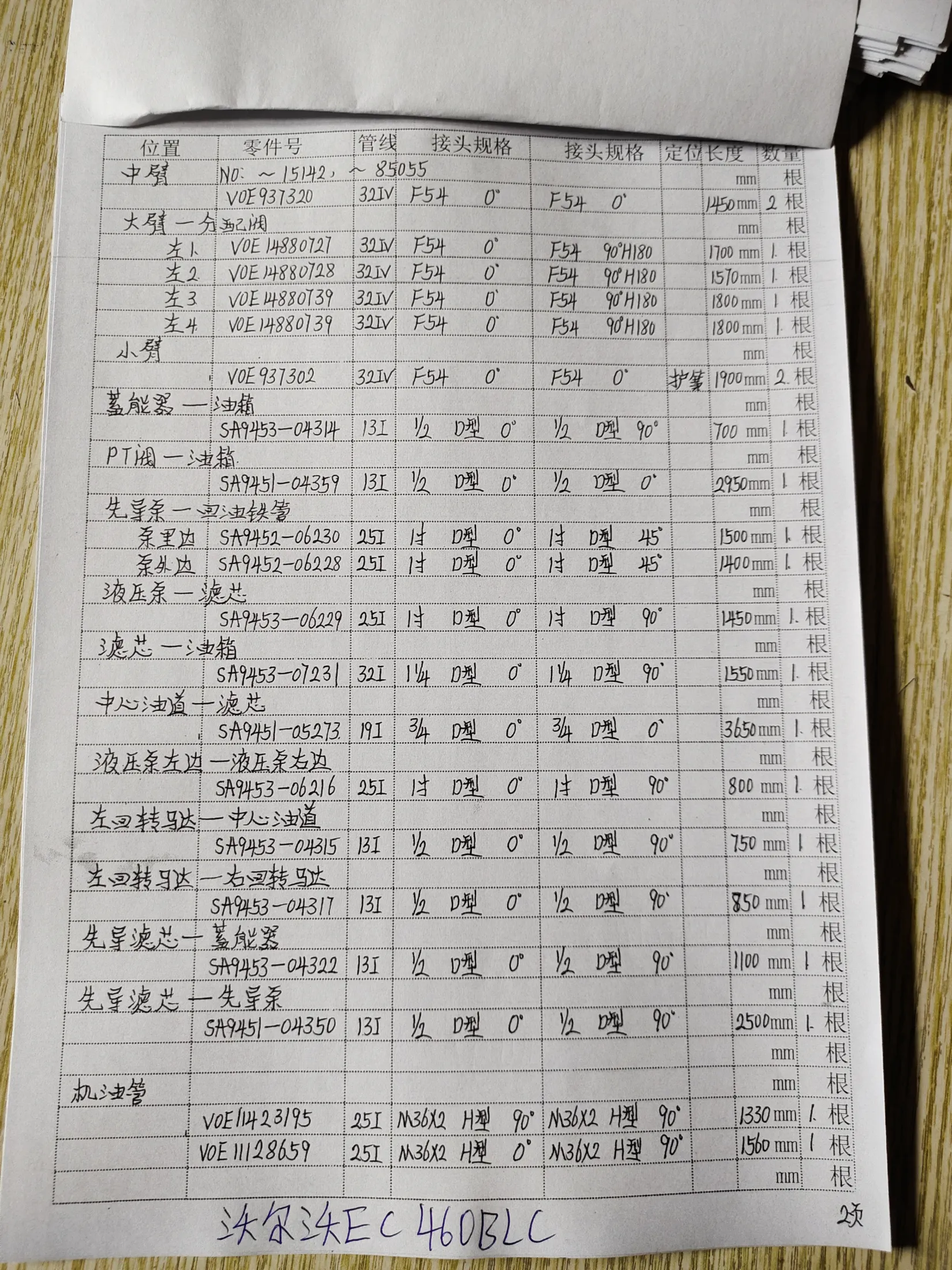

Volvo EC460 BL hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5 — recorded hose parts 5A9453-06216, SA9451-04350, SA9453-0431
Notebook page 2 of 5Recorded on this sheet: 5A9453-06216 — 800 mm; SA9451-04350 — 2,500 mm; SA9453-0431 — 850 mm; SA9453-04314 — 700 mm; and 5 more recorded hoses.

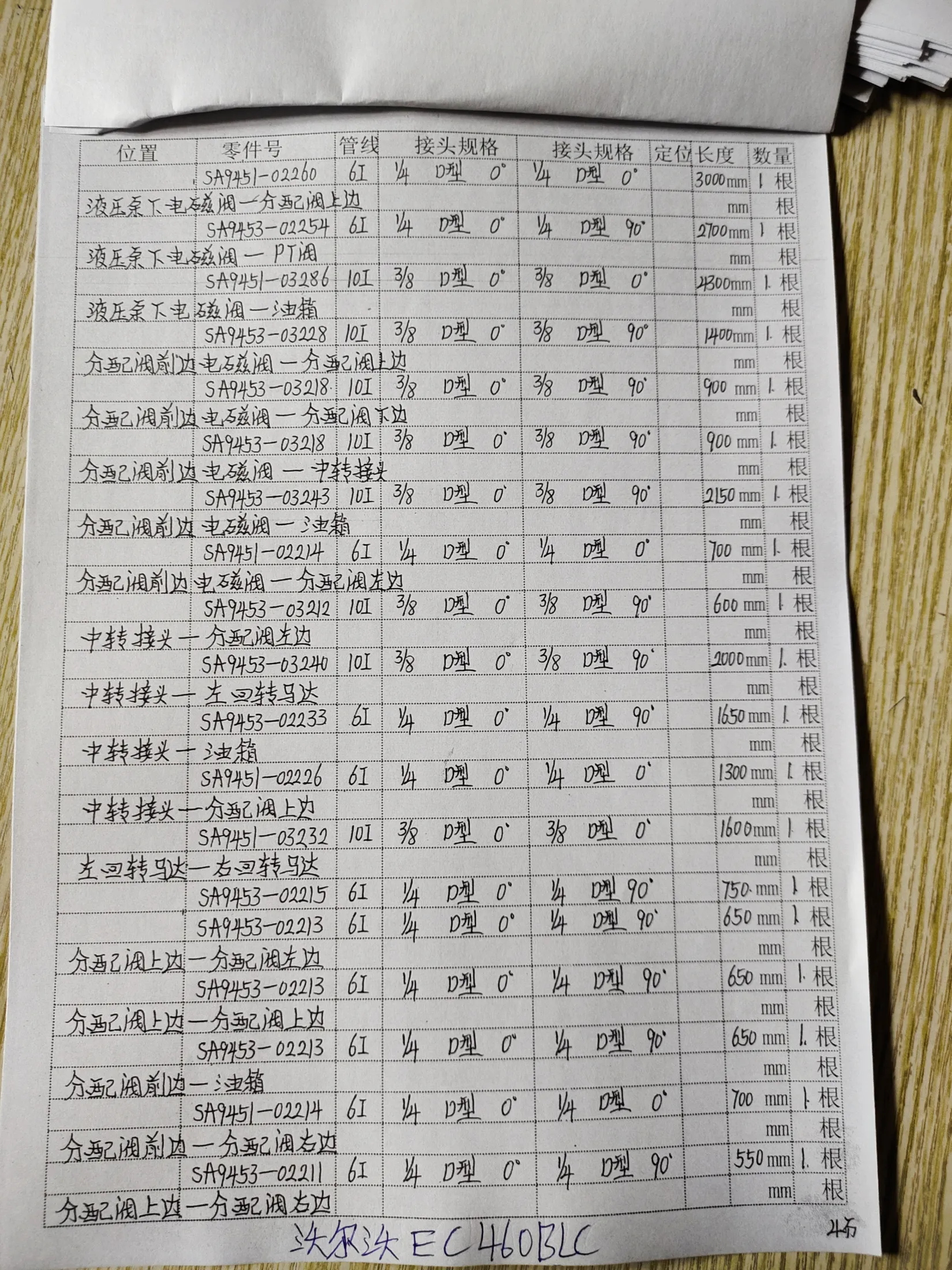

Volvo EC460 BL hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5 — recorded hose parts 5A9453-0221, 5A9751-02260, SA9451-02226
Notebook page 4 of 5Recorded on this sheet: 5A9453-0221 — 650 mm; 5A9751-02260 — 3,000 mm; SA9451-02226 — 1,300 mm; SA9451-0328 — 300 mm; and 5 more recorded hoses.
