Volvo EC480DLC Hydraulic Hose Length & Fitting Lookup

Available Volvo EC480DLC workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Digitized data and source sheets

Volvo EC480DLC Hose Data and Original Handwritten Sheets

The table is a searchable transcription of the Volvo EC480DLC workshop notes. The complete original handwritten sheets are shown below without cropping.

Digitized measurements from these sheets

Workshop measurements
Part numberRecorded length
VDE936733650 mm
VOE15800T41,350 mm
VOE936271,250 mm
VOE938351,550 mm
VOE150026Z700 mm
VOE4627833,450 mm
VOE936090400 mm
VOE9362771,250 mm
VOE936287500 mm
VOE936289600 mm
VOE936290650 mm
VOE936291700 mm
VOE936292750 mm
VOE9363001,150 mm
VOE936354650 mm
VOE936964650 mm
VOE93698012,700 mm
VOE93698112,850 mm
VOE9371171,850 mm
VOE93712212,600 mm
VOE9371291,200 mm
VOE9371532,250 mm
VOE937156500 mm
VOE93719012,400 mm
VOE9372051,500 mm
VOE937241750 mm
VOE9373081,150 mm
VOE9373421,850 mm
VOE9373473,350 mm
VOE937366550 mm
VOE9373742,900 mm
VOE9374081,900 mm
VOE9374122,450 mm
VOE937518100 mm
VOE9375541,000 mm
VOE937575600 mm
VOE93758012,700 mm
VOE9377581,550 mm
VOE9381041,500 mm
VOE9383071,150 mm
VOE9383341,700 mm
VOE9384501,050 mm
VOE9385282,850 mm
VOE93990714,000 mm
VOE14604531,065 mm
VOE14606451,470 mm
VOE4881639760 mm
VOE51671563,800 mm
VOE146035321,160 mm
VOE148801281,570 mm
VOE148801391,800 mm
VOE148807391,800 mm
VOE148813631,250 mm
VOE150067912,250 mm
VOE1501445314,350 mm
VOE15043122900 mm
VOE15055584650 mm
VOE151671583,450 mm
VOE151873651,650 mm
VOE151873674,650 mm

Original handwritten sheets

Complete pages are shown in their original proportions without cropping.

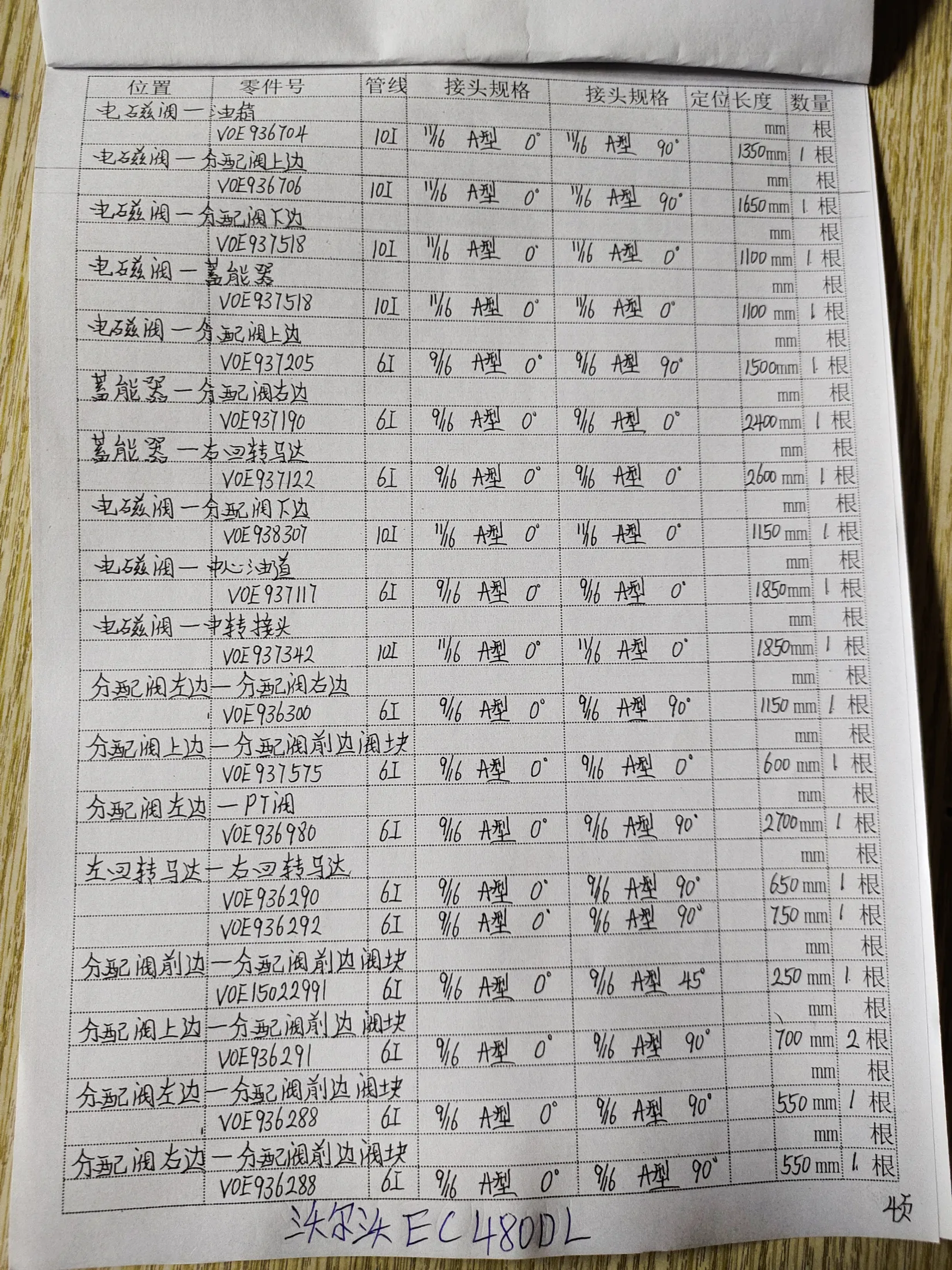

Volvo EC480DLC hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5 — recorded hose parts VOE936290, VOE936291, VOE936292
Notebook page 4 of 5Recorded on this sheet: VOE936290 — 650 mm; VOE936291 — 700 mm; VOE936292 — 750 mm; VOE936300 — 1,150 mm; and 9 more recorded hoses.

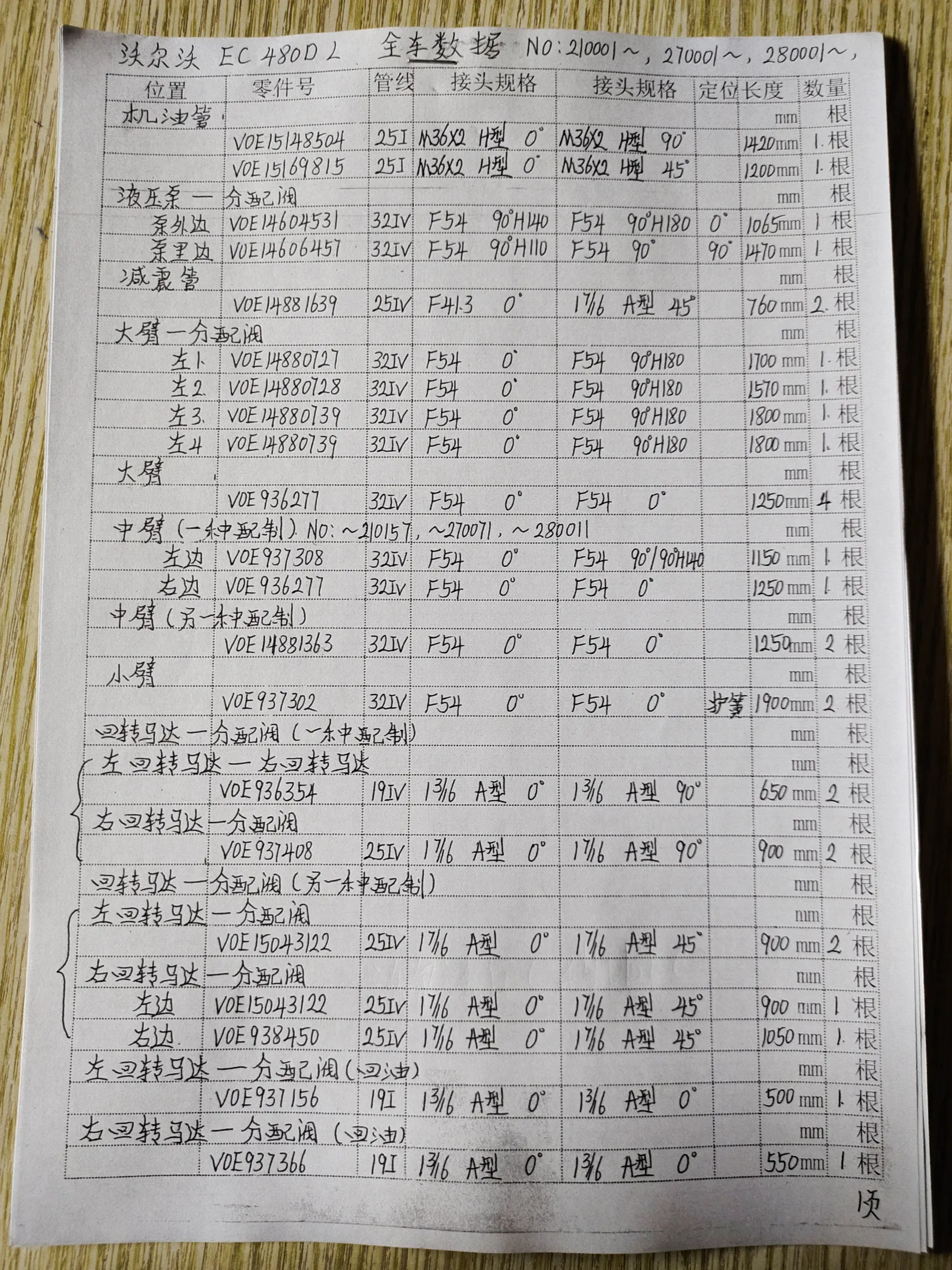

Volvo EC480DLC hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5 — recorded hose parts VOE1460453, VOE1460645, VOE14880128
Notebook page 1 of 5Recorded on this sheet: VOE1460453 — 1,065 mm; VOE1460645 — 1,470 mm; VOE14880128 — 1,570 mm; VOE14880139 — 1,800 mm; and 12 more recorded hoses.

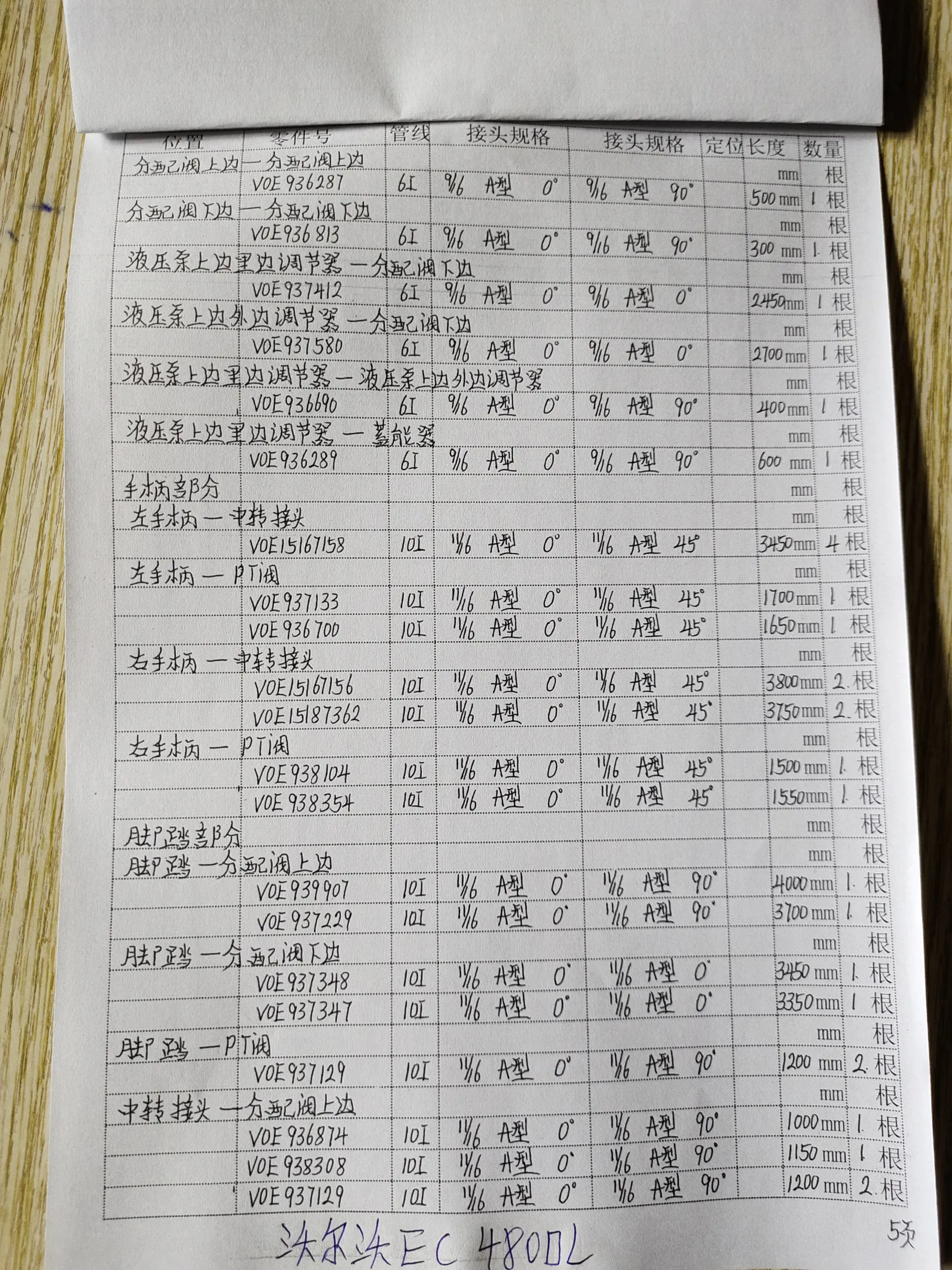

Volvo EC480DLC hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5 — recorded hose parts VOE15167158, VOE5167156, VOE936090
Notebook page 5 of 5Recorded on this sheet: VOE15167158 — 3,450 mm; VOE5167156 — 3,800 mm; VOE936090 — 400 mm; VOE936287 — 500 mm; and 8 more recorded hoses.

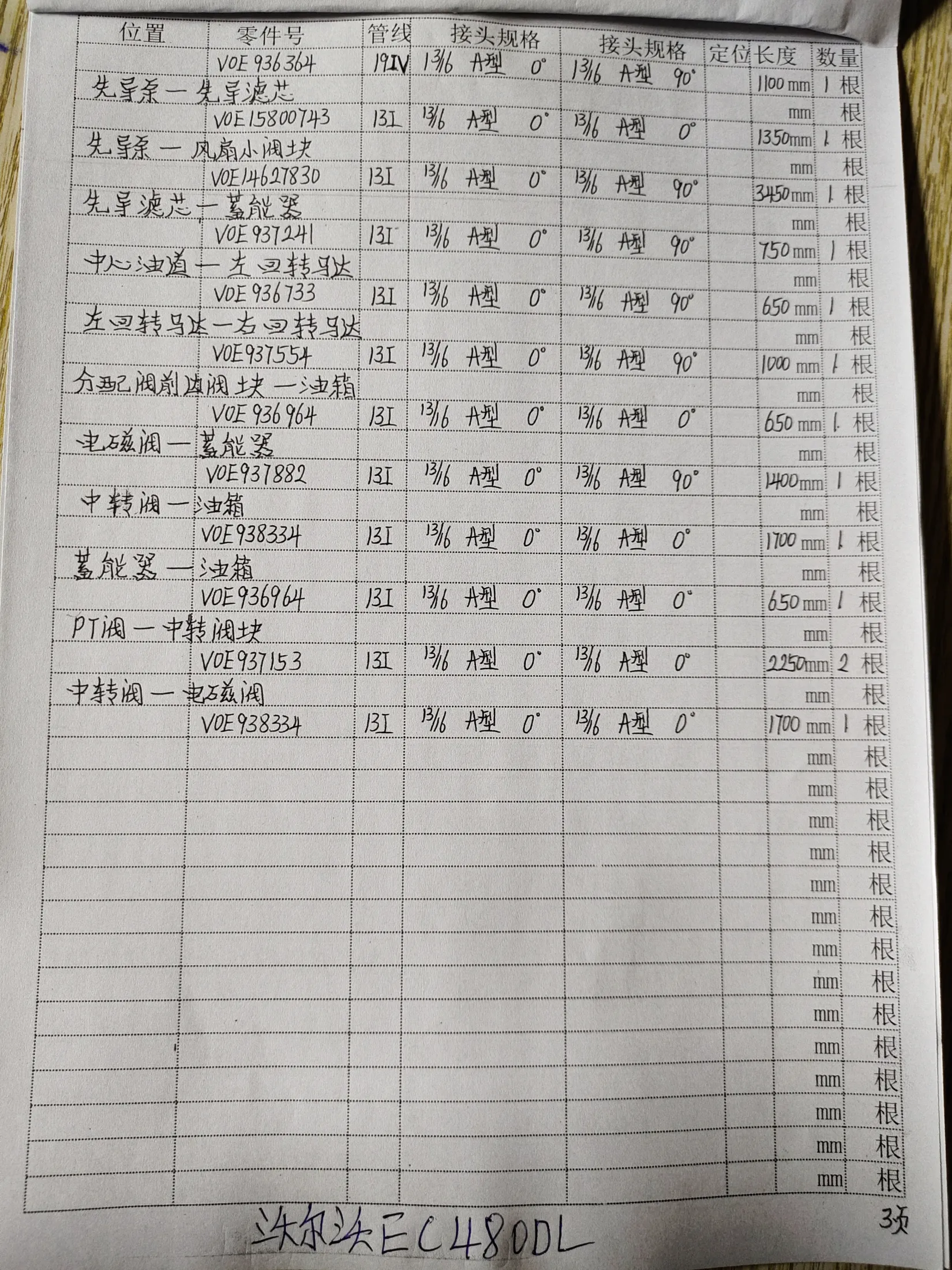

Volvo EC480DLC hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5 — recorded hose parts VDE936733, VOE15800T4, VOE462783
Notebook page 3 of 5Recorded on this sheet: VDE936733 — 650 mm; VOE15800T4 — 1,350 mm; VOE462783 — 3,450 mm; VOE936964 — 650 mm; and 4 more recorded hoses.
Volvo EC480DLC hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5 — recorded hose parts VOE14603532, VOE150026Z, VOE15006791
Notebook page 2 of 5Recorded on this sheet: VOE14603532 — 1,160 mm; VOE150026Z — 700 mm; VOE15006791 — 2,250 mm; VOE15014453 — 14,350 mm; and 7 more recorded hoses.
