Volvo EC700B LC Workshop Hose Notes

Workshop notebook pages related to the Volvo EC700B LC may help identify the machine or hose. Confirm all manufacturing specifications on the machine.

Fast lookup

Find the exact hose data you need

Search the complete catalog by model, brand, part number, system, hose specification, or installation route.

A model or part number usually gives the fastest result.

Technician notes

Workshop measurements

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.

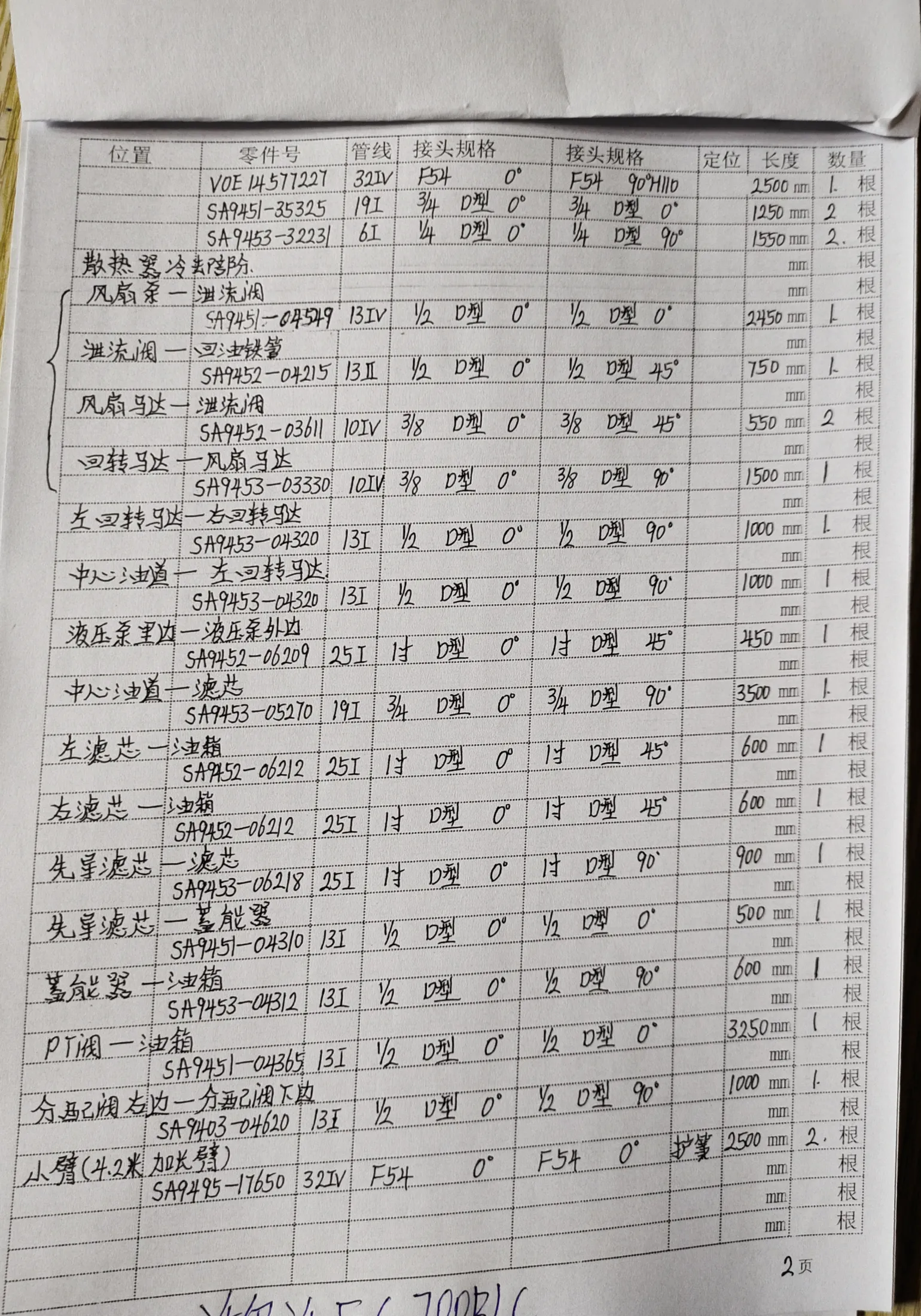

Volvo EC700B LC hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5
Notebook page 2 of 5View full-size

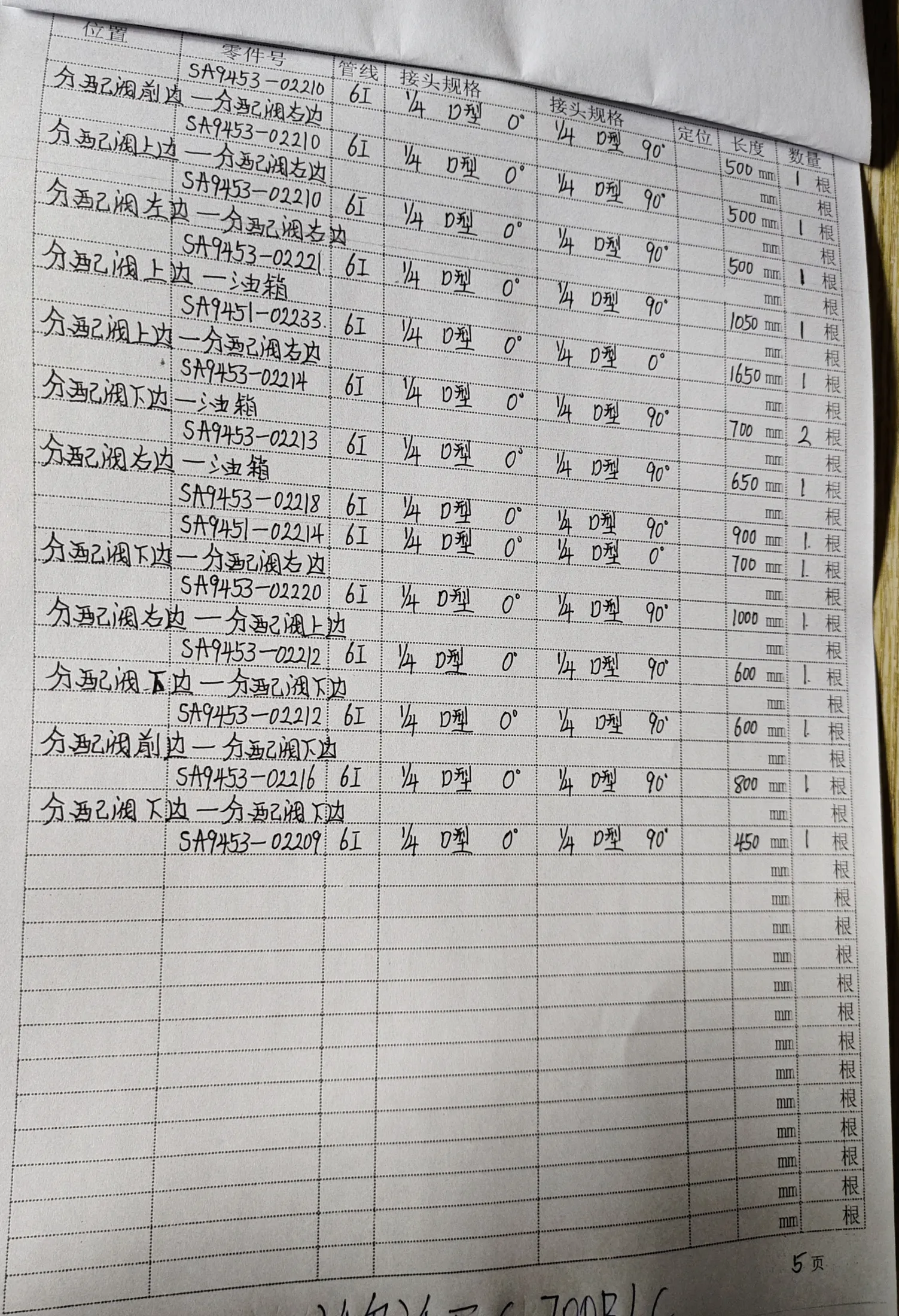

Volvo EC700B LC hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5
Notebook page 5 of 5View full-size

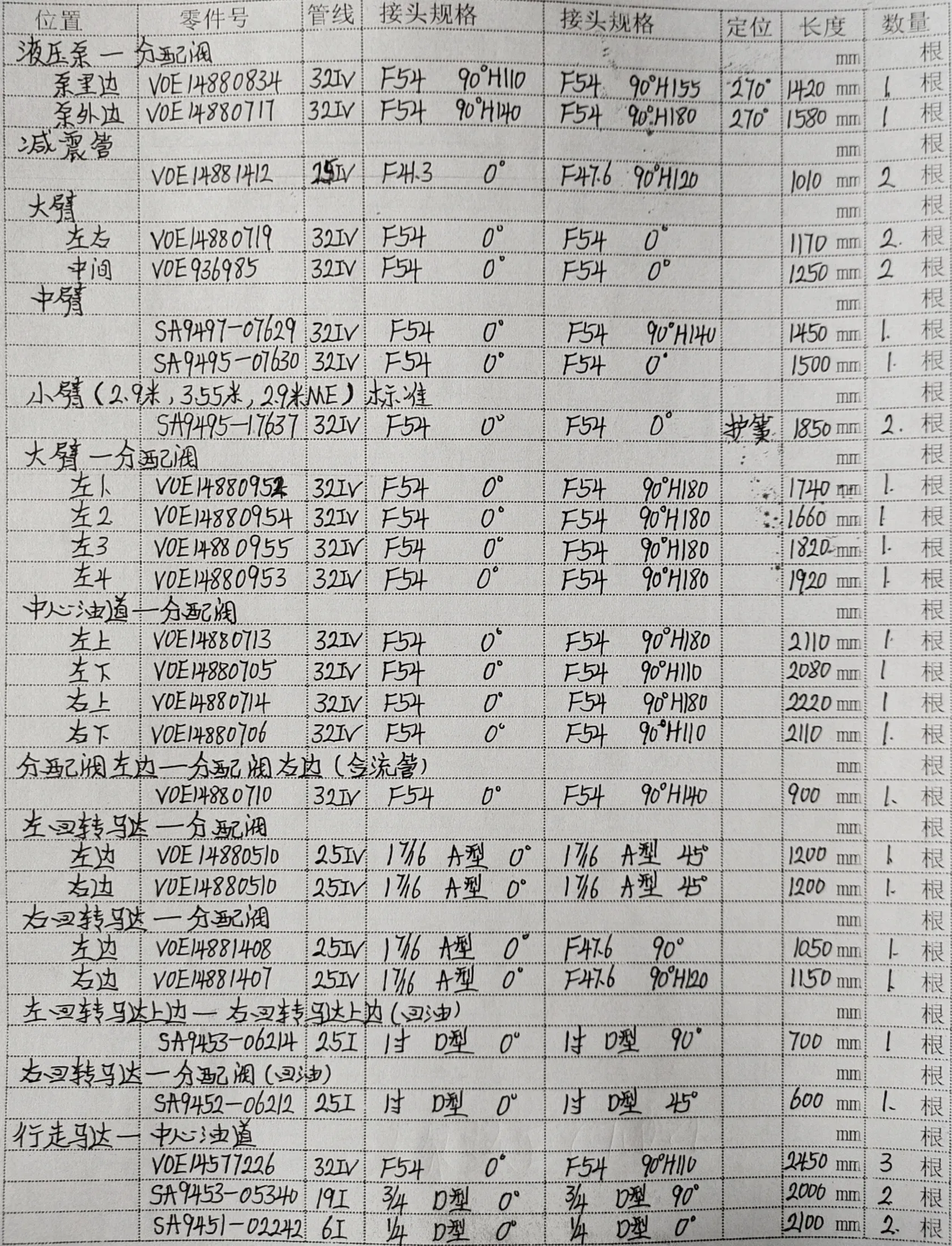

Volvo EC700B LC hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5
Notebook page 1 of 5View full-size

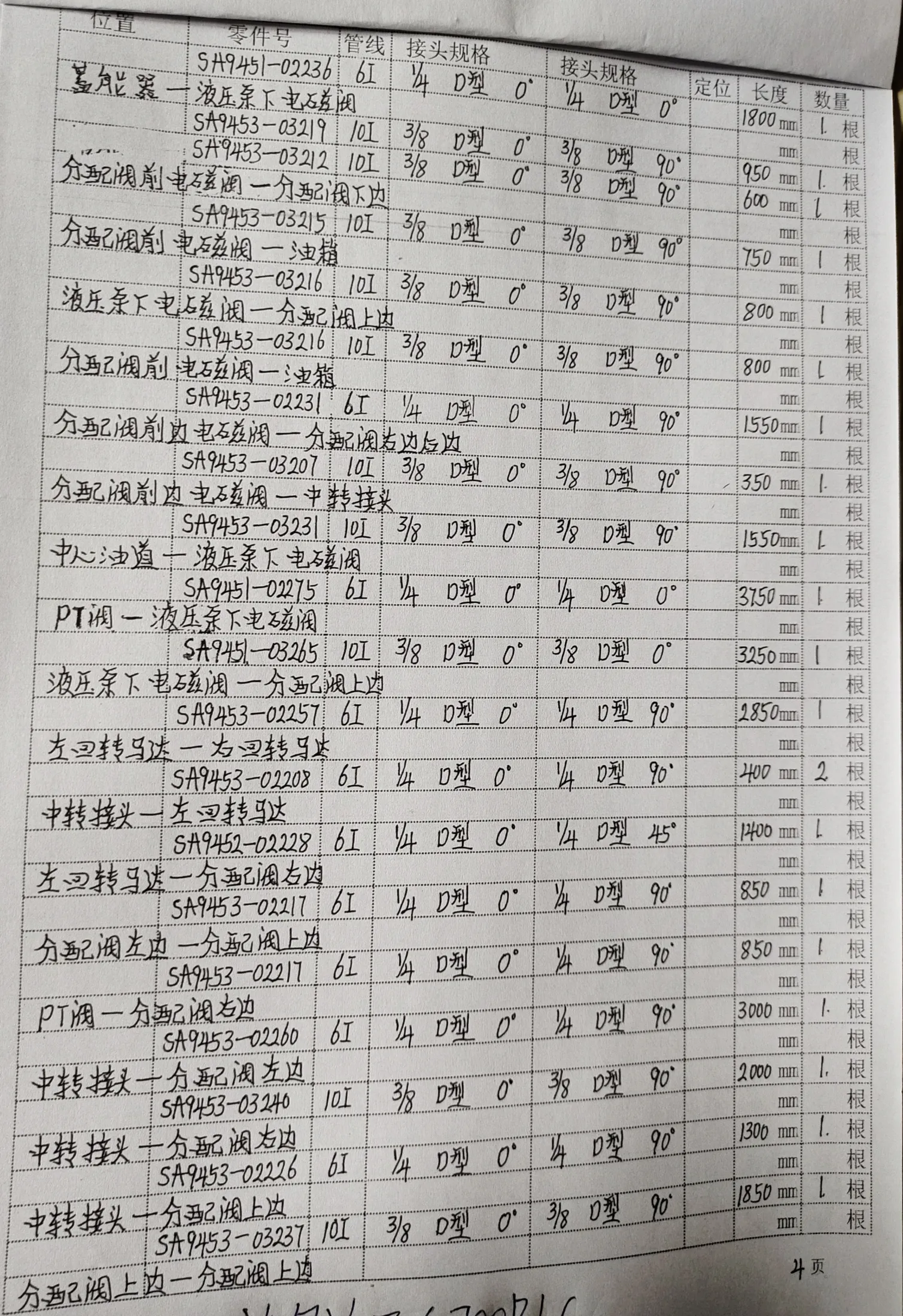

Volvo EC700B LC hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5
Notebook page 4 of 5View full-size

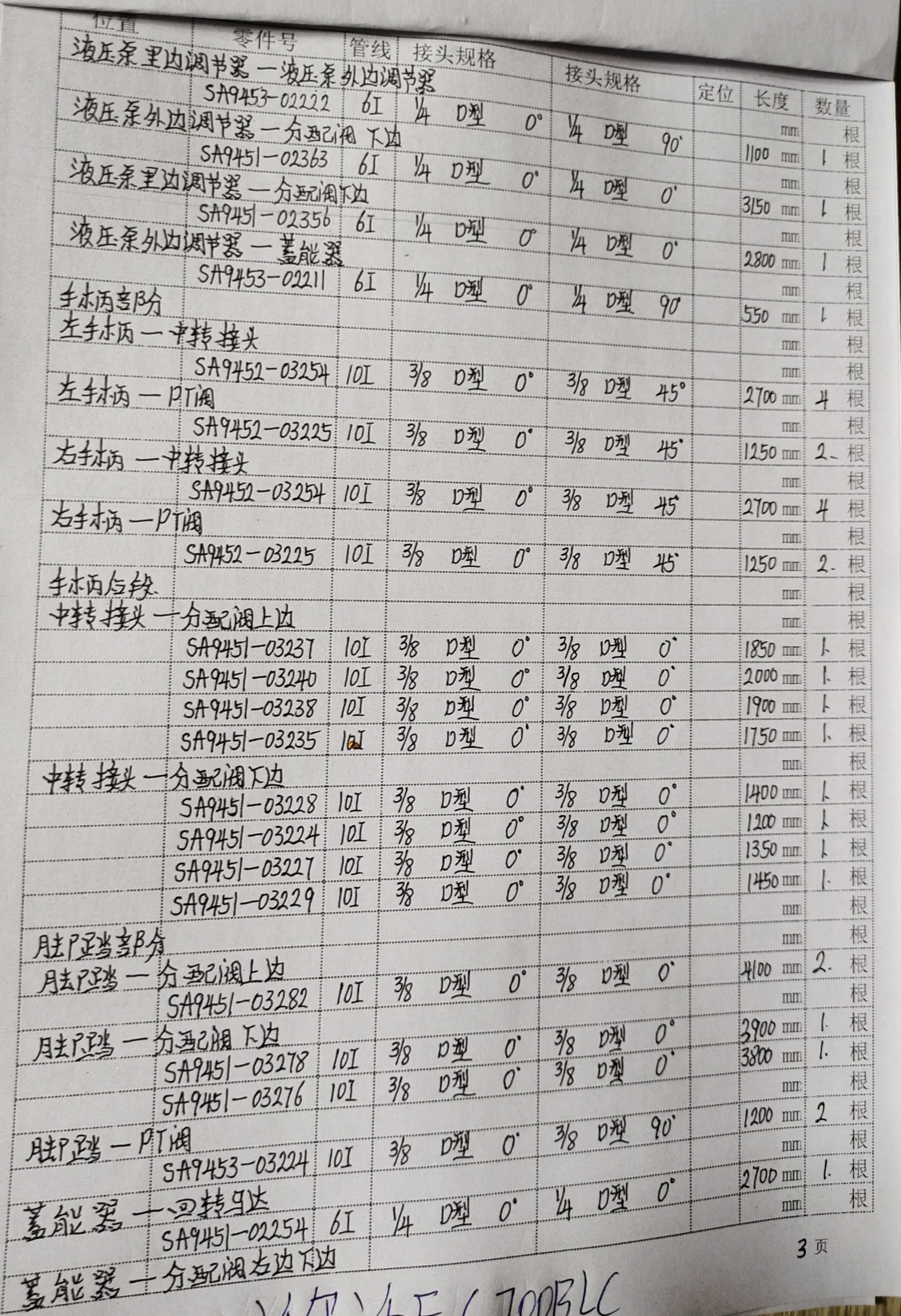

Volvo EC700B LC hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5
Notebook page 3 of 5View full-size
