XCMG XW150D Hydraulic Hose Length & Fitting Lookup
Available XCMG XW150D workshop notes include part numbers and recorded lengths for hose lookup. Verify every value and both fittings on the machine before fabrication.
Fast lookup
Find the exact hose data you need
Search the complete catalog by model, brand, part number, system, hose specification, or installation route.
A model or part number usually gives the fastest result.
Digitized data and source sheets
XCMG XW150D Hose Data and Original Handwritten Sheets
The table is a searchable transcription of the XCMG XW150D workshop notes. The complete original handwritten sheets are shown below without cropping.
Digitized measurements from these sheets
| Part number | Recorded length |
|---|---|
| 4YAF00000206 | 825 mm |
| A3-437 | 520 mm |
| A3-650 | 12,200 mm |
| A3-4309 | 13,250 mm |
| A3-4320 | 800 mm |
| A3-4384 | 2,900 mm |
| A3-6572 | 1,600 mm |
| A3-7834 | 300 mm |
| A3-43082 | 1,400 mm |
| A3-43083 | 11,150 mm |
| A3-430510 | 3,200 mm |
| A3-430520 | 600 mm |
| A3-430523 | 3,000 mm |
| A3-430534 | 1,000 mm |
| F000000901 | 1,350 mm |
| F000000902 | 12,900 mm |
| F000000909 | 1,600 mm |
| F00000201 | 580 mm |
| F000002051 | 100 mm |
| F000002071 | 690 mm |
| F0000020771 | 650 mm |
| F000002078 | 1,000 mm |
| F000002079 | 2,750 mm |
| F000002082 | 480 mm |
| F000002083 | 680 mm |
| F000002086 | 490 mm |
| F000002100 | 480 mm |
| F000002107 | 880 mm |
| F000002112 | 480 mm |
| F000003114 | 2,700 mm |
| F000003195 | 2,400 mm |
| F000005008 | 870 mm |
| F000005054 | 350 mm |
| F000005057 | 1,800 mm |
| F000005058 | 1,040 mm |
| F000005060 | 1,900 mm |
| F000005062 | 3,050 mm |
| F000005069 | 2,460 mm |
| F000005074 | 540 mm |
| F000005078 | 1,350 mm |
| F000005081 | 1,170 mm |
| F000005082 | 1,040 mm |
| F00002103 | 630 mm |
| F0000506 | 360 mm |
| F00005073 | 490 mm |
| L32F0000020771 | 650 mm |

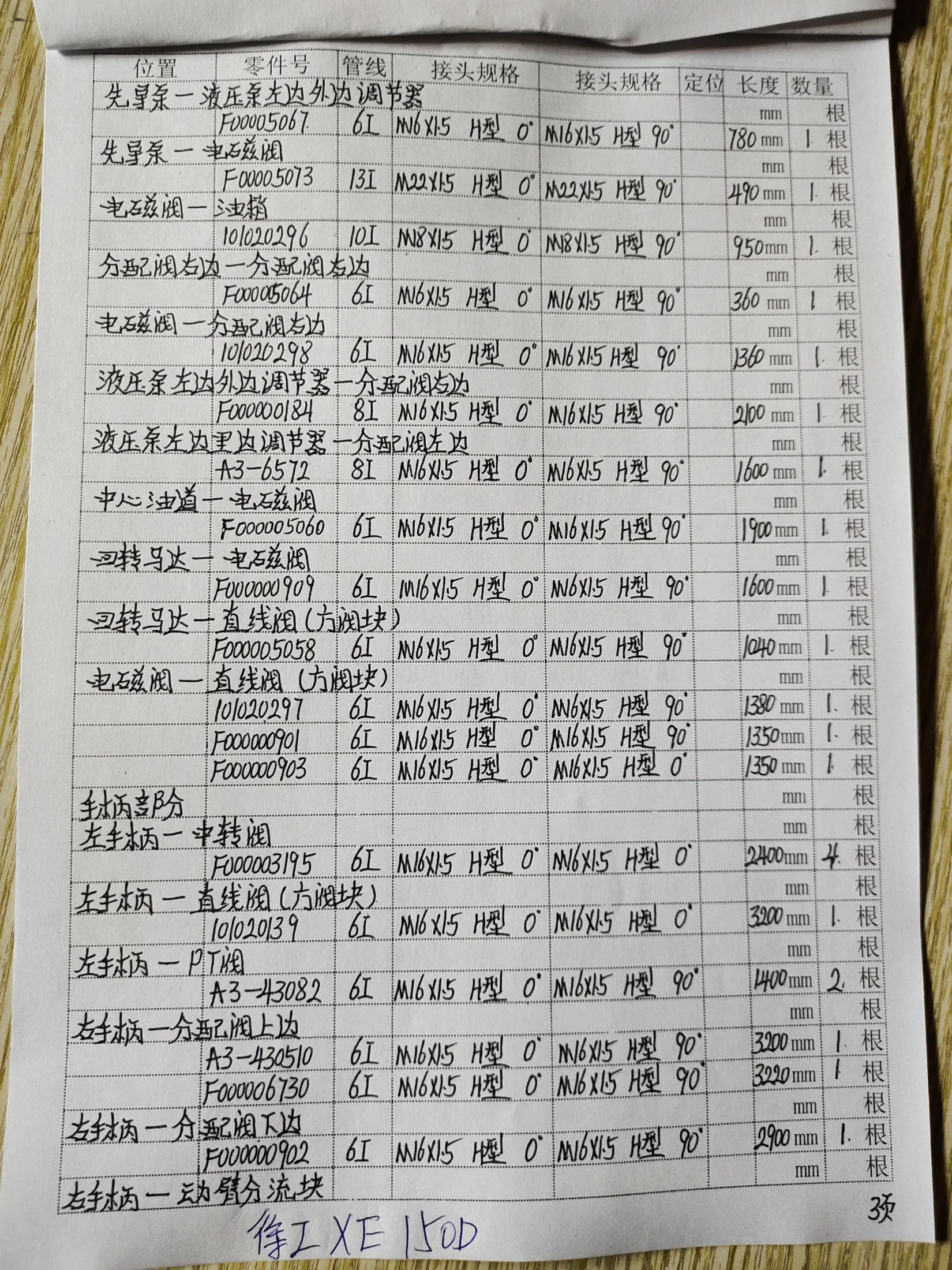

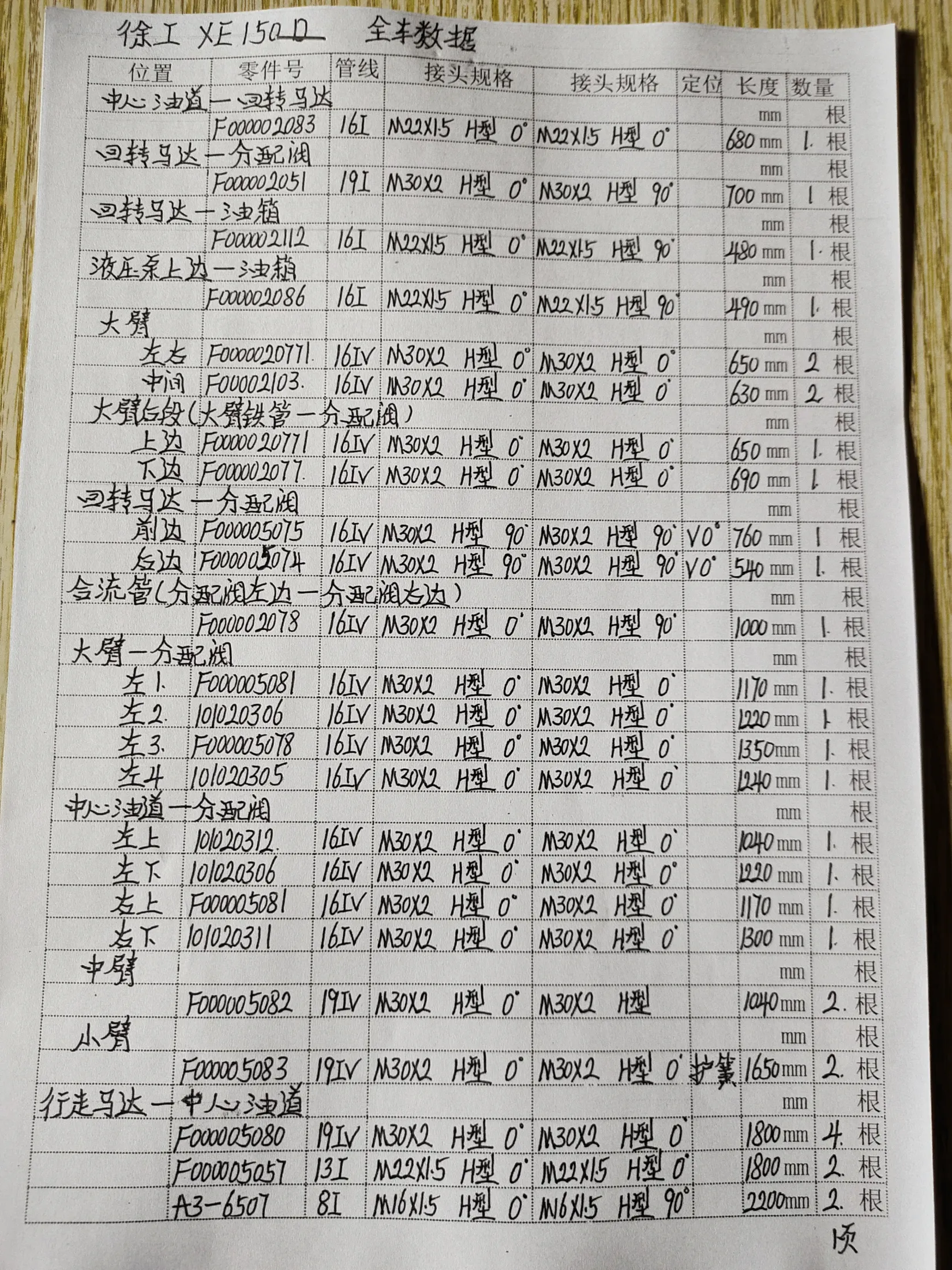

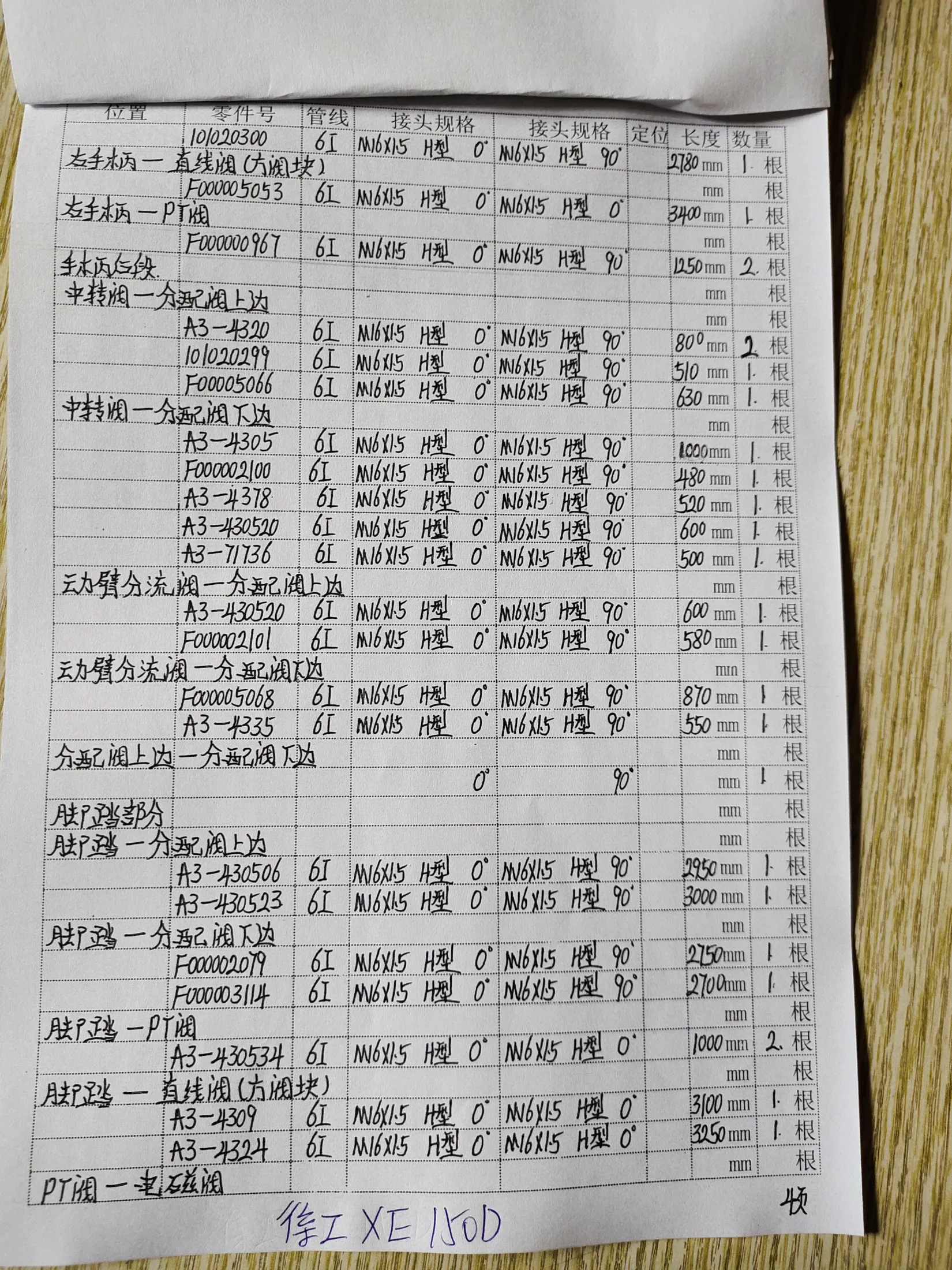

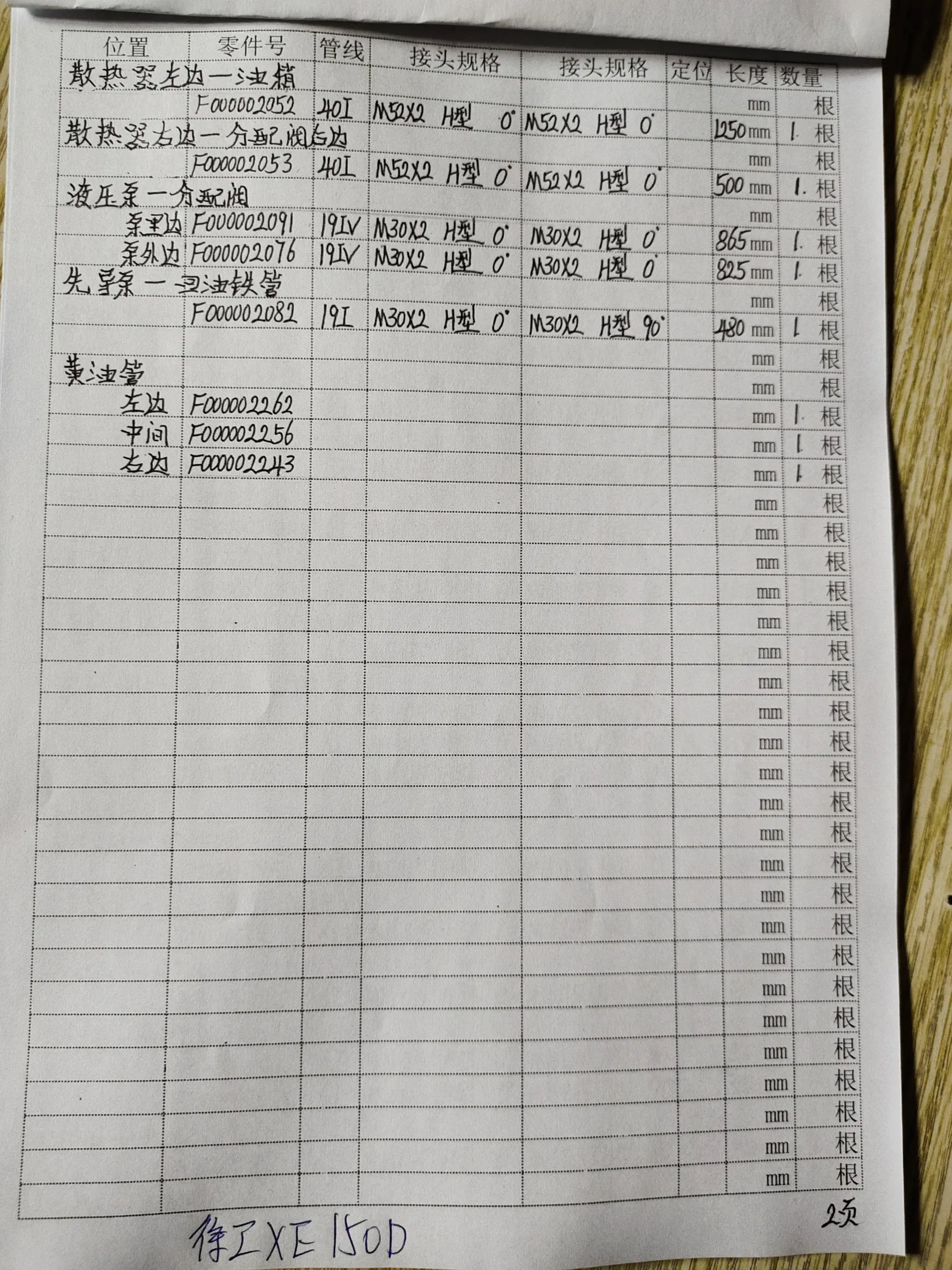

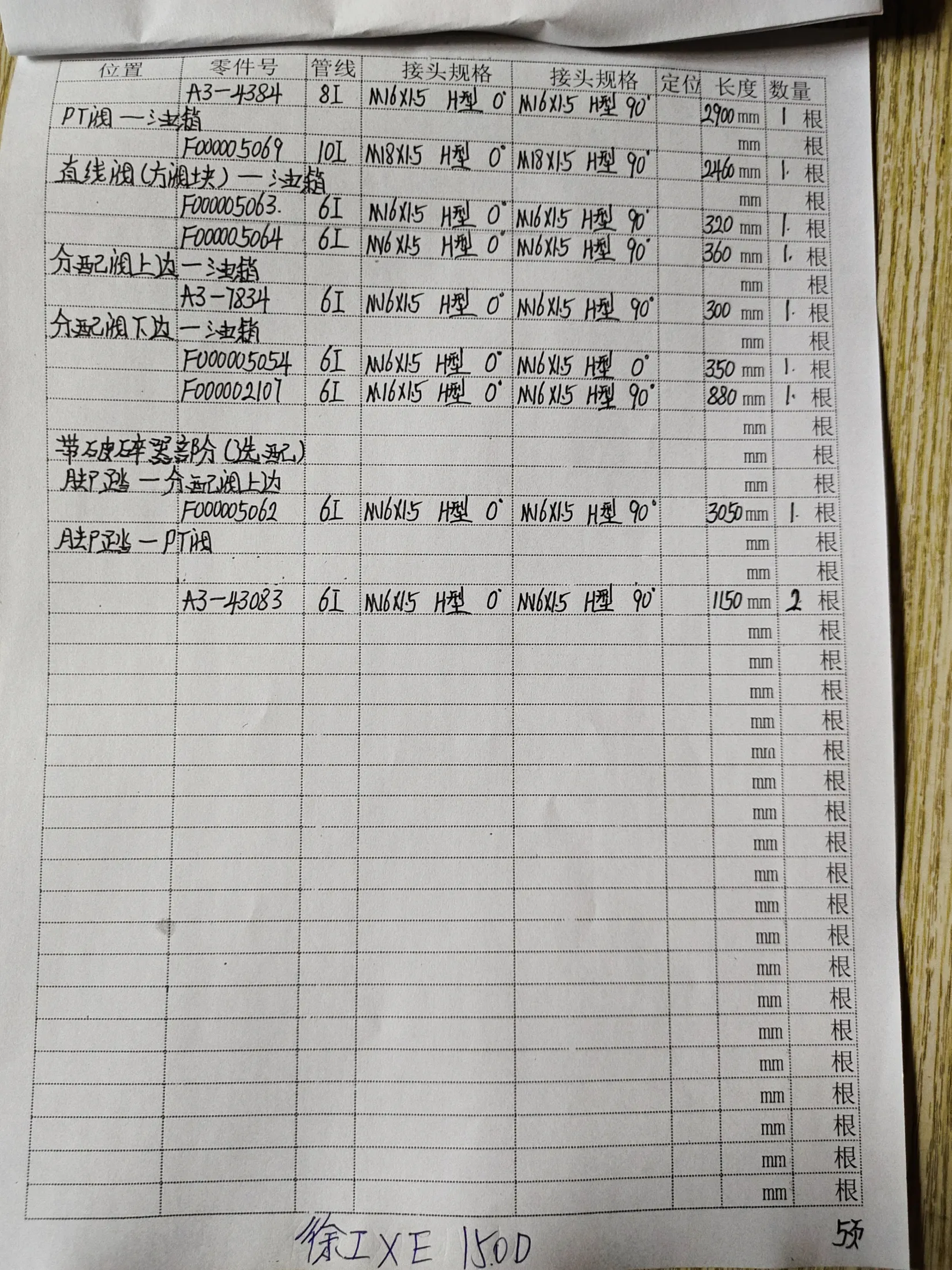

Original handwritten sheets
Complete pages are shown in their original proportions without cropping.
