5C-2584 Hose Repair Specifications

Excavator · Caterpillar · CAT®219 · Control Valve

Finished length975 mm

Locate this hose

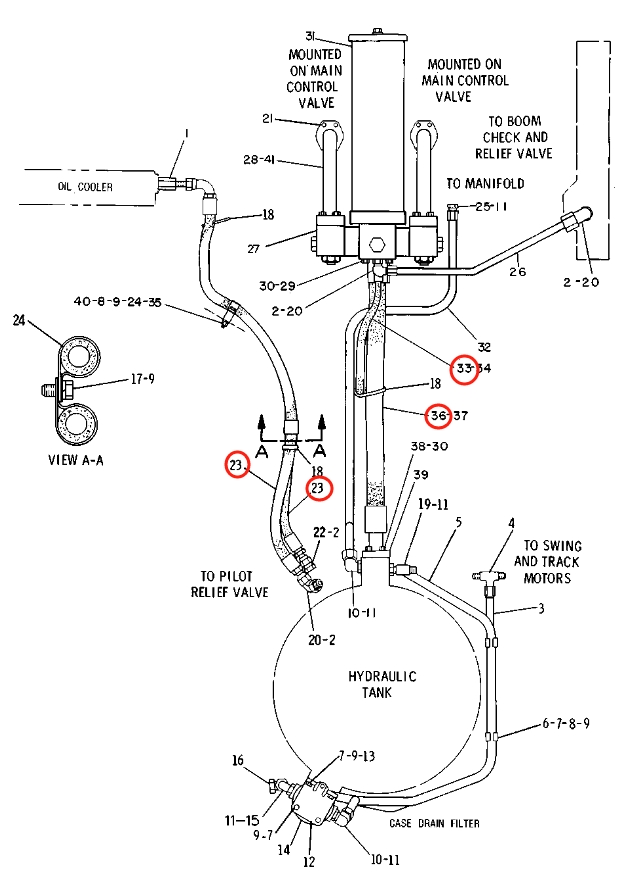

Installation diagram — Pipe No. 36

Locate Pipe No. 36 in the diagram, then confirm part number 5C-2584 before removing the hose.

Caterpillar CAT®219 installation diagram showing hydraulic hose 5C-2584 at Pipe No. 36 — Caterpillar CAT®219Part 5C-2584 · Pipe No. 36Open full-size diagram

Repair specifications

Part number: 5C-2584
Diagram pipe number: 36
Installation route: 分配阀~液压油箱
Hose specification: DN38;4SP-24;17.5Mpa
Finished length: 975 mm
Working pressure: 17.5 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

5C-5138

Installation route: 分配阀~大臂

Length: 1,140 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

9D-5861

Installation route: 分配阀~过渡阀块

Length: 1,077 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 33

9D-5379

Installation route: 分配阀~液压油箱

Length: 673 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 5

6A-7864

Installation route: 分配阀~过渡阀块(分配阀后)

Length: 889 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

2V-1821

Installation route: 分配阀~

Length: 1,100 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
