5C-5138 Hose Repair Specifications
Excavator · Caterpillar · CAT®219 · Control Valve
Finished length1,140 mm
Locate this hose

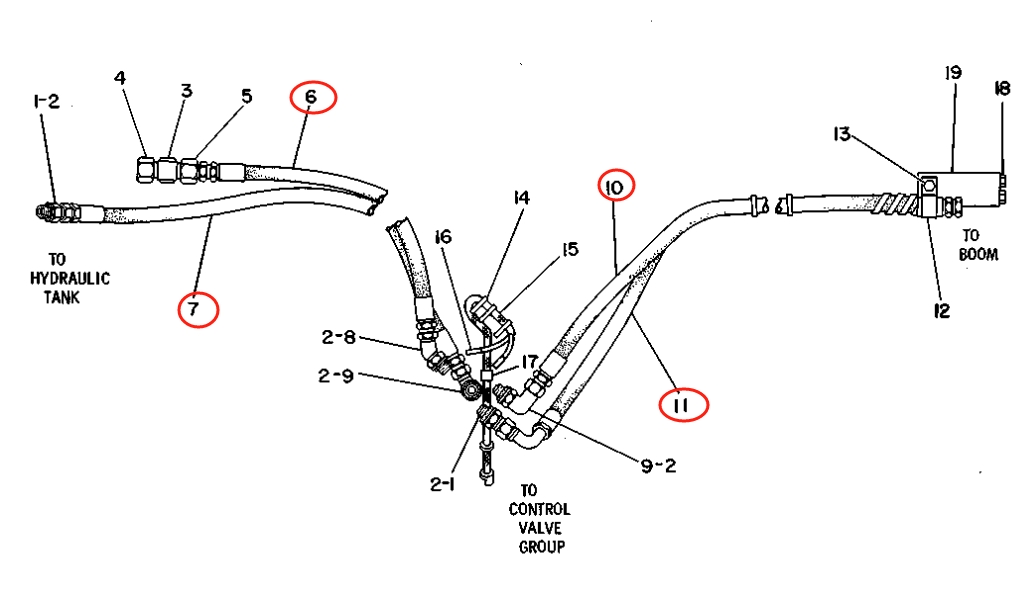

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 5C-5138 before removing the hose.
Repair specifications
- Part number
- 5C-5138
- Diagram pipe number
- 10
- Installation route
- 分配阀~大臂
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 1,140 mm
- Working pressure
- 8.7 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,077 mm
- Specification
- DN10;4SP-6;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 673 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 889 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,100 mm
- Specification
- DN10;4SP-6;28Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
