Hose assembly specifications

F069280 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1470G Wheeled Harvester

Total length2,500 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

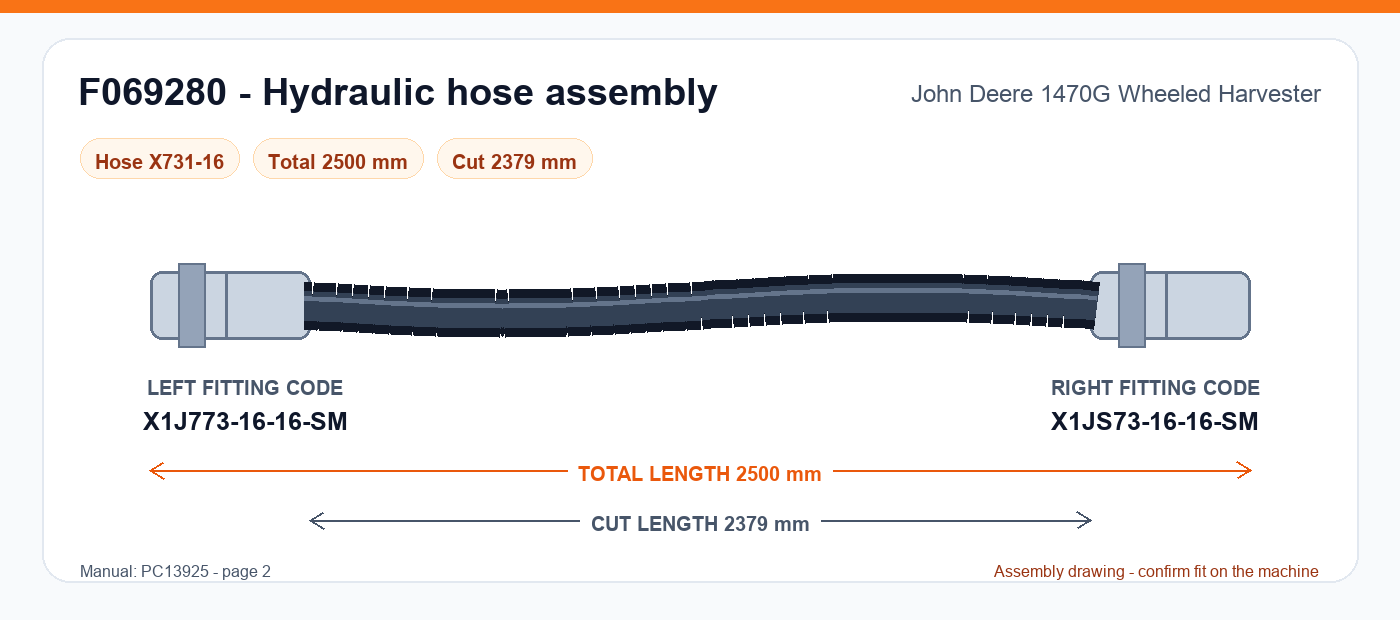

F069280 hydraulic hose assembly drawing for John Deere 1470G Wheeled Harvester - 2,500 mm total length, left fitting X1J773-16-16-SM, right fitting X1JS73-16-16-SM — F069280 - 2,500 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1470G Wheeled Harvester
Part number: F069280
Hose type: X731-16
Total length: 2,500 mm
Cut length: 2,379 mm
Left-end hydraulic fitting code: X1J773-16-16-SMLook up this code
Right-end hydraulic fitting code: X1JS73-16-16-SMLook up this code
Manual reference: PC13925, page 2

Hose assembly details

Part number: F069280
Hose type: X731-16
Total length: 2,500 mm
Cut length: 2,379 mm
Left fitting code: X1J773-16-16-SM
Right fitting code: X1JS73-16-16-SM
Application: 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey
Manual page: 2

Download manual
