Hose repair record
F048984 Hydraulic Hose Specifications
Forestry Machine · John Deere · 1470G Wheeled Harvester
Repair dataOpen with a pass

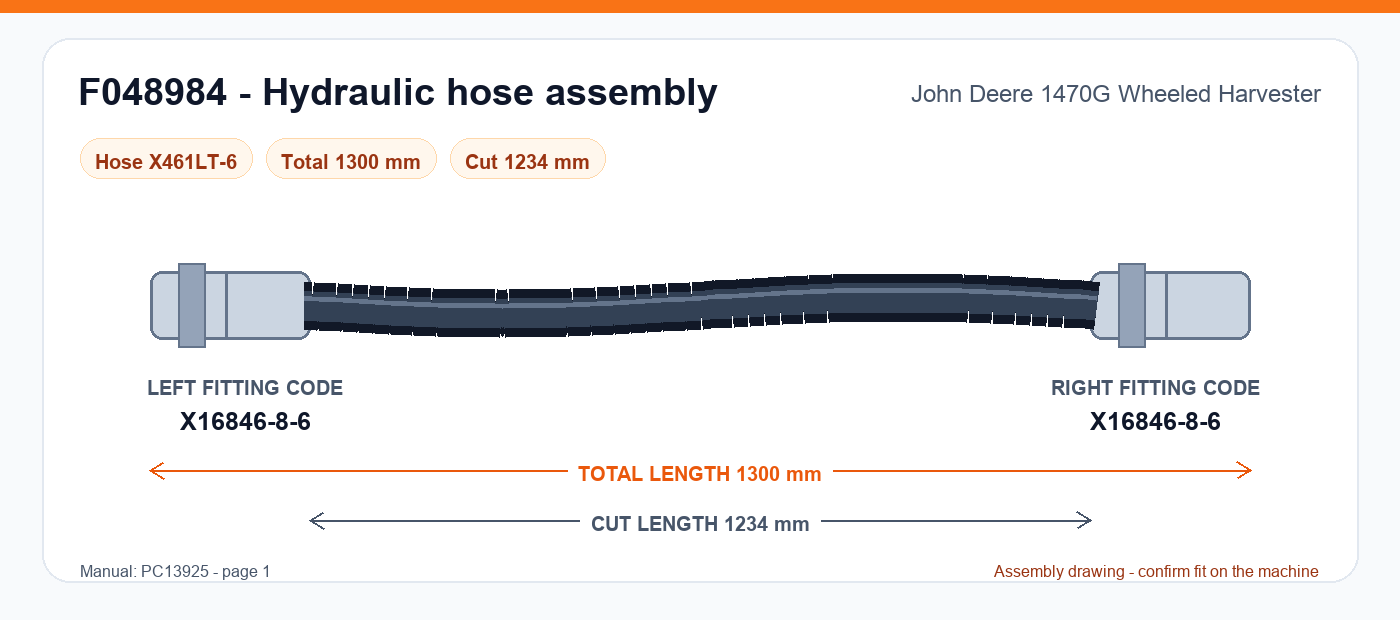

Hose drawing
Hose assembly drawing
Check the total length and both fitting codes before fabrication.
Repair measurements
These text values can be translated and copied. Confirm them against the machine before fabrication.
- Machine
- John Deere 1470G Wheeled Harvester
- Part number
- F048984
- Hose type
- X461LT-6
- Total length
- 1,300 mm
- Cut length
- 1,234 mm
- Left-end hydraulic fitting code
- X16846-8-6Look up this code
- Right-end hydraulic fitting code
- X16846-8-6Look up this code
- Manual reference
- PC13925, page 1
Identify this hose
- Part number
- F048984
- Application
- 1470G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey
