5I-3124 Hose Repair Specifications

Excavator · Caterpillar · CAT®317-A N · Hydraulic Pump

Finished length700 mm

Locate this hose

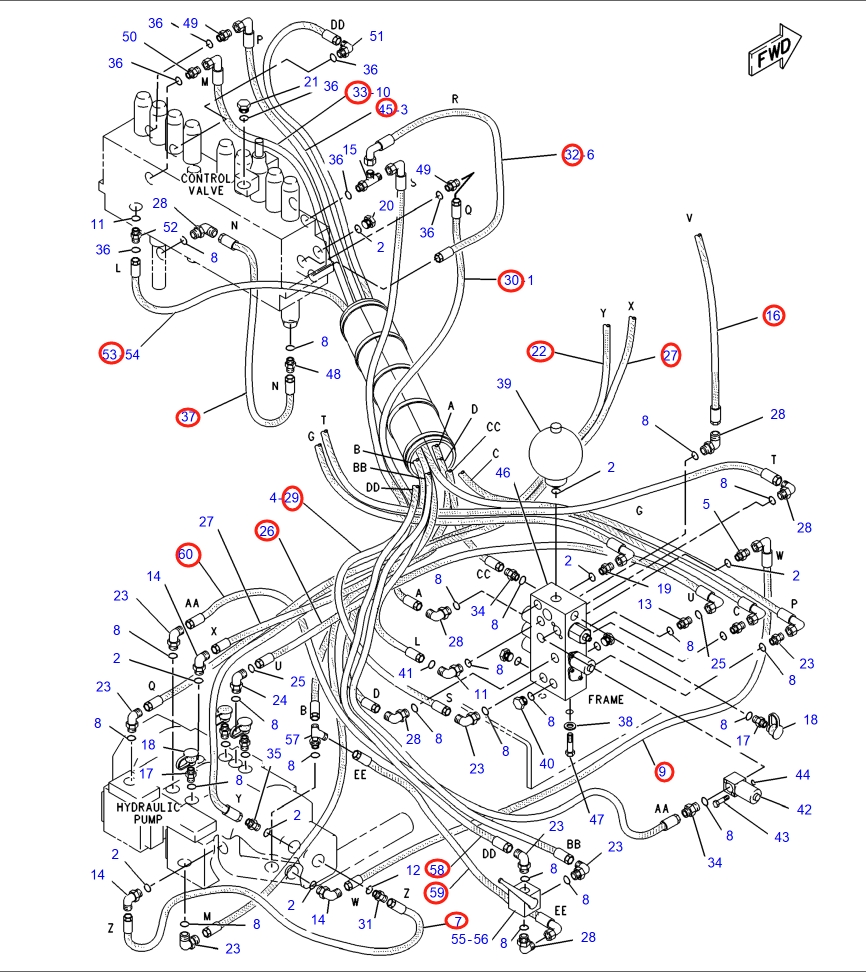

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number 5I-3124 before removing the hose.

Caterpillar CAT®317-A N installation diagram showing hydraulic hose 5I-3124 at Pipe No. 22
Caterpillar CAT®317-A NPart 5I-3124 · Pipe No. 22Open full-size diagram

Repair specifications

Part number
5I-3124
Diagram pipe number
22
Installation route
液压泵~
Hose specification
DN10;-6;10.3Mpa
Finished length
700 mm
Working pressure
10.3 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 7

7I-0903

Installation route: 液压泵~液压泵吸油铁管

Length
600 mm
Specification
DN13;-8;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
